REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC of Ferrari Ferrari F12 Berlinetta

View All

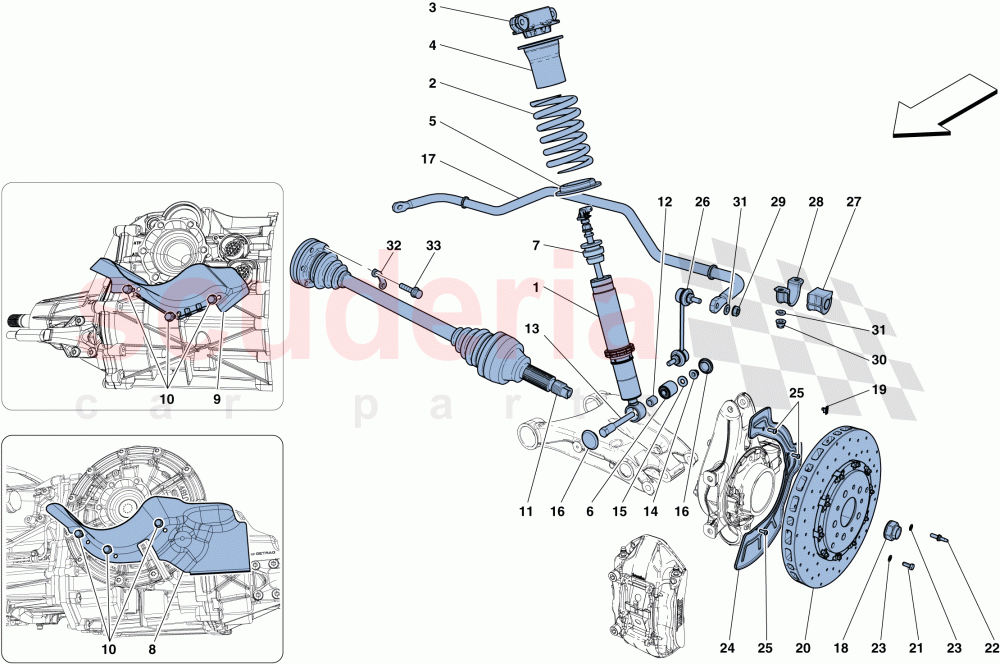

Ferrari F12 Berlinetta - REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	286346	REAR SHOCK ABSORBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	267376	SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	274308	STOP CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	212517	UPPER SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	211236	LOWER SPRING SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157630	BALL JOINT	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	281221	ENDSTOP BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	259461	RH AXLE SHAFT HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248707	LH AXLE SHAFT HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16296934	SCREW 6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	274635	AXLE SHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	237821	BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	246962	SPECIAL SCREW M12 X 1.25	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	255271	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12646921	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14507987	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262790	STABILISER BAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	203780	Hub Nut Hex	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	303385	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	228131	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104370	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	228132	SPRING WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	257424	RH REAR DISC SHIELD	Enquire	To Order
	257423	LH REAR DISC SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	250657	SCREW M6 X 14	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	242392	BALL-JOINT TIE-ROD	Enquire	To Order
	242391	BALL-JOINT TIE-ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	236242	Roll Bar Bush D21 x 36	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	244778	RETAINER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10791014	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12578321	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601474	WAVY WASHER 10MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	220325	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	237590	SCREW	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	286346	REAR SHOCK ABSORBER	286346 REAR SHOCK ABSORBER	-	2	Enquire
2	267376	SPRING	267376 SPRING	-	2	Enquire
3	274308	STOP CAP	274308 STOP CAP	-	2	Enquire
4	212517	UPPER SPACER	212517 UPPER SPACER	-	2	Enquire
5	211236	LOWER SPRING SPACER	211236 LOWER SPRING SPACER	-	2	Enquire
6	157630	BALL JOINT ARRIVING SOON	157630 BALL JOINT ARRIVING SOON	-	2	Enquire
7	281221	ENDSTOP BUSH	281221 ENDSTOP BUSH	-	2	Enquire
8	259461	RH AXLE SHAFT HEAT SHIELD	259461 RH AXLE SHAFT HEAT SHIELD	-	1	Enquire
9	248707	LH AXLE SHAFT HEAT SHIELD	248707 LH AXLE SHAFT HEAT SHIELD	-	1	Enquire
10	16296934	SCREW 6 X 14MM	16296934 SCREW 6 X 14MM M6 X 14	-	6	Enquire
11	274635	AXLE SHAFT	274635 AXLE SHAFT	-	2	Enquire
12	237821	BUSH	237821 BUSH	-	2	Enquire
13	246962	SPECIAL SCREW M12 X 1.25	246962 SPECIAL SCREW M12 X 1.25	-	2	Enquire
14	255271	NUT	255271 NUT	-	2	Enquire
15	12646921	WASHER	12646921 WASHER	-	2	Enquire
16	14507987	PLUG	14507987 PLUG	-	6	Enquire
17	262790	STABILISER BAR	262790 STABILISER BAR	-	1	Enquire
18	203780	Hub Nut Hex	203780 Hub Nut Hex	-	2	Enquire
19	303385	CLIP	303385 CLIP	-	2	Enquire
21	228131	SCREW	228131 SCREW M8 X 20	-	2	Enquire
22	104370	SCREW	104370 SCREW	-	2	Enquire
23	228132	SPRING WASHER	228132 SPRING WASHER	-	4	Enquire
24	257424	RH REAR DISC SHIELD	257424 RH REAR DISC SHIELD	-	1	Enquire
24	257423	LH REAR DISC SHIELD	257423 LH REAR DISC SHIELD	-	1	Enquire
25	250657	SCREW M6 X 14	250657 SCREW M6 X 14 M6 X 14	-	6	Enquire
26	242392	BALL-JOINT TIE-ROD	242392 BALL-JOINT TIE-ROD	-	1	Enquire
26	242391	BALL-JOINT TIE-ROD	242391 BALL-JOINT TIE-ROD	-	1	Enquire
27	236242	Roll Bar Bush D21 x 36	236242 Roll Bar Bush D21 x 36	-	2	Enquire
28	244778	RETAINER BRACKET	244778 RETAINER BRACKET	-	2	Enquire
29	10791014	NUT	10791014 NUT	-	2	Enquire
30	12578321	NUT	12578321 NUT	-	2	Enquire
31	12601474	WAVY WASHER 10MM	12601474 WAVY WASHER 10MM	-	4	Enquire
32	220325	PLATE	220325 PLATE	-	6	Enquire
33	237590	SCREW	237590 SCREW	-	12	Enquire
