Front Suspension - Shock Absorber And Brake Disc

Ferrari F12 Berlinetta

Find Your Part

Ferrari F12 Berlinetta - FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
280588 FRONT SHOCK ABSORBER Enquire To Order
Photo Part No Description Price (each) Stock
271805 SPRING Enquire To Order
276928 SPRING Enquire To Order
Photo Part No Description Price (each) Stock
250394 STOP CAP Enquire To Order
Photo Part No Description Price (each) Stock
212517 UPPER SPACER Enquire To Order
Photo Part No Description Price (each) Stock
188996 LOWER SPACER Enquire To Order
Photo Part No Description Price (each) Stock
157630 BALL JOINT Enquire ARRIVING SOON
Photo Part No Description Price (each) Stock
288828 ENDSTOP BUSH Enquire To Order
Photo Part No Description Price (each) Stock
268474 DUST COVER Enquire To Order
Photo Part No Description Price (each) Stock
300214 ACTUATOR Enquire ARRIVING SOON
262384 ACTUATOR Enquire To Order
Photo Part No Description Price (each) Stock
277168 HOSE Enquire To Order
Photo Part No Description Price (each) Stock
261587 HOSE Enquire To Order
Photo Part No Description Price (each) Stock
259638 GASKET 8.7 - 14 Enquire To Order
Photo Part No Description Price (each) Stock
237297 SCREW M12 X 1.25 X 8 Enquire To Order
Photo Part No Description Price (each) Stock
237821 BUSH Enquire To Order
Photo Part No Description Price (each) Stock
255271 NUT Enquire To Order
Photo Part No Description Price (each) Stock
12646921 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
260259 FRONT RH DISC SHIELD Enquire To Order
260258 FRONT LH DISC SHIELD Enquire To Order
260676 RH FRONT BRAKE DISC SHIELD Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
282082 COMPL. LH BRAKE AIR DUCT Enquire To Order
282083 COMPL. RH BRAKE AIR DUCT Enquire To Order
Photo Part No Description Price (each) Stock
16296934 SCREW 6 X 14MM Enquire To Order
Photo Part No Description Price (each) Stock
280481 BRACKET FASTENING DEFLECTOR TO LH LOWER ARM Enquire To Order
280482 BRACKET FASTENING DEFLECTOR TO RH LOWER ARM Enquire To Order
Photo Part No Description Price (each) Stock
10903624 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
12646604 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
291951 COMPL. LH AIR DEFLECTOR Enquire To Order
291952 COMPL. RH AIR DEFLECTOR Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
12646604 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
261214 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
277262 STABILISER BAR Enquire To Order
Photo Part No Description Price (each) Stock
10791014 NUT Enquire To Order
Photo Part No Description Price (each) Stock
12601474 WAVY WASHER 10MM Enquire To Order
Photo Part No Description Price (each) Stock
264117 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
12601474 WAVY WASHER 10MM Enquire To Order
Photo Part No Description Price (each) Stock
247950 LH SPHERICAL TIE-ROD Enquire To Order
247952 RH SPHERICAL TIE-ROD Enquire To Order
Photo Part No Description Price (each) Stock
236241 BUSH FOR BAR Enquire To Order
Photo Part No Description Price (each) Stock
245822 BUSHING RETAINER PLATE Enquire To Order
Photo Part No Description Price (each) Stock
286144 BUSHING MOUNT Enquire To Order
Photo Part No Description Price (each) Stock
248790 SCREW M12 X 1.25 X 50 Enquire To Order
Photo Part No Description Price (each) Stock
250657 SCREW M6 X 14 Enquire To Order
250657 SCREW M6 X 14 Enquire To Order
Photo Part No Description Price (each) Stock
104370 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
228131 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
228132 SPRING WASHER Enquire To Order
Photo Part No Description Price (each) Stock
203780 Hub Nut Hex Enquire To Order
Photo Part No Description Price (each) Stock
288829 STOP CAP Enquire To Order
Photo Part No Description Price (each) Stock
291864 ABS CABLE MOUNTING BRACKET Enquire To Order
View All

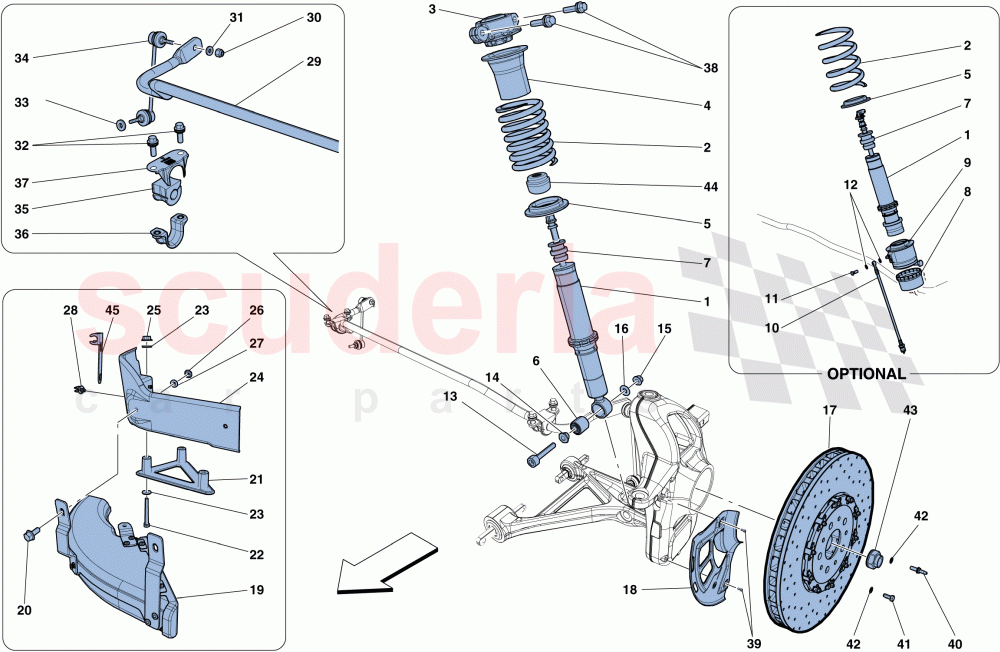

FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC of Ferrari Ferrari F12 Berlinetta Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 280588
FRONT SHOCK ABSORBER 		- 2 Enquire
2 271805
SPRING 		- 2 Enquire
2 276928
SPRING
Version with lifter 		- 2 Enquire
3 250394
STOP CAP 		- 2 Enquire
4 212517
UPPER SPACER 		- 2 Enquire
5 188996
LOWER SPACER 		- 2 Enquire
6 157630
BALL JOINT
ARRIVING SOON 		- 2 Enquire
7 288828
ENDSTOP BUSH 		- 2 Enquire
8 268474
DUST COVER
Version with lifter; Applicable for shock absorber 280585 and actuator 262384; Applicable up to Ass. No. 124777 		- 2 Enquire
9 300214
ACTUATOR
Version with lifter; Applicable for shock absorber 301449; Applicable from Ass. No. 124778
ARRIVING SOON 		- 1 Enquire
9 262384
ACTUATOR
Version with lifter; Applicable for shock absorber 280585; Applicable up to Ass. No. 124777 		- 1 Enquire
10 277168
HOSE
Version with lifter 		- 2 Enquire
11 261587
HOSE
Version with lifter 		- 2 Enquire
12 259638
GASKET 8.7 - 14
Version with lifter 		- 4 Enquire
13 237297
SCREW M12 X 1.25 X 8
M12 X 1.25 X 80 		- 2 Enquire
14 237821
BUSH 		- 2 Enquire
15 255271
NUT 		- 2 Enquire
16 12646921
WASHER 		- 2 Enquire
18 260259
FRONT RH DISC SHIELD
Applicable from Ass. No. 107423 		- 1 Enquire
18 260258
FRONT LH DISC SHIELD
Applicable from Ass. No. 107423 		- 1 Enquire
18 260676
RH FRONT BRAKE DISC SHIELD
Applicable up to Ass. No. 107422 		- 1 Enquire
18 260675
LH FRONT BRAKE DISC SHIELD
Applicable up to Ass. No. 107422 		- 1 Enquire
19 282082
COMPL. LH BRAKE AIR DUCT 		- 1 Enquire
19 282083
COMPL. RH BRAKE AIR DUCT 		- 1 Enquire
20 16296934
SCREW 6 X 14MM
M6 X 14 		- 4 Enquire
21 280481
BRACKET FASTENING DEFLECTOR TO LH LOWER ARM 		- 1 Enquire
21 280482
BRACKET FASTENING DEFLECTOR TO RH LOWER ARM 		- 1 Enquire
22 10903624
SCREW
M6 X 50 		- 6 Enquire
23 12646604
WASHER 		- 12 Enquire
24 291951
COMPL. LH AIR DEFLECTOR 		- 1 Enquire
24 291952
COMPL. RH AIR DEFLECTOR 		- 1 Enquire
25 14059290
FLANGED NUT M6 		- 6 Enquire
26 14059290
FLANGED NUT M6 		- 4 Enquire
27 12646604
WASHER 		- 4 Enquire
28 261214
CLIP 		- 2 Enquire
29 277262
STABILISER BAR 		- 1 Enquire
30 10791014
NUT 		- 2 Enquire
31 12601474
WAVY WASHER 10MM 		- 2 Enquire
32 264117
SCREW
M10 X 1.25 X 30 		- 4 Enquire
33 12601474
WAVY WASHER 10MM 		- 2 Enquire
34 247950
LH SPHERICAL TIE-ROD 		- 1 Enquire
34 247952
RH SPHERICAL TIE-ROD 		- 1 Enquire
35 236241
BUSH FOR BAR 		- 2 Enquire
36 245822
BUSHING RETAINER PLATE 		- 2 Enquire
37 286144
BUSHING MOUNT 		- 2 Enquire
38 248790
SCREW M12 X 1.25 X 50 		- 4 Enquire
39 250657
SCREW M6 X 14
M6 X 14; Applicable from Ass. No. 107423 		- 4 Enquire
39 250657
SCREW M6 X 14
M6 X 14; Applicable up to Ass. No. 107422 		- 4 Enquire
40 104370
SCREW 		- 2 Enquire
41 228131
SCREW
M8 X 20 		- 2 Enquire
42 228132
SPRING WASHER 		- 4 Enquire
43 203780
Hub Nut Hex 		- 2 Enquire
44 288829
STOP CAP 		- 1 Enquire
45 291864
ABS CABLE MOUNTING BRACKET 		- 1 Enquire
