Ferrari F12 Berlinetta - FUEL TANK, FUEL SYSTEM PUMPS AND PIPES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
273540 COMPL. INCLINATION SENSOR Enquire To Order
Photo Part No Description Price (each) Stock
282784 FUEL PUMP FILTER Enquire To Order
Photo Part No Description Price (each) Stock
282785 FUEL PUMP FILTER Enquire To Order
Photo Part No Description Price (each) Stock
239413 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
275998 FASTENER RING Enquire To Order
Photo Part No Description Price (each) Stock
272086 FUEL PUMP Enquire To Order
Photo Part No Description Price (each) Stock
272087 LH FUEL PUMP Enquire To Order
Photo Part No Description Price (each) Stock
290771 LOWER CONNECTOR PIPE Enquire To Order
Photo Part No Description Price (each) Stock
294152 LOW PRESSURE FUEL PIPE Enquire To Order
281193 LOW PRESSURE FUEL PIPE Enquire To Order
293233 LOW PRESSURE FUEL PIPE Enquire To Order
Photo Part No Description Price (each) Stock
14622387 CAP Enquire To Order
Photo Part No Description Price (each) Stock
235682 PIPE CLIP Enquire To Order
Photo Part No Description Price (each) Stock
320600 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
257886 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
281180 REAR FUEL DELIVERY PIPE Enquire To Order
Photo Part No Description Price (each) Stock
277364 FUEL DELIVERY PIPE, CENTRE SECTION Enquire To Order
Photo Part No Description Price (each) Stock
276001 FASTENER RING Enquire To Order
Photo Part No Description Price (each) Stock
275314 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
237407 ANTI SPIT-BACK VALVE Enquire To Order
Photo Part No Description Price (each) Stock
85833700 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
281598 COLLAR Enquire To Order
Photo Part No Description Price (each) Stock
178772 SPACER STUD Enquire To Order
Photo Part No Description Price (each) Stock
277360 HEAT SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
10441290 BRACKET WITH SHEATH Enquire To Order
Photo Part No Description Price (each) Stock
10441290 BRACKET WITH SHEATH Enquire To Order
Photo Part No Description Price (each) Stock
286193 FUEL PIPE FASTENER BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
238688 CONNECTOR Enquire To Order
Photo Part No Description Price (each) Stock
290800 CONNECTOR PIPE MOUNTING BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
263230 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
286534 PIPE MOUNTING BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
259508 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
10441290 BRACKET WITH SHEATH Enquire To Order
290424 BRACKET WITH SHEATH Enquire To Order
Photo Part No Description Price (each) Stock
81911600 SCREW Enquire To Order
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
296614 BRACKET WITH SHEATH Enquire To Order
Photo Part No Description Price (each) Stock
288623 COMPL. TANK Enquire To Order
Photo Part No Description Price (each) Stock
277365 FUEL TANK ANTI-VIBRATION PAD KIT Enquire To Order
Photo Part No Description Price (each) Stock
10815787 CLAMP Enquire To Order
View All

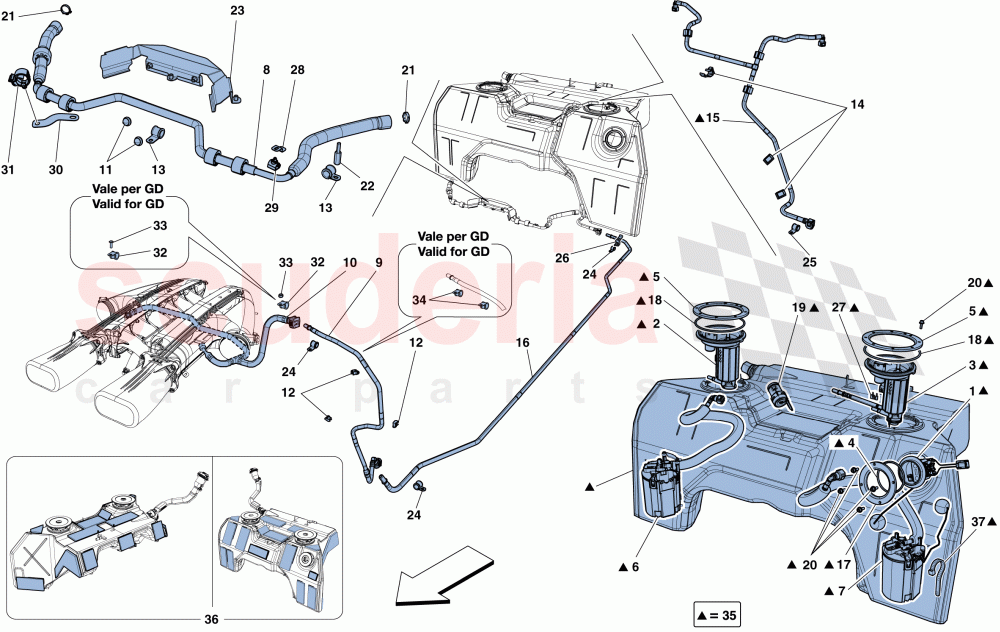

FUEL TANK, FUEL SYSTEM PUMPS AND PIPES of Ferrari Ferrari F12 Berlinetta Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 273540
COMPL. INCLINATION SENSOR 		- 1 Enquire
2 282784
FUEL PUMP FILTER 		- 1 Enquire
3 282785
FUEL PUMP FILTER 		- 1 Enquire
4 239413
O-RING 		- 1 Enquire
5 275998
FASTENER RING 		- 2 Enquire
6 272086
FUEL PUMP 		- 1 Enquire
7 272087
LH FUEL PUMP 		- 1 Enquire
8 290771
LOWER CONNECTOR PIPE 		- 1 Enquire
10 294152
LOW PRESSURE FUEL PIPE
Applicable for GD 		- 1 Enquire
10 281193
LOW PRESSURE FUEL PIPE
Not for USA, CDN, GD, USA LIGHT; Applicable up to Ass. No. 116671 		- 1 Enquire
10 293233
LOW PRESSURE FUEL PIPE
Not for USA, CDN, GD, USA LIGHT; Applicable from Ass. No. 116672 		- 1 Enquire
11 14622387
CAP 		- 2 Enquire
12 235682
PIPE CLIP
x2 for GD 		- 3 Enquire
13 320600
CLIP 		- 2 Enquire
14 257886
CLIP 		- 3 Enquire
15 281180
REAR FUEL DELIVERY PIPE 		- 1 Enquire
16 277364
FUEL DELIVERY PIPE, CENTRE SECTION 		- 1 Enquire
17 276001
FASTENER RING 		- 1 Enquire
18 275314
O-RING 		- 2 Enquire
19 237407
ANTI SPIT-BACK VALVE 		- 1 Enquire
20 85833700
SCREW
M5 X 16 		- 20 Enquire
21 281598
COLLAR 		- 2 Enquire
22 178772
SPACER STUD 		- 1 Enquire
23 277360
HEAT SHIELD 		- 1 Enquire
24 10441290
BRACKET WITH SHEATH
D. 10 		- 3 Enquire
25 10441290
BRACKET WITH SHEATH 		- 1 Enquire
26 286193
FUEL PIPE FASTENER BRACKET 		- 1 Enquire
27 238688
CONNECTOR 		- 2 Enquire
28 290800
CONNECTOR PIPE MOUNTING BRACKET 		- 1 Enquire
29 263230
CLIP 		- 1 Enquire
30 286534
PIPE MOUNTING BRACKET 		- 1 Enquire
31 259508
CLIP 		- 1 Enquire
32 10441290
BRACKET WITH SHEATH
Not for GD 		- 1 Enquire
32 290424
BRACKET WITH SHEATH
Applicable for GD 		- 1 Enquire
33 81911600
SCREW
M6 X 1 X 18; Applicable for GD 		- 1 Enquire
33 14059290
FLANGED NUT M6
Not for GD 		- 1 Enquire
34 296614
BRACKET WITH SHEATH
D. 10; Applicable for GD 		- 2 Enquire
35 288623
COMPL. TANK 		- 1 Enquire
36 277365
FUEL TANK ANTI-VIBRATION PAD KIT 		- 1 Enquire
37 10815787
CLAMP 		- 1 Enquire
