Ferrari F12 Berlinetta - BRAKE SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
289525 HYDRAULIC UNIT $5,799.00 To Order
Photo Part No Description Price (each) Stock
266675 ECU MOUNTING BRACKET $120.33 To Order
287877 ECU MOUNTING BRACKET $192.54 To Order
Photo Part No Description Price (each) Stock
232869 BUSH $42.98 To Order
Photo Part No Description Price (each) Stock
13839224 SCREW $2.79 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.51 To Order
Photo Part No Description Price (each) Stock
12647724 WASHER $0.15 To Order
Photo Part No Description Price (each) Stock
287782 PIPE FROM UNIT TO LH FRONT WHEEL $106.07 To Order
267734 PIPE FROM UNIT TO LH FRONT WHEEL $51.59 To Order
Photo Part No Description Price (each) Stock
267735 PIPE FROM MASTER CYLINDER TO UNIT PRIMARY INLET $59.35 To Order
287780 PIPE FROM MASTER CYLINDER TO UNIT PRIMARY INLET $57.75 To Order
Photo Part No Description Price (each) Stock
287781 PIPE FROM MASTER CYLINDER TO UNIT SECONDARY INLET $54.54 To Order
275077 PIPE FROM MASTER CYLINDER TO UNIT SECONDARY INLET $59.35 To Order
Photo Part No Description Price (each) Stock
284625 PIPE FROM UNIT TO RH FRONT WHEEL DISCONNECTOR $99.47 To Order
287785 PIPE FROM UNIT TO RH FRONT WHEEL DISCONNECTER $58.75 To Order
Photo Part No Description Price (each) Stock
284626 PIPE FROM UNIT TO LH REAR WHEEL DISCONNECTOR $104.28 To Order
287783 PIPE FROM UNIT TO LH REAR WHEEL DISCONNECTER $72.19 To Order
Photo Part No Description Price (each) Stock
275449 PIPE FROM DISCONNECTOR TO RH FRONT WHEEL $44.91 To Order
287846 PIPE FROM DISCONNECTOR TO RH FRONT WHEEL $57.33 To Order
Photo Part No Description Price (each) Stock
284623 PIPE FROM UNIT TO LH REAR WHEEL DISCONNECTOR $54.46 To Order
287784 PIPE FROM UNIT TO LH REAR WHEEL DISCONNECTER $111.79 To Order
Photo Part No Description Price (each) Stock
284624 PIPE FROM SECTION TO LH REAR WHEEL $75.95 To Order
Photo Part No Description Price (each) Stock
284627 PIPE FROM SECTION TO LH REAR WHEEL $74.52 To Order
Photo Part No Description Price (each) Stock
234286 CLIP $1.56 To Order
241118 CLIP $1.46 To Order
249782 CLIP $1.15 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
116374 CLIP $2.51 To Order
Photo Part No Description Price (each) Stock
262737 RUBBER RETAINER $6.56 To Order
Photo Part No Description Price (each) Stock
307688 YAW SENSOR $291.76 To Order
317783 YAW SENSOR $559.21 To Order
Photo Part No Description Price (each) Stock
16286124 SCREW $0.37 To Order
Photo Part No Description Price (each) Stock
296332 BRAKE PIPE MOUNTING BRACKET $54.54 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.68 To Order
Photo Part No Description Price (each) Stock
291251 CLIP $0.78 To Order
Photo Part No Description Price (each) Stock
291250 CLIP $0.78 To Order
Photo Part No Description Price (each) Stock
14054511 NUT $1.30 To Order
Photo Part No Description Price (each) Stock
13604015 SPACER $0.83 To Order
View All

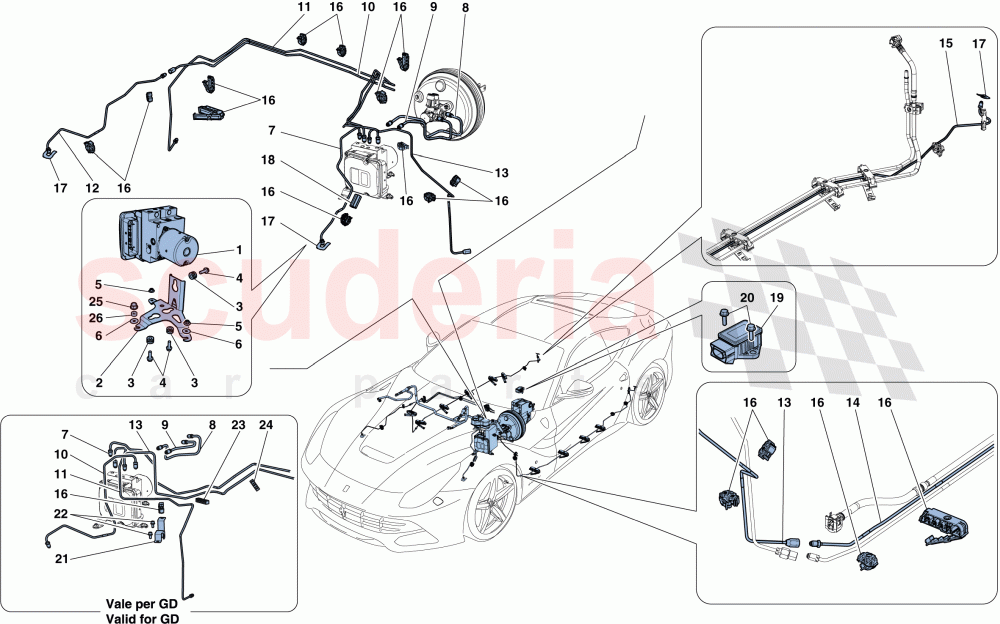

BRAKE SYSTEM of Ferrari Ferrari F12 Berlinetta Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 289525
HYDRAULIC UNIT 		$5,799.00 1
2 266675
ECU MOUNTING BRACKET
Not for GD 		$120.33 1
2 287877
ECU MOUNTING BRACKET
Applicable for GD 		$192.54 1
3 232869
BUSH 		$42.98 3
4 13839224
SCREW
M8 X 25 		$2.79 3
5 14059290
FLANGED NUT M6 		$1.51 2
6 12647724
WASHER 		$0.15 2
7 287782
PIPE FROM UNIT TO LH FRONT WHEEL
Applicable for GD 		$106.07 1
7 267734
PIPE FROM UNIT TO LH FRONT WHEEL
Not for GD 		$51.59 1
8 267735
PIPE FROM MASTER CYLINDER TO UNIT PRIMARY INLET
Not for GD 		$59.35 1
8 287780
PIPE FROM MASTER CYLINDER TO UNIT PRIMARY INLET
Applicable for GD 		$57.75 1
9 287781
PIPE FROM MASTER CYLINDER TO UNIT SECONDARY INLET
Applicable for GD 		$54.54 1
9 275077
PIPE FROM MASTER CYLINDER TO UNIT SECONDARY INLET
Not for GD 		$59.35 1
10 284625
PIPE FROM UNIT TO RH FRONT WHEEL DISCONNECTOR
Not for GD 		$99.47 1
10 287785
PIPE FROM UNIT TO RH FRONT WHEEL DISCONNECTER
Applicable for GD 		$58.75 1
11 284626
PIPE FROM UNIT TO LH REAR WHEEL DISCONNECTOR
Not for GD 		$104.28 1
11 287783
PIPE FROM UNIT TO LH REAR WHEEL DISCONNECTER
Applicable for GD 		$72.19 1
12 275449
PIPE FROM DISCONNECTOR TO RH FRONT WHEEL
Not for GD 		$44.91 1
12 287846
PIPE FROM DISCONNECTOR TO RH FRONT WHEEL
Applicable for GD 		$57.33 1
13 284623
PIPE FROM UNIT TO LH REAR WHEEL DISCONNECTOR
Not for GD 		$54.46 1
13 287784
PIPE FROM UNIT TO LH REAR WHEEL DISCONNECTER
Applicable for GD 		$111.79 1
14 284624
PIPE FROM SECTION TO LH REAR WHEEL 		$75.95 1
15 284627
PIPE FROM SECTION TO LH REAR WHEEL 		$74.52 1
16 234286
CLIP
4 compartments 		$1.56 2
16 241118
CLIP
5 compartments 		$1.46 10
16 249782
CLIP 		$1.15 2
16 234284
CLIP
1 compartment 		$0.63 2
16 234285
CLIP
2 compartments 		$0.70 9
16 284622
CLIP
3 compartments 		$1.85 2
17 116374
CLIP 		$2.51 (28.3% off) 4
18 262737
RUBBER RETAINER 		$6.56 1
19 307688
YAW SENSOR
Applicable until depletion 		$291.76 1
19 317783
YAW SENSOR
Applicable after depletion of 206070 		$559.21 1
20 16286124
SCREW
M6 X 20 		$0.37 2
21 296332
BRAKE PIPE MOUNTING BRACKET
Applicable for GD 		$54.54 1
22 248334
SCREW
M6 X 14; Applicable for GD 		$0.68 2
23 291251
CLIP
Applicable for GD 		$0.78 1
24 291250
CLIP
Applicable for GD 		$0.78 1
25 14054511
NUT 		$1.30 1
26 13604015
SPACER 		$0.83 1
