COOLING - HEADER TANK AND PIPES of Ferrari Ferrari F12 Berlinetta

View All

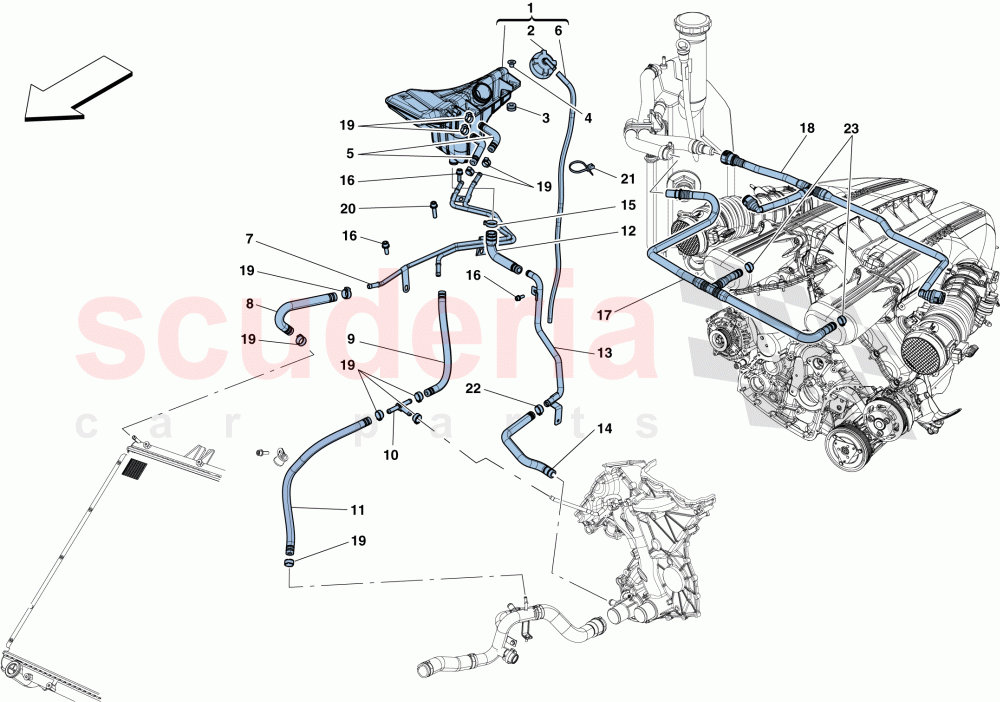

Ferrari F12 Berlinetta - COOLING - HEADER TANK AND PIPES

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	329418	COMPL. EXPANSION TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	329417	CAP WITH BREATHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	812273	CABLE GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149707	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	288386	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	280418	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	288321	METAL BREATHER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	288387	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	288385	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	281899	3-WAY CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	288474	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282575	PIPE FROM RESERVOIR TO DISCONNECTOR UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	289021	RESERVOIR OUTLET RIGID PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	289020	PIPE FROM DISCONNECTOR TO PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	279924	VAPOUR PIPE FROM HEADS	Enquire	To Order
	284024	VAPOUR PIPE FROM HEADS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	284023	BLOW-BY PIPE FROM TANK	Enquire	To Order
	276718	BLOW-BY PIPE FROM TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13126970	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177553	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13127070	COLLAR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	329418	COMPL. EXPANSION TANK	329418 COMPL. EXPANSION TANK	-	1	Enquire
2	329417	CAP WITH BREATHER	329417 CAP WITH BREATHER	-	1	Enquire
3	812273	CABLE GROMMET	812273 CABLE GROMMET	-	1	Enquire
4	149707	SPACER	149707 SPACER	-	1	Enquire
5	288386	RUBBER PIPE	288386 RUBBER PIPE D. 7-14 X 107	-	2	Enquire
6	280418	RUBBER PIPE	280418 RUBBER PIPE D. 7 X 1.5 X 825	-	1	Enquire
7	288321	METAL BREATHER PIPE	288321 METAL BREATHER PIPE	-	1	Enquire
8	288387	RUBBER PIPE	288387 RUBBER PIPE	-	1	Enquire
9	288385	RUBBER PIPE	288385 RUBBER PIPE D. 7-14 X 235	-	1	Enquire
10	281899	3-WAY CONNECTOR	281899 3-WAY CONNECTOR	-	1	Enquire
11	288474	RUBBER PIPE	288474 RUBBER PIPE D. 7-14 X 360	-	1	Enquire
12	282575	PIPE FROM RESERVOIR TO DISCONNECTOR UNION	282575 PIPE FROM RESERVOIR TO DISCONNECTOR UNION	-	1	Enquire
13	289021	RESERVOIR OUTLET RIGID PIPE	289021 RESERVOIR OUTLET RIGID PIPE	-	1	Enquire
14	289020	PIPE FROM DISCONNECTOR TO PUMP	289020 PIPE FROM DISCONNECTOR TO PUMP	-	1	Enquire
15	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP	-	1	Enquire
16	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 18	-	5	Enquire
17	279924	VAPOUR PIPE FROM HEADS	279924 VAPOUR PIPE FROM HEADS Not for USA, CDN, USA LIGHT	-	1	Enquire
17	284024	VAPOUR PIPE FROM HEADS	284024 VAPOUR PIPE FROM HEADS Applicable for USA, CDN, USA LIGHT	-	1	Enquire
18	284023	BLOW-BY PIPE FROM TANK	284023 BLOW-BY PIPE FROM TANK Applicable for USA, CDN, USA LIGHT	-	1	Enquire
18	276718	BLOW-BY PIPE FROM TANK	276718 BLOW-BY PIPE FROM TANK Not for USA, CDN, USA LIGHT	-	1	Enquire
19	13126970	COLLAR	13126970 COLLAR	-	11	Enquire
20	231620	SCREW	231620 SCREW M6 X 25	-	1	Enquire
21	177553	CLAMP	177553 CLAMP	-	1	Enquire
22	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP	-	1	Enquire
23	13127070	COLLAR	13127070 COLLAR	-	2	Enquire
