PARKING BRAKE CONTROL of Ferrari Ferrari F12 Berlinetta

View All

Ferrari F12 Berlinetta - PARKING BRAKE CONTROL

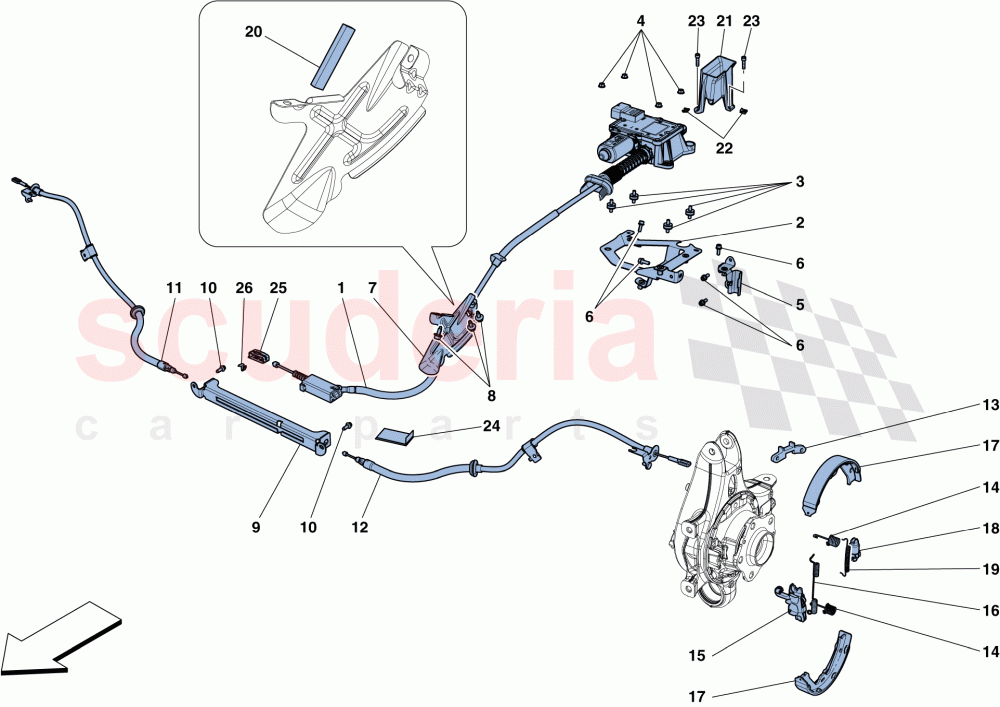

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	281146	ELECTRONIC ACTUATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	272515	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	239829	VIBRATION DAMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	274559	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248300	EPB CABLE HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	283126	EQUALISER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16286121	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	249701	RH PARKING BRAKE CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	249700	LH PARKING BRAKE CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	240953	Reaction Plate	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	240952	Fastener Spring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	254156	Parking Brake Lever	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	240947	Long Extension Spring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	240948	Parking Brake Shoe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	186572	REGULATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	243123	Short Extension Spring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	260355	ADHESIVE SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	279790	SCREW-MOUNTED FITTING FOR EPB RELEASE MECHANISM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68700800	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14304124	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	239924	RETAINER KEY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	245964	CAGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	245162	CLIP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	281146	ELECTRONIC ACTUATOR	281146 ELECTRONIC ACTUATOR	-	1	Enquire
2	272515	BRACKET	272515 BRACKET	-	1	Enquire
3	239829	VIBRATION DAMPER	239829 VIBRATION DAMPER	-	4	Enquire
4	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	4	Enquire
5	274559	BRACKET	274559 BRACKET	-	1	Enquire
6	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 18	-	6	Enquire
7	248300	EPB CABLE HEAT SHIELD	248300 EPB CABLE HEAT SHIELD	-	1	Enquire
8	85833700	SCREW	85833700 SCREW M5 X 14	-	4	Enquire
9	283126	EQUALISER BRACKET	283126 EQUALISER BRACKET	-	1	Enquire
10	16286121	SCREW	16286121 SCREW M6 X 18	-	2	Enquire
11	249701	RH PARKING BRAKE CABLE	249701 RH PARKING BRAKE CABLE	-	1	Enquire
12	249700	LH PARKING BRAKE CABLE	249700 LH PARKING BRAKE CABLE	-	1	Enquire
13	240953	Reaction Plate	240953 Reaction Plate	-	1	Enquire
14	240952	Fastener Spring	240952 Fastener Spring	-	4	Enquire
15	254156	Parking Brake Lever	254156 Parking Brake Lever	-	1	Enquire
16	240947	Long Extension Spring	240947 Long Extension Spring	-	1	Enquire
17	240948	Parking Brake Shoe	240948 Parking Brake Shoe	-	2	Enquire
18	186572	REGULATOR	186572 REGULATOR	-	1	Enquire
19	243123	Short Extension Spring	243123 Short Extension Spring	-	1	Enquire
20	260355	ADHESIVE SEAL	260355 ADHESIVE SEAL	-	1	Enquire
21	279790	SCREW-MOUNTED FITTING FOR EPB RELEASE MECHANISM	279790 SCREW-MOUNTED FITTING FOR EPB RELEASE MECHANISM	-	1	Enquire
22	68700800	CLIP	68700800 CLIP	-	2	Enquire
23	14304124	SCREW	14304124 SCREW M5 X 12	-	2	Enquire
24	239924	RETAINER KEY	239924 RETAINER KEY	-	1	Enquire
25	245964	CAGE	245964 CAGE	-	1	Enquire
26	245162	CLIP	245162 CLIP	-	1	Enquire
