REAR BRAKE CALLIPERS of Ferrari Ferrari F12 Berlinetta

View All

Ferrari F12 Berlinetta - REAR BRAKE CALLIPERS

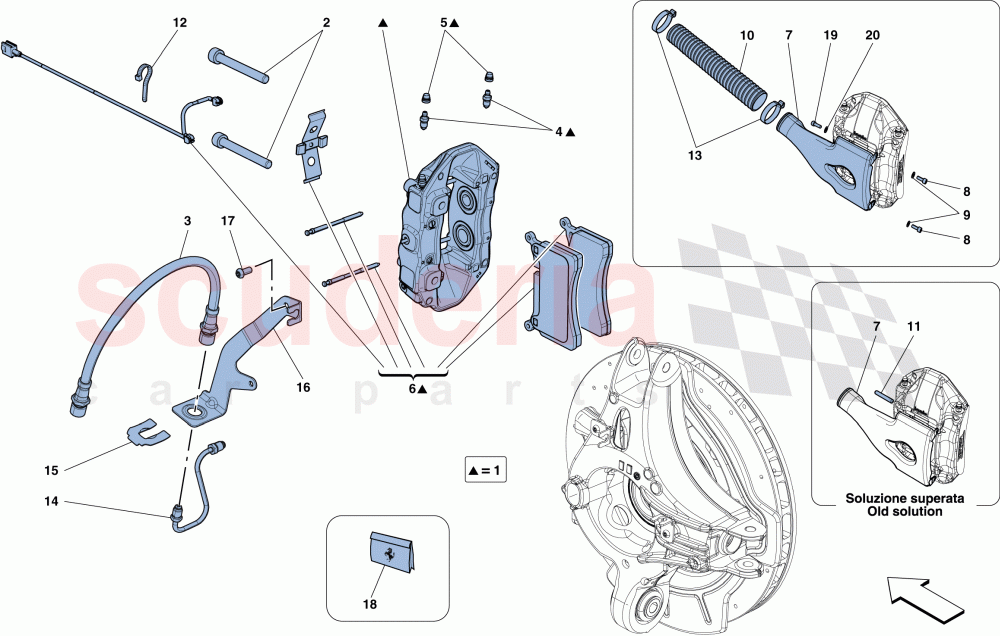

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	285184	REAR RH CALIPER WITH PADS	Enquire	To Order
	285183	REAR LH CALIPER WITH PADS	Enquire	To Order
	278867	REAR RH CALIPER WITH PADS	Enquire	To Order

...and 15 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	195167	SCREW M12 X 1.5 X 95	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	271771	PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	215665	BLEED SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	215666	PROTECTIVE CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	70002443	REAR BRAKE PADS SET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	281228	LH REAR CALIPER HOUSING COVER	Enquire	To Order
	281229	RH REAR CALIPER HOUSING COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13550224	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	289038	AIR DELIVERY PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11499924	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10815787	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	296781	COLLAR 30-45MM	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	294292	BRAKE PIPE FROM LH CALLIPER TO FLEXIBLE HOSE	Enquire	To Order
	294294	BRAKE PIPE FROM RH CALLIPER TO FLEXIBLE HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	116374	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	294301	RH BRACKET	Enquire	To Order
	294300	LH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	250657	SCREW M6 X 14	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	70003493	DUST GAITER KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13550224	WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	285184	REAR RH CALIPER WITH PADS	285184 REAR RH CALIPER WITH PADS Gold	-	1	Enquire
1	285183	REAR LH CALIPER WITH PADS	285183 REAR LH CALIPER WITH PADS Gold	-	1	Enquire
1	278867	REAR RH CALIPER WITH PADS	278867 REAR RH CALIPER WITH PADS Yellow	-	1	Enquire
1	278866	REAR LH CALIPER WITH PADS	278866 REAR LH CALIPER WITH PADS Yellow	-	1	Enquire
1	278871	REAR RH CALIPER WITH PADS	278871 REAR RH CALIPER WITH PADS Silver	-	1	Enquire
1	278870	REAR LH CALIPER WITH PADS	278870 REAR LH CALIPER WITH PADS Silver	-	1	Enquire
1	278875	REAR RH CALIPER WITH PADS	278875 REAR RH CALIPER WITH PADS Dark grey	-	1	Enquire
1	278874	REAR LH CALIPER WITH PADS	278874 REAR LH CALIPER WITH PADS Dark grey	-	1	Enquire
1	285182	REAR RH CALIPER WITH PADS	285182 REAR RH CALIPER WITH PADS Blue	-	1	Enquire
1	285181	REAR LH CALIPER WITH PADS	285181 REAR LH CALIPER WITH PADS Blue	-	1	Enquire
1	278858	REAR LH CALIPER WITH PADS	278858 REAR LH CALIPER WITH PADS Red	-	1	Enquire
1	278863	REAR RH CALIPER WITH PADS	278863 REAR RH CALIPER WITH PADS Scuderia Red	-	1	Enquire
1	278862	REAR LH CALIPER WITH PADS	278862 REAR LH CALIPER WITH PADS Scuderia Red	-	1	Enquire
1	284218	REAR LH CALIPER WITH PADS	284218 REAR LH CALIPER WITH PADS Standard	-	1	Enquire
1	278855	REAR RH CALIPER WITH PADS	278855 REAR RH CALIPER WITH PADS Black	-	1	Enquire
1	278854	REAR LH CALIPER WITH PADS	278854 REAR LH CALIPER WITH PADS Black	-	1	Enquire
1	278859	REAR RH CALIPER WITH PADS	278859 REAR RH CALIPER WITH PADS Red	-	1	Enquire
1	284219	REAR RH CALIPER WITH PADS	284219 REAR RH CALIPER WITH PADS Standard	-	1	Enquire
2	195167	SCREW M12 X 1.5 X 95	195167 SCREW M12 X 1.5 X 95 M12 X 1.5 X 105	-	4	Enquire
3	271771	PIPE	271771 PIPE	-	2	Enquire
4	215665	BLEED SCREW	215665 BLEED SCREW	-	4	Enquire
5	215666	PROTECTIVE CAP	215666 PROTECTIVE CAP	-	4	Enquire
6	70002443	REAR BRAKE PADS SET	70002443 REAR BRAKE PADS SET	-	1	Enquire
7	281228	LH REAR CALIPER HOUSING COVER	281228 LH REAR CALIPER HOUSING COVER	-	1	Enquire
7	281229	RH REAR CALIPER HOUSING COVER	281229 RH REAR CALIPER HOUSING COVER	-	1	Enquire
8	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 12	-	4	Enquire
9	13550224	WASHER	13550224 WASHER	-	4	Enquire
10	289038	AIR DELIVERY PIPE	289038 AIR DELIVERY PIPE	-	2	Enquire
11	11499924	STUD BOLT	11499924 STUD BOLT No longer supplied	-	2	Enquire
12	10815787	CLAMP	10815787 CLAMP	-	2	Enquire
13	296781	COLLAR 30-45MM ARRIVING SOON	296781 COLLAR 30-45MM No longer supplied; Replaced by 296782 ARRIVING SOON	-	4	Enquire
14	294292	BRAKE PIPE FROM LH CALLIPER TO FLEXIBLE HOSE	294292 BRAKE PIPE FROM LH CALLIPER TO FLEXIBLE HOSE	-	1	Enquire
14	294294	BRAKE PIPE FROM RH CALLIPER TO FLEXIBLE HOSE	294294 BRAKE PIPE FROM RH CALLIPER TO FLEXIBLE HOSE	-	1	Enquire
15	116374	CLIP	116374 CLIP	-	2	Enquire
16	294301	RH BRACKET	294301 RH BRACKET	-	1	Enquire
16	294300	LH BRACKET	294300 LH BRACKET	-	1	Enquire
17	250657	SCREW M6 X 14	250657 SCREW M6 X 14 M6 X 14	-	2	Enquire
18	70003493	DUST GAITER KIT	70003493 DUST GAITER KIT	-	1	Enquire
19	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 12	-	2	Enquire
20	13550224	WASHER	13550224 WASHER	-	2	Enquire
