WHEELS of Ferrari Ferrari F12 Berlinetta

View All

Ferrari F12 Berlinetta - WHEELS

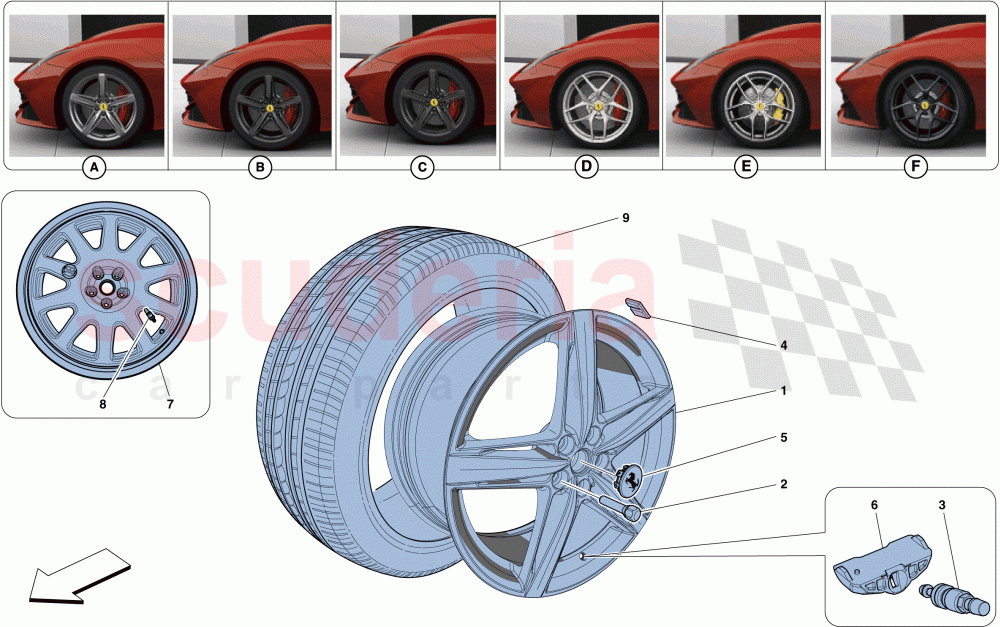

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	294831	REAR WHEEL	Enquire	To Order
	294836	REAR WHEEL	Enquire	To Order
	283189	REAR WHEEL	Enquire	To Order

...and 9 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	70006039	WHEEL STUD BOLT KIT	Enquire	To Order
	803384	WHEEL STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185328	Valve - Tyre Pressure Monitoring System	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	251393	COUNTERWEIGHT	Enquire	To Order
	11096693	ADHESIVE WHEEL BALANCER WEIGHT	Enquire	To Order
	212174	COUNTERWEIGHT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	281089	HUB CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	314821	TYRE PRESSURE MONITORING SYSTEM WHEEL SENSOR	Enquire	To Order
	282189	TYRE PRESSURE MONITORING SYSTEM WHEEL SENSOR	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	240241	SPARE WHEEL RIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	317250104	VALVE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	294831	REAR WHEEL	294831 REAR WHEEL 11.5J X 20"; Two-tone, forged, diamond cut; See box E; Modis code RSFD	-	2	Enquire
1	294836	REAR WHEEL	294836 REAR WHEEL 11.5J X 20"; Forged painted matt Corsa grey; See box F; Modis code RIFS	-	2	Enquire
1	283189	REAR WHEEL	283189 REAR WHEEL 11.5J X 20"; Matte grey; See box C; Modis code RMSC	-	2	Enquire
1	291513	REAR WHEEL	291513 REAR WHEEL 11.5J X 20"; Forged painted matt silver; See box D; Modis code RMSV	-	2	Enquire
1	283185	REAR WHEEL	283185 REAR WHEEL 11.5J X 20"; Standard; See box A; Modis code STANDARD	-	2	Enquire
1	283187	REAR WHEEL	283187 REAR WHEEL 11.5J X 20"; Anthracite grey; See box B; Modis code RMSS	-	2	Enquire
1	294834	FRONT WHEEL	294834 FRONT WHEEL 9.5J X 20"; Forged painted matt Corsa grey; See box F; Modis code RIFS	-	2	Enquire
1	291512	FRONT WHEEL	291512 FRONT WHEEL 9.5J X 20"; Forged painted matt silver; See box D; Modis code RMSV	-	2	Enquire
1	294827	FRONT WHEEL	294827 FRONT WHEEL 9.5J X 20"; Two-tone, forged, diamond cut; See box E; Modis code RSFD	-	2	Enquire
1	283186	FRONT WHEEL	283186 FRONT WHEEL 9.5J X 20"; Anthracite grey; See box B; Modis code RMSS	-	2	Enquire
1	283188	FRONT WHEEL	283188 FRONT WHEEL 9.5J X 20"; Matte grey; See box C; Modis code RMSC	-	2	Enquire
1	283184	FRONT WHEEL	283184 FRONT WHEEL 9.5J X 20"; Standard; See box A; Modis code STANDARD	-	2	Enquire
2	70006039	WHEEL STUD BOLT KIT	70006039 WHEEL STUD BOLT KIT	-	1	Enquire
2	803384	WHEEL STUD BOLT	803384 WHEEL STUD BOLT After depletion, order Kit P/N 70006039 and replace all stud bolts; Applicable until depletion	-	20	Enquire
3	185328	Valve - Tyre Pressure Monitoring System	185328 Valve - Tyre Pressure Monitoring System	-	4	Enquire
4	251393	COUNTERWEIGHT	251393 COUNTERWEIGHT 10 g; No longer supplied; Replaced by 11096693	-	-	Enquire
4	11096693	ADHESIVE WHEEL BALANCER WEIGHT	11096693 ADHESIVE WHEEL BALANCER WEIGHT	-	-	Enquire
4	212174	COUNTERWEIGHT	212174 COUNTERWEIGHT 5 g; No longer supplied; Replaced by 11096693	-	-	Enquire
5	281089	HUB CAP	281089 HUB CAP Carbon	-	4	Enquire
6	314821	TYRE PRESSURE MONITORING SYSTEM WHEEL SENSOR	314821 TYRE PRESSURE MONITORING SYSTEM WHEEL SENSOR Applicable for J	-	4	Enquire
6	282189	TYRE PRESSURE MONITORING SYSTEM WHEEL SENSOR ARRIVING SOON	282189 TYRE PRESSURE MONITORING SYSTEM WHEEL SENSOR Not for J ARRIVING SOON	-	4	Enquire
7	240241	SPARE WHEEL RIM	240241 SPARE WHEEL RIM 4.5J X 20"	-	1	Enquire
8	317250104	VALVE	317250104 VALVE Metal	-	1	Enquire
