HYDRAULIC POWER STEERING BOX of Ferrari Ferrari F12 Berlinetta

View All

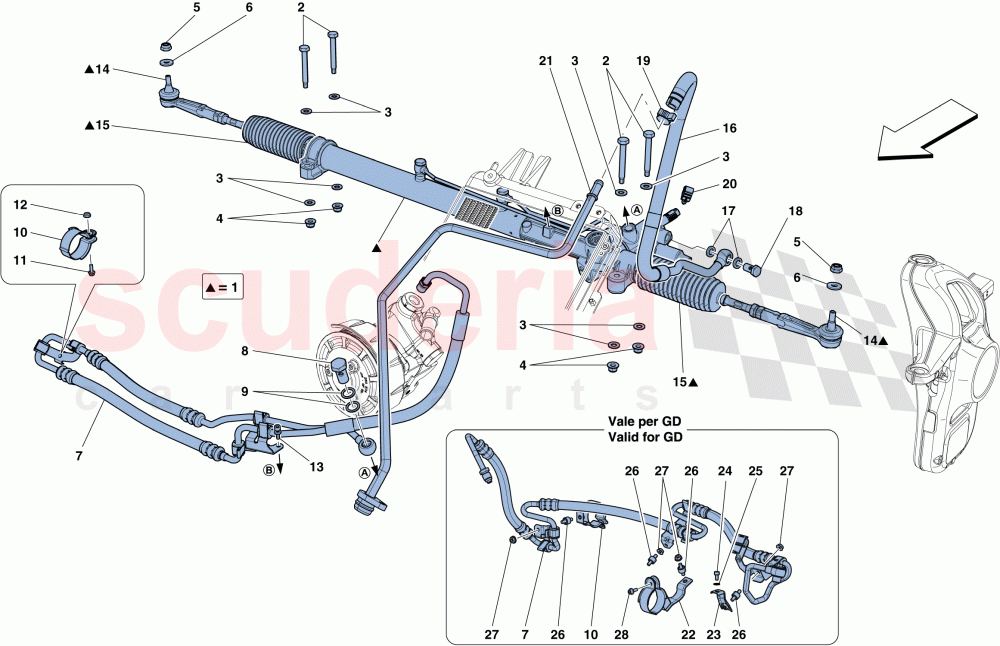

Ferrari F12 Berlinetta - HYDRAULIC POWER STEERING BOX

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	271009	STEERING BOX	Enquire	To Order
	273044	STEERING BOX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	277720	SCREW	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	126648	WASHER D.10.5-21 X 2	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14058621	NUT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	102742	Nyloc Nut M10 x 1.25 x 10mm	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12626224	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	288792	PIPE FROM PUMP TO STEERING BOX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184727	Banjo bolt For Union M16 x 1.5	Enquire	IN STOCK
	276087	FUEL FILLER NECK PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10261460	GASKET	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	288884	COMPL. BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11568124	SCREW	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14040614	NUT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	250196	ROD END FOR STEERING BOX	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	229521	STEERING BOX GAITER REPLACEMENT KIT	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	291261	PIPE FROM STEERING BOX TO RADIATOR	Enquire	To Order
	268011	PIPE FROM STEERING BOX TO RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10280060	WASHER COPPER D14. 20 X 1.5	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	277407	HOSE CONNECTOR	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13127070	COLLAR	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	259508	CLIP	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	278086	PIPE FROM DISCONNECTOR UNION TO RADIATOR	Enquire	To Order
	296314	PIPE FROM DISCONNECTER UNION TO RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	299160	BRACKET	Enquire	To Order
	292839	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	292771	HIGH PRESSURE PIPE BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11566227	SCREW	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11181574	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	252018	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040614	NUT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	271009	STEERING BOX	271009 STEERING BOX Not for GD	-	1	Enquire
1	273044	STEERING BOX	273044 STEERING BOX Applicable for GD	-	1	Enquire
2	277720	SCREW IN STOCK	277720 SCREW M10 X 1.25 X 80 IN STOCK	-	4	Enquire
3	126648	WASHER D.10.5-21 X 2 IN STOCK	126648 WASHER D.10.5-21 X 2 IN STOCK	-	8	Enquire
4	14058621	NUT IN STOCK	14058621 NUT IN STOCK	-	4	Enquire
5	102742	Nyloc Nut M10 x 1.25 x 10mm IN STOCK	102742 Nyloc Nut M10 x 1.25 x 10mm IN STOCK	-	2	Enquire
6	12626224	WASHER IN STOCK	12626224 WASHER IN STOCK	-	2	Enquire
7	288792	PIPE FROM PUMP TO STEERING BOX	288792 PIPE FROM PUMP TO STEERING BOX Not for GD	-	1	Enquire
8	184727	Banjo bolt For Union M16 x 1.5 IN STOCK	184727 Banjo bolt For Union M16 x 1.5 Not for GD IN STOCK	-	1	Enquire
8	276087	FUEL FILLER NECK PIPE	276087 FUEL FILLER NECK PIPE Applicable for GD	-	1	Enquire
9	10261460	GASKET IN STOCK	10261460 GASKET IN STOCK	-	2	Enquire
10	288884	COMPL. BRACKET	288884 COMPL. BRACKET	-	1	Enquire
11	11568124	SCREW IN STOCK	11568124 SCREW M5 X 16 IN STOCK	-	1	Enquire
12	14040614	NUT IN STOCK	14040614 NUT IN STOCK	-	1	Enquire
13	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 12	-	1	Enquire
14	250196	ROD END FOR STEERING BOX ARRIVING SOON	250196 ROD END FOR STEERING BOX ARRIVING SOON	-	2	Enquire
15	229521	STEERING BOX GAITER REPLACEMENT KIT ARRIVING SOON	229521 STEERING BOX GAITER REPLACEMENT KIT ARRIVING SOON	-	1	Enquire
16	291261	PIPE FROM STEERING BOX TO RADIATOR	291261 PIPE FROM STEERING BOX TO RADIATOR Applicable for GD	-	1	Enquire
16	268011	PIPE FROM STEERING BOX TO RADIATOR	268011 PIPE FROM STEERING BOX TO RADIATOR Not for GD	-	1	Enquire
17	10280060	WASHER COPPER D14. 20 X 1.5 IN STOCK	10280060 WASHER COPPER D14. 20 X 1.5 IN STOCK	-	2	Enquire
18	277407	HOSE CONNECTOR IN STOCK	277407 HOSE CONNECTOR IN STOCK	-	1	Enquire
19	13127070	COLLAR IN STOCK	13127070 COLLAR IN STOCK	-	1	Enquire
20	259508	CLIP IN STOCK	259508 CLIP IN STOCK	-	1	Enquire
21	278086	PIPE FROM DISCONNECTOR UNION TO RADIATOR	278086 PIPE FROM DISCONNECTOR UNION TO RADIATOR Applicable up to Ass. No. 111369	-	1	Enquire
21	296314	PIPE FROM DISCONNECTER UNION TO RADIATOR	296314 PIPE FROM DISCONNECTER UNION TO RADIATOR Applicable from Ass. No. 111370	-	1	Enquire
22	299160	BRACKET	299160 BRACKET Applicable for GD; Applicable from Ass. No. 110573	-	1	Enquire
22	292839	BRACKET	292839 BRACKET Applicable for GD; Applicable up to Ass. No. 110572	-	1	Enquire
23	292771	HIGH PRESSURE PIPE BRACKET	292771 HIGH PRESSURE PIPE BRACKET Applicable for GD	-	1	Enquire
24	11566227	SCREW IN STOCK	11566227 SCREW Applicable for GD IN STOCK	-	1	Enquire
25	11181574	WASHER IN STOCK	11181574 WASHER Applicable for GD IN STOCK	-	1	Enquire
26	252018	PLUG	252018 PLUG Applicable for GD	-	4	Enquire
27	14040614	NUT IN STOCK	14040614 NUT Applicable for GD IN STOCK	-	4	Enquire
28	85833700	SCREW	85833700 SCREW M5 X 16; Applicable for GD	-	1	Enquire
