Name: PARKING BRAKE CONTROL
Rating: 4.4 (1 reviews)

View All

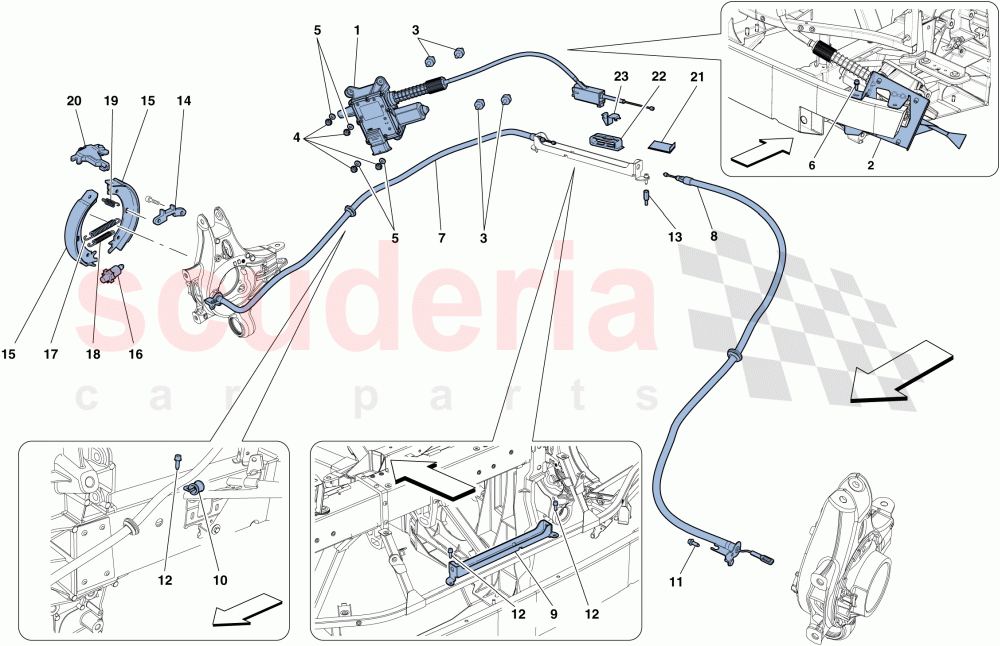

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	260185	ACTUATOR FASTENER BRACKET	$286.67	To Order

Photo	Part No	Description	Price (each)	Stock
	239829	VIBRATION DAMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	860172	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11568124	SCREW	$0.94	To Order

Photo	Part No	Description	Price (each)	Stock
	257912	RH PARKING BRAKE CABLE	$513.46	To Order

Photo	Part No	Description	Price (each)	Stock
	257913	LH PARKING BRAKE CABLE	$513.46	To Order

Photo	Part No	Description	Price (each)	Stock
	10441290	BRACKET WITH SHEATH	$0.57	To Order

Photo	Part No	Description	Price (each)	Stock
	16286121	SCREW	$0.70	To Order

Photo	Part No	Description	Price (each)	Stock
	11568124	SCREW	$0.94	To Order

Photo	Part No	Description	Price (each)	Stock
	178772	SPACER STUD	$10.73	To Order

Photo	Part No	Description	Price (each)	Stock
	240953	Reaction Plate	$11.70	To Order

Photo	Part No	Description	Price (each)	Stock
	240948	Parking Brake Shoe	$263.79	To Order

Photo	Part No	Description	Price (each)	Stock
	186572	ADJUSTER FOR HANDBRAKE	$77.00	To Order

Photo	Part No	Description	Price (each)	Stock
	240947	Long Extension Spring	$14.43	To Order

Photo	Part No	Description	Price (each)	Stock
	243123	Short Extension Spring	$14.43	To Order

Photo	Part No	Description	Price (each)	Stock
	240952	HAND BRAKE TENSIONER SPRING	$11.54	To Order

Photo	Part No	Description	Price (each)	Stock
	254156	Parking Brake Lever	$141.19	To Order

Photo	Part No	Description	Price (each)	Stock
	239924	RETAINER KEY	$6.56	To Order

Photo	Part No	Description	Price (each)	Stock
	245964	CAGE	$13.14	To Order

Photo	Part No	Description	Price (each)	Stock
	245162	CLIP	$3.81	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
2	260185	ACTUATOR FASTENER BRACKET	260185 ACTUATOR FASTENER BRACKET	$286.67 MSRP: ~~364.66~~ (21.4% off)	1
3	239829	VIBRATION DAMPER	239829 VIBRATION DAMPER	-	4	Enquire
4	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	4
5	860172	WASHER	860172 WASHER No longer supplied	-	4	Enquire
6	11568124	SCREW	11568124 SCREW	$0.94	4
7	257912	RH PARKING BRAKE CABLE	257912 RH PARKING BRAKE CABLE	$513.46	1
8	257913	LH PARKING BRAKE CABLE	257913 LH PARKING BRAKE CABLE	$513.46	1
10	10441290	BRACKET WITH SHEATH	10441290 BRACKET WITH SHEATH	$0.57 MSRP: ~~1.68~~ (66.1% off)	4
11	16286121	SCREW	16286121 SCREW	$0.70 MSRP: ~~1.35~~ (48.1% off)	2
12	11568124	SCREW	11568124 SCREW	$0.94	4
13	178772	SPACER STUD	178772 SPACER STUD	$10.73	2
14	240953	Reaction Plate	240953 Reaction Plate	$11.70	2
15	240948	Parking Brake Shoe	240948 Parking Brake Shoe	$263.79	4
16	186572	ADJUSTER FOR HANDBRAKE	186572 ADJUSTER FOR HANDBRAKE	$77.00	2
17	240947	Long Extension Spring	240947 Long Extension Spring	$14.43 MSRP: ~~18.97~~ (23.9% off)	2
18	243123	Short Extension Spring	243123 Short Extension Spring	$14.43 MSRP: ~~19.92~~ (27.6% off)	2
19	240952	HAND BRAKE TENSIONER SPRING	240952 HAND BRAKE TENSIONER SPRING	$11.54 MSRP: ~~19.92~~ (42.1% off)	4
20	254156	Parking Brake Lever	254156 Parking Brake Lever	$141.19	2
21	239924	RETAINER KEY	239924 RETAINER KEY	$6.56	1
22	245964	CAGE	245964 CAGE	$13.14	1
23	245162	CLIP	245162 CLIP	$3.81	1
