FUEL SYSTEM PUMPS AND PIPES

Find Your Part

Ferrari 458 Italia - FUEL SYSTEM PUMPS AND PIPES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
254312 RH FUEL PUMP $2,561.34 To Order
272086 FUEL PUMP $1,850.36 To Order
Photo Part No Description Price (each) Stock
275314 O-RING $6.97 To Order
275314 O-RING $6.97 To Order
Photo Part No Description Price (each) Stock
254078 CLIP $1.85 To Order
Photo Part No Description Price (each) Stock
275998 FASTENER RING $78.61 To Order
239497 FASTENER RING $35.28 To Order
Photo Part No Description Price (each) Stock
237407 ANTI SPIT-BACK VALVE $37.25 To Order
Photo Part No Description Price (each) Stock
85833900 SCREW $0.36 ARRIVING SOON
239456 SECONDARY LOCK $37.25 To Order
Photo Part No Description Price (each) Stock
254313 LH FUEL PUMP $2,463.32 To Order
272087 LH FUEL PUMP $1,682.36 To Order
Photo Part No Description Price (each) Stock
254314 COMPL. INCLINATION SENSOR $1,203.43 To Order
273540 COMPL. INCLINATION SENSOR $2,051.57 To Order
Photo Part No Description Price (each) Stock
239413 O-RING $5.46 To Order
Photo Part No Description Price (each) Stock
250480 INSPECTION CAP $30.47 To Order
Photo Part No Description Price (each) Stock
272380 DELIVERY PIPE FUEL TANK TO INJECTORS $449.27 To Order
272380 DELIVERY PIPE FUEL TANK TO INJECTORS $449.27 To Order
272380 DELIVERY PIPE FUEL TANK TO INJECTORS $449.27 To Order
Photo Part No Description Price (each) Stock
264802 COVER $38.69 To Order
Photo Part No Description Price (each) Stock
16284934 FLANGED SCREW $0.81 To Order
Photo Part No Description Price (each) Stock
272290 WASHER $18.59 To Order
Photo Part No Description Price (each) Stock
13046011 NUT $0.39 To Order
Photo Part No Description Price (each) Stock
276001 FASTENER RING $274.34 To Order
Photo Part No Description Price (each) Stock
276436 CLIP $1.94 To Order
191907 CLIP $1.65 To Order
Photo Part No Description Price (each) Stock
262216 CHANNEL FASTENER BRACKET $22.92 To Order
280000 CHANNEL FASTENER BRACKET $33.68 To Order
290701 CHANNEL FASTENER BRACKET $33.68 To Order
Photo Part No Description Price (each) Stock
291529 WIRING HARNESS FASTENER BRACKET $42.98 To Order
262273 WIRING HARNESS FASTENER BRACKET $43.31 To Order
View All

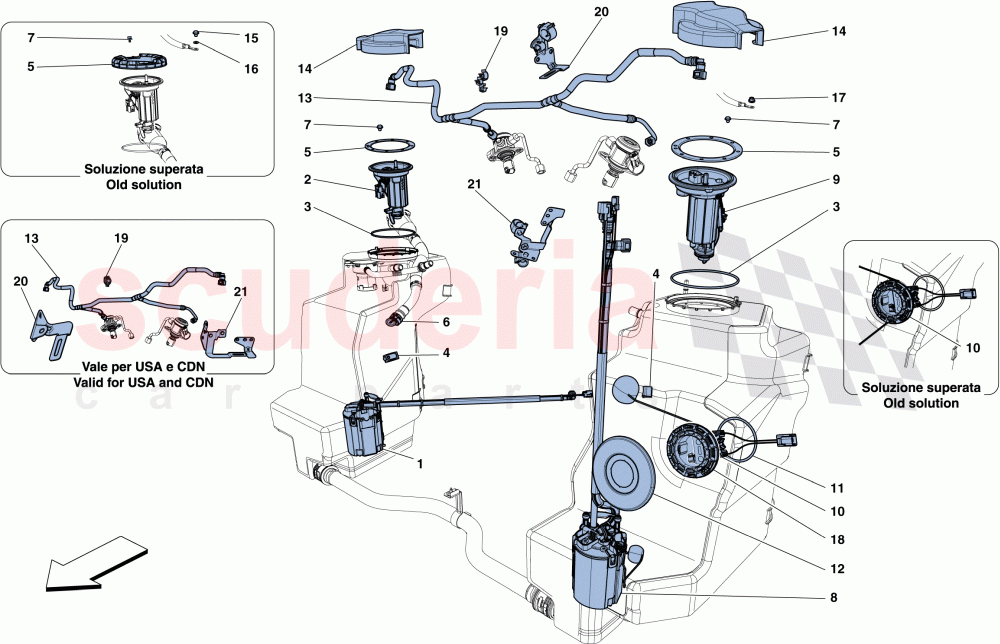

FUEL SYSTEM PUMPS AND PIPES of Ferrari Ferrari 458 Italia Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 254312
RH FUEL PUMP
Not for HELE 		$2,561.34 (23.7% off) 1
1 272086
FUEL PUMP
Applicable for HELE 		$1,850.36 1
3 275314
O-RING
Applicable up to Ass. No. 104100 		$6.97 (8.9% off) 2
3 275314
O-RING
Applicable from Ass. No. 104101 		$6.97 (8.9% off) 2
4 254078
CLIP 		$1.85 2
5 275998
FASTENER RING
Applicable from Ass. No. 104101 		$78.61 2
5 239497
FASTENER RING
Applicable up to Ass. No. 104100 		$35.28 (31.1% off) 2
6 237407
ANTI SPIT-BACK VALVE 		$37.25 1
7 85833900
SCREW
M5 X 16; Applicable from Ass. No. 104101
ARRIVING SOON 		$0.36 16
7 239456
SECONDARY LOCK
Applicable up to Ass. No. 104100 		$37.25 2
8 254313
LH FUEL PUMP
Not for HELE 		$2,463.32 1
8 272087
LH FUEL PUMP
Applicable for HELE 		$1,682.36 1
10 254314
COMPL. INCLINATION SENSOR
Applicable up to Ass. No. 104100 		$1,203.43 1
10 273540
COMPL. INCLINATION SENSOR
Applicable from Ass. No. 104101 		$2,051.57 (40.5% off) 1
11 239413
O-RING 		$5.46 (61.6% off) 1
12 250480
INSPECTION CAP 		$30.47 1
13 272380
DELIVERY PIPE FUEL TANK TO INJECTORS
Not for USA, CDN; Applicable from Ass. No. 105984 		$449.27 1
13 272380
DELIVERY PIPE FUEL TANK TO INJECTORS
Applicable for USA, CDN 		$449.27 1
13 272380
DELIVERY PIPE FUEL TANK TO INJECTORS
Applicable up to Ass. No. 105983 		$449.27 1
14 264802
COVER 		$38.69 2
15 16284934
FLANGED SCREW
Applicable up to Ass. No. 104100 		$0.81 2
16 272290
WASHER
Applicable up to Ass. No. 104100 		$18.59 2
17 13046011
NUT
Applicable from Ass. No. 104101 		$0.39 2
18 276001
FASTENER RING
Applicable from Ass. No. 104101 		$274.34 1
19 276436
CLIP
Not for USA, CDN 		$1.94 1
19 191907
CLIP
Applicable for USA, CDN 		$1.65 1
20 262216
CHANNEL FASTENER BRACKET
Applicable for USA, CDN 		$22.92 1
20 280000
CHANNEL FASTENER BRACKET
Not for USA, CDN; Applicable up to Ass. No. 105800 		$33.68 1
20 290701
CHANNEL FASTENER BRACKET
Not for USA, CDN; Applicable from Ass. No. 105801 		$33.68 1
21 291529
WIRING HARNESS FASTENER BRACKET
Not for USA, CDN 		$42.98 1
21 262273
WIRING HARNESS FASTENER BRACKET
Applicable for USA, CDN 		$43.31 2
