Fuel Tanks And Filler Neck

Ferrari 458 Italia

Find Your Part

Ferrari 458 Italia - FUEL TANKS AND FILLER NECK

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
276668 RH FUEL TANK $2,726.20 To Order
276666 RH FUEL TANK $2,726.20 To Order
274552 RH FUEL TANK $2,755.08 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
276669 LH FUEL TANK $2,795.19 To Order
276667 LH FUEL TANK $2,795.19 To Order
274553 LH FUEL TANK $2,649.18 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
262587 FUEL TANK CONNECTOR PIPE $625.78 To Order
266693 TANK CONNECTOR PIPE $641.82 To Order
Photo Part No Description Price (each) Stock
266694 DUAL DIAMETER HOSE CONNECTOR $136.37 To Order
262587 FUEL TANK CONNECTOR PIPE $625.78 To Order
Photo Part No Description Price (each) Stock
302682 COLLAR $2.95 To Order
11449470 COLLAR $2.77 To Order
Photo Part No Description Price (each) Stock
791355 SCREW $4.85 To Order
Photo Part No Description Price (each) Stock
316216 FUEL FILLER NECK WITH PIPES $593.69 IN STOCK

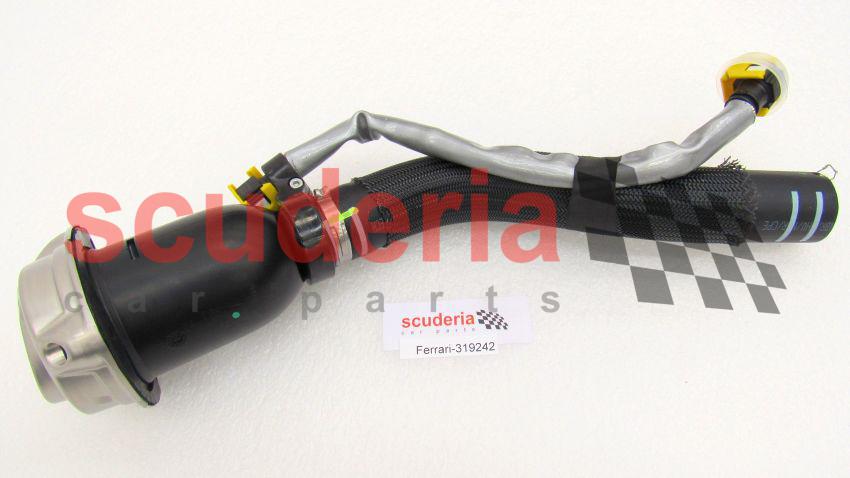

319242 FUEL FILLER NECK COMPLETE WITH PIPE $625.78 To Order
Photo Part No Description Price (each) Stock
262587 FUEL TANK CONNECTOR PIPE $625.78 To Order
Photo Part No Description Price (each) Stock
262587 FUEL TANK CONNECTOR PIPE $625.78 To Order
Photo Part No Description Price (each) Stock
264936 CONNECTOR PIPE MOUNTING BRACKET $133.17 To Order
264936 CONNECTOR PIPE MOUNTING BRACKET $133.17 To Order
264936 CONNECTOR PIPE MOUNTING BRACKET $133.17 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
236475 CLIP $1.09 To Order
259508 CLIP $0.65 IN STOCK
250318 SNAP CLIP $0.26 IN STOCK
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
11449470 COLLAR $2.77 To Order
Photo Part No Description Price (each) Stock
275275 RUBBER SHIM $13.31 To Order
Photo Part No Description Price (each) Stock
284428 FILLER NECK HEAT SHIELD $68.98 To Order
Photo Part No Description Price (each) Stock
262587 FUEL TANK CONNECTOR PIPE $625.78 To Order
Photo Part No Description Price (each) Stock
11449470 COLLAR $2.77 To Order
View All

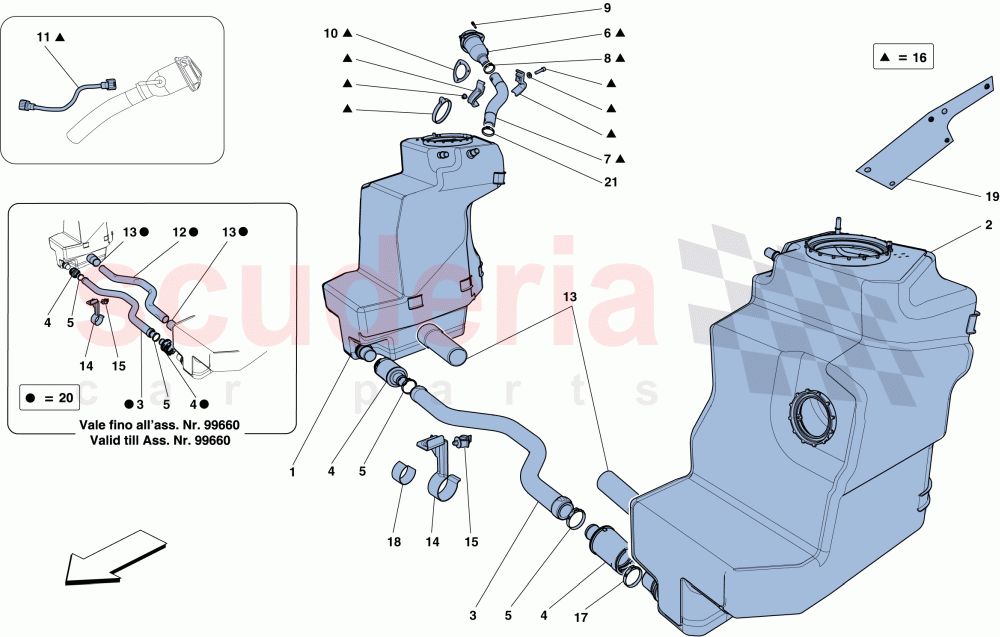

FUEL TANKS AND FILLER NECK of Ferrari Ferrari 458 Italia Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 276668
RH FUEL TANK
Applicable for HELE; Applicable from Ass. No. 104101 		$2,726.20 1
1 276666
RH FUEL TANK
Not for HELE; Applicable from Ass. No. 104101 		$2,726.20 1
1 274552
RH FUEL TANK
Applicable for HELE; Applicable up to Ass. No. 104100 		$2,755.08 1
1 257456
RH FUEL TANK
Not for HELE; Applicable up to Ass. No. 99660 		$3,700.19 1
1 267043
RH FUEL TANK
Not for HELE; Applicable from Ass. No. 99661 up to Ass. No. 104100 		$3,658.47 1
2 276669
LH FUEL TANK
Applicable for HELE; Applicable from Ass. No. 104101 		$2,795.19 1
2 276667
LH FUEL TANK
Not for HELE; Applicable from Ass. No. 104101 		$2,795.19 1
2 274553
LH FUEL TANK
Applicable for HELE; Applicable up to Ass. No. 104100 		$2,649.18 1
2 257458
LH FUEL TANK
Not for HELE; Applicable up to Ass. No. 99660 		$3,700.19 1
2 267044
LH FUEL TANK
Not for HELE; Applicable from Ass. No. 99661 up to Ass. No. 104100 		$3,526.89 1
3 262587
FUEL TANK CONNECTOR PIPE
After depletion, order compl. 262587 ref. 20; Applicable up to Ass. No. 99660; Applicable until depletion 		$625.78 1
3 266693
TANK CONNECTOR PIPE
Applicable from Ass. No. 99661 		$641.82 1
4 266694
DUAL DIAMETER HOSE CONNECTOR
Applicable from Ass. No. 99661 		$136.37 2
4 262587
FUEL TANK CONNECTOR PIPE
After depletion, order compl. 262587 ref. 20; Applicable up to Ass. No. 99660; Applicable until depletion 		$625.78 2
5 302682
COLLAR 		$2.95 2
5 11449470
COLLAR
Applicable up to Ass. No. 99660 		$2.77 2
9 791355
SCREW 		$4.85 3
11 316216
FUEL FILLER NECK WITH PIPES
See ref. 16; Not for USA, CDN; No longer supplied; Replaced by 262678
IN STOCK 		$593.69 1
11 319242
FUEL FILLER NECK COMPLETE WITH PIPE
See ref. 16; Applicable for USA, CDN; No longer supplied; Replaced by 265161 		$625.78 1
12 262587
FUEL TANK CONNECTOR PIPE
After depletion, order compl. 262587 ref. 20; Applicable up to Ass. No. 99660; Applicable until depletion 		$625.78 1
13 262587
FUEL TANK CONNECTOR PIPE
After depletion, order compl. 262587 ref. 20; Applicable up to Ass. No. 99660; Applicable until depletion 		$625.78 2
14 264936
CONNECTOR PIPE MOUNTING BRACKET
From start of production; Not for EU GS, GOLFO 		$133.17 1
14 264936
CONNECTOR PIPE MOUNTING BRACKET
Applicable for EU GS; Applicable from Ass. No. 90802 		$133.17 1
14 264936
CONNECTOR PIPE MOUNTING BRACKET
Applicable for GOLFO; Applicable from Ass. No. 91119 		$133.17 1
14 259771
CONNECTOR PIPE MOUNTING BRACKET
Applicable for EU GS; Applicable up to Ass. No. 90801 		$15.54 1
14 259771
CONNECTOR PIPE MOUNTING BRACKET
Applicable for GOLFO; Applicable up to Ass. No. 91118 		$15.54 1
15 236475
CLIP
Applicable from Ass. No. 105801 		$1.09 1
15 259508
CLIP
Applicable from Ass. No. 105801
IN STOCK 		$0.65 1
15 250318
SNAP CLIP
Applicable for bracket 264936 ref. 14; Applicable for GOLFO; Applicable from Ass. No. 91119 up to Ass. No. 105800
IN STOCK 		$0.26 1
15 250318
SNAP CLIP
From start of production; Not for EU GS, GOLFO; Applicable up to Ass. No. 105800
IN STOCK 		$0.26 1
15 250318
SNAP CLIP
Applicable for bracket 264936 ref. 14; Applicable for EU GS; Applicable from Ass. No. 90802 up to Ass. No. 105800
IN STOCK 		$0.26 1
17 11449470
COLLAR 		$2.77 2
18 275275
RUBBER SHIM
77X 22X 3 		$13.31 1
19 284428
FILLER NECK HEAT SHIELD 		$68.98 1
20 262587
FUEL TANK CONNECTOR PIPE
Applicable up to Ass. No. 99660 		$625.78 1
21 11449470
COLLAR 		$2.77 1
