COOLING - HEADER TANK AND PIPES

Find Your Part

Ferrari 458 Italia - COOLING - HEADER TANK AND PIPES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
268186 COMPL. EXPANSION TANK Enquire To Order
248659 COMPL. EXPANSION TANK $98.48 To Order
Photo Part No Description Price (each) Stock
329417 CAP WITH BREATHER $320.90 To Order
Photo Part No Description Price (each) Stock
261589 HOSE $10.10 To Order
Photo Part No Description Price (each) Stock
248645 VENT PIPE FROM RADIATOR TO HEADER TANK $93.05 To Order
263429 VENT PIPE FROM RADIATOR TO HEADER TANK $97.86 To Order
Photo Part No Description Price (each) Stock
82051100 CLIP $0.97 To Order
Photo Part No Description Price (each) Stock
191907 CLIP $1.65 To Order
320597 CLIP $1.85 To Order
187721 CLIP $0.26 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
13432070 HOSE COLLAR $0.57 To Order
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP $1.60 To Order
Photo Part No Description Price (each) Stock
82118300 SCREW -No longer supplied- -Replaced by 11625714- $0.57 To Order
11625824 SCREW $0.39 To Order
Photo Part No Description Price (each) Stock
255546 CLIP $2.06 To Order
Photo Part No Description Price (each) Stock
270260 VENT PIPE FROM ENGINE TO HEADER TANK $89.84 To Order
Photo Part No Description Price (each) Stock
259763 VENT PIPE $336.95 To Order
Photo Part No Description Price (each) Stock
262448 HEAT SHIELD $174.37 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.31 To Order
Photo Part No Description Price (each) Stock
244216 CLIP $4.31 To Order
Photo Part No Description Price (each) Stock
268187 COOLANT RESERVOIR $96.26 To Order
Photo Part No Description Price (each) Stock
140727 CLIP $0.28 To Order
303385 CLIP $0.31 To Order
250318 SNAP CLIP $0.26 To Order
Photo Part No Description Price (each) Stock
264017 BRACKET $8.30 To Order
Photo Part No Description Price (each) Stock
85833900 SCREW $0.36 ARRIVING SOON
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
276436 CLIP $1.94 To Order
Photo Part No Description Price (each) Stock
296778 SCREW COLLAR $7.15 To Order
262111 JUBILEE CLAMP $1.60 To Order
Photo Part No Description Price (each) Stock
309643 ROTATING SPACER SPRING $2.43 To Order
View All

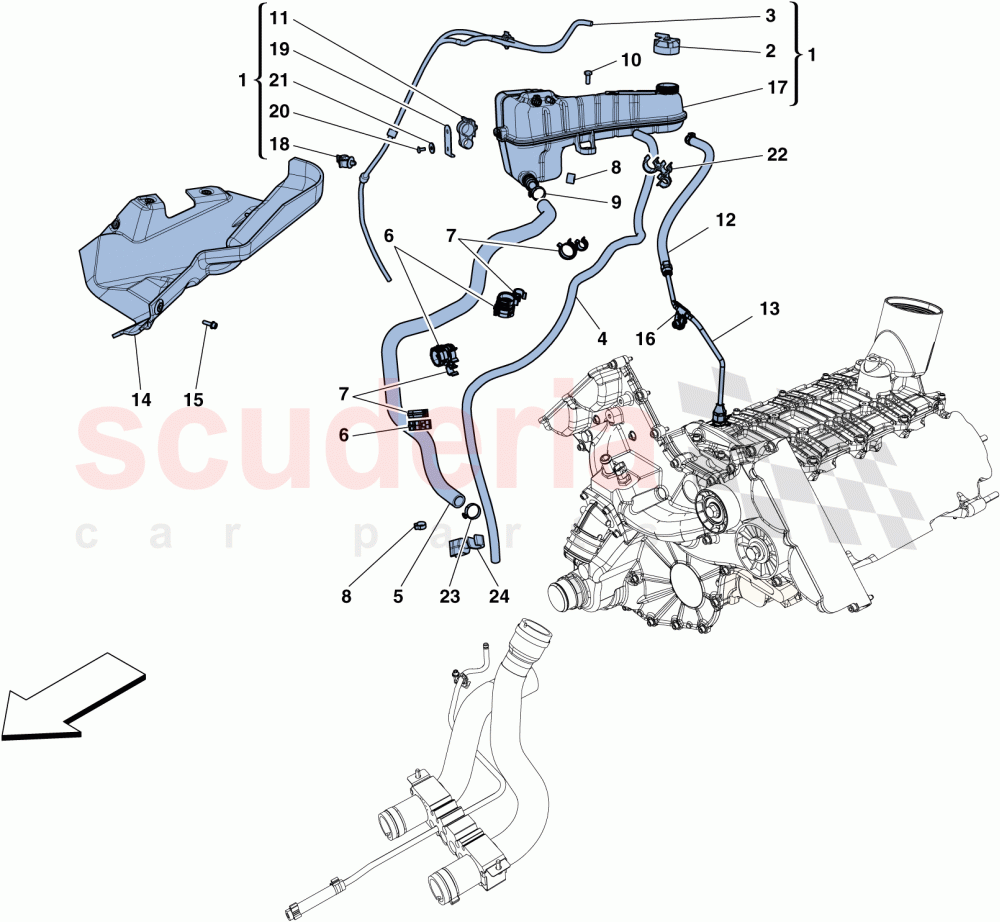

COOLING - HEADER TANK AND PIPES of Ferrari Ferrari 458 Italia Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 268186
COMPL. EXPANSION TANK
Applicable from Ass. No. 94037; No longer supplied 		- 1 Enquire
1 248659
COMPL. EXPANSION TANK
Applicable up to Ass. No. 94036; No longer supplied 		$98.48 1
2 329417
CAP WITH BREATHER 		$320.90 1
3 261589
HOSE 		$10.10 (24.8% off) 1
4 248645
VENT PIPE FROM RADIATOR TO HEADER TANK
Applicable up to Ass. No. 91653 		$93.05 1
4 263429
VENT PIPE FROM RADIATOR TO HEADER TANK
Applicable from Ass. No. 91654 		$97.86 1
6 82051100
CLIP 		$0.97 3
7 191907
CLIP
Applicable from Ass. No. 91654 		$1.65 2
7 320597
CLIP
Applicable from Ass. No. 91654 		$1.85 1
7 187721
CLIP
Applicable for pipe 268188 ref. 5 		$0.26 1
7 82051200
CLIP
Applicable for pipe 258258 ref. 5; Applicable up to Ass. No. 91653 		$0.88 4
8 13432070
HOSE COLLAR
D. 15.7 		$0.57 (46.7% off) 2
9 262111
JUBILEE CLAMP 		$1.60 1
10 82118300
SCREW -No longer supplied- -Replaced by 11625714-
No longer supplied; Replaced by 11625714 		$0.57 2
10 11625824
SCREW
M6 X 16 		$0.39 (61% off) 2
11 255546
CLIP 		$2.06 1
12 270260
VENT PIPE FROM ENGINE TO HEADER TANK 		$89.84 1
13 259763
VENT PIPE 		$336.95 1
14 262448
HEAT SHIELD 		$174.37 1
15 231619
SCREW
M6 X 20 		$0.31 5
16 244216
CLIP 		$4.31 1

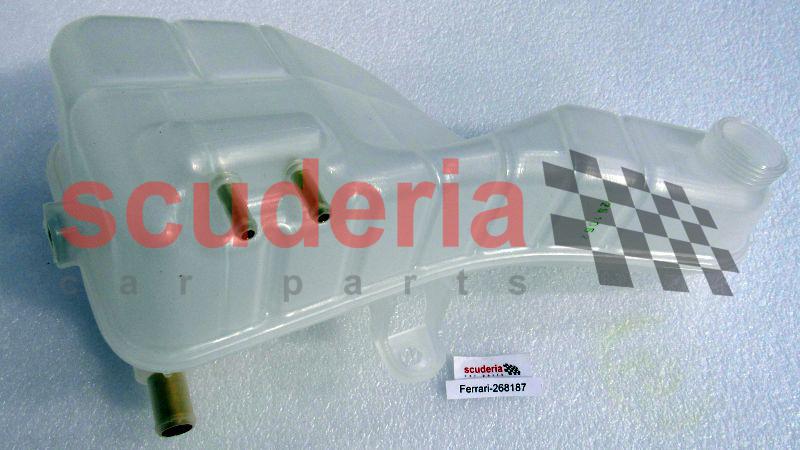

17 268187
COOLANT RESERVOIR
Replaces 251214; Also order tube 268188 ref. 5 		$96.26 (24.4% off) 1
18 140727
CLIP 		$0.28 (62.7% off) 3
18 303385
CLIP 		$0.31 1
18 250318
SNAP CLIP
Replaced by 14569880 and 217854; No longer supplied 		$0.26 4
19 264017
BRACKET 		$8.30 1
20 85833900
SCREW
ARRIVING SOON 		$0.36 1
21 12643724
WASHER 		$0.06 (88% off) 1
22 276436
CLIP 		$1.94 1
23 296778
SCREW COLLAR 		$7.15 1
23 262111
JUBILEE CLAMP
No longer supplied; Replaced by 296778 		$1.60 1
24 309643
ROTATING SPACER SPRING 		$2.43 1
