REAR SUSPENSION - ARMS of Ferrari Ferrari 458 Italia

View All

Ferrari 458 Italia - REAR SUSPENSION - ARMS

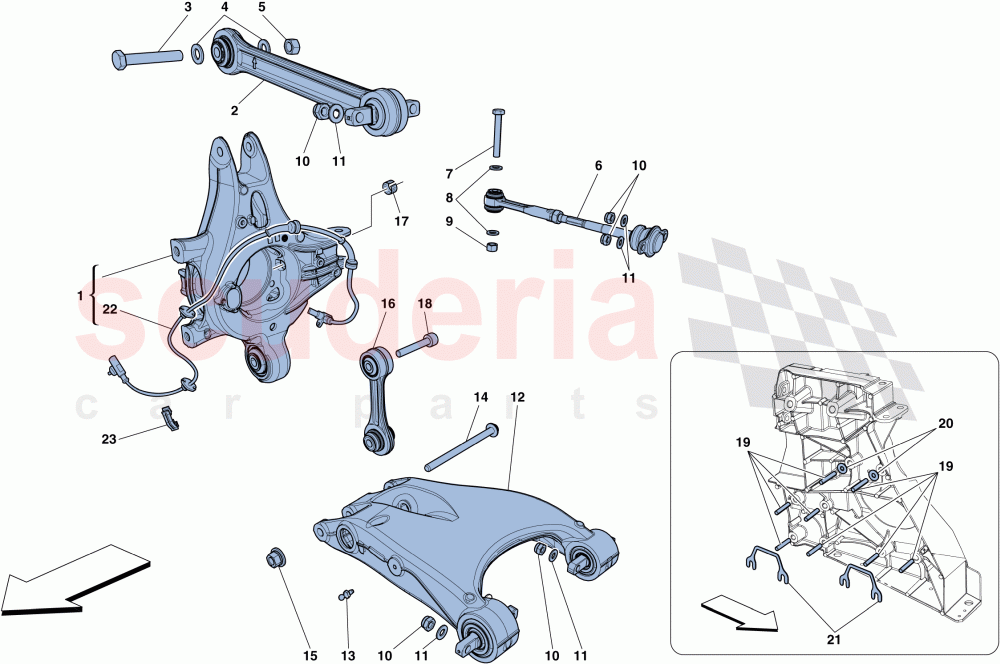

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	299933	COMPL. LH REAR HUB CARRIER	Enquire	ARRIVING SOON
	299933	COMPL. LH REAR HUB CARRIER	Enquire	ARRIVING SOON

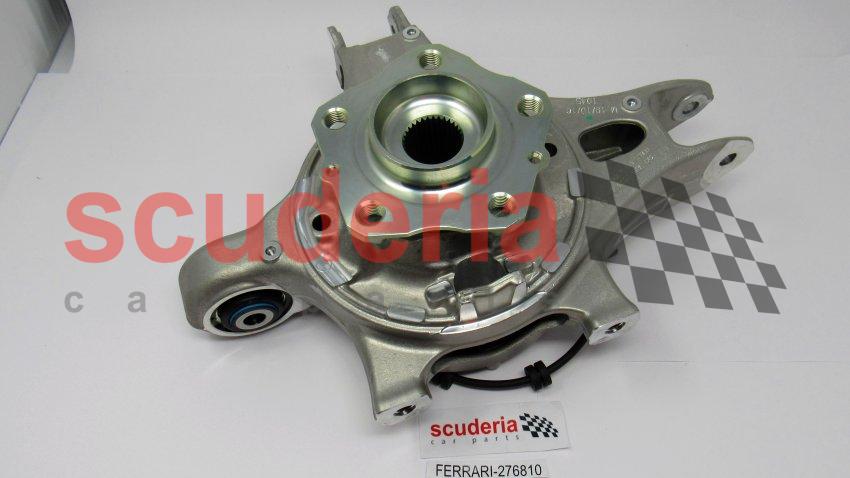

	276810	COMPL. RH REAR HUB CARRIER	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	15541434	SCREW	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12643778	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	203666	NUT M12	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	245161	TIE-ROD	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	15541434	SCREW	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12643778	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	203666	NUT M12	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12574521	Nyloc Nut	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	126648	WASHER D.10.5-21 X 2	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	810450	LH Rear Lower Arm	Enquire	IN STOCK
	810463	RH Lower Rear Arm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	343376	BALL JOINT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	238656	SPECIAL SCREW	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	238063	NUT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	222956	COMPENSATOR RING	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	238258	SCREW	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	264528	THREADED ROD 10 X 1.25	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	12646821	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	262543	ADJUSTER SHIM	Enquire	To Order
	262542	ADJUSTER SHIM	Enquire	IN STOCK
	262541	ADJUSTER SHIM	Enquire	IN STOCK

...and 6 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	251744	TRIPLE CLIP	Enquire	IN STOCK

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	299933	COMPL. LH REAR HUB CARRIER ARRIVING SOON	299933 COMPL. LH REAR HUB CARRIER Applicable from Ass. No. 107296 ARRIVING SOON	-	1	Enquire
1	299933	COMPL. LH REAR HUB CARRIER ARRIVING SOON	299933 COMPL. LH REAR HUB CARRIER Applicable up to Ass. No. 99379 ARRIVING SOON	-	1	Enquire
1	276810	COMPL. RH REAR HUB CARRIER ARRIVING SOON	276810 COMPL. RH REAR HUB CARRIER Applicable up to Ass. No. 99379 ARRIVING SOON	-	1	Enquire
3	15541434	SCREW IN STOCK	15541434 SCREW IN STOCK	-	2	Enquire
4	12643778	WASHER	12643778 WASHER	-	4	Enquire
5	203666	NUT M12 IN STOCK	203666 NUT M12 IN STOCK	-	2	Enquire
6	245161	TIE-ROD IN STOCK	245161 TIE-ROD IN STOCK	-	2	Enquire
7	15541434	SCREW IN STOCK	15541434 SCREW IN STOCK	-	2	Enquire
8	12643778	WASHER	12643778 WASHER	-	4	Enquire
9	203666	NUT M12 IN STOCK	203666 NUT M12 IN STOCK	-	2	Enquire
10	12574521	Nyloc Nut IN STOCK	12574521 Nyloc Nut IN STOCK	-	16	Enquire
11	126648	WASHER D.10.5-21 X 2 IN STOCK	126648 WASHER D.10.5-21 X 2 IN STOCK	-	16	Enquire
12	810450	LH Rear Lower Arm IN STOCK	810450 LH Rear Lower Arm Applicable from Ass. No. 95583 IN STOCK	-	1	Enquire
12	810463	RH Lower Rear Arm	810463 RH Lower Rear Arm Applicable from Ass. No. 95583	-	1	Enquire
13	343376	BALL JOINT IN STOCK	343376 BALL JOINT IN STOCK	-	2	Enquire
14	238656	SPECIAL SCREW IN STOCK	238656 SPECIAL SCREW IN STOCK	-	2	Enquire
15	238063	NUT IN STOCK	238063 NUT IN STOCK	-	2	Enquire
17	222956	COMPENSATOR RING IN STOCK	222956 COMPENSATOR RING IN STOCK	-	2	Enquire
18	238258	SCREW IN STOCK	238258 SCREW IN STOCK	-	2	Enquire
19	264528	THREADED ROD 10 X 1.25 ARRIVING SOON	264528 THREADED ROD 10 X 1.25 ARRIVING SOON	-	16	Enquire
20	12646821	WASHER IN STOCK	12646821 WASHER IN STOCK	-	4	Enquire
21	262543	ADJUSTER SHIM	262543 ADJUSTER SHIM Th. 4 mm; Installed if necessary	-	4	Enquire
21	262542	ADJUSTER SHIM IN STOCK	262542 ADJUSTER SHIM Th. 3.5 mm; Installed if necessary IN STOCK	-	4	Enquire
21	262541	ADJUSTER SHIM IN STOCK	262541 ADJUSTER SHIM Th. 3 mm; Installed if necessary IN STOCK	-	4	Enquire
21	262540	ADJUSTER SHIM IN STOCK	262540 ADJUSTER SHIM Th. 2.5 mm; Installed if necessary IN STOCK	-	4	Enquire
21	262539	ADJUSTER SHIM	262539 ADJUSTER SHIM Th. 2 mm; Installed if necessary	-	4	Enquire
21	262546	ADJUSTER SHIM IN STOCK	262546 ADJUSTER SHIM Th. 1.5 mm; Installed if necessary IN STOCK	-	4	Enquire
21	262545	ADJUSTER SHIM	262545 ADJUSTER SHIM Th. 1 mm; Installed if necessary	-	4	Enquire
21	262544	ADJUSTER SHIM IN STOCK	262544 ADJUSTER SHIM Th. 0.5 mm; Installed if necessary IN STOCK	-	4	Enquire
21	238692	ADJUSTMENT SHIM IN STOCK	238692 ADJUSTMENT SHIM Th. 0.5 mm; Installed if necessary; No longer supplied; Replaced by 263032 IN STOCK	-	8	Enquire
23	251744	TRIPLE CLIP IN STOCK	251744 TRIPLE CLIP Applicable for sensor Part No. 252514, ref. 22; Applicable from Ass. No. 107296 IN STOCK	-	4	Enquire
