EVAPORATIVE EMISSIONS CONTROL SYSTEM of Ferrari Ferrari 458 Italia

View All

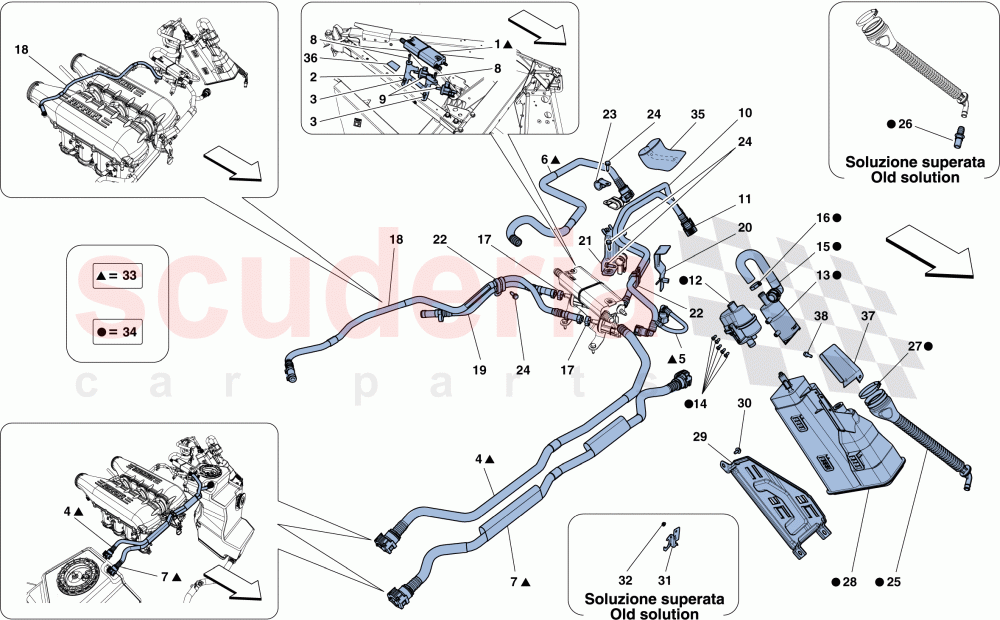

Ferrari 458 Italia - EVAPORATIVE EMISSIONS CONTROL SYSTEM

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	272378	COMPL. VAPOUR SEPARATOR	Enquire	To Order
	272653	VAPOUR SEPARATOR COMPLETE WITH PIPES	Enquire	To Order
	262960	COMPL. VAPOUR SEPARATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11585024	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	272653	VAPOUR SEPARATOR COMPLETE WITH PIPES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	272653	VAPOUR SEPARATOR COMPLETE WITH PIPES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	272379	FILTER SEPARATOR PIPE	Enquire	To Order
	272653	VAPOUR SEPARATOR COMPLETE WITH PIPES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	272653	VAPOUR SEPARATOR COMPLETE WITH PIPES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14358924	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	254425	FLUSH VALVE	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	257791	PIPE BETWEEN FILTER-LH VALVE	Enquire	To Order
	277354	PIPE BETWEEN FILTER-LH VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	277355	PIPE BETWEEN FILTER-RH VALVE	Enquire	To Order
	257792	PIPE BETWEEN FILTER-RH VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	251288	Diagnostic Pump	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	278130	VAPOUR FILTER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13432070	HOSE COLLAR	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	257799	RH FLUSH VALVE PIPE	Enquire	IN STOCK
	291988	RH FLUSH VALVE PIPE	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	257796	LH FLUSH VALVE PIPE	Enquire	IN STOCK
	291987	LH FLUSH VALVE PIPE	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	259435	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	260949	BRACKET	Enquire	To Order
	277384	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	253512	BRACKET	Enquire	To Order
	253512	BRACKET	Enquire	To Order
	277527	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10450490	BRACKET WITH SHEATH	Enquire	To Order
	10441790	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11585024	SCREW	Enquire	To Order
	11585024	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	260581	CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13434170	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	278130	VAPOUR FILTER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	82414200	VAPOUR FILTER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	880041	Allen Head Bolt M6 X 26	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	82910600	VAPOUR PIPE BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	272653	VAPOUR SEPARATOR COMPLETE WITH PIPES	Enquire	To Order
	275710	VAPOUR SEPARATOR COMPLETE WITH PIPES	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	278130	VAPOUR FILTER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	271630	HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	292835	BUSH	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	293295	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	IN STOCK

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	272378	COMPL. VAPOUR SEPARATOR	272378 COMPL. VAPOUR SEPARATOR Supplied with separator complete with pipes, see ref. 33; Applicable from Ass. No. 96892; No longer supplied	-	1	Enquire
1	272653	VAPOUR SEPARATOR COMPLETE WITH PIPES	272653 VAPOUR SEPARATOR COMPLETE WITH PIPES Supplied with separator complete with pipes, see ref. 33; No longer supplied	-	1	Enquire
1	262960	COMPL. VAPOUR SEPARATOR	262960 COMPL. VAPOUR SEPARATOR Supplied with separator complete with pipes, see ref. 33; Applicable up to Ass. No. 96891; No longer supplied	-	1	Enquire
3	11585024	SCREW	11585024 SCREW M5 X 14	-	2	Enquire
4	272653	VAPOUR SEPARATOR COMPLETE WITH PIPES	272653 VAPOUR SEPARATOR COMPLETE WITH PIPES Supplied with separator complete with pipes, see ref. 33; No longer supplied	-	1	Enquire
5	272653	VAPOUR SEPARATOR COMPLETE WITH PIPES	272653 VAPOUR SEPARATOR COMPLETE WITH PIPES Supplied with separator complete with pipes, see ref. 33; No longer supplied	-	1	Enquire
6	272379	FILTER SEPARATOR PIPE	272379 FILTER SEPARATOR PIPE Supplied with separator complete with pipes, see ref. 33; Applicable from Ass. No. 96892; No longer supplied	-	1	Enquire
6	272653	VAPOUR SEPARATOR COMPLETE WITH PIPES	272653 VAPOUR SEPARATOR COMPLETE WITH PIPES Supplied with separator complete with pipes, see ref. 33; Applicable up to Ass. No. 96891; No longer supplied	-	1	Enquire
7	272653	VAPOUR SEPARATOR COMPLETE WITH PIPES	272653 VAPOUR SEPARATOR COMPLETE WITH PIPES Supplied with separator complete with pipes, see ref. 33; No longer supplied	-	1	Enquire
8	14358924	SCREW	14358924 SCREW	-	2	Enquire
9	254425	FLUSH VALVE IN STOCK	254425 FLUSH VALVE IN STOCK	-	2	Enquire
10	257791	PIPE BETWEEN FILTER-LH VALVE	257791 PIPE BETWEEN FILTER-LH VALVE Applicable up to Ass. No. 104932	-	1	Enquire
10	277354	PIPE BETWEEN FILTER-LH VALVE	277354 PIPE BETWEEN FILTER-LH VALVE Applicable from Ass. No. 104933	-	1	Enquire
11	277355	PIPE BETWEEN FILTER-RH VALVE	277355 PIPE BETWEEN FILTER-RH VALVE Applicable from Ass. No. 104933	-	1	Enquire
11	257792	PIPE BETWEEN FILTER-RH VALVE	257792 PIPE BETWEEN FILTER-RH VALVE Applicable up to Ass. No. 104932	-	1	Enquire
12	251288	Diagnostic Pump IN STOCK	251288 Diagnostic Pump Supplied with complete fuel vapour filter ref. 34; No longer supplied IN STOCK	-	1	Enquire
15	278130	VAPOUR FILTER IN STOCK	278130 VAPOUR FILTER Supplied with complete fuel vapour filter ref. 34; No longer supplied IN STOCK	-	1	Enquire
16	262111	JUBILEE CLAMP IN STOCK	262111 JUBILEE CLAMP Supplied with complete fuel vapour filter ref. 34; No longer supplied IN STOCK	-	1	Enquire
17	13432070	HOSE COLLAR IN STOCK	13432070 HOSE COLLAR D. 15.7 IN STOCK	-	4	Enquire
18	257799	RH FLUSH VALVE PIPE IN STOCK	257799 RH FLUSH VALVE PIPE RH INTAKE; Applicable up to Ass. No. 110619 IN STOCK	-	1	Enquire
18	291988	RH FLUSH VALVE PIPE IN STOCK	291988 RH FLUSH VALVE PIPE RH INTAKE; Applicable from Ass. No. 110620 IN STOCK	-	1	Enquire
19	257796	LH FLUSH VALVE PIPE IN STOCK	257796 LH FLUSH VALVE PIPE LH INTAKE; Applicable up to Ass. No. 110619 IN STOCK	-	1	Enquire
19	291987	LH FLUSH VALVE PIPE IN STOCK	291987 LH FLUSH VALVE PIPE LH INTAKE; Applicable from Ass. No. 110620 IN STOCK	-	1	Enquire
20	259435	BRACKET	259435 BRACKET	-	1	Enquire
21	260949	BRACKET	260949 BRACKET Applicable up to Ass. No. 104932	-	1	Enquire
21	277384	BRACKET	277384 BRACKET Applicable from Ass. No. 104933	-	1	Enquire
22	253512	BRACKET	253512 BRACKET Applicable up to Ass. No. 104932	-	3	Enquire
22	253512	BRACKET	253512 BRACKET Applicable from Ass. No. 104933	-	2	Enquire
22	277527	BRACKET WITH SHEATH	277527 BRACKET WITH SHEATH Applicable from Ass. No. 104933	-	1	Enquire
23	10450490	BRACKET WITH SHEATH	10450490 BRACKET WITH SHEATH Applicable up to Ass. No. 96891	-	2	Enquire
23	10441790	BRACKET WITH SHEATH	10441790 BRACKET WITH SHEATH Applicable from Ass. No. 96892 up to Ass. No. 104932	-	2	Enquire
24	11585024	SCREW	11585024 SCREW M5 X 14; Applicable up to Ass. No. 104932	-	4	Enquire
24	11585024	SCREW	11585024 SCREW M5 X 14; Applicable from Ass. No. 104933	-	5	Enquire
26	260581	CONNECTOR	260581 CONNECTOR Also supplied with compl. vapour filter, ref. 34; No longer supplied	-	1	Enquire
27	13434170	COLLAR	13434170 COLLAR	-	1	Enquire
28	278130	VAPOUR FILTER IN STOCK	278130 VAPOUR FILTER Supplied with complete fuel vapour filter ref. 34; No longer supplied IN STOCK	-	1	Enquire
29	82414200	VAPOUR FILTER BRACKET	82414200 VAPOUR FILTER BRACKET	-	1	Enquire
30	880041	Allen Head Bolt M6 X 26 IN STOCK	880041 Allen Head Bolt M6 X 26 M6 X 14 IN STOCK	-	3	Enquire
31	82910600	VAPOUR PIPE BRACKET	82910600 VAPOUR PIPE BRACKET No longer supplied	-	1	Enquire
32	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 No longer supplied IN STOCK	-	1	Enquire
33	272653	VAPOUR SEPARATOR COMPLETE WITH PIPES	272653 VAPOUR SEPARATOR COMPLETE WITH PIPES Applicable from Ass. No. 96892 up to Ass. No. 104932	-	1	Enquire
33	275710	VAPOUR SEPARATOR COMPLETE WITH PIPES IN STOCK	275710 VAPOUR SEPARATOR COMPLETE WITH PIPES Applicable from Ass. No. 104933 IN STOCK	-	1	Enquire
34	278130	VAPOUR FILTER IN STOCK	278130 VAPOUR FILTER Applicable for breather vent 83862100 Tab. 105 ref. 17 IN STOCK	-	1	Enquire
35	271630	HEAT SHIELD	271630 HEAT SHIELD Applicable up to Ass. No. 96891	-	1	Enquire
36	292835	BUSH IN STOCK	292835 BUSH Applicable for bracket 284275 ref. 2; Applicable up to Ass. No. 118655; Applicable until depletion IN STOCK	-	1	Enquire
37	293295	BRACKET	293295 BRACKET No longer supplied	-	1	Enquire
38	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER IN STOCK	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 18; No longer supplied IN STOCK	-	1	Enquire
