STEERING CONTROL of Ferrari Ferrari 458 Italia

View All

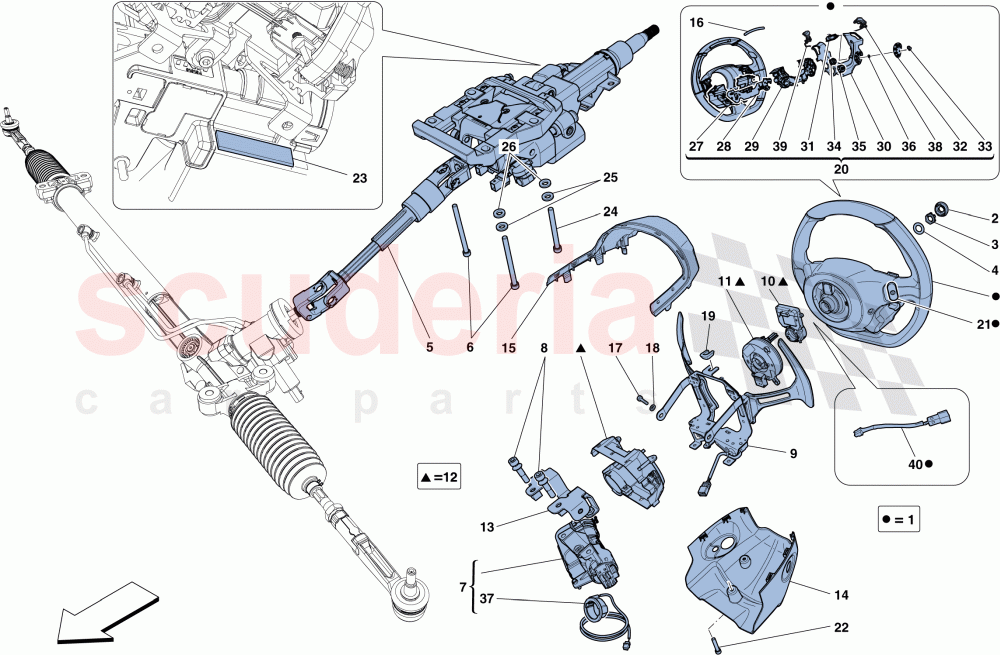

Ferrari 458 Italia - STEERING CONTROL

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	86590200	COMPL. STEERING WHEEL	Enquire	To Order
	86046000	COMPL. STEERING WHEEL	Enquire	To Order
	86590100	COMPL. STEERING WHEEL	Enquire	To Order

...and 9 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	299558	NUT CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	299557	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	152034	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	252488	COMPL. STEERING COLUMN	Enquire	To Order
	280960	COMPL. STEERING COLUMN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	259375	SCREW	Enquire	To Order
	14306924	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	247058	STEERING LOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	192053	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	285436	SHIFT PADDLE ASSEMBLY	Enquire	To Order
	263763	GEAR SHIFT PADDLE ASSEMBLY	Enquire	To Order
	258621	SHIFT PADDLE ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	309296	STEERING ANGLE SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	259914	CLOCK SPRING CONTACT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	252246	COMPL. STEERING SENSOR MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	258616	BRACKET MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84704600	LOWER STEERING COLUMN TRIM	Enquire	To Order
	84704600	LOWER STEERING COLUMN TRIM	Enquire	To Order
	84704600	LOWER STEERING COLUMN TRIM	Enquire	To Order

...and 7 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	84705100	UPPER STEERING COLUMN TRIM	Enquire	To Order
	84705100	UPPER STEERING COLUMN TRIM	Enquire	To Order
	81497600	UPPER STEERING COLUMN TRIM	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	214236	LED PLATE FOR STEERING WHEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11566227	SCREW	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	12604178	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68002000	RUBBER PAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	294752	STEERING WHEEL MOUNTED CONTROLS	Enquire	To Order
	308325	STEERING WHEEL MOUNTED CONTROLS	Enquire	To Order
	285449	STEERING WHEEL MOUNTED CONTROLS	Enquire	To Order

...and 9 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	291692	RH NIT BUTTON	Enquire	To Order
	246476	LH NIT BUTTON	Enquire	To Order
	292879	LH NIT BUTTON	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	263561	FOAM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14306924	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	258336	MAIN SHELL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	255426	ELECTRONIC BOARD	Enquire	To Order
	308322	ELECTRONIC BOARD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	258338	MAIN MOUNT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	263762	SURROUND	Enquire	To Order
	260514	SURROUND	Enquire	To Order
	285450	SURROUND	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	212752	ROTARY SELECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	255423	MANETTINO DECAL	Enquire	To Order
	273115	MANETTINO DECAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	210986	MANETTINO LEVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	257739	SHOCK ABSORBER HEIGHT BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	257738	ENGINE START BUTTON	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	308717	WASHER FOR STEERING WHEEL MANETTINO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	191664	ANTENNA IMMOBILIZER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	255430	RH TURN INDICATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	255429	LH TURN INDICATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	325936	CLOCK SPRING CONNECTOR HARNESS	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	86590200	COMPL. STEERING WHEEL	86590200 COMPL. STEERING WHEEL Alutex; Steering wheel with LEDs; STIC	-	1	Enquire
1	86046000	COMPL. STEERING WHEEL	86046000 COMPL. STEERING WHEEL Alutex; Steering wheel with LEDs; STIC; Applicable from Ass. No. 115750; No longer supplied; Replaced by 865902..	-	1	Enquire
1	86590100	COMPL. STEERING WHEEL	86590100 COMPL. STEERING WHEEL Carbon fibre trim; Steering wheel with LEDs; STIC	-	1	Enquire
1	85148600	COMPL. STEERING WHEEL	85148600 COMPL. STEERING WHEEL Alutex; Steering wheel with LEDs; STIC; Applicable up to Ass. No. 115749	-	1	Enquire
1	84417000	COMPL. STEERING WHEEL	84417000 COMPL. STEERING WHEEL Carbon fibre trim; Steering wheel with LEDs; STIC; Applicable from Ass. No. 98333 up to Ass. No. 115749	-	1	Enquire
1	86045900	COMPL. STEERING WHEEL	86045900 COMPL. STEERING WHEEL Carbon fibre trim; Steering wheel with LEDs; STIC; Applicable from Ass. No. 115750; No longer supplied; Replaced by 865901..	-	1	Enquire
1	86590300	COMPL. STEERING WHEEL	86590300 COMPL. STEERING WHEEL Burnished grey; STIC	-	1	Enquire
1	82979800	COMPL. STEERING WHEEL	82979800 COMPL. STEERING WHEEL Carbon fibre trim; Steering wheel with LEDs; STIC; Applicable up to Ass. No. 98332	-	1	Enquire
1	84416900	COMPL. STEERING WHEEL	84416900 COMPL. STEERING WHEEL Burnished grey; STIC; Applicable from Ass. No. 98333 up to Ass. No. 115749	-	1	Enquire
1	86045800	COMPL. STEERING WHEEL	86045800 COMPL. STEERING WHEEL Burnished grey; STIC; Applicable from Ass. No. 115750; No longer supplied; Replaced by 865903..	-	1	Enquire
1	83585200	COMPL. STEERING WHEEL	83585200 COMPL. STEERING WHEEL Corsa grey; STIC; Applicable up to Ass. No. 89228	-	1	Enquire
1	83585300	COMPL. STEERING WHEEL	83585300 COMPL. STEERING WHEEL Burnished grey; STIC; Applicable from Ass. No. 89229 up to Ass. No. 98332	-	1	Enquire
2	299558	NUT CAP	299558 NUT CAP	-	1	Enquire
3	299557	NUT	299557 NUT	-	1	Enquire
4	152034	WASHER	152034 WASHER	-	1	Enquire
5	252488	COMPL. STEERING COLUMN	252488 COMPL. STEERING COLUMN Electric version	-	1	Enquire
5	280960	COMPL. STEERING COLUMN	280960 COMPL. STEERING COLUMN Manual version	-	1	Enquire
6	259375	SCREW	259375 SCREW M8 X 110; Applicable for GD	-	2	Enquire
6	14306924	SCREW	14306924 SCREW M8 X 50; Not for GD	-	2	Enquire
7	247058	STEERING LOCK	247058 STEERING LOCK	-	1	Enquire
8	192053	SCREW	192053 SCREW	-	2	Enquire
9	285436	SHIFT PADDLE ASSEMBLY	285436 SHIFT PADDLE ASSEMBLY Alutex	-	1	Enquire
9	263763	GEAR SHIFT PADDLE ASSEMBLY	263763 GEAR SHIFT PADDLE ASSEMBLY Burnished grey; Applicable from Ass. No. 89229	-	1	Enquire
9	258621	SHIFT PADDLE ASSEMBLY	258621 SHIFT PADDLE ASSEMBLY Corsa grey; Applicable up to Ass. No. 89228	-	1	Enquire
10	309296	STEERING ANGLE SENSOR	309296 STEERING ANGLE SENSOR	-	1	Enquire
11	259914	CLOCK SPRING CONTACT	259914 CLOCK SPRING CONTACT	-	1	Enquire
12	252246	COMPL. STEERING SENSOR MOUNTING	252246 COMPL. STEERING SENSOR MOUNTING	-	1	Enquire
13	258616	BRACKET MOUNTING	258616 BRACKET MOUNTING	-	1	Enquire
14	84704600	LOWER STEERING COLUMN TRIM	84704600 LOWER STEERING COLUMN TRIM Applicable for manual steering column; Painted Technicoat Black; Not for EU GS, USA, CDN, GD; Applicable from Ass. No. 107720	-	1	Enquire
14	84704600	LOWER STEERING COLUMN TRIM	84704600 LOWER STEERING COLUMN TRIM Applicable for manual steering column	-	1	Enquire
14	84704600	LOWER STEERING COLUMN TRIM	84704600 LOWER STEERING COLUMN TRIM Applicable for manual steering column; Painted Technicoat Black; Applicable for EU GS, USA, CDN, GD; Applicable from Ass. No. 104987	-	1	Enquire
14	84536300	LOWER STEERING COLUMN TRIM	84536300 LOWER STEERING COLUMN TRIM Applicable for manual steering column; Painted Lechler Black; Applicable for EU GS, USA, CDN, GD; Applicable up to Ass. No. 104986	-	1	Enquire
14	84536300	LOWER STEERING COLUMN TRIM	84536300 LOWER STEERING COLUMN TRIM Applicable for manual steering column; Painted Lechler Black; Not for EU GS, USA, CDN, GD; Applicable up to Ass. No. 107719	-	1	Enquire
14	84948400	LOWER STEERING COLUMN TRIM	84948400 LOWER STEERING COLUMN TRIM Applicable for electric steering column	-	1	Enquire
14	84948400	LOWER STEERING COLUMN TRIM	84948400 LOWER STEERING COLUMN TRIM Applicable for electric steering column; replaces 847048..; Painted Technicoat Black; Not for EU GS, USA, CDN, GD; Applicable from Ass. No. 107720	-	1	Enquire
14	84948400	LOWER STEERING COLUMN TRIM	84948400 LOWER STEERING COLUMN TRIM Applicable for electric steering column; Replaces 847048..; Painted Technicoat Black; Applicable for EU GS, USA, CDN, GD; Applicable from Ass. No. 104987	-	1	Enquire
14	82056700	LOWER STEERING COLUMN TRIM	82056700 LOWER STEERING COLUMN TRIM Applicable for electric steering column; Painted Lechler Black; Not for EU GS, USA, CDN, GD; Applicable up to Ass. No. 107719	-	1	Enquire
14	82056700	LOWER STEERING COLUMN TRIM	82056700 LOWER STEERING COLUMN TRIM Applicable for electric steering column; Painted Lechler Black; Applicable for EU GS, USA, CDN, GD; Applicable up to Ass. No. 104986	-	1	Enquire
15	84705100	UPPER STEERING COLUMN TRIM	84705100 UPPER STEERING COLUMN TRIM	-	1	Enquire
15	84705100	UPPER STEERING COLUMN TRIM	84705100 UPPER STEERING COLUMN TRIM Painted Technicoat Black; Not for EU GS, USA, CDN, GD; Applicable from Ass. No. 107720	-	1	Enquire
15	81497600	UPPER STEERING COLUMN TRIM	81497600 UPPER STEERING COLUMN TRIM Painted Lechler Black; Applicable for EU GS, USA, CDN, GD; Applicable up to Ass. No. 104986	-	1	Enquire
15	81497600	UPPER STEERING COLUMN TRIM	81497600 UPPER STEERING COLUMN TRIM Painted Lechler Black; Not for EU GS, USA, CDN, GD; Applicable up to Ass. No. 107719	-	1	Enquire
15	84705100	UPPER STEERING COLUMN TRIM	84705100 UPPER STEERING COLUMN TRIM Painted Technicoat Black; Applicable for EU GS, USA, CDN, GD; Applicable from Ass. No. 104987	-	1	Enquire
16	214236	LED PLATE FOR STEERING WHEEL	214236 LED PLATE FOR STEERING WHEEL	-	1	Enquire
17	11566227	SCREW ARRIVING SOON	11566227 SCREW M5 X 16 ARRIVING SOON	-	3	Enquire
18	12604178	Washer	12604178 Washer	-	3	Enquire
19	68002000	RUBBER PAD	68002000 RUBBER PAD	-	1	Enquire
20	294752	STEERING WHEEL MOUNTED CONTROLS	294752 STEERING WHEEL MOUNTED CONTROLS Version with alutex surround; Applicable from Ass. No. 115750 up to Ass. No. 119566	-	1	Enquire
20	308325	STEERING WHEEL MOUNTED CONTROLS	308325 STEERING WHEEL MOUNTED CONTROLS Version with alutex surround; Applicable from Ass. No. 119567	-	1	Enquire
20	285449	STEERING WHEEL MOUNTED CONTROLS	285449 STEERING WHEEL MOUNTED CONTROLS Version with alutex surround; Applicable up to Ass. No. 115749	-	1	Enquire
20	294748	STEERING WHEEL MOUNTED CONTROLS	294748 STEERING WHEEL MOUNTED CONTROLS Version with carbon fibre backing; Applicable from Ass. No. 115750 up to Ass. No. 119566	-	1	Enquire
20	308323	STEERING WHEEL MOUNTED CONTROLS	308323 STEERING WHEEL MOUNTED CONTROLS Version with carbon fibre backing; Applicable from Ass. No. 119567	-	1	Enquire
20	260513	STEERING WHEEL MOUNTED CONTROLS	260513 STEERING WHEEL MOUNTED CONTROLS Version with carbon fibre backing; Applicable up to Ass. No. 98332	-	1	Enquire
20	275974	STEERING WHEEL MOUNTED CONTROLS	275974 STEERING WHEEL MOUNTED CONTROLS Version with carbon fibre backing; Applicable from Ass. No. 98333 up to Ass. No. 115749	-	1	Enquire
20	308327	STEERING WHEEL MOUNTED CONTROLS	308327 STEERING WHEEL MOUNTED CONTROLS Version with aluminium surround; Burnished grey; Applicable from Ass. No. 119567	-	1	Enquire
20	275973	STEERING WHEEL MOUNTED CONTROLS	275973 STEERING WHEEL MOUNTED CONTROLS Version with aluminium surround; Burnished grey; Applicable from Ass. No. 98333 up to Ass. No. 115749	-	1	Enquire
20	294230	STEERING WHEEL MOUNTED CONTROLS	294230 STEERING WHEEL MOUNTED CONTROLS Version with aluminium surround; Burnished grey; Applicable from Ass. No. 115750 up to Ass. No. 119566	-	1	Enquire
20	263761	STEERING WHEEL MOUNTED CONTROLS	263761 STEERING WHEEL MOUNTED CONTROLS Version with aluminium surround; Burnished grey; Applicable from Ass. No. 89229 up to Ass. No. 98332	-	1	Enquire
20	263245	STEERING WHEEL MOUNTED CONTROLS	263245 STEERING WHEEL MOUNTED CONTROLS Version with aluminium surround; Corsa grey; Applicable up to Ass. No. 89228	-	1	Enquire
21	291692	RH NIT BUTTON	291692 RH NIT BUTTON Applicable from Ass. No. 115750	-	1	Enquire
21	246476	LH NIT BUTTON	246476 LH NIT BUTTON Applicable up to Ass. No. 115749	-	1	Enquire
21	292879	LH NIT BUTTON	292879 LH NIT BUTTON Applicable from Ass. No. 115750	-	1	Enquire
21	246475	RH NIT BUTTON	246475 RH NIT BUTTON Applicable up to Ass. No. 115749	-	1	Enquire
22	85833700	SCREW	85833700 SCREW M5 X 16	-	2	Enquire
23	263561	FOAM	263561 FOAM	-	1	Enquire
24	14306924	SCREW	14306924 SCREW M8 X 50	-	2	Enquire
25	84653800	WASHER	84653800 WASHER	-	4	Enquire
26	84653800	WASHER	84653800 WASHER	-	4	Enquire
27	258336	MAIN SHELL	258336 MAIN SHELL	-	1	Enquire
28	255426	ELECTRONIC BOARD	255426 ELECTRONIC BOARD Applicable up to Ass. No. 119566	-	1	Enquire
28	308322	ELECTRONIC BOARD	308322 ELECTRONIC BOARD Applicable from Ass. No. 119567	-	1	Enquire
29	258338	MAIN MOUNT	258338 MAIN MOUNT	-	1	Enquire
30	263762	SURROUND	263762 SURROUND Burnished grey; Applicable from Ass. No. 89229	-	1	Enquire
30	260514	SURROUND	260514 SURROUND Carbon	-	1	Enquire
30	285450	SURROUND	285450 SURROUND Alutex	-	1	Enquire
30	255516	SURROUND	255516 SURROUND Corsa grey; Applicable up to Ass. No. 89228	-	1	Enquire
31	212752	ROTARY SELECTOR	212752 ROTARY SELECTOR	-	1	Enquire
32	255423	MANETTINO DECAL	255423 MANETTINO DECAL Applicable up to Ass. No. 98332	-	1	Enquire
32	273115	MANETTINO DECAL	273115 MANETTINO DECAL Applicable from Ass. No. 98333	-	1	Enquire
33	210986	MANETTINO LEVER	210986 MANETTINO LEVER	-	1	Enquire
34	257739	SHOCK ABSORBER HEIGHT BUTTON	257739 SHOCK ABSORBER HEIGHT BUTTON	-	1	Enquire
35	257738	ENGINE START BUTTON ARRIVING SOON	257738 ENGINE START BUTTON ARRIVING SOON	-	1	Enquire
36	308717	WASHER FOR STEERING WHEEL MANETTINO	308717 WASHER FOR STEERING WHEEL MANETTINO	-	1	Enquire
37	191664	ANTENNA IMMOBILIZER	191664 ANTENNA IMMOBILIZER	-	1	Enquire
38	255430	RH TURN INDICATOR	255430 RH TURN INDICATOR	-	1	Enquire
39	255429	LH TURN INDICATOR	255429 LH TURN INDICATOR	-	1	Enquire
40	325936	CLOCK SPRING CONNECTOR HARNESS	325936 CLOCK SPRING CONNECTOR HARNESS Only applicable for spare parts	-	1	Enquire
