HYDRAULIC POWER STEERING BOX of Ferrari Ferrari 458 Italia

View All

Ferrari 458 Italia - HYDRAULIC POWER STEERING BOX

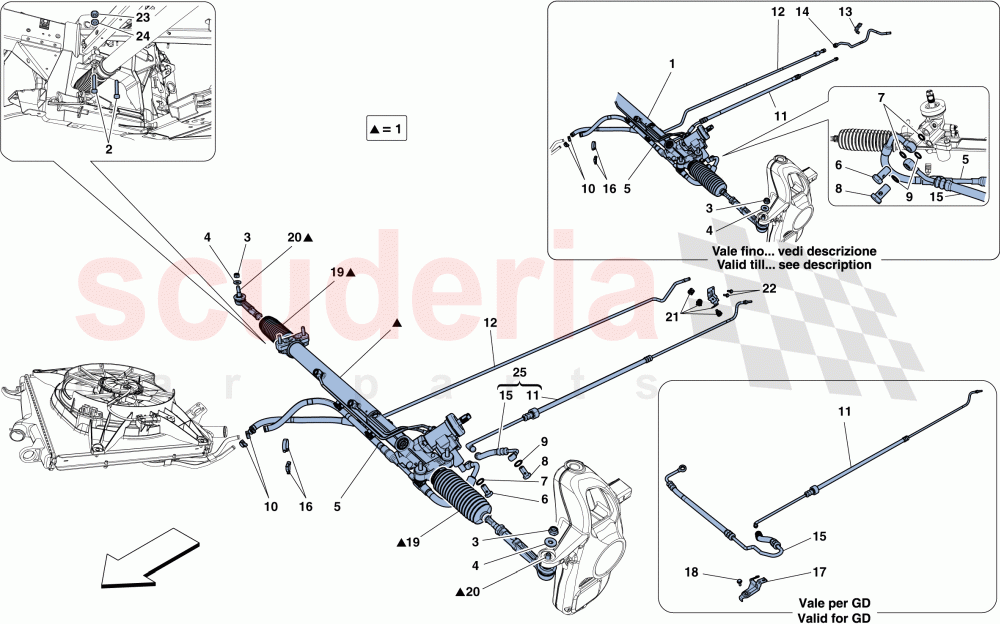

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	264539	STEERING BOX	Enquire	To Order
	264540	STEERING BOX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	277720	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	102742	Nyloc Nut M10 x 1.25 x 10mm	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	12626224	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262429	PIPE FROM STEERING BOX TO RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10280060	WASHER COPPER D14. 20 X 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184727	Banjo bolt For Union M16 x 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11270360	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13127070	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	249386	DELIVERY PIPE	Enquire	To Order
	249386	DELIVERY PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262427	RETURN PIPE	Enquire	To Order
	262427	RETURN PIPE	Enquire	To Order
	249387	RETURN PIPE	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	81882400	CLIP	Enquire	To Order
	81882400	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	249499	REAR POWER STEERING FLUID RETURN PIPE	Enquire	To Order
	249499	REAR POWER STEERING FLUID RETURN PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262509	OIL DELIVERY PIPE	Enquire	To Order
	262509	OIL DELIVERY PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	267177	CLIP	Enquire	To Order
	266248	CLIP	Enquire	To Order
	267177	CLIP	Enquire	To Order

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	265838	POWER STEERING PIPE MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11625824	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	229521	STEERING BOX GAITER REPLACEMENT KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	250196	ROD END FOR STEERING BOX	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	263238	PIPE MOUNTING BRACKET	Enquire	To Order
	263238	PIPE MOUNTING BRACKET	Enquire	To Order
	263238	PIPE MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11625824	SCREW	Enquire	To Order
	11625824	SCREW	Enquire	To Order
	11625824	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14058621	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	126648	WASHER D.10.5-21 X 2	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	264539	STEERING BOX	264539 STEERING BOX Not for GD	-	1	Enquire
1	264540	STEERING BOX	264540 STEERING BOX Applicable for GD	-	1	Enquire
2	277720	SCREW	277720 SCREW	-	4	Enquire
3	102742	Nyloc Nut M10 x 1.25 x 10mm ARRIVING SOON	102742 Nyloc Nut M10 x 1.25 x 10mm ARRIVING SOON	-	2	Enquire
4	12626224	WASHER	12626224 WASHER	-	2	Enquire
5	262429	PIPE FROM STEERING BOX TO RADIATOR	262429 PIPE FROM STEERING BOX TO RADIATOR Applicable for GD	-	1	Enquire
7	10280060	WASHER COPPER D14. 20 X 1.5	10280060 WASHER COPPER D14. 20 X 1.5	-	2	Enquire
8	184727	Banjo bolt For Union M16 x 1.5	184727 Banjo bolt For Union M16 x 1.5	-	1	Enquire
9	11270360	GASKET	11270360 GASKET	-	2	Enquire
10	13127070	COLLAR	13127070 COLLAR	-	2	Enquire
11	249386	DELIVERY PIPE	249386 DELIVERY PIPE Applicable for EU GS; Applicable up to Ass. No. 90801	-	1	Enquire
11	249386	DELIVERY PIPE	249386 DELIVERY PIPE Applicable for GOLFO; Applicable up to Ass. No. 91118	-	1	Enquire
12	262427	RETURN PIPE	262427 RETURN PIPE Applicable for GOLFO; Applicable from Ass. No. 91119	-	1	Enquire
12	262427	RETURN PIPE	262427 RETURN PIPE From start of production; Not for EU GS, GOLFO	-	1	Enquire
12	249387	RETURN PIPE	249387 RETURN PIPE Applicable for EU GS; Applicable up to Ass. No. 90801	-	1	Enquire
12	249387	RETURN PIPE	249387 RETURN PIPE Applicable for GOLFO; Applicable up to Ass. No. 91118	-	1	Enquire
12	262427	RETURN PIPE	262427 RETURN PIPE Applicable for EU GS; Applicable from Ass. No. 90802	-	1	Enquire
13	81882400	CLIP	81882400 CLIP Applicable for EU GS; Applicable up to Ass. No. 90801	-	1	Enquire
13	81882400	CLIP	81882400 CLIP Applicable for GOLFO; Applicable up to Ass. No. 91118	-	1	Enquire
14	249499	REAR POWER STEERING FLUID RETURN PIPE	249499 REAR POWER STEERING FLUID RETURN PIPE Applicable for EU GS; Applicable up to Ass. No. 90801	-	1	Enquire
14	249499	REAR POWER STEERING FLUID RETURN PIPE	249499 REAR POWER STEERING FLUID RETURN PIPE Applicable for GOLFO; Applicable up to Ass. No. 91118	-	1	Enquire
15	262509	OIL DELIVERY PIPE	262509 OIL DELIVERY PIPE Applicable for EU GS; Applicable up to Ass. No. 90801	-	1	Enquire
15	262509	OIL DELIVERY PIPE	262509 OIL DELIVERY PIPE Applicable for GOLFO; Applicable up to Ass. No. 91118	-	1	Enquire
16	267177	CLIP	267177 CLIP Applicable for GD	-	3	Enquire
16	266248	CLIP	266248 CLIP Applicable for GD	-	1	Enquire
16	267177	CLIP	267177 CLIP Applicable for GOLFO; Applicable from Ass. No. 91119	-	4	Enquire
16	267177	CLIP	267177 CLIP From start of production; Not for EU GS, GOLFO, GD	-	4	Enquire
16	267177	CLIP	267177 CLIP Applicable for EU GS; Applicable from Ass. No. 90802	-	4	Enquire
16	259508	CLIP	259508 CLIP Applicable for GOLFO; Applicable up to Ass. No. 91118	-	4	Enquire
16	259508	CLIP	259508 CLIP Applicable for EU GS; Applicable up to Ass. No. 90801	-	4	Enquire
17	265838	POWER STEERING PIPE MOUNTING BRACKET	265838 POWER STEERING PIPE MOUNTING BRACKET Applicable for GD	-	1	Enquire
18	11625824	SCREW	11625824 SCREW M6 X 18; Applicable for GD	-	1	Enquire
19	229521	STEERING BOX GAITER REPLACEMENT KIT	229521 STEERING BOX GAITER REPLACEMENT KIT	-	1	Enquire
20	250196	ROD END FOR STEERING BOX ARRIVING SOON	250196 ROD END FOR STEERING BOX ARRIVING SOON	-	2	Enquire
21	263238	PIPE MOUNTING BRACKET	263238 PIPE MOUNTING BRACKET Applicable for EU GS; Applicable from Ass. No. 90802	-	1	Enquire
21	263238	PIPE MOUNTING BRACKET	263238 PIPE MOUNTING BRACKET Applicable for GOLFO; Applicable from Ass. No. 91119	-	1	Enquire
21	263238	PIPE MOUNTING BRACKET	263238 PIPE MOUNTING BRACKET From start of production; Not for EU GS, GOLFO	-	1	Enquire
22	11625824	SCREW	11625824 SCREW M6 X 18; From start of production; Not for EU GS, GOLFO	-	1	Enquire
22	11625824	SCREW	11625824 SCREW M6 X 18; Applicable for EU GS; Applicable from Ass. No. 90802	-	1	Enquire
22	11625824	SCREW	11625824 SCREW M6 X 18; Applicable for GOLFO; Applicable from Ass. No. 91119	-	1	Enquire
23	14058621	NUT	14058621 NUT	-	4	Enquire
24	126648	WASHER D.10.5-21 X 2	126648 WASHER D.10.5-21 X 2	-	4	Enquire
