Ferrari 348 TB (1993) - Current Generator (Valid Till Engine Nr. 30737) - Battery

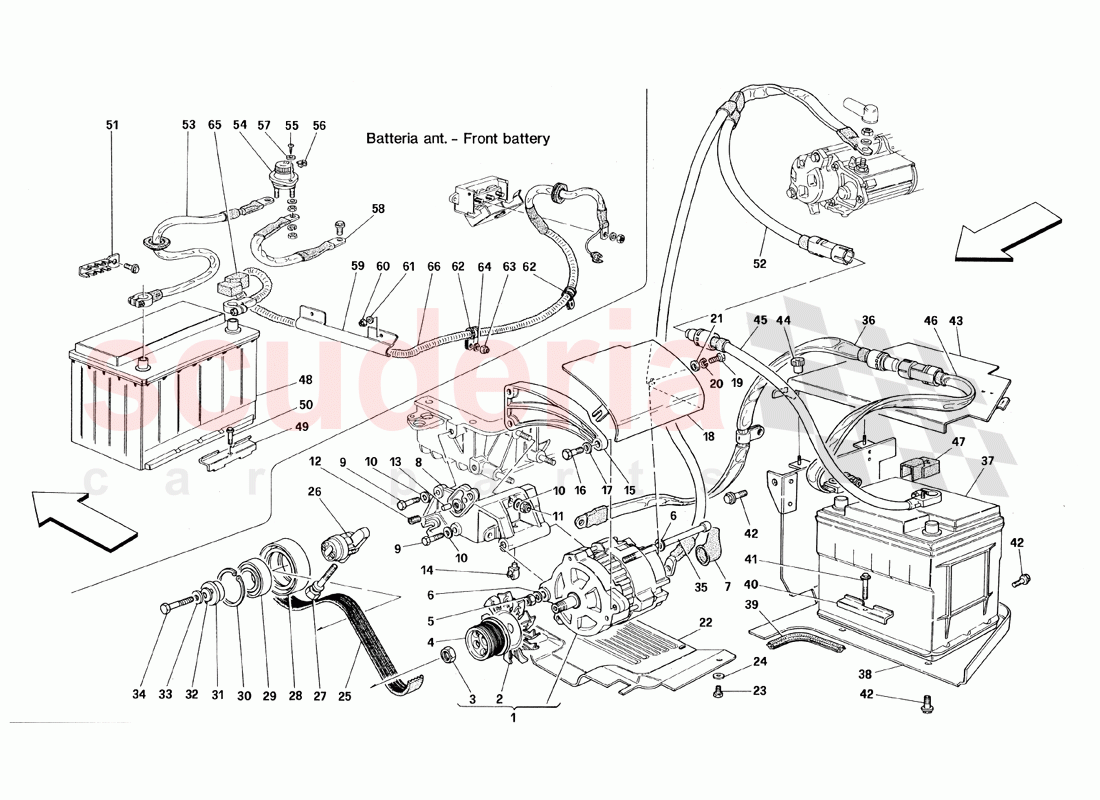

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	156235	Alternator 140A (Nippon Denso)	Enquire	To Order
	170192	Generator 105 A	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	143863	BLOWER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	152687	Nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	138525	GENERATOR CONTROL PULLEY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	102742	Nyloc Nut M10 x 1.25 x 10mm	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	128944	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	125329	PROTECTION BOOT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	139295	BELT TIGHTENING AND GENERATOR SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16043634	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12604474	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16104411	Selflocking nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13526070	Heli-coil securing cover	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	125717	CENTRING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14574287	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	144639	UPPER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16043436	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	145410	SHIELD FOR ALTERNATOR PROTECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16043324	SCREW M8 X 18	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11193874	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14496501	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	156330	ALTERNATOR AND BELTS PROTECTION SHEET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10977524	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	199822	GENERATOR CONTROL BELT	Enquire	To Order
	199822	GENERATOR CONTROL BELT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	139359	BELT TIGHTENING HUB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	139309	ADJUSTMENT SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	139321	BELT TIGHTENING PULLEY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177436	BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11061076	SEEGER RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	142473	BEARING SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11190579	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	138194	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15888721	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	130431	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	134439	PLAIT FROM CONNECTOR TO ENGINE MASS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180055	BATTERY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62611300	BATTERY PROTECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62611400	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62573400	BRACKET FOR BATTERY FIXING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13836424	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13836271	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62950500	BATTERY COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62565000	COVER FIXING RING NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	196348	CABLE.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	134438	PLAIT FROM BATTERY TO CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	144727	CABLES PROTECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180055	BATTERY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62573400	BRACKET FOR BATTERY FIXING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13836424	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61682500	MASS CABLE CONNECTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	198369	CABLE.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	155067	BATTERY CUT OUT SWITCH CONNECTING PLAIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	383000322	Battery disconnecting switch	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15688275	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61067800	FIXING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	155068	CUT OUT SWITCH MASS CONNECTING PLAIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63510500	CABLE PROTECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10441790	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	144727	CABLES PROTECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	151337	BATTERY TO TERMINAL BOX CONNECTING CABLE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	156235	Alternator 140A (Nippon Denso)	156235 Alternator 140A (Nippon Denso)	-	1	Enquire
1	170192	Generator 105 A	170192 Generator 105 A Not as spare part now Replaced by kit 1 -70000790 for front battery cars 70000791 for rear battery cars / ALTERNATIVE USED 393050214	-	1	Enquire
2	143863	BLOWER	143863 BLOWER	-	1	Enquire
3	152687	Nut	152687 Nut	-	1	Enquire
4	138525	GENERATOR CONTROL PULLEY	138525 GENERATOR CONTROL PULLEY	-	1	Enquire
5	102742	Nyloc Nut M10 x 1.25 x 10mm ARRIVING SOON	102742 Nyloc Nut M10 x 1.25 x 10mm ARRIVING SOON	-	1	Enquire
6	128944	WASHER	128944 WASHER	-	2	Enquire
7	125329	PROTECTION BOOT	125329 PROTECTION BOOT	-	1	Enquire
8	139295	BELT TIGHTENING AND GENERATOR SUPPORT	139295 BELT TIGHTENING AND GENERATOR SUPPORT	-	1	Enquire
9	16043634	SCREW	16043634 SCREW	-	2	Enquire
10	12604474	WASHER	12604474 WASHER	-	5	Enquire
11	16104411	Selflocking nut	16104411 Selflocking nut	-	3	Enquire
12	13526070	Heli-coil securing cover	13526070 Heli-coil securing cover	-	1	Enquire
13	125717	CENTRING DOWEL	125717 CENTRING DOWEL	-	1	Enquire
14	14574287	CLIP	14574287 CLIP	-	1	Enquire
15	144639	UPPER BRACKET	144639 UPPER BRACKET	-	1	Enquire
16	16043436	SCREW	16043436 SCREW	-	1	Enquire
17	11193874	WASHER	11193874 WASHER	-	1	Enquire
18	145410	SHIELD FOR ALTERNATOR PROTECTION	145410 SHIELD FOR ALTERNATOR PROTECTION	-	1	Enquire
19	16043324	SCREW M8 X 18	16043324 SCREW M8 X 18	-	1	Enquire
20	11193874	WASHER	11193874 WASHER	-	1	Enquire
21	14496501	WASHER	14496501 WASHER	-	1	Enquire
22	156330	ALTERNATOR AND BELTS PROTECTION SHEET	156330 ALTERNATOR AND BELTS PROTECTION SHEET	-	1	Enquire
23	10977524	SCREW	10977524 SCREW	-	2	Enquire
24	12643724	WASHER	12643724 WASHER	-	2	Enquire
25	199822	GENERATOR CONTROL BELT	199822 GENERATOR CONTROL BELT	-	1	Enquire
25	199822	GENERATOR CONTROL BELT	199822 GENERATOR CONTROL BELT Valid for Delco Alternator Untill Car 30737 Use on Exhaustion of 138325	-	1	Enquire
26	139359	BELT TIGHTENING HUB	139359 BELT TIGHTENING HUB	-	1	Enquire
27	139309	ADJUSTMENT SCREW	139309 ADJUSTMENT SCREW	-	1	Enquire
28	139321	BELT TIGHTENING PULLEY	139321 BELT TIGHTENING PULLEY	-	1	Enquire
29	177436	BEARING	177436 BEARING	-	1	Enquire
30	11061076	SEEGER RING	11061076 SEEGER RING	-	1	Enquire
31	142473	BEARING SPACER	142473 BEARING SPACER	-	1	Enquire
32	11190579	WASHER	11190579 WASHER	-	1	Enquire
33	138194	WASHER	138194 WASHER	-	1	Enquire
34	15888721	SCREW	15888721 SCREW	-	1	Enquire
35	130431	SCREW	130431 SCREW	-	1	Enquire
36	134439	PLAIT FROM CONNECTOR TO ENGINE MASS	134439 PLAIT FROM CONNECTOR TO ENGINE MASS	-	1	Enquire
37	180055	BATTERY	180055 BATTERY	-	1	Enquire
38	62611300	BATTERY PROTECTION	62611300 BATTERY PROTECTION Valid for rear battery cars	-	1	Enquire
39	62611400	GASKET	62611400 GASKET Valid for rear battery cars	-	1	Enquire
40	62573400	BRACKET FOR BATTERY FIXING	62573400 BRACKET FOR BATTERY FIXING	-	1	Enquire
41	13836424	SCREW	13836424 SCREW	-	1	Enquire
42	13836271	SCREW	13836271 SCREW Valid for rear battery cars	-	5	Enquire
43	62950500	BATTERY COVER	62950500 BATTERY COVER Valid for rear battery cars	-	1	Enquire
44	62565000	COVER FIXING RING NUT	62565000 COVER FIXING RING NUT Valid for rear battery cars	-	2	Enquire
45	196348	CABLE.	196348 CABLE. Valid for rear battery cars	-	1	Enquire
46	134438	PLAIT FROM BATTERY TO CONNECTOR	134438 PLAIT FROM BATTERY TO CONNECTOR Valid for rear battery cars	-	1	Enquire
47	144727	CABLES PROTECTION	144727 CABLES PROTECTION	-	1	Enquire
48	180055	BATTERY	180055 BATTERY	-	1	Enquire
49	62573400	BRACKET FOR BATTERY FIXING	62573400 BRACKET FOR BATTERY FIXING	-	1	Enquire
50	13836424	SCREW	13836424 SCREW	-	1	Enquire
51	61682500	MASS CABLE CONNECTING BRACKET	61682500 MASS CABLE CONNECTING BRACKET	-	4	Enquire
52	198369	CABLE.	198369 CABLE.	-	1	Enquire
53	155067	BATTERY CUT OUT SWITCH CONNECTING PLAIT	155067 BATTERY CUT OUT SWITCH CONNECTING PLAIT Valid for front battery cars	-	1	Enquire
54	383000322	Battery disconnecting switch	383000322 Battery disconnecting switch Valid for front battery cars	-	1	Enquire
55	15688275	SCREW	15688275 SCREW Valid for front battery cars	-	2	Enquire
56	61067800	FIXING BRACKET	61067800 FIXING BRACKET Valid for front battery cars	-	2	Enquire
57	62769800	WASHER	62769800 WASHER Valid for front battery cars	-	2	Enquire
58	155068	CUT OUT SWITCH MASS CONNECTING PLAIT	155068 CUT OUT SWITCH MASS CONNECTING PLAIT Valid for front battery cars	-	1	Enquire
59	63510500	CABLE PROTECTION	63510500 CABLE PROTECTION Valid for front battery cars	-	1	Enquire
60	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6 Valid for front battery cars	-	2	Enquire
61	10519424	WASHER	10519424 WASHER Valid for front battery cars	-	2	Enquire
62	10441790	BRACKET WITH SHEATH	10441790 BRACKET WITH SHEATH Valid for front battery cars	-	2	Enquire
63	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6 Valid for front battery cars	-	2	Enquire
64	10519424	WASHER	10519424 WASHER Valid for front battery cars	-	2	Enquire
65	144727	CABLES PROTECTION	144727 CABLES PROTECTION	-	1	Enquire
66	151337	BATTERY TO TERMINAL BOX CONNECTING CABLE	151337 BATTERY TO TERMINAL BOX CONNECTING CABLE Valid for front battery cars	-	1	Enquire
