Manifolds And Covers - Motronic 2.7

Ferrari 348 TB (1993)

Find Your Part

Ferrari 348 TB (1993) - Manifolds and Covers - Motronic 2.7

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
149504 COMPLETE LH SUCTION MANIFOLD Enquire To Order
Enquire To Order
Photo Part No Description Price (each) Stock
Enquire To Order
Photo Part No Description Price (each) Stock
138029 GASKET $25.03 To Order
Photo Part No Description Price (each) Stock
13525770 THREADED INSERT $2.87 To Order
Photo Part No Description Price (each) Stock
143307 STUD $0.75 To Order
Photo Part No Description Price (each) Stock
11500324 STUD BOLT $0.29 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
101239 CAP NUT $1.43 To Order
Photo Part No Description Price (each) Stock
100424 BALL JOINT $38.83 To Order
Photo Part No Description Price (each) Stock
66535800 SCREW $5.64 To Order
Photo Part No Description Price (each) Stock
12601374 WASHER $0.02 IN STOCK
Photo Part No Description Price (each) Stock
10450690 BRACKET WITH SHEATH $0.70 To Order
Photo Part No Description Price (each) Stock
136815 PNEUMATIC CAPSULE $41.70 To Order
Photo Part No Description Price (each) Stock
11001721 STUD $1.10 To Order
Photo Part No Description Price (each) Stock
319201 FUEL FILLER PIPE ASSEMBLY $722.05 IN STOCK
Photo Part No Description Price (each) Stock
14496324 WASHER $3.06 To Order
Photo Part No Description Price (each) Stock
137277 STUD $53.62 To Order
Photo Part No Description Price (each) Stock
319201 FUEL FILLER PIPE ASSEMBLY $722.05 IN STOCK
Photo Part No Description Price (each) Stock
10730021 WASHER $0.10 To Order
Photo Part No Description Price (each) Stock
137135 LEVER $41.48 To Order
Photo Part No Description Price (each) Stock
137271 BUSHING $2.97 To Order
Photo Part No Description Price (each) Stock
10794501 SPLIT PIN $0.02 To Order
Photo Part No Description Price (each) Stock
14496204 WASHER $0.16 IN STOCK
Photo Part No Description Price (each) Stock
137270 R. H. THREADED TIE ROD $35.28 To Order
Photo Part No Description Price (each) Stock
10791114 L.H. THREADED NUT $0.88 IN STOCK
Photo Part No Description Price (each) Stock
137273 ADJUSTMENT SLEEVE $3.19 To Order
Photo Part No Description Price (each) Stock
899480 NUT $0.42 To Order
Photo Part No Description Price (each) Stock
137276 L. H. THREADED TIE ROD $35.28 To Order
Photo Part No Description Price (each) Stock
10450590 BRACKET WITH SHEATH $1.78 To Order
Photo Part No Description Price (each) Stock
149505 COMPLETE SUCTION MANIFOLDS COVER Enquire To Order
11065676 Seeger Ring $0.05 To Order
Photo Part No Description Price (each) Stock
Enquire To Order
Photo Part No Description Price (each) Stock
138045 GASKET -Valid for USA and CDN- $41.67 To Order
Photo Part No Description Price (each) Stock
11500524 STUD BOLT $0.37 To Order
Photo Part No Description Price (each) Stock
13541124 STUD BOLT $21.80 IN STOCK
Photo Part No Description Price (each) Stock
10519424 WASHER $0.02 IN STOCK
Photo Part No Description Price (each) Stock
101239 CAP NUT $1.43 To Order
Photo Part No Description Price (each) Stock
141563 THREADED PLUG $1.54 To Order
Photo Part No Description Price (each) Stock
128016 CONNECTOR $10.60 To Order
Photo Part No Description Price (each) Stock
142507 UNION $7.47 To Order
Photo Part No Description Price (each) Stock
117348 THREADED UNION $7.13 To Order
Photo Part No Description Price (each) Stock
142511 UNION $2.74 To Order
Photo Part No Description Price (each) Stock
136922 BUSHING $1.54 To Order
Photo Part No Description Price (each) Stock
138169 SPRING $7.88 To Order
Photo Part No Description Price (each) Stock
138173 BUTTERFLY CONTROL SHAFT $159.34 To Order
Photo Part No Description Price (each) Stock
137280 AIR ADJUSTTING THROTTLE $45.53 To Order
Photo Part No Description Price (each) Stock
136923 SCREW $0.15 To Order
Photo Part No Description Price (each) Stock
139373 PROTECTION BOOT $14.54 To Order
Photo Part No Description Price (each) Stock
129269 SEAL RING Enquire To Order
Photo Part No Description Price (each) Stock
136921 WASHER $0.41 To Order
Photo Part No Description Price (each) Stock
154270 THROTTLE CONTROL LEVER $13.00 To Order
Photo Part No Description Price (each) Stock
154270 THROTTLE CONTROL LEVER $13.00 To Order
Photo Part No Description Price (each) Stock
136924 SCREW $0.28 To Order
Photo Part No Description Price (each) Stock
153399 SCREW $9.03 To Order
Photo Part No Description Price (each) Stock
153400 SPRING $11.38 To Order
Photo Part No Description Price (each) Stock
113566 SAFETY PLATE $1.54 To Order
Photo Part No Description Price (each) Stock
137271 BUSHING $2.97 To Order
Photo Part No Description Price (each) Stock
14496204 WASHER $0.16 IN STOCK
Photo Part No Description Price (each) Stock
10794501 SPLIT PIN $0.02 To Order
Photo Part No Description Price (each) Stock
141563 THREADED PLUG $1.54 To Order
Photo Part No Description Price (each) Stock
14326150 CAP $0.55 IN STOCK
Photo Part No Description Price (each) Stock
137126 WASHER $1.77 To Order
Photo Part No Description Price (each) Stock
14059311 FLANGED NUT M8 X 1.25 $0.29 IN STOCK
View All

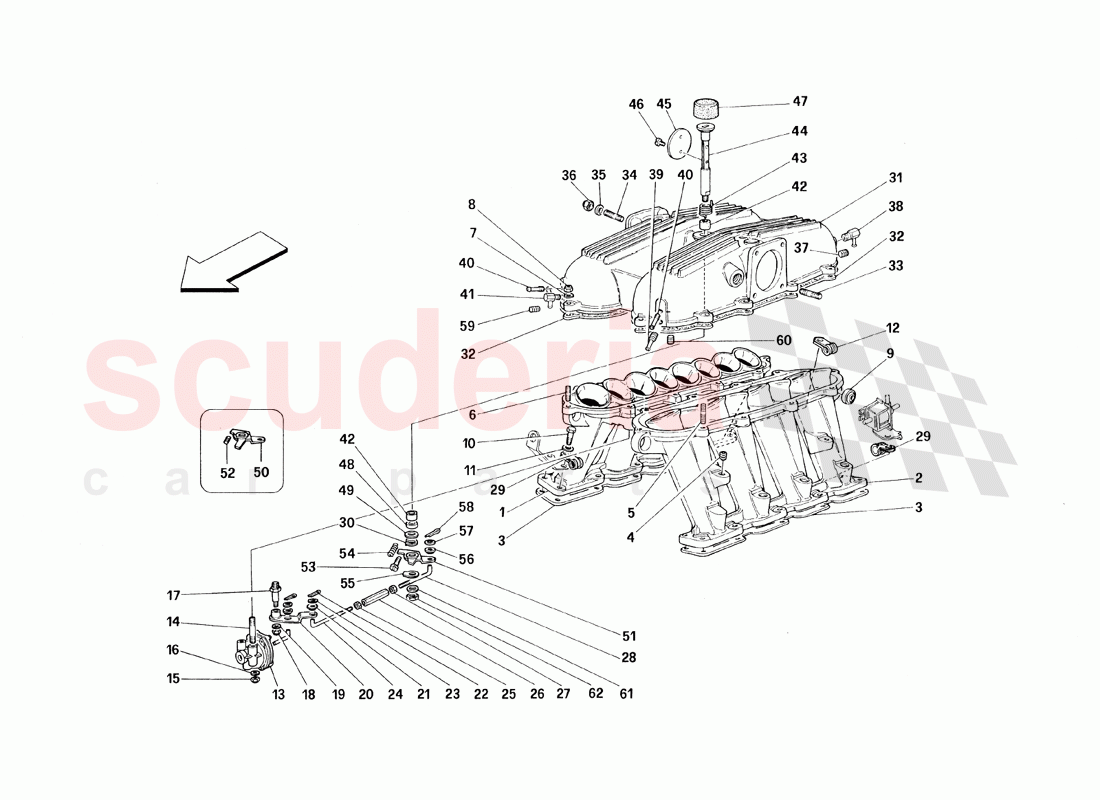

Manifolds and Covers - Motronic 2.7 of Ferrari Ferrari 348 TB (1993) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 149503
COMPLETE RH SUCTION MANIFOLD 		- 1 Enquire
1 149504
COMPLETE LH SUCTION MANIFOLD 		- 1 Enquire
1
Not as spare part With the assembly 149503 		- 1 Enquire
2
Not as spare parts With the assembly 149504 		- 1 Enquire
3 138029
GASKET 		$25.03 (69.1% off) 2
4 13525770
THREADED INSERT 		$2.87 (21.8% off) 4
5 143307
STUD 		$0.75 2
6 11500324
STUD BOLT 		$0.29 18
7 11197774
WASHER
IN STOCK 		$0.06 (80% off) 20
8 101239
CAP NUT 		$1.43 (60.8% off) 20
9 100424
BALL JOINT 		$38.83 2
10 66535800
SCREW 		$5.64 20
11 12601374
WASHER
IN STOCK 		$0.02 (92% off) 20
12 10450690
BRACKET WITH SHEATH 		$0.70 (58.8% off) 1
13 136815
PNEUMATIC CAPSULE 		$41.70 1
14 11001721
STUD 		$1.10 2
15 319201
FUEL FILLER PIPE ASSEMBLY
IN STOCK 		$722.05 2
16 14496324
WASHER 		$3.06 2
17 137277
STUD 		$53.62 1
18 319201
FUEL FILLER PIPE ASSEMBLY
IN STOCK 		$722.05 1
19 10730021
WASHER 		$0.10 1
20 137135
LEVER 		$41.48 1
21 137271
BUSHING 		$2.97 2
22 10794501
SPLIT PIN 		$0.02 2
23 14496204
WASHER
IN STOCK 		$0.16 2
24 137270
R. H. THREADED TIE ROD 		$35.28 1
25 10791114
L.H. THREADED NUT
IN STOCK 		$0.88 1
26 137273
ADJUSTMENT SLEEVE 		$3.19 (69.2% off) 1
27 899480
NUT 		$0.42 1
28 137276
L. H. THREADED TIE ROD 		$35.28 1
29 10450590
BRACKET WITH SHEATH 		$1.78 3
30 149505
COMPLETE SUCTION MANIFOLDS COVER
Not as spare part With the assembly 149505 		- 1 Enquire
30 11065676
Seeger Ring 		$0.05 (93.3% off) 1
31
Not as spare part With the assembly 149505 		- 1 Enquire
32 138045
GASKET -Valid for USA and CDN- 		$41.67 (56.1% off) 2
33 11500524
STUD BOLT 		$0.37 (63% off) 4
34 13541124
STUD BOLT
IN STOCK 		$21.80 4
35 10519424
WASHER
IN STOCK 		$0.02 (92% off) 8
36 101239
CAP NUT 		$1.43 (60.8% off) 8
37 141563
THREADED PLUG 		$1.54 3
38 128016
CONNECTOR 		$10.60 1
39 142507
UNION 		$7.47 1
40 117348
THREADED UNION 		$7.13 2
41 142511
UNION 		$2.74 1
42 136922
BUSHING 		$1.54 2
43 138169
SPRING 		$7.88 1
44 138173
BUTTERFLY CONTROL SHAFT 		$159.34 1
45 137280
AIR ADJUSTTING THROTTLE 		$45.53 1
46 136923
SCREW 		$0.15 2
47 139373
PROTECTION BOOT 		$14.54 (30.9% off) 1
48 129269
SEAL RING 		- 2 Enquire
49 136921
WASHER 		$0.41 1
50 154270
THROTTLE CONTROL LEVER
Valid till engine Nr. 30889 		$13.00 1
51 154270
THROTTLE CONTROL LEVER
Valid from engine Nr. 30890 		$13.00 1
52 136924
SCREW
Valid till engine Nr. 30889 		$0.28 1
53 153399
SCREW
Valid from engine Nr. 30890 		$9.03 1
54 153400
SPRING
Valid from engine Nr. 30890 		$11.38 1
55 113566
SAFETY PLATE 		$1.54 1
56 137271
BUSHING 		$2.97 1
57 14496204
WASHER
IN STOCK 		$0.16 1
58 10794501
SPLIT PIN 		$0.02 1
59 141563
THREADED PLUG
Not for catalyzed cars 		$1.54 1
60 14326150
CAP
Not for catalyzed cars
IN STOCK 		$0.55 (63.3% off) 1
61 137126
WASHER 		$1.77 1
62 14059311
FLANGED NUT M8 X 1.25
IN STOCK 		$0.29 (42% off) 1
