Clutch Release Control - Valid for GD of Ferrari Ferrari 348 TB (1993)

View All

Ferrari 348 TB (1993) - Clutch Release Control - Valid for GD

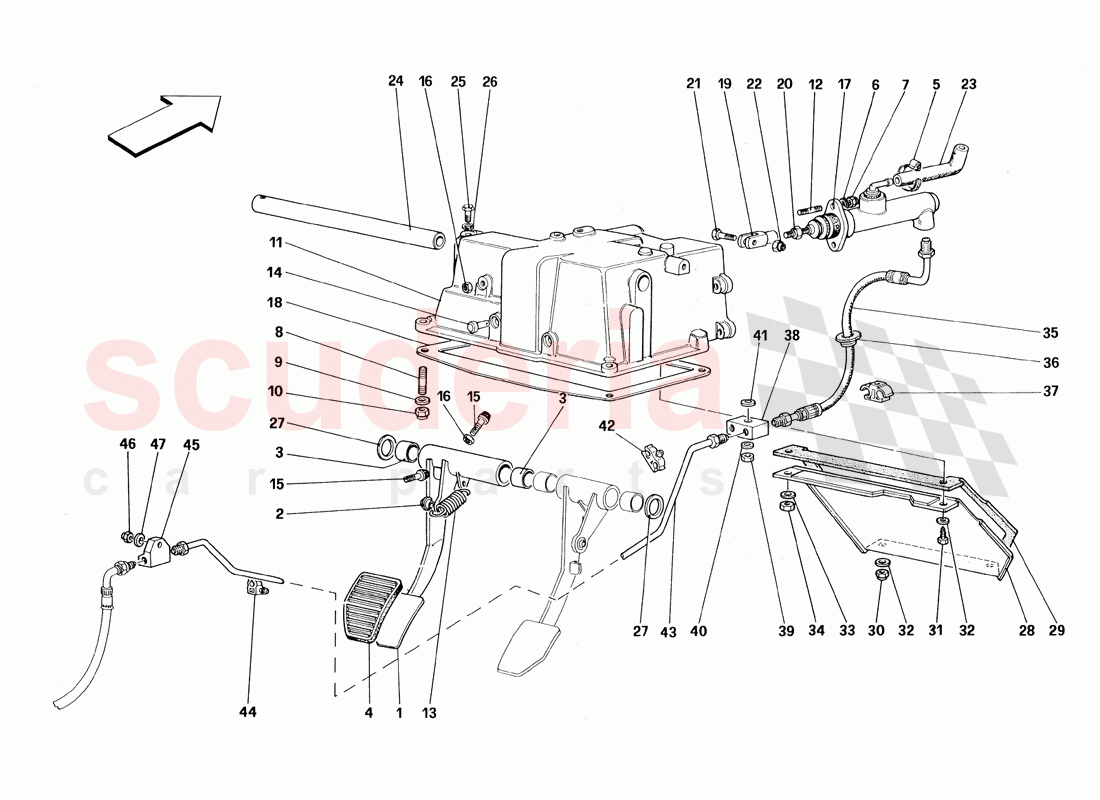

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	149863	Tappet for valve control	Enquire	To Order
	149324	CLUTCH PEDAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	109407	BALL-JOINT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	103163	SELF-LUBRICATING BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	132818	Pedal protection	Enquire	To Order
	149295	PEDAL SLAB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157934	SCREW COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12638524	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT M8 FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13516824	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14499421	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	148261	COMPLETE PEDAL SUPPORT	Enquire	To Order
	104030	NYLOC NUT M8 X 1.25 X 9.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
			Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13516824	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	101305	SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	129612	SPRING ANCHOR PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	187014	PEDAL ADJUSTER SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059311	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	175211	Clutch master cylinder	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	129615	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10248271	FORK FOR CLUTCH LEVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059311	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	130926	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16104411	Selflocking nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	134903	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	131319	PEDAL FASTENING PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	113835	WASHER	Enquire	To Order
	113836	WASHER	Enquire	To Order
	113834	WASHER	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	62164600	PEDAL SUPPORT GUARD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62697800	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15925601	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12646604	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14499421	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104030	NYLOC NUT M8 X 1.25 X 9.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	140669	HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	105369	CABLE GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	232649	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	139375	2-WAY UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14499370	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	143041	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	141522	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	140666	INTERMEDIATE TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	141521	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	240774	CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14499370	Washer	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	149863	Tappet for valve control	149863 Tappet for valve control Valid from car Ass. Nr. 8541	-	1	Enquire
1	149324	CLUTCH PEDAL	149324 CLUTCH PEDAL Valid till car Ass. Nr. 8540	-	1	Enquire
2	109407	BALL-JOINT	109407 BALL-JOINT	-	1	Enquire
3	103163	SELF-LUBRICATING BUSHING	103163 SELF-LUBRICATING BUSHING	-	2	Enquire
4	132818	Pedal protection	132818 Pedal protection Valid for pedal 149324	-	1	Enquire
4	149295	PEDAL SLAB	149295 PEDAL SLAB Valid for pedal 149868	-	1	Enquire
5	157934	SCREW COLLAR	157934 SCREW COLLAR	-	2	Enquire
6	12638524	WASHER	12638524 WASHER	-	2	Enquire
7	14040711	NUT M8 FLANGED	14040711 NUT M8 FLANGED	-	2	Enquire
8	13516824	STUD BOLT	13516824 STUD BOLT	-	4	Enquire
9	14499421	WASHER	14499421 WASHER	-	4	Enquire
10	148261	COMPLETE PEDAL SUPPORT	148261 COMPLETE PEDAL SUPPORT	-	1	Enquire
10	104030	NYLOC NUT M8 X 1.25 X 9.5	104030 NYLOC NUT M8 X 1.25 X 9.5	-	4	Enquire
11	-		Not as spare part with complete pedal support	-	1	Enquire
12	13516824	STUD BOLT	13516824 STUD BOLT	-	2	Enquire
13	101305	SPRING	101305 SPRING	-	1	Enquire
14	129612	SPRING ANCHOR PIN	129612 SPRING ANCHOR PIN	-	1	Enquire
15	187014	PEDAL ADJUSTER SCREW	187014 PEDAL ADJUSTER SCREW	-	2	Enquire
16	14059311	NUT	14059311 NUT	-	2	Enquire
17	175211	Clutch master cylinder	175211 Clutch master cylinder	-	1	Enquire
18	129615	GASKET	129615 GASKET	-	1	Enquire
19	10248271	FORK FOR CLUTCH LEVER	10248271 FORK FOR CLUTCH LEVER	-	1	Enquire
20	14059311	NUT	14059311 NUT	-	1	Enquire
21	130926	SCREW	130926 SCREW	-	1	Enquire
22	16104411	Selflocking nut	16104411 Selflocking nut	-	1	Enquire
23	134903	RUBBER PIPE	134903 RUBBER PIPE	-	1	Enquire
24	131319	PEDAL FASTENING PIN	131319 PEDAL FASTENING PIN	-	1	Enquire
25	10902224	SCREW	10902224 SCREW	-	1	Enquire
26	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	1	Enquire
27	113835	WASHER	113835 WASHER mm. 1,3	-	2	Enquire
27	113836	WASHER	113836 WASHER mm. 1,4	-	2	Enquire
27	113834	WASHER	113834 WASHER mm. 1,2	-	2	Enquire
27	113833	WASHER	113833 WASHER mm. 1,1	-	2	Enquire
27	106083	WASHER	106083 WASHER mm. 1,0	-	2	Enquire
28	62164600	PEDAL SUPPORT GUARD	62164600 PEDAL SUPPORT GUARD	-	1	Enquire
29	62697800	GASKET	62697800 GASKET	-	1	Enquire
30	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
31	15925601	SCREW	15925601 SCREW	-	1	Enquire
32	12646604	WASHER	12646604 WASHER	-	3	Enquire
33	14499421	WASHER	14499421 WASHER	-	1	Enquire
34	104030	NYLOC NUT M8 X 1.25 X 9.5	104030 NYLOC NUT M8 X 1.25 X 9.5	-	1	Enquire
35	140669	HOSE	140669 HOSE	-	1	Enquire
36	105369	CABLE GROMMET	105369 CABLE GROMMET	-	1	Enquire
37	232649	CLIP	232649 CLIP	-	1	Enquire
38	139375	2-WAY UNION	139375 2-WAY UNION	-	1	Enquire
39	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	1	Enquire
40	14499370	Washer	14499370 Washer	-	1	Enquire
41	143041	SPACER	143041 SPACER	-	1	Enquire
42	141522	CLIP	141522 CLIP	-	9	Enquire
43	140666	INTERMEDIATE TUBE	140666 INTERMEDIATE TUBE	-	1	Enquire
44	141521	CLIP	141521 CLIP	-	2	Enquire
45	240774	CONNECTOR	240774 CONNECTOR	-	1	Enquire
46	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	1	Enquire
47	14499370	Washer	14499370 Washer	-	1	Enquire
