Ferrari 348 TB (1993) - Fuel Tank

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
153684 FUEL TANK $7,175.55 To Order
153684 FUEL TANK $7,175.55 To Order
Photo Part No Description Price (each) Stock
146648 FUEL LEVEL INDICATOR CONTROL $347.53 To Order
Photo Part No Description Price (each) Stock
154802 GASKET $32.08 To Order
Photo Part No Description Price (each) Stock
121435 RING NUT $150.82 To Order
Photo Part No Description Price (each) Stock
135035 R.H. SUPPORT $51.33 To Order
Photo Part No Description Price (each) Stock
135036 L.H. SUPPORT $51.33 To Order
Photo Part No Description Price (each) Stock
125035 RUBBER THICKNESS $2.74 To Order
Photo Part No Description Price (each) Stock
15970721 SCREW $0.37 To Order
Photo Part No Description Price (each) Stock
127497 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
126648 WASHER D.10.5-21 X 2 $1.91 To Order
Photo Part No Description Price (each) Stock
140745 SPACER WASHER mm. 2,0 $1.43 To Order
140746 SPACER WASHER mm. 3,0 $0.71 To Order
140747 SPACER WASHER mm. 4,0 $48.98 To Order
Photo Part No Description Price (each) Stock
127403 Rubber Thickness $1.17 To Order
Photo Part No Description Price (each) Stock
146308 R.H. PANEL -Valid for J- Enquire To Order
Photo Part No Description Price (each) Stock
146310 L.H. PANEL -Valid for J- Enquire To Order
Photo Part No Description Price (each) Stock
137994 ANTI-VIBRATION SUPPORT $11.23 To Order
Photo Part No Description Price (each) Stock
102742 Nyloc Nut M10 x 1.25 x 10mm $0.45 To Order
Photo Part No Description Price (each) Stock
12644364 WASHER $0.84 To Order
Photo Part No Description Price (each) Stock
319201 FUEL FILLER PIPE ASSEMBLY $770.19 To Order
Photo Part No Description Price (each) Stock
12638124 WASHER $0.05 To Order
Photo Part No Description Price (each) Stock
133954 FILL TUBE -Valid for catalyzed cars- $221.95 To Order
141504 FILLTUBE $608.09 To Order
142994 FILLTUBE $196.23 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
174095 GASKET $6.24 To Order
Photo Part No Description Price (each) Stock
180320 COPMLETE TANK PLUG $719.28 To Order
Photo Part No Description Price (each) Stock
13276470 SCREW M6 X 20 $0.31 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
62943200 FUEL FILLER PROTECTION FLAP $27.26 To Order
Photo Part No Description Price (each) Stock
141507 BRACKET $75.40 To Order
Photo Part No Description Price (each) Stock
14054511 NUT $1.30 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.51 To Order
Photo Part No Description Price (each) Stock
141066 UNION-TANK CONNECTING PIPE $221.97 To Order
Photo Part No Description Price (each) Stock
141033 GASKET $24.05 To Order
Photo Part No Description Price (each) Stock
12182290 SCREW COLLAR $0.44 To Order
Photo Part No Description Price (each) Stock
10815787 CLAMP $0.15 To Order
Photo Part No Description Price (each) Stock
125036 RUBBER THICKNESS $4.73 To Order
View All

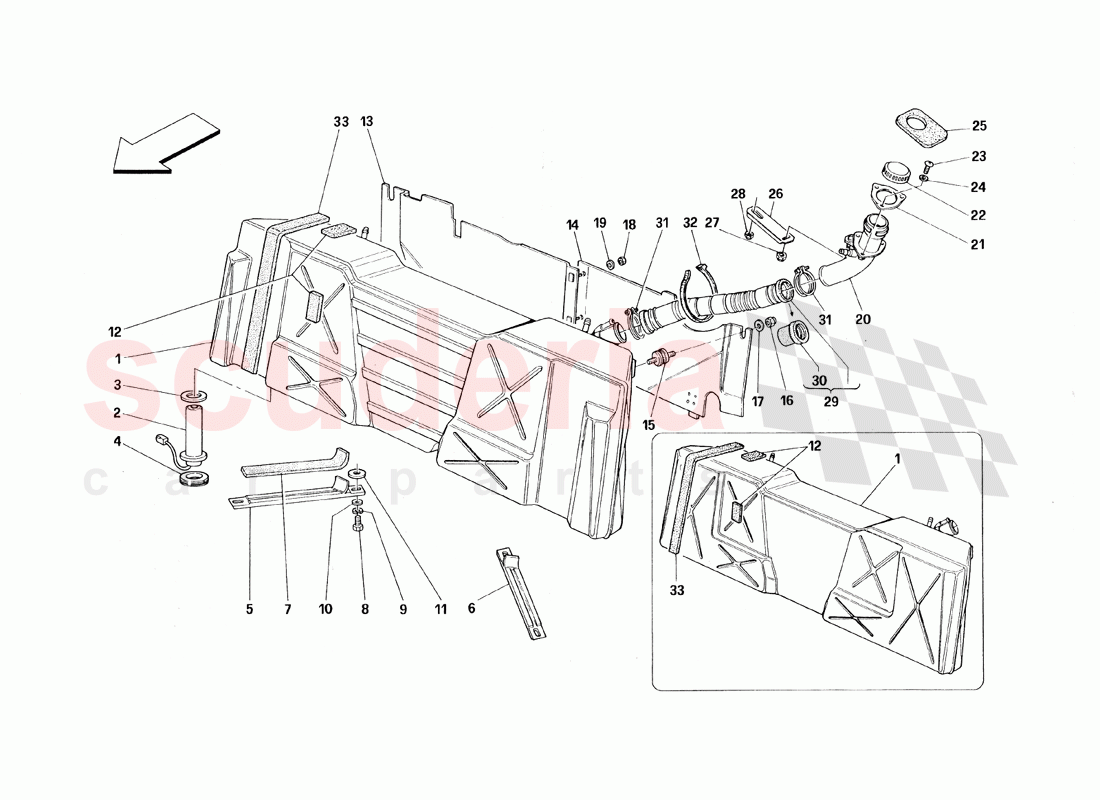

Fuel Tank of Ferrari Ferrari 348 TB (1993) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 153684
FUEL TANK
Valid from car Nr. 82389 For TS untill car Nr. 94909 For USA TS and USA SYDER till car Nr. 94268 		$7,175.55 1
1 153684
FUEL TANK
Valid for TS from car Nr. 94910 for USA TS and USA SPYDER from car Nr. 94269 N.B: NOT for cars with catalyst, in case of replacement of the fuel tank for cars till the Nr. 82389, ask for the tank 133961 + breather pipe 142997 and union 142994 		$7,175.55 1
2 146648
FUEL LEVEL INDICATOR CONTROL 		$347.53 (50.4% off) 1
3 154802
GASKET 		$32.08 (13.5% off) 1
4 121435
RING NUT 		$150.82 1
5 135035
R.H. SUPPORT 		$51.33 1
6 135036
L.H. SUPPORT 		$51.33 1
7 125035
RUBBER THICKNESS 		$2.74 2
8 15970721
SCREW 		$0.37 4
9 127497
WASHER 		$0.06 (92% off) 4
10 126648
WASHER D.10.5-21 X 2 		$1.91 4
11 140745
SPACER WASHER mm. 2,0 		$1.43 1
11 140746
SPACER WASHER mm. 3,0 		$0.71 1
11 140747
SPACER WASHER mm. 4,0 		$48.98 1
12 127403
Rubber Thickness 		$1.17 4
13 146308
R.H. PANEL -Valid for J-
Valid for J 		- 1 Enquire
14 146310
L.H. PANEL -Valid for J-
Valid for J 		- 1 Enquire
15 137994
ANTI-VIBRATION SUPPORT 		$11.23 2
16 102742
Nyloc Nut M10 x 1.25 x 10mm 		$0.45 (86.2% off) 2
17 12644364
WASHER 		$0.84 2
18 319201
FUEL FILLER PIPE ASSEMBLY
Valid for J 		$770.19 3
19 12638124
WASHER
Valid for J 		$0.05 (92.9% off) 3
20 133954
FILL TUBE -Valid for catalyzed cars-
Valid for catalyzed cars Not for SA 		$221.95 1
20 141504
FILLTUBE
Valid till car Nr. 82368 Not for catalyzed cars 		$608.09 1
20 142994
FILLTUBE
Valid from car Nr. 82839 Not for catalyzed cars and SA 		$196.23 1
20 144646
FILL TUBE -Valid for non-catalyzed cars-
Valid for SA and for de-catalyzed cars 		$281.21 1
21 174095
GASKET 		$6.24 1
22 180320
COPMLETE TANK PLUG 		$719.28 (12.5% off) 1
23 13276470
SCREW M6 X 20 		$0.31 (58.7% off) 3
24 11197774
WASHER 		$0.06 (80% off) 3
25 62943200
FUEL FILLER PROTECTION FLAP 		$27.26 (52% off) 1
26 141507
BRACKET 		$75.40 1
27 14054511
NUT 		$1.30 1
28 14059290
FLANGED NUT M6 		$1.51 2
29 141066
UNION-TANK CONNECTING PIPE 		$221.97 (53.6% off) 1
30 141033
GASKET 		$24.05 (42.7% off) 2
31 12182290
SCREW COLLAR 		$0.44 2
32 10815787
CLAMP 		$0.15 2
33 125036
RUBBER THICKNESS 		$4.73 2
