Timing - Tappets of Ferrari Ferrari 348 TB (1993)

View All

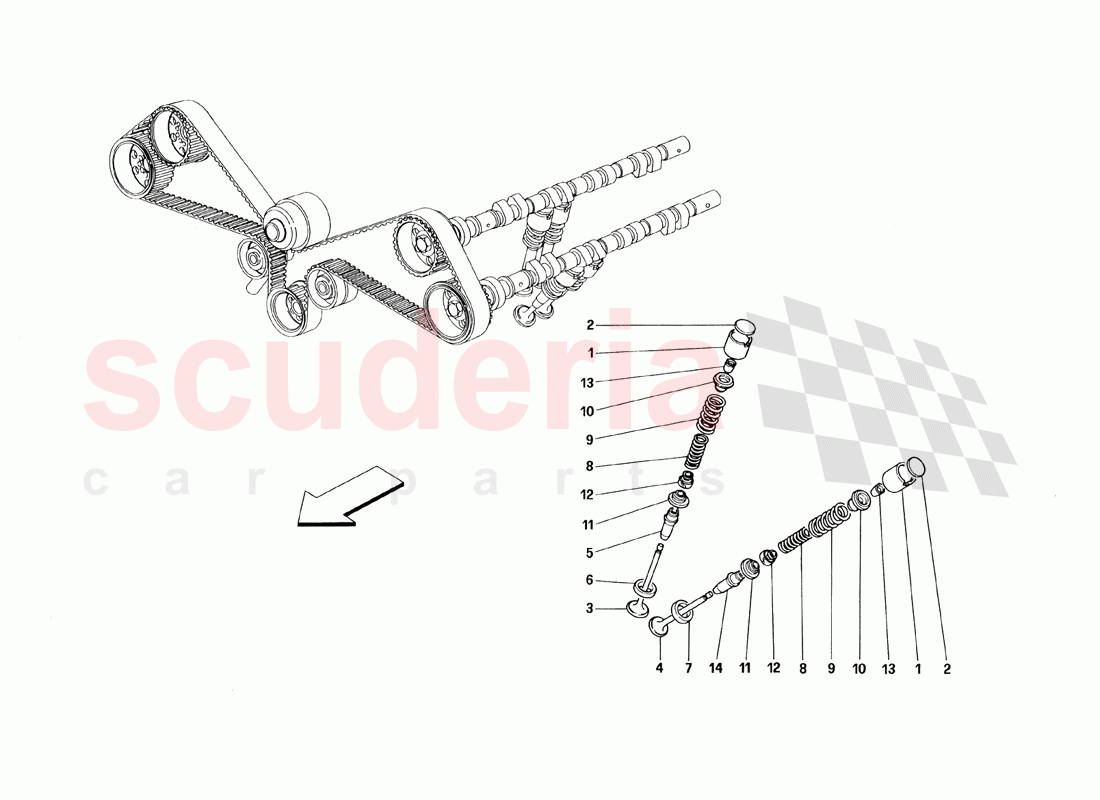

Ferrari 348 TB (1993) - Timing - Tappets

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	117562	TAPPET FOR VALVE CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	117580	DITTO, THICKNESS mm. 3,80	Enquire	To Order
	117584	DITTO, THICKNESS mm. 4,00	Enquire	IN STOCK
	117585	DITTO, THICKNESS mm. 4,05	Enquire	To Order

...and 37 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	137955	SUCTION VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	137959	EXHAUST VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	117563	SUCTION VALVE GUIDE	Enquire	To Order
	117564	SUCTION VALVE GUIDE 0,2 mm. OVERSIZED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	137936	SUCTION VALVE SEAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	137935	EXHAUST VALVE SEAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	117558	INNER SPRING FOR VALVE RETURN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	117559	OUTER SPRING FOR VALVE RETURN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	117567	UPPER CUP FOR RETAINING SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	117568	LOWER CUP FOR RETAINING SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	141565	Oil retainer on valve guide	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	117283	Cotter for valve spring cup	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	117565	EXHAUST VALVE GUIDE	Enquire	To Order
	117566	Intake valve guide oversized by	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	117562	TAPPET FOR VALVE CONTROL	117562 TAPPET FOR VALVE CONTROL	-	32	Enquire
2	117580	DITTO, THICKNESS mm. 3,80	117580 DITTO, THICKNESS mm. 3,80 mm. 3,80	-	32	Enquire
2	117584	DITTO, THICKNESS mm. 4,00 IN STOCK	117584 DITTO, THICKNESS mm. 4,00 mm. 4,00 IN STOCK	-	32	Enquire
2	117585	DITTO, THICKNESS mm. 4,05	117585 DITTO, THICKNESS mm. 4,05 mm. 4,05	-	32	Enquire
2	117586	DITTO, THICKNESS mm. 4,10	117586 DITTO, THICKNESS mm. 4,10 mm. 4,10	-	32	Enquire
2	117587	DITTO, THICKNESS mm. 4,15	117587 DITTO, THICKNESS mm. 4,15 mm. 4,15	-	32	Enquire
2	117588	DITTO, THICKNESS mm. 4,20	117588 DITTO, THICKNESS mm. 4,20 mm. 4,20	-	32	Enquire
2	117589	DITTO, THICKNESS mm. 4,25	117589 DITTO, THICKNESS mm. 4,25 mm. 4,25	-	32	Enquire
2	117590	DITTO, THICKNESS mm. 4,30	117590 DITTO, THICKNESS mm. 4,30 mm. 4,30	-	32	Enquire
2	117591	DITTO, THICKNESS mm. 4,35	117591 DITTO, THICKNESS mm. 4,35 mm. 4,35	-	32	Enquire
2	117592	DITTO, THICKNESS mm. 4,40	117592 DITTO, THICKNESS mm. 4,40 mm. 4,40	-	32	Enquire
2	117593	DITTO, THICKNESS mm. 4,45	117593 DITTO, THICKNESS mm. 4,45 mm. 4,45	-	32	Enquire
2	117594	DITTO, THICKNESS mm. 4,50	117594 DITTO, THICKNESS mm. 4,50 mm. 4,50	-	32	Enquire
2	117583	DITTO, THICKNESS mm. 3,95 IN STOCK	117583 DITTO, THICKNESS mm. 3,95 mm. 3,95 IN STOCK	-	32	Enquire
2	117582	DITTO, THICKNESS mm. 3,90 IN STOCK	117582 DITTO, THICKNESS mm. 3,90 mm. 3,90 IN STOCK	-	32	Enquire
2	117569	VALVE SETTING PLATE mm. 3,25	117569 VALVE SETTING PLATE mm. 3,25 mm. 3,25	-	32	Enquire
2	117570	DITTO, THICKNESS mm. 3,30	117570 DITTO, THICKNESS mm. 3,30 mm. 3,30	-	32	Enquire
2	117571	DITTO, THICKNESS mm. 3,35	117571 DITTO, THICKNESS mm. 3,35 mm. 3,35	-	32	Enquire
2	117572	DITTO, THICKNESS mm. 3,40	117572 DITTO, THICKNESS mm. 3,40 mm. 3,40	-	32	Enquire
2	117573	DITTO, THICKNESS mm. 3,45	117573 DITTO, THICKNESS mm. 3,45 mm. 3,45	-	32	Enquire
2	117575	DITTO, THICKNESS mm. 3,55 IN STOCK	117575 DITTO, THICKNESS mm. 3,55 mm. 3,55 IN STOCK	-	32	Enquire
2	117576	DITTO, THICKNESS mm. 3,60	117576 DITTO, THICKNESS mm. 3,60 mm. 3,60	-	32	Enquire
2	117577	DITTO, THICKNESS mm. 3,65 IN STOCK	117577 DITTO, THICKNESS mm. 3,65 mm. 3,65 IN STOCK	-	32	Enquire
2	117578	DITTO, THICKNESS mm. 3,70 IN STOCK	117578 DITTO, THICKNESS mm. 3,70 mm. 3,70 IN STOCK	-	32	Enquire
2	117579	DITTO, THICKNESS mm. 3,75 IN STOCK	117579 DITTO, THICKNESS mm. 3,75 mm. 3,75 IN STOCK	-	32	Enquire
2	117581	DITTO, THICKNESS mm. 3,85 IN STOCK	117581 DITTO, THICKNESS mm. 3,85 mm. 3,85 IN STOCK	-	32	Enquire
2	117595	DITTO, THICKNESS mm. 4,55	117595 DITTO, THICKNESS mm. 4,55 mm. 4,55	-	32	Enquire
2	117596	DITTO, THICKNESS mm. 4,60	117596 DITTO, THICKNESS mm. 4,60 mm. 4,60	-	32	Enquire
2	153742	DITTO, THICKNESS mm. 4,275	153742 DITTO, THICKNESS mm. 4,275 mm. 4,275	-	32	Enquire
2	153741	DITTO, THICKNESS mm. 4,225	153741 DITTO, THICKNESS mm. 4,225 mm. 4,225	-	32	Enquire
2	153740	DITTO, THICKNESS mm. 4,175	153740 DITTO, THICKNESS mm. 4,175 mm. 4,175	-	32	Enquire
2	153739	DITTO, THICKNESS mm. 4,125	153739 DITTO, THICKNESS mm. 4,125 mm. 4,125	-	32	Enquire
2	153738	DITTO, THICKNESS mm. 4,075	153738 DITTO, THICKNESS mm. 4,075 mm. 4,075	-	32	Enquire
2	153737	DITTO, THICKNESS mm. 4,025	153737 DITTO, THICKNESS mm. 4,025 mm. 4,025	-	32	Enquire
2	153736	DITTO, THICKNESS mm. 3,975	153736 DITTO, THICKNESS mm. 3,975 mm. 3,975	-	32	Enquire
2	153735	DITTO, THICKNESS mm. 3,925	153735 DITTO, THICKNESS mm. 3,925 mm. 3,925	-	32	Enquire
2	153734	DITTO, THICKNESS mm. 3,875	153734 DITTO, THICKNESS mm. 3,875 mm. 3,875	-	32	Enquire
2	153733	DITTO, THICKNESS mm. 3,825	153733 DITTO, THICKNESS mm. 3,825 mm. 3,825	-	32	Enquire
2	153732	DITTO, THICKNESS mm. 3,775	153732 DITTO, THICKNESS mm. 3,775 mm. 3,775	-	32	Enquire
2	153731	DITTO, THICKNESS mm. 3,725	153731 DITTO, THICKNESS mm. 3,725 mm. 3,725	-	32	Enquire
2	117574	DITTO, THICKNESS mm. 3,50	117574 DITTO, THICKNESS mm. 3,50 mm. 3,50	-	32	Enquire
3	137955	SUCTION VALVE	137955 SUCTION VALVE	-	16	Enquire
4	137959	EXHAUST VALVE	137959 EXHAUST VALVE	-	16	Enquire
5	117563	SUCTION VALVE GUIDE	117563 SUCTION VALVE GUIDE	-	16	Enquire
5	117564	SUCTION VALVE GUIDE 0,2 mm. OVERSIZED	117564 SUCTION VALVE GUIDE 0,2 mm. OVERSIZED 0,2 mm. OVERSIZED	-	16	Enquire
6	137936	SUCTION VALVE SEAT	137936 SUCTION VALVE SEAT	-	16	Enquire
7	137935	EXHAUST VALVE SEAT	137935 EXHAUST VALVE SEAT	-	16	Enquire
8	117558	INNER SPRING FOR VALVE RETURN	117558 INNER SPRING FOR VALVE RETURN	-	32	Enquire
9	117559	OUTER SPRING FOR VALVE RETURN	117559 OUTER SPRING FOR VALVE RETURN	-	32	Enquire
10	117567	UPPER CUP FOR RETAINING SPRING	117567 UPPER CUP FOR RETAINING SPRING	-	32	Enquire
11	117568	LOWER CUP FOR RETAINING SPRING	117568 LOWER CUP FOR RETAINING SPRING	-	32	Enquire
12	141565	Oil retainer on valve guide IN STOCK	141565 Oil retainer on valve guide IN STOCK	-	32	Enquire
13	117283	Cotter for valve spring cup	117283 Cotter for valve spring cup	-	64	Enquire
14	117565	EXHAUST VALVE GUIDE	117565 EXHAUST VALVE GUIDE	-	16	Enquire
14	117566	Intake valve guide oversized by	117566 Intake valve guide oversized by 0,2 mm. OVERSIZED	-	16	Enquire
