Fuel Pump and Pipes of Ferrari Ferrari 348 TB (1993)

View All

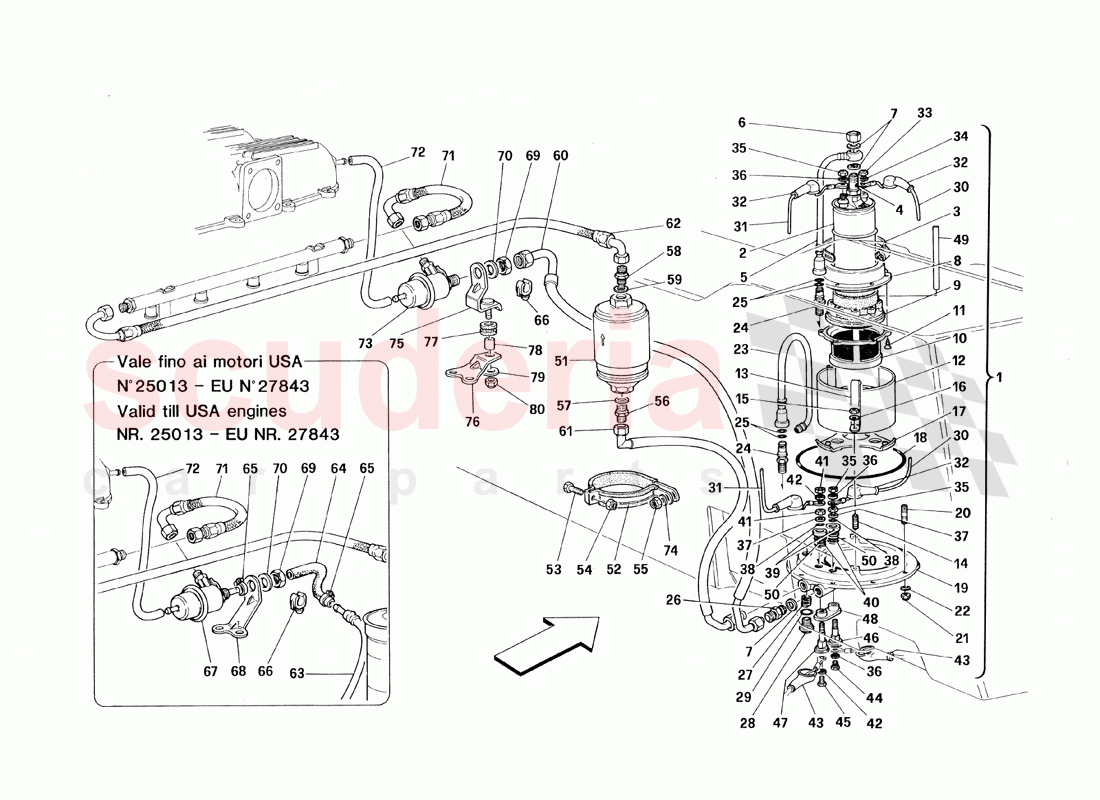

Ferrari 348 TB (1993) - Fuel Pump and Pipes

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	155699	COMPLETE FUEL PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

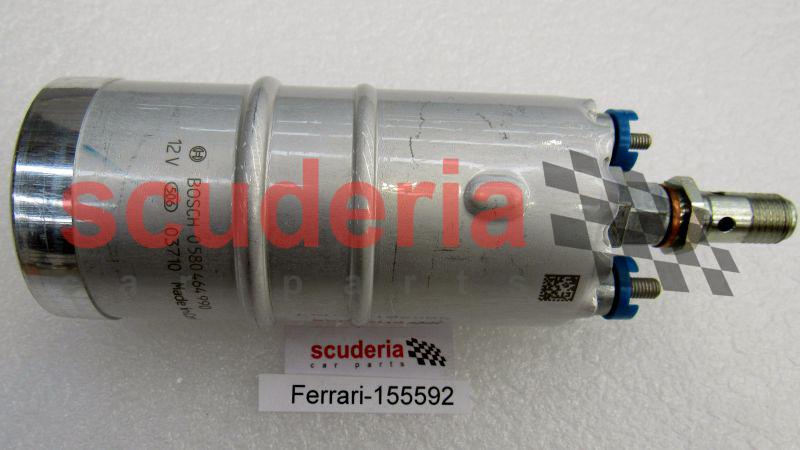

	155592	FUEL PUMP	Enquire	To Order
	140317	FUEL PUMP 060	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13000790	SCREW COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	120098	Not return valve	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133967	FUEL PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10183217	PLUG FOR UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11270160	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	168880	FUEL FILTER COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	144232	Pump gasket	Enquire	To Order
	126809	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	126808	FILTER INSIDE CHAMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15671101	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	126806	Chamber	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	137577	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11000924	Stud bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13677911	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10730021	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	126807	Anti Vibration Pad	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

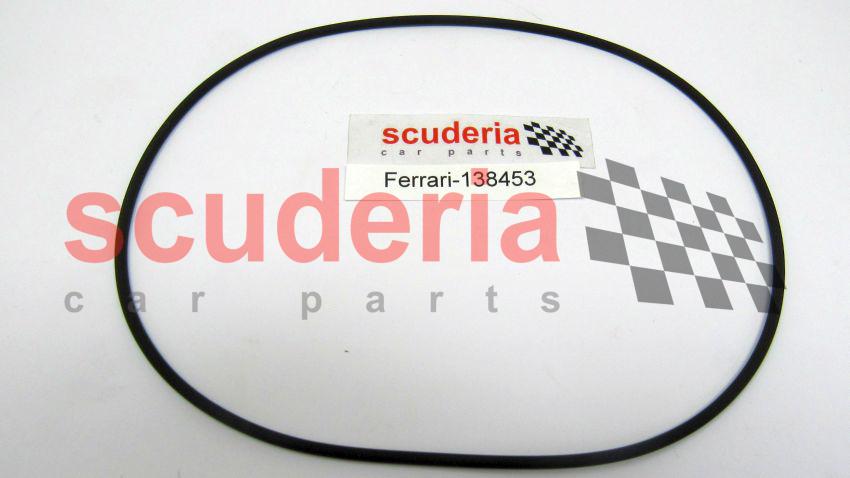

	138453	O-Ring	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	139454	FUEL PUMP COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11500224	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	19575491	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133968	FUEL FLOWING BACK PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133950	UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133956	O.R. Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127756	UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	103388	THREADED INSERT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	134713	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	134233	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	139519	POSITIVE CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	146660	NEGATIVE CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	130146	BOOT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	899480	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10615274	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15896470	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149951	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	134701	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	134672	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	134705	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	137612	BOOT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10856821	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11635721	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	137611	MASS PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	137610	MASS PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	137613	OUTER FLANGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	139205	VENT PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14456880	O.R. GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

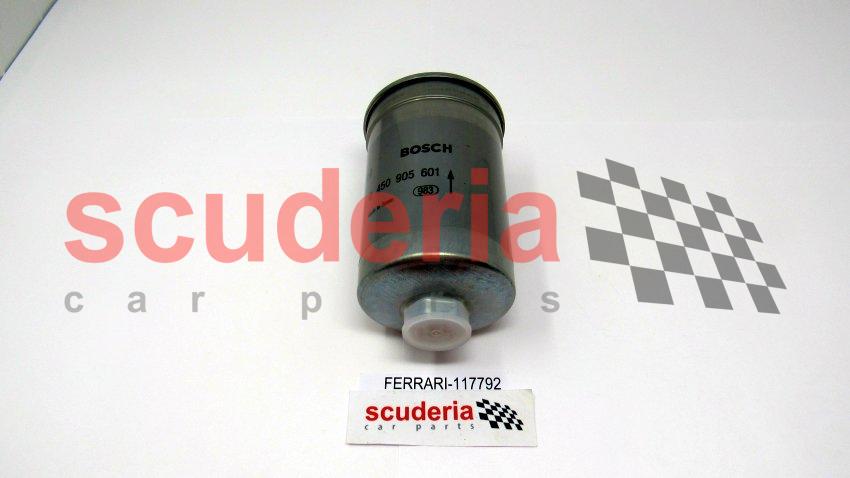

	117792	Fuel Filter	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	126352	BRACKET	Enquire	To Order
	152885	BRACKET WITH SHEATH	Enquire	To Order

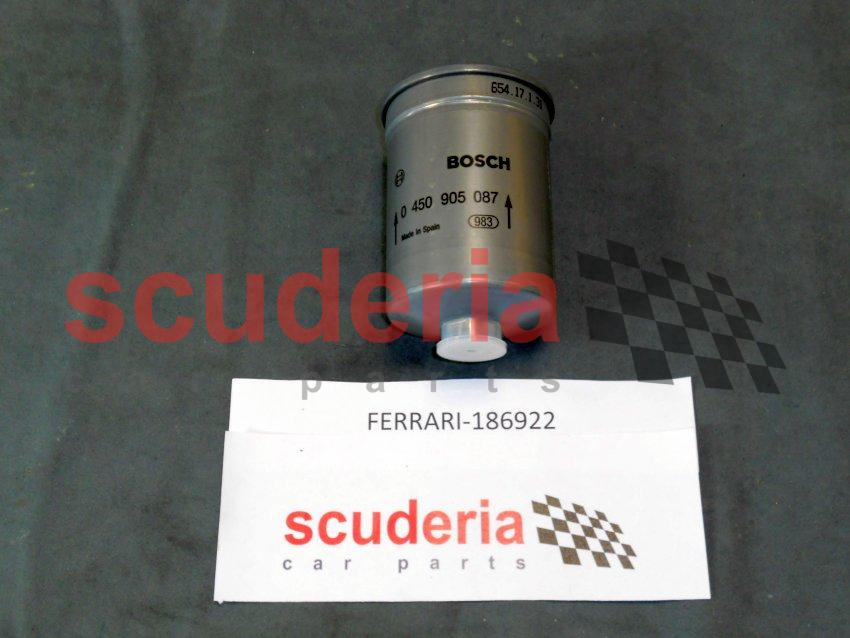

	186922	Fuel Filter	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902424	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16104411	Selflocking nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	109889	UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10280060	WASHER COPPER D14. 20 X 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	109797	UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11270160	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147291	FUEL TUBE FROM PRESSURE ADJUSTER TO LH PUMP	Enquire	To Order
	147290	FUEL TUBE FROM PRESSURE ADJUSTER TO RH PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	141746	FUEL PIPE FROM PUMP TO LH FILTER	Enquire	To Order
	141724	FUEL PIPE FROM PUMP TO RH FILTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	143787	FUEL PIPE FROM LH FILTER TO LH FLUTE	Enquire	To Order
	143786	FUEL PIPE FROM RH FILTER TO RH FLUTE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	141718	FUEL PIPE FROM PRESSURE ADJUSTER TO LH PUMP	Enquire	To Order
	141751	FUEL PIPE FROM PRESSURE ADJUSTER TO RH PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	139932	SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13432070	HOSE COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14574287	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	137960	PRESSURE REGULATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	139428	LH BRACKET	Enquire	To Order
	139427	RH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	101413	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601774	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149812	FUEL PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	277569	COMPL. BREATHER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147281	PRESSURE REGULATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	148126	L.H. UPPER BRACKET	Enquire	To Order
	148125	R.H. UPPER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	148124	LOWER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	812273	CABLE GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

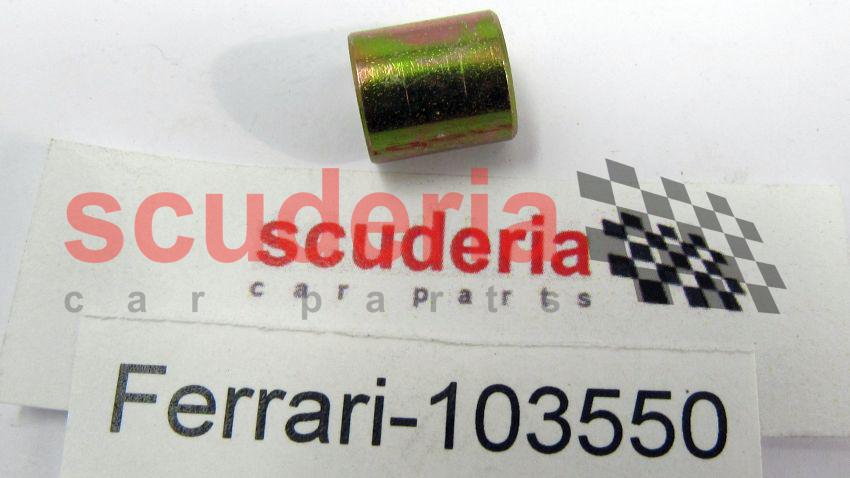

	103550	Spacer bush -Only for	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	106744	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	155699	COMPLETE FUEL PUMP	155699 COMPLETE FUEL PUMP	-	2	Enquire
2	155592	FUEL PUMP	155592 FUEL PUMP Valid for complete pump 155699	-	2	Enquire
2	140317	FUEL PUMP 060	140317 FUEL PUMP 060 Valid for complete pump 146662	-	2	Enquire
3	13000790	SCREW COLLAR	13000790 SCREW COLLAR	-	2	Enquire
4	120098	Not return valve	120098 Not return valve	-	2	Enquire
5	133967	FUEL PIPE	133967 FUEL PIPE	-	2	Enquire
6	10183217	PLUG FOR UNION	10183217 PLUG FOR UNION	-	2	Enquire
7	11270160	Washer	11270160 Washer	-	8	Enquire
8	168880	FUEL FILTER COVER	168880 FUEL FILTER COVER	-	2	Enquire
9	144232	Pump gasket	144232 Pump gasket Valid for pump 0 53	-	2	Enquire
9	126809	GASKET	126809 GASKET Valid for pump 0 60	-	2	Enquire
10	126808	FILTER INSIDE CHAMBER	126808 FILTER INSIDE CHAMBER	-	2	Enquire
11	15671101	SCREW	15671101 SCREW	-	12	Enquire
12	126806	Chamber	126806 Chamber	-	2	Enquire
13	137577	BRACKET	137577 BRACKET	-	4	Enquire
14	11000924	Stud bolt	11000924 Stud bolt	-	4	Enquire
15	13677911	NUT	13677911 NUT	-	4	Enquire
16	10730021	WASHER	10730021 WASHER	-	4	Enquire
17	126807	Anti Vibration Pad	126807 Anti Vibration Pad	-	2	Enquire
18	138453	O-Ring ARRIVING SOON	138453 O-Ring ARRIVING SOON	-	2	Enquire
19	139454	FUEL PUMP COVER	139454 FUEL PUMP COVER	-	2	Enquire
20	11500224	STUD BOLT	11500224 STUD BOLT	-	16	Enquire
21	19575491	NUT	19575491 NUT	-	16	Enquire
22	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	16	Enquire
23	133968	FUEL FLOWING BACK PIPE	133968 FUEL FLOWING BACK PIPE	-	2	Enquire
24	133950	UNION	133950 UNION	-	4	Enquire
25	133956	O.R. Gasket	133956 O.R. Gasket	-	8	Enquire
26	127756	UNION	127756 UNION	-	4	Enquire
27	103388	THREADED INSERT	103388 THREADED INSERT	-	2	Enquire
28	134713	PLUG	134713 PLUG	-	2	Enquire
29	134233	O-RING	134233 O-RING	-	2	Enquire
30	139519	POSITIVE CABLE	139519 POSITIVE CABLE	-	2	Enquire
31	146660	NEGATIVE CABLE	146660 NEGATIVE CABLE	-	2	Enquire
32	130146	BOOT	130146 BOOT	-	8	Enquire
33	899480	NUT	899480 NUT	-	2	Enquire
34	10615274	WASHER	10615274 WASHER	-	2	Enquire
35	15896470	NUT	15896470 NUT (minimum order quantity = 20)	-	6	Enquire
36	149951	WASHER	149951 WASHER	-	6	Enquire
37	10519424	WASHER	10519424 WASHER	-	4	Enquire
38	134701	O-RING	134701 O-RING	-	4	Enquire
39	134672	BUSHING	134672 BUSHING	-	4	Enquire
40	134705	GASKET	134705 GASKET	-	4	Enquire
41	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	4	Enquire
42	12601374	WASHER	12601374 WASHER	-	4	Enquire
43	137612	BOOT	137612 BOOT	-	4	Enquire
44	10856821	SCREW	10856821 SCREW	-	2	Enquire
45	11635721	SCREW	11635721 SCREW	-	2	Enquire
46	137611	MASS PIN	137611 MASS PIN	-	2	Enquire
47	137610	MASS PIN	137610 MASS PIN	-	2	Enquire
48	137613	OUTER FLANGE	137613 OUTER FLANGE	-	2	Enquire
49	139205	VENT PIPE	139205 VENT PIPE	-	2	Enquire
50	14456880	O.R. GASKET	14456880 O.R. GASKET	-	2	Enquire
51	117792	Fuel Filter	117792 Fuel Filter Valid till car Ass. Nr. 10927	-	2	Enquire
52	126352	BRACKET	126352 BRACKET Valid till car Ass. Nr. 10927	-	2	Enquire
52	152885	BRACKET WITH SHEATH	152885 BRACKET WITH SHEATH Valid from car Ass. Nr. 10928	-	2	Enquire
52	186922	Fuel Filter	186922 Fuel Filter Valid from car Ass. Nr. 10928	-	2	Enquire
53	10902424	SCREW	10902424 SCREW	-	2	Enquire
54	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
55	16104411	Selflocking nut	16104411 Selflocking nut	-	2	Enquire
56	109889	UNION	109889 UNION	-	2	Enquire
57	10280060	WASHER COPPER D14. 20 X 1.5	10280060 WASHER COPPER D14. 20 X 1.5	-	2	Enquire
58	109797	UNION	109797 UNION	-	2	Enquire
59	11270160	Washer	11270160 Washer	-	2	Enquire
60	147291	FUEL TUBE FROM PRESSURE ADJUSTER TO LH PUMP	147291 FUEL TUBE FROM PRESSURE ADJUSTER TO LH PUMP	-	1	Enquire
60	147290	FUEL TUBE FROM PRESSURE ADJUSTER TO RH PUMP	147290 FUEL TUBE FROM PRESSURE ADJUSTER TO RH PUMP	-	1	Enquire
61	141746	FUEL PIPE FROM PUMP TO LH FILTER	141746 FUEL PIPE FROM PUMP TO LH FILTER	-	1	Enquire
61	141724	FUEL PIPE FROM PUMP TO RH FILTER	141724 FUEL PIPE FROM PUMP TO RH FILTER	-	1	Enquire
62	143787	FUEL PIPE FROM LH FILTER TO LH FLUTE	143787 FUEL PIPE FROM LH FILTER TO LH FLUTE	-	1	Enquire
62	143786	FUEL PIPE FROM RH FILTER TO RH FLUTE	143786 FUEL PIPE FROM RH FILTER TO RH FLUTE	-	1	Enquire
63	141718	FUEL PIPE FROM PRESSURE ADJUSTER TO LH PUMP	141718 FUEL PIPE FROM PRESSURE ADJUSTER TO LH PUMP	-	1	Enquire
63	141751	FUEL PIPE FROM PRESSURE ADJUSTER TO RH PUMP	141751 FUEL PIPE FROM PRESSURE ADJUSTER TO RH PUMP	-	1	Enquire
64	139932	SLEEVE	139932 SLEEVE	-	2	Enquire
65	13432070	HOSE COLLAR	13432070 HOSE COLLAR	-	4	Enquire
66	14574287	CLIP	14574287 CLIP	-	2	Enquire
67	137960	PRESSURE REGULATOR	137960 PRESSURE REGULATOR	-	2	Enquire
68	139428	LH BRACKET	139428 LH BRACKET	-	1	Enquire
68	139427	RH BRACKET	139427 RH BRACKET	-	1	Enquire
69	101413	NUT	101413 NUT	-	2	Enquire
70	12601774	WASHER	12601774 WASHER	-	2	Enquire
71	149812	FUEL PIPE	149812 FUEL PIPE	-	2	Enquire
72	277569	COMPL. BREATHER PIPE	277569 COMPL. BREATHER PIPE	-	2	Enquire
73	147281	PRESSURE REGULATOR	147281 PRESSURE REGULATOR	-	2	Enquire
74	84653800	WASHER	84653800 WASHER	-	2	Enquire
75	148126	L.H. UPPER BRACKET	148126 L.H. UPPER BRACKET	-	1	Enquire
75	148125	R.H. UPPER BRACKET	148125 R.H. UPPER BRACKET	-	1	Enquire
76	148124	LOWER BRACKET	148124 LOWER BRACKET	-	2	Enquire
77	812273	CABLE GROMMET	812273 CABLE GROMMET	-	2	Enquire
78	103550	Spacer bush -Only for	103550 Spacer bush -Only for	-	2	Enquire
79	106744	WASHER	106744 WASHER	-	2	Enquire
80	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
