Name: Water Pump
Rating: 4.5 (1 reviews)

Water Pump of Ferrari Ferrari 348 TB (1993)

View All

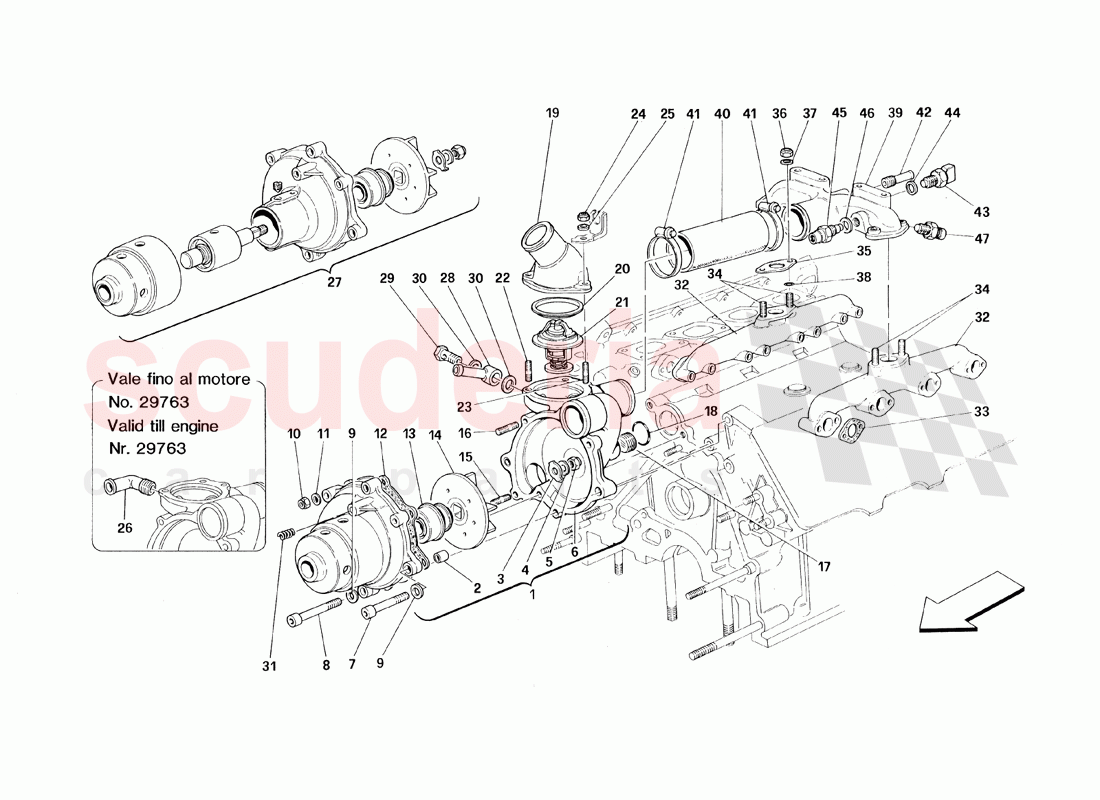

Ferrari 348 TB (1993) - Water Pump

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	160473	COMPLETE WATER PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	102704	ALIGNMENT DOWEL	$3.13	To Order

Photo	Part No	Description	Price (each)	Stock
	139457	PLATE	$6.48	To Order

Photo	Part No	Description	Price (each)	Stock
	10730321	WASHER	$0.57	To Order

Photo	Part No	Description	Price (each)	Stock
	100436	BLIND NUT	$11.20	To Order

Photo	Part No	Description	Price (each)	Stock
	156350	WATER PUMP BODY WITH STUDS	$832.33	To Order

Photo	Part No	Description	Price (each)	Stock
	14306924	SCREW	$0.75	To Order

Photo	Part No	Description	Price (each)	Stock
	14302221	SCREW	$0.44	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	$0.02	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	14499370	Washer	$0.28	To Order

Photo	Part No	Description	Price (each)	Stock
	132979	GASKET	$8.95	To Order

Photo	Part No	Description	Price (each)	Stock
	183759	Water Pump Seal	$36.89	To Order

Photo	Part No	Description	Price (each)	Stock
	160456	WATER PUMP IMPELLER	$138.03	To Order

Photo	Part No	Description	Price (each)	Stock
	13541124	STUD BOLT	$23.50	To Order

Photo	Part No	Description	Price (each)	Stock
	13541324	STUD BOLT	$1.85	To Order

Photo	Part No	Description	Price (each)	Stock
	163528	THREADED PLUG	$4.30	To Order

Photo	Part No	Description	Price (each)	Stock
	101044	O-RING	$1.60	To Order

Photo	Part No	Description	Price (each)	Stock
	136570	THERMOSTATIC VALVE COVER	$104.44	To Order

Photo	Part No	Description	Price (each)	Stock
	105192	O-Ring for Thermostat	$20.84	To Order

Photo	Part No	Description	Price (each)	Stock
	165473A	THERMOSTAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13541124	STUD BOLT	$23.50	To Order

Photo	Part No	Description	Price (each)	Stock
	13541224	STUD BOLT	$155.91	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	14499370	Washer	$0.28	To Order

Photo	Part No	Description	Price (each)	Stock
	150919	UNION	$20.84	To Order

Photo	Part No	Description	Price (each)	Stock
	143275	FRONT PART COMPLETE WATER PUMP	$1,471.68	To Order

Photo	Part No	Description	Price (each)	Stock
	152416	UNION	$40.86	To Order

Photo	Part No	Description	Price (each)	Stock
	152417	UNION	$158.84	To Order

Photo	Part No	Description	Price (each)	Stock
	10259960	Copper Washer 18 - 24 x 1.5	$0.32	To Order

Photo	Part No	Description	Price (each)	Stock
	13525470	THREADED INSERT	$0.58	To Order

Photo	Part No	Description	Price (each)	Stock
	138852	WATER MANIFOLD	$5,172.22	To Order

Photo	Part No	Description	Price (each)	Stock
	132980	GASKET	$0.76	To Order

Photo	Part No	Description	Price (each)	Stock
	13516824	STUD BOLT	$0.50	To Order

Photo	Part No	Description	Price (each)	Stock
	132981	GASKET	$1.28	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT	$0.41	To Order

Photo	Part No	Description	Price (each)	Stock
	986899	WASHER	$6.26	To Order

Photo	Part No	Description	Price (each)	Stock
	103039	Sealing ring	$0.94	To Order

Photo	Part No	Description	Price (each)	Stock
	138027	WATER OUTLET MANIFOLD CONNECTION DUCT	$134.28	To Order
	144246	WATER OUTLET MANIFOLD CONNECTION DUCT	$419.22	To Order

Photo	Part No	Description	Price (each)	Stock
	138981	RUBBER PIPE	$47.47	To Order

Photo	Part No	Description	Price (each)	Stock
	296781	COLLAR 30-45MM	$9.00	To Order

Photo	Part No	Description	Price (each)	Stock
	106241	Fitting	$102.06	To Order

Photo	Part No	Description	Price (each)	Stock
	125769	Water Temperature Transmitter	$64.05	To Order

Photo	Part No	Description	Price (each)	Stock
	10298460	GASKET	$0.15	To Order

Photo	Part No	Description	Price (each)	Stock
	136304	THERMOMETRIC SWITCH	$21.26	To Order

Photo	Part No	Description	Price (each)	Stock
	10298460	GASKET	$0.15	To Order

Photo	Part No	Description	Price (each)	Stock
	104628	GEARBOX THERMISTOR	$107.49	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	160473	COMPLETE WATER PUMP	160473 COMPLETE WATER PUMP	-	1	Enquire
2	102704	ALIGNMENT DOWEL	102704 ALIGNMENT DOWEL	$3.13	2
3	139457	PLATE	139457 PLATE	$6.48 MSRP: ~~18.95~~ (65.8% off)	1
4	10730321	WASHER	10730321 WASHER	$0.57 MSRP: ~~1.00~~ (43% off)	1
5	100436	BLIND NUT	100436 BLIND NUT	$11.20	1
6	156350	WATER PUMP BODY WITH STUDS	156350 WATER PUMP BODY WITH STUDS	$832.33	1
7	14306924	SCREW	14306924 SCREW	$0.75	2
8	14302221	SCREW	14302221 SCREW	$0.44	2
9	12601374	WASHER	12601374 WASHER	$0.02 MSRP: ~~0.25~~ (92% off)	4
10	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	4
11	14499370	Washer	14499370 Washer	$0.28	4
12	132979	GASKET	132979 GASKET	$8.95 MSRP: ~~10.50~~ (14.8% off)	1
13	183759	Water Pump Seal	183759 Water Pump Seal	$36.89 MSRP: ~~50.62~~ (27.1% off)	1
14	160456	WATER PUMP IMPELLER	160456 WATER PUMP IMPELLER	$138.03	1
15	13541124	STUD BOLT	13541124 STUD BOLT	$23.50	1
16	13541324	STUD BOLT	13541324 STUD BOLT	$1.85	3
17	163528	THREADED PLUG	163528 THREADED PLUG	$4.30	1
18	101044	O-RING	101044 O-RING	$1.60 MSRP: ~~3.70~~ (56.8% off)	1
19	136570	THERMOSTATIC VALVE COVER	136570 THERMOSTATIC VALVE COVER	$104.44	1
20	105192	O-Ring for Thermostat	105192 O-Ring for Thermostat	$20.84	1
21	165473A	THERMOSTAT	165473A THERMOSTAT	-	1	Enquire
22	13541124	STUD BOLT	13541124 STUD BOLT	$23.50	2
23	13541224	STUD BOLT	13541224 STUD BOLT	$155.91	1
24	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	3
25	14499370	Washer	14499370 Washer	$0.28	3
26	150919	UNION	150919 UNION Valid till engine Nr. 29763 Not as spare part now Replaced by 152416, 152417 and 10259960	$20.84	1
27	143275	FRONT PART COMPLETE WATER PUMP	143275 FRONT PART COMPLETE WATER PUMP use part number: 143275/A	$1,471.68	1
28	152416	UNION	152416 UNION Valid from engine Nr. 29764	$40.86	1
29	152417	UNION	152417 UNION Valid from engine Nr. 29764	$158.84	1
30	10259960	Copper Washer 18 - 24 x 1.5	10259960 Copper Washer 18 - 24 x 1.5 Valid from engine Nr. 29764	$0.32 MSRP: ~~1.25~~ (74.4% off)	2
31	13525470	THREADED INSERT	13525470 THREADED INSERT	$0.58 MSRP: ~~2.50~~ (76.8% off)	1
32	138852	WATER MANIFOLD	138852 WATER MANIFOLD	$5,172.22	2
33	132980	GASKET	132980 GASKET	$0.76 MSRP: ~~3.23~~ (76.5% off)	8
34	13516824	STUD BOLT	13516824 STUD BOLT	$0.50 MSRP: ~~1.25~~ (60% off)	4
35	132981	GASKET	132981 GASKET	$1.28 MSRP: ~~7.25~~ (82.3% off)	2
36	14040711	NUT	14040711 NUT	$0.41	4
37	986899	WASHER	986899 WASHER	$6.26	4
38	103039	Sealing ring	103039 Sealing ring (minimum order quantity = 10)	$0.94 MSRP: ~~1.20~~ (21.7% off)	4
39	138027	WATER OUTLET MANIFOLD CONNECTION DUCT	138027 WATER OUTLET MANIFOLD CONNECTION DUCT Valid for M. 2.5	$134.28	1
39	144246	WATER OUTLET MANIFOLD CONNECTION DUCT	144246 WATER OUTLET MANIFOLD CONNECTION DUCT Valid for M. 2.7	$419.22	1
40	138981	RUBBER PIPE	138981 RUBBER PIPE	$47.47 MSRP: ~~76.98~~ (38.3% off)	1
41	296781	COLLAR 30-45MM	296781 COLLAR 30-45MM	$9.00	2
42	106241	Fitting	106241 Fitting	$102.06	1
43	125769	Water Temperature Transmitter	125769 Water Temperature Transmitter	$64.05	2
44	10298460	GASKET	10298460 GASKET	$0.15 MSRP: ~~1.25~~ (88% off)	2
45	136304	THERMOMETRIC SWITCH	136304 THERMOMETRIC SWITCH	$21.26 MSRP: ~~64.10~~ (66.8% off)	1
46	10298460	GASKET	10298460 GASKET	$0.15 MSRP: ~~1.25~~ (88% off)	1
47	104628	GEARBOX THERMISTOR	104628 GEARBOX THERMISTOR	$107.49 MSRP: ~~139.65~~ (23% off)	1
