Ferrari 348 TB (1993) - Brake Hydraulic System - Not for GD

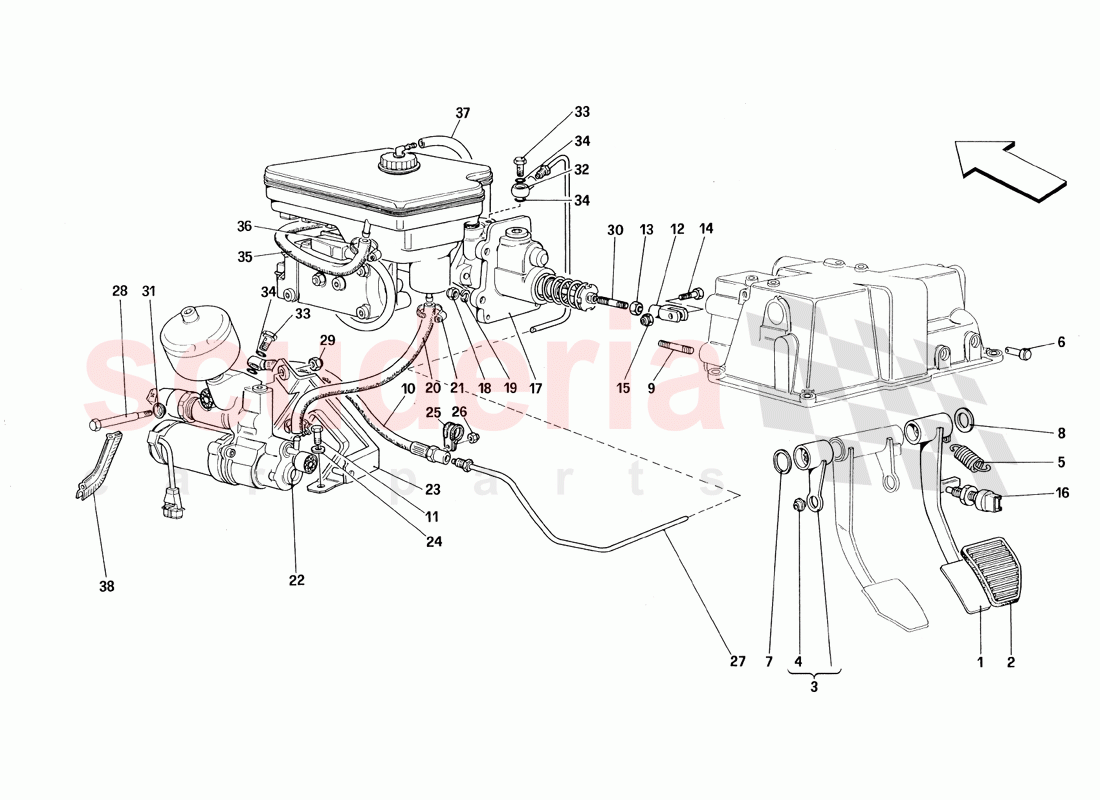

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	134276	BRAKE PEDAL	$172.18	To Order
	149290	BRAKE PEDAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	132819	Pedal protection	Enquire	To Order
	149292	PEDAL SLAB	$87.60	To Order

Photo	Part No	Description	Price (each)	Stock
	129609	TRANSMISSION LEVER	$441.59	To Order

Photo	Part No	Description	Price (each)	Stock
	109407	BALL-JOINT	$70.59	To Order

Photo	Part No	Description	Price (each)	Stock
	101305	SPRING	$96.26	To Order

Photo	Part No	Description	Price (each)	Stock
	129612	SPRING ANCHOR PIN	$2.50	To Order

Photo	Part No	Description	Price (each)	Stock
	112125	SPACER WASHER	$2.14	To Order

Photo	Part No	Description	Price (each)	Stock
	112131	DITTO THICKNESS mm. 1.3	$0.29	To Order
	112128	DITTO THICKNESS mm. 1.0	$0.11	To Order
	112130	DITTO THICKNESS mm. 1.2	$0.79	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	13543424	STUD BOLT	$1.94	To Order

Photo	Part No	Description	Price (each)	Stock
	70000533	HOSE KIT	$454.77	To Order

Photo	Part No	Description	Price (each)	Stock
	16043124	SCREW	$0.18	To Order

Photo	Part No	Description	Price (each)	Stock
	10007871	FORK FOR BRAKE LEVER	$20.84	To Order

Photo	Part No	Description	Price (each)	Stock
	14059311	FLANGED NUT M8 X 1.25	$0.28	To Order

Photo	Part No	Description	Price (each)	Stock
	130926	SCREW	$7.50	To Order

Photo	Part No	Description	Price (each)	Stock
	16104411	Selflocking nut	$0.21	To Order

Photo	Part No	Description	Price (each)	Stock
	133555	PUSHBUTTON SWITCH	$38.69	To Order

Photo	Part No	Description	Price (each)	Stock
			Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104030	NUT	$0.26	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	$0.02	To Order

Photo	Part No	Description	Price (each)	Stock
	136376	RUBBER HOSE -Valid for GD-	$29.37	To Order

Photo	Part No	Description	Price (each)	Stock
	157934	SCREW COLLAR	$0.92	To Order

Photo	Part No	Description	Price (each)	Stock
			Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	140498	BRACKET	$59.35	To Order

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	10441590	BRACKET WITH SHEATH	$0.55	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	143676	BRAKE PIPE	$13.19	To Order

Photo	Part No	Description	Price (each)	Stock
	129636	SCREW	$4.88	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	13517124	STUD BOLT	$19.58	To Order

Photo	Part No	Description	Price (each)	Stock
	130861	WASHER	$3.94	To Order

Photo	Part No	Description	Price (each)	Stock
	70000535	UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	131873	UNION	$6.06	To Order

Photo	Part No	Description	Price (each)	Stock
	70000510	O.R. GASKET	$192.54	To Order

Photo	Part No	Description	Price (each)	Stock
	151845	PIPE FROM CLUTCH PUMP TO	$64.17	To Order

Photo	Part No	Description	Price (each)	Stock
	157934	SCREW COLLAR	$0.92	To Order

Photo	Part No	Description	Price (each)	Stock
	105959	VENT PIPE	$1.43	To Order

Photo	Part No	Description	Price (each)	Stock
	144824	GASKET	$1.64	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	134276	BRAKE PEDAL	134276 BRAKE PEDAL Valid till car Nr. 90916	$172.18	1
1	149290	BRAKE PEDAL	149290 BRAKE PEDAL Valid from car Nr. 90917	-	1	Enquire
2	132819	Pedal protection	132819 Pedal protection Valid for pedal 134276	-	1	Enquire
2	149292	PEDAL SLAB	149292 PEDAL SLAB Valid for pedal 149290	$87.60	1
3	129609	TRANSMISSION LEVER	129609 TRANSMISSION LEVER	$441.59	1
4	109407	BALL-JOINT	109407 BALL-JOINT	$70.59	1
5	101305	SPRING	101305 SPRING	$96.26	1
6	129612	SPRING ANCHOR PIN	129612 SPRING ANCHOR PIN	$2.50	1
7	112125	SPACER WASHER	112125 SPACER WASHER	$2.14	1
8	112131	DITTO THICKNESS mm. 1.3	112131 DITTO THICKNESS mm. 1.3 mm. 1,3 Possible fitting	$0.29	1
8	112128	DITTO THICKNESS mm. 1.0	112128 DITTO THICKNESS mm. 1.0 mm.1,0 Possible fitting	$0.11	1
8	112130	DITTO THICKNESS mm. 1.2	112130 DITTO THICKNESS mm. 1.2 mm.1,2 Possible fitting	$0.79	1
8	112129	DITTO THICKNESS mm. 1.1	112129 DITTO THICKNESS mm. 1.1 mm. 1,1 Possible fitting	$0.29	1
8	112127	DITTO THICKNESS mm. 0.9	112127 DITTO THICKNESS mm. 0.9 mm. 0,9 Possible fitting	$0.29	1
9	13543424	STUD BOLT	13543424 STUD BOLT	$1.94	4
10	70000533	HOSE KIT	70000533 HOSE KIT	$454.77	1
11	16043124	SCREW	16043124 SCREW	$0.18	2
12	10007871	FORK FOR BRAKE LEVER	10007871 FORK FOR BRAKE LEVER	$20.84	1
13	14059311	FLANGED NUT M8 X 1.25	14059311 FLANGED NUT M8 X 1.25	$0.28 MSRP: ~~0.50~~ (44% off)	1
14	130926	SCREW	130926 SCREW	$7.50	1
15	16104411	Selflocking nut	16104411 Selflocking nut	$0.21 MSRP: ~~0.92~~ (77.2% off)	1
16	133555	PUSHBUTTON SWITCH	133555 PUSHBUTTON SWITCH	$38.69 MSRP: ~~43.35~~ (10.7% off)	1
17	-		See Table 31	-	1	Enquire
18	104030	NUT	104030 NUT	$0.26 MSRP: ~~1.00~~ (74% off)	4
19	12601374	WASHER	12601374 WASHER	$0.02 MSRP: ~~0.25~~ (92% off)	4
20	136376	RUBBER HOSE -Valid for GD-	136376 RUBBER HOSE -Valid for GD-	$29.37	1
21	157934	SCREW COLLAR	157934 SCREW COLLAR	$0.92 MSRP: ~~6.15~~ (85% off)	2
22	-		See Table 31	-	1	Enquire
23	140498	BRACKET	140498 BRACKET	$59.35	1
24	127496	WASHER	127496 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	2
25	10441590	BRACKET WITH SHEATH	10441590 BRACKET WITH SHEATH	$0.55	1
26	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	1
27	143676	BRAKE PIPE	143676 BRAKE PIPE	$13.19	1
28	129636	SCREW	129636 SCREW	$4.88	1
29	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	1
30	13517124	STUD BOLT	13517124 STUD BOLT	$19.58	1
31	130861	WASHER	130861 WASHER	$3.94	1
32	70000535	UNION	70000535 UNION	-	1	Enquire
33	131873	UNION	131873 UNION	$6.06	2
34	70000510	O.R. GASKET	70000510 O.R. GASKET	$192.54	4
35	151845	PIPE FROM CLUTCH PUMP TO	151845 PIPE FROM CLUTCH PUMP TO	$64.17	1
36	157934	SCREW COLLAR	157934 SCREW COLLAR	$0.92 MSRP: ~~6.15~~ (85% off)	2
37	105959	VENT PIPE	105959 VENT PIPE Valid till car Ass. Nr. 7544	$1.43	1
38	144824	GASKET	144824 GASKET	$1.64	1
