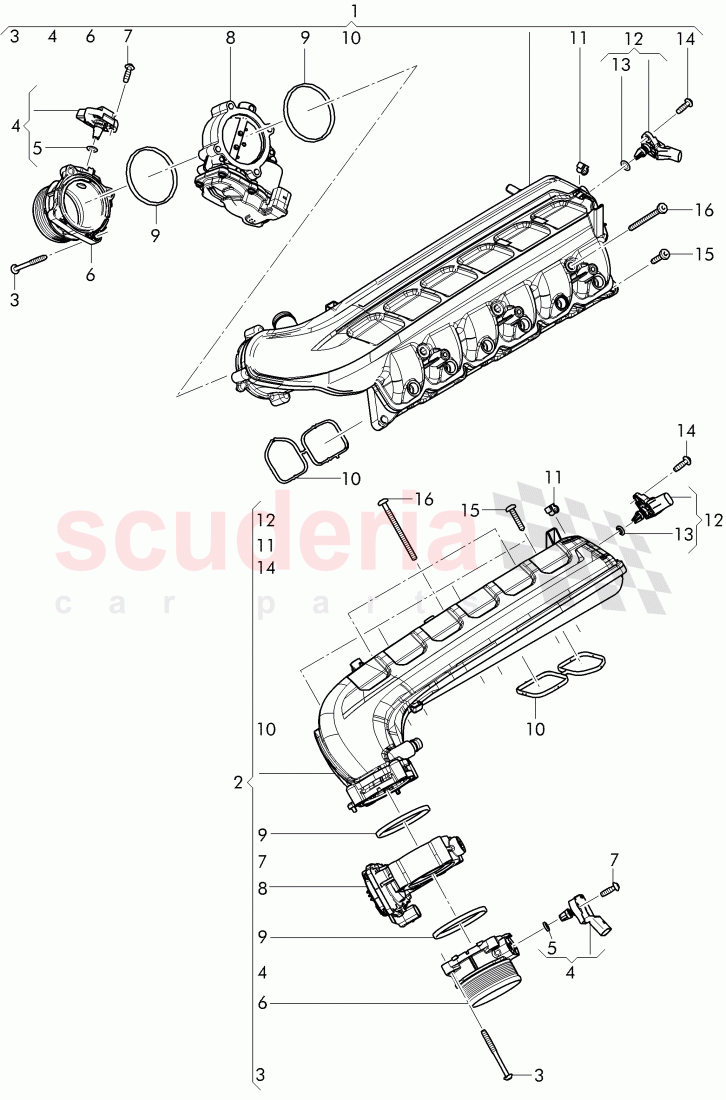

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	7P133185M	Intake manifold D - 16.11.2020>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	7P133185M	Intake manifold D - 16.11.2020>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10668001	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	3G906051M	pressure sensor	Enquire

Photo	Part No	Description	Price (each)	Stock
	36906149D	O-ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	7P133067	Hose adapter	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10473402	round hd. screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	7P133062B	Throttle valve D - 16.11.2020>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	7P133073D	Seal	Enquire

Photo	Part No	Description	Price (each)	Stock
	7P133227C	Seal	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0971939	terminal	Enquire

Photo	Part No	Description	Price (each)	Stock
	6E906051AC	Pressure sensor D - 15.03.2021>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	36906149D	O-ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10473402	round hd. screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91097101	Hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91131001	Hexagon socket head bolt	Enquire

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	7P133185M	Intake manifold D - 16.11.2020>>	7P133185M Intake manifold D - 16.11.2020>> Cylinder 1-6,	-	1	Enquire
2	7P133185M	Intake manifold D - 16.11.2020>>	7P133185M Intake manifold D - 16.11.2020>> cylinders 7-12,	-	1	Enquire
3	N10668001	Oval hexagon socket head bolt	N10668001 Oval hexagon socket head bolt 6X65X30,	-	8	Enquire
4	3G906051M	pressure sensor	3G906051M pressure sensor	-	2	Enquire
5	36906149D	O-ring	36906149D O-ring 7,59X2,62,	-	2	Enquire
6	7P133067	Hose adapter	7P133067 Hose adapter	-	2	Enquire
7	N10473402	round hd. screw	N10473402 round hd. screw 6X20,	-	4	Enquire
8	7P133062B	Throttle valve D - 16.11.2020>>	7P133062B Throttle valve D - 16.11.2020>> left a. right,	-	2	Enquire
9	7P133073D	Seal	7P133073D Seal 69,35X2,3X4,9,	-	4	Enquire
10	7P133227C	Seal	7P133227C Seal	-	6	Enquire
11	3D0971939	terminal	3D0971939 terminal D=8-10MM,	-	4	Enquire
12	6E906051AC	Pressure sensor D - 15.03.2021>>	6E906051AC Pressure sensor D - 15.03.2021>>	-	2	Enquire
13	36906149D	O-ring	36906149D O-ring 7,59X2,62,	-	2	Enquire
14	N10473402	round hd. screw	N10473402 round hd. screw 6X20,	-	2	Enquire
15	N91097101	Hexagon socket head bolt	N91097101 Hexagon socket head bolt M6X30, lower,	-	8	Enquire
16	N91131001	Hexagon socket head bolt	N91131001 Hexagon socket head bolt M6X80X70, upper,	-	6	Enquire
