Find Your Part

Coolant hoses and pipes, engine, F >> 4V-J-017 260, F >> ZV-J-017 260 of Bentley Bentley Bentayga (2015-2020)

View All

Bentley Bentayga (2015-2020) - Coolant hoses and pipes, engine, F >> 4V-J-017 260, F >> ZV-J-017 260

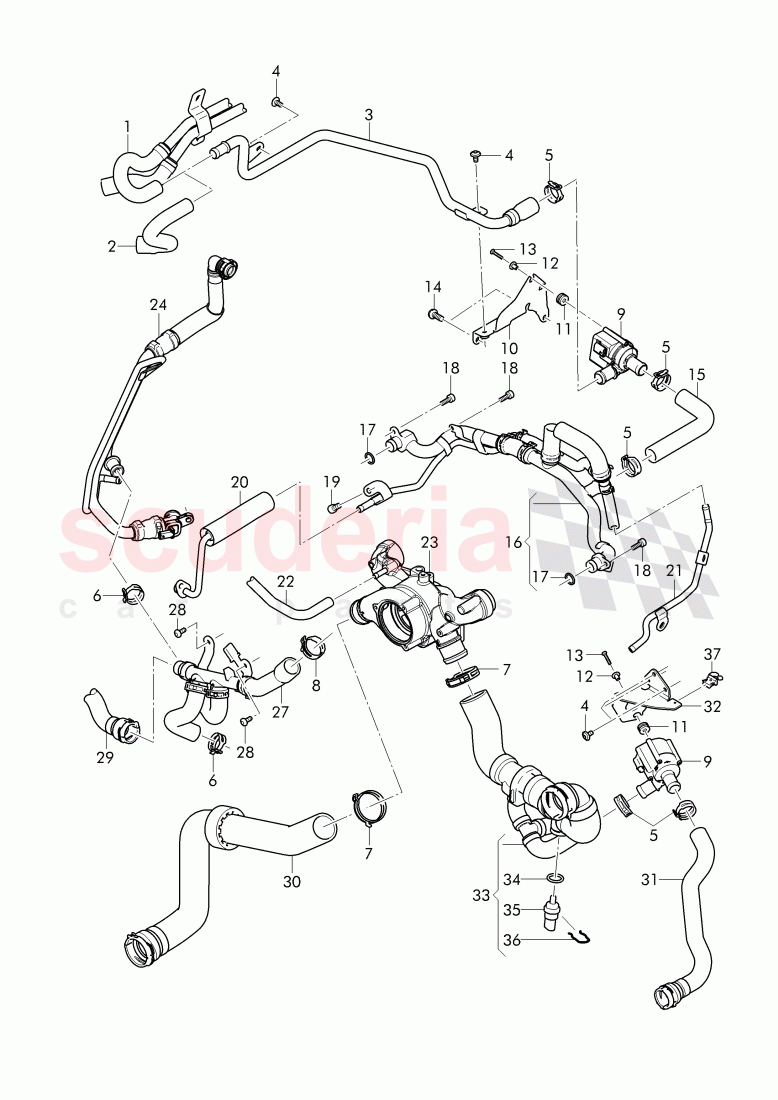

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	36A819372	water coolant pipe with, water hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90737105	Hexagon socket oval head bolt, self-locking	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT007714	Spring band clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT007714	Spring band clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90926501	spring band clamp D - >> 26.03.2007	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90687102	Spring band clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	6H121601N	Additional coolant pump	Enquire

Photo	Part No	Description	Price (each)	Stock
	36A819147	bracket for additional water, pump	Enquire

Photo	Part No	Description	Price (each)	Stock
	3L121275	Rubber bush	Enquire

Photo	Part No	Description	Price (each)	Stock
	3L121199	Sleeve	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT003361	Hexagon socket flat head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90662603	hexagonal socket head, screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	36A819342	water hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	7P121050AH	water coolant pipe with, water hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90561902	O-ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10546403	Hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10644901	bolt, with polygon socket hd.	Enquire

Photo	Part No	Description	Price (each)	Stock
	7P121070N	water coolant pipe with, water hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10405604	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	36A122055A	water hose with quick-, coupling piece	Enquire

Photo	Part No	Description	Price (each)	Stock
	36A121559A	water hose with quick-, coupling piece	Enquire

Photo	Part No	Description	Price (each)	Stock
	36A121313A	bracket for additional water, pump	Enquire

Photo	Part No	Description	Price (each)	Stock
	36A122101A	water hose with quick-, coupling piece	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90316801	O-ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	6A919501A	Coolant temperature sender Coolant pump dark grey	Enquire

Photo	Part No	Description	Price (each)	Stock
	32121142	retaining spring	Enquire

Photo	Part No	Description	Price (each)	Stock
	2K5955846	clip	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
3	36A819372	water coolant pipe with, water hose	36A819372 water coolant pipe with, water hose	-	1	Enquire
4	N90737105	Hexagon socket oval head bolt, self-locking	N90737105 Hexagon socket oval head bolt, self-locking M6X12,	-	5	Enquire
5	WHT007714	Spring band clamp	WHT007714 Spring band clamp 27X12,	-	5	Enquire
6	WHT007714	Spring band clamp	WHT007714 Spring band clamp 27X12,	-	2	Enquire
7	N90926501	spring band clamp D - >> 26.03.2007	N90926501 spring band clamp D - >> 26.03.2007 47X12,	-	2	Enquire
8	N90687102	Spring band clamp	N90687102 Spring band clamp 32X12,	-	1	Enquire
9	6H121601N	Additional coolant pump	6H121601N Additional coolant pump	-	1	Enquire
10	36A819147	bracket for additional water, pump	36A819147 bracket for additional water, pump	-	1	Enquire
11	3L121275	Rubber bush	3L121275 Rubber bush	-	6	Enquire
12	3L121199	Sleeve	3L121199 Sleeve	-	6	Enquire
13	WHT003361	Hexagon socket flat head bolt	WHT003361 Hexagon socket flat head bolt 3,5X20,	-	6	Enquire
14	N90662603	hexagonal socket head, screw	N90662603 hexagonal socket head, screw M8X18,	-	2	Enquire
15	36A819342	water hose	36A819342 water hose	-	1	Enquire
16	7P121050AH	water coolant pipe with, water hose	7P121050AH water coolant pipe with, water hose	-	1	Enquire
17	N90561902	O-ring	N90561902 O-ring 15,08X2,26,	-	2	Enquire
18	N10546403	Hexagon socket head bolt	N10546403 Hexagon socket head bolt M6X16,	-	3	Enquire
19	N10644901	bolt, with polygon socket hd.	N10644901 bolt, with polygon socket hd. M8X18,	-	1	Enquire
27	7P121070N	water coolant pipe with, water hose	7P121070N water coolant pipe with, water hose	-	1	Enquire
28	N10405604	Oval hexagon socket head bolt	N10405604 Oval hexagon socket head bolt M6X14,	-	2	Enquire
30	36A122055A	water hose with quick-, coupling piece	36A122055A water hose with quick-, coupling piece	-	1	Enquire
31	36A121559A	water hose with quick-, coupling piece	36A121559A water hose with quick-, coupling piece	-	1	Enquire
32	36A121313A	bracket for additional water, pump	36A121313A bracket for additional water, pump	-	1	Enquire
33	36A122101A	water hose with quick-, coupling piece	36A122101A water hose with quick-, coupling piece	-	1	Enquire
34	N90316801	O-ring	N90316801 O-ring 19.6X3.65,	-	1	Enquire
35	6A919501A	Coolant temperature sender Coolant pump dark grey	6A919501A Coolant temperature sender Coolant pump dark grey	-	1	Enquire
36	32121142	retaining spring	32121142 retaining spring	-	1	Enquire
37	2K5955846	clip	2K5955846 clip 10,8,	-	1	Enquire
