cylinder head, cylinder head cover of Bentley Bentley Bentayga (2015-2020)

View All

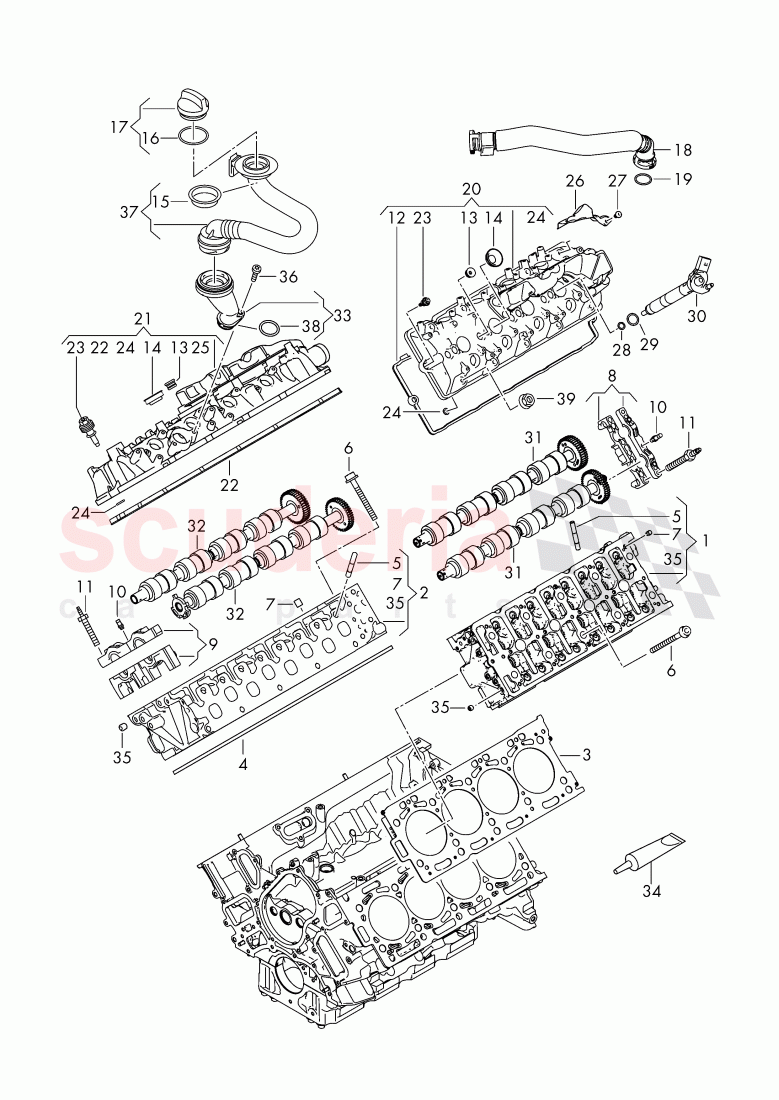

Bentley Bentayga (2015-2020) - cylinder head, cylinder head cover

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	57103063DF	Complete cylinder head, (without camshaft), D - 18.09.2017>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	57103064CR	Complete cylinder head, (without camshaft), D - 18.09.2017>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	57103383MH	cylinder head gasket (metal)	Enquire
	57103383MJ	cylinder head gasket (metal)	Enquire
	57103383MK	cylinder head gasket (metal)	Enquire

Photo	Part No	Description	Price (each)	Stock
	57103383KP	cylinder head gasket (metal)	Enquire
	57103383KQ	cylinder head gasket (metal)	Enquire
	57103383KR	cylinder head gasket (metal)	Enquire

Photo	Part No	Description	Price (each)	Stock
	N0444415	stud	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT005262A	bolt with, washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	59103139B	dowel sleeve	Enquire

Photo	Part No	Description	Price (each)	Stock
	57103959G	bearing cap	Enquire

Photo	Part No	Description	Price (each)	Stock
	57103960G	bearing cap	Enquire

Photo	Part No	Description	Price (each)	Stock
	N0131994	dowel pin, D - 22.02.2016>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT008070	Double Hex Bolt, (Combi)	Enquire
	WHT008070	Double Hex Bolt, (Combi)	Enquire

Photo	Part No	Description	Price (each)	Stock
	57103483P	gasket	Enquire

Photo	Part No	Description	Price (each)	Stock
	4B103631	grommet	Enquire
	4B103631	grommet	Enquire

Photo	Part No	Description	Price (each)	Stock
	59103085L	seal	Enquire

Photo	Part No	Description	Price (each)	Stock
	57103209J	vent hose, see illustration, item:	Enquire

Photo	Part No	Description	Price (each)	Stock
	57103469AF	cylinder head cover	Enquire

Photo	Part No	Description	Price (each)	Stock
	57103470AG	cylinder head cover, D - 24.07.2017>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	57103484D	gasket	Enquire

Photo	Part No	Description	Price (each)	Stock
	59103831	isolator	Enquire

Photo	Part No	Description	Price (each)	Stock
	59103196A	O-Ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10335206	Hexagon socket flat head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	D176501A1	Silicon sealant	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10283304	threaded plug, also use:	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10124306	Hexagon socket flat head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90215805	shouldered hex. nut, Discont./New add.+FULU calc.	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	57103063DF	Complete cylinder head, (without camshaft), D - 18.09.2017>>	57103063DF Complete cylinder head, (without camshaft), D - 18.09.2017>> cylinders 5-8,	-	1	Enquire
2	57103064CR	Complete cylinder head, (without camshaft), D - 18.09.2017>>	57103064CR Complete cylinder head, (without camshaft), D - 18.09.2017>> cylinders 1-4,	-	1	Enquire
3	57103383MH	cylinder head gasket (metal)	57103383MH cylinder head gasket (metal) 1,60MM, 1 hole, cylinders 5-8,	-	1	Enquire
3	57103383MJ	cylinder head gasket (metal)	57103383MJ cylinder head gasket (metal) 1,65MM, 2 holes, cylinders 5-8,	-	1	Enquire
3	57103383MK	cylinder head gasket (metal)	57103383MK cylinder head gasket (metal) 1,70MM, 3 holes, cylinders 5-8,	-	1	Enquire
4	57103383KP	cylinder head gasket (metal)	57103383KP cylinder head gasket (metal) 1,60MM, 1 hole, cylinders 1-4,	-	1	Enquire
4	57103383KQ	cylinder head gasket (metal)	57103383KQ cylinder head gasket (metal) 1,65MM, 2 holes, cylinders 1-4,	-	1	Enquire
4	57103383KR	cylinder head gasket (metal)	57103383KR cylinder head gasket (metal) 1,70MM, 3 holes, cylinders 1-4,	-	1	Enquire
5	N0444415	stud	N0444415 stud M8X40,	-	16	Enquire
6	WHT005262A	bolt with, washer	WHT005262A bolt with, washer M12X1,5X177,	-	20	Enquire
7	59103139B	dowel sleeve	59103139B dowel sleeve 8X9,	-	6	Enquire
8	57103959G	bearing cap	57103959G bearing cap cylinders 5-8,	-	1	Enquire
9	57103960G	bearing cap	57103960G bearing cap cylinders 1-4,	-	1	Enquire
10	N0131994	dowel pin, D - 22.02.2016>>	N0131994 dowel pin, D - 22.02.2016>> 6X14,	-	6	Enquire
11	WHT008070	Double Hex Bolt, (Combi)	WHT008070 Double Hex Bolt, (Combi) cylinders 1-4,	-	10	Enquire
11	WHT008070	Double Hex Bolt, (Combi)	WHT008070 Double Hex Bolt, (Combi) cylinders 5-8,	-	10	Enquire
12	57103483P	gasket	57103483P gasket cylinders 5-8,	-	1	Enquire
13	4B103631	grommet	4B103631 grommet cylinders 1-4,	-	9	Enquire
13	4B103631	grommet	4B103631 grommet cylinders 5-8,	-	10	Enquire
14	59103085L	seal	59103085L seal 37X13,	-	8	Enquire
18	57103209J	vent hose, see illustration, item:	57103209J vent hose, see illustration, item: 103-070,14,	-	1	Enquire
20	57103469AF	cylinder head cover	57103469AF cylinder head cover cylinders 5-8,	-	1	Enquire
21	57103470AG	cylinder head cover, D - 24.07.2017>>	57103470AG cylinder head cover, D - 24.07.2017>> cylinders 1-4,	-	1	Enquire
22	57103484D	gasket	57103484D gasket cylinders 1-4,	-	1	Enquire
23	59103831	isolator	59103831 isolator	-	6	Enquire
24	59103196A	O-Ring	59103196A O-Ring 9X2,	-	20	Enquire
27	N10335206	Hexagon socket flat head bolt	N10335206 Hexagon socket flat head bolt M6X12,	-	2	Enquire
34	D176501A1	Silicon sealant	D176501A1 Silicon sealant 50ml, 1,2,	-	-	Enquire
35	N10283304	threaded plug, also use:	N10283304 threaded plug, also use: M8X1, D 197 300 A2,	-	2	Enquire
36	N10124306	Hexagon socket flat head bolt	N10124306 Hexagon socket flat head bolt M6X20,	-	2	Enquire
39	N90215805	shouldered hex. nut, Discont./New add.+FULU calc.	N90215805 shouldered hex. nut, Discont./New add.+FULU calc. M6, 11,	-	20	Enquire
