Oil pump with integrated, vacuum pump, oil dipstick of Bentley Bentley Bentayga (2015-2020)

View All

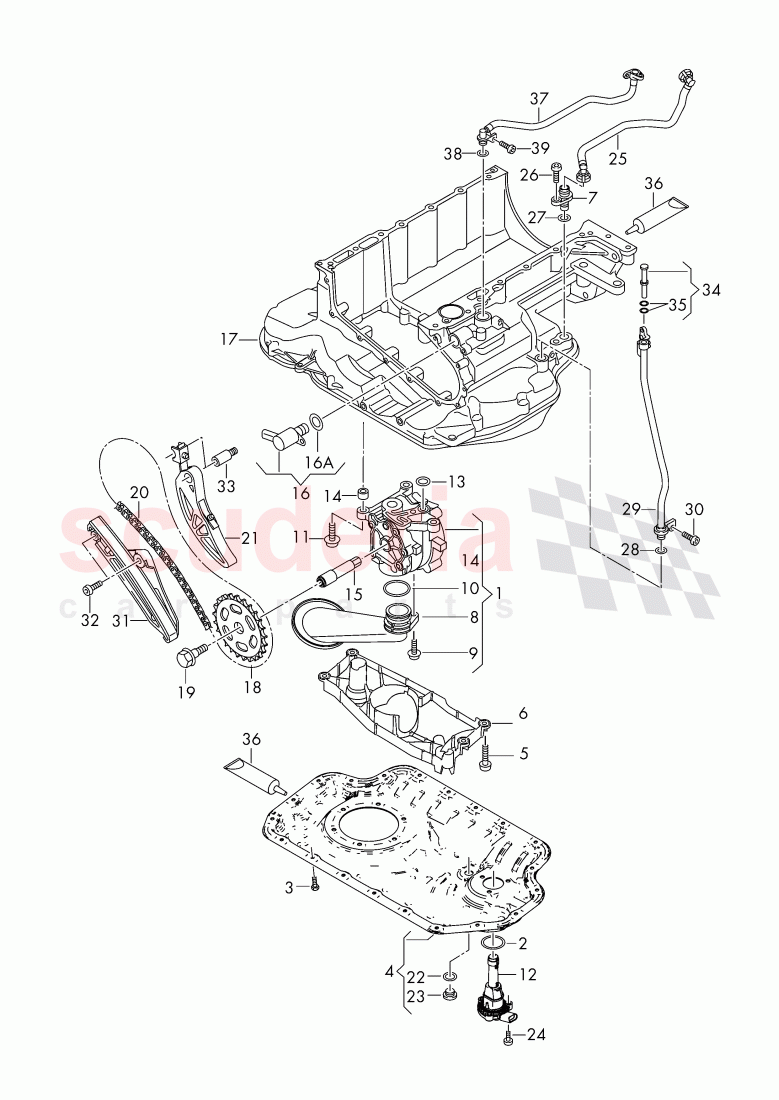

Bentley Bentayga (2015-2020) - Oil pump with integrated, vacuum pump, oil dipstick

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	57115105AN	oil pump	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10745101	Hexagon socket flat, head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10745101	Hexagon socket flat, head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	57103138F	insert	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10745301	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	79907660A	oil level sensor D >> - 25.01.2024	Enquire

Photo	Part No	Description	Price (each)	Stock
	6M115393D	control valve D >> - 13.12.2021	Enquire

Photo	Part No	Description	Price (each)	Stock
	59109570F	sprocket	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90893202	fitted bolt, hex. head	Enquire

Photo	Part No	Description	Price (each)	Stock
	57109106B	drive chain	Enquire

Photo	Part No	Description	Price (each)	Stock
	N0138498	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91167901	sealing plug	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10413405	Hexagon socket flat head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10451408	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	34115427B	O-ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	57115630AG	tube for oil dipstick	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10451408	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	57109538C	guide rail	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10124306	Hexagon socket flat head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	59109426S	pivot pin	Enquire

Photo	Part No	Description	Price (each)	Stock
	59115418A	Sealing stud D >> - 07.11.2023	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90813802	O-ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	D176501A1	Silicon sealant	Enquire

Photo	Part No	Description	Price (each)	Stock
	57131057G	vacuum pipe, see illustration, item:	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10405604	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT006777	O-Ring	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	57115105AN	oil pump	57115105AN oil pump	-	1	Enquire
3	N10745101	Hexagon socket flat, head bolt	N10745101 Hexagon socket flat, head bolt M6X20,	-	20	Enquire
5	N10745101	Hexagon socket flat, head bolt	N10745101 Hexagon socket flat, head bolt M6X20,	-	4	Enquire
6	57103138F	insert	57103138F insert	-	1	Enquire
11	N10745301	Oval hexagon socket head bolt	N10745301 Oval hexagon socket head bolt M8X30,	-	3	Enquire
12	79907660A	oil level sensor D >> - 25.01.2024	79907660A oil level sensor D >> - 25.01.2024 103-015,40,	-	1	Enquire
16	6M115393D	control valve D >> - 13.12.2021	6M115393D control valve D >> - 13.12.2021	-	1	Enquire
16A	WHT006777	O-Ring	WHT006777 O-Ring 14X2,	-	1	Enquire
18	59109570F	sprocket	59109570F sprocket	-	1	Enquire
19	N90893202	fitted bolt, hex. head	N90893202 fitted bolt, hex. head M10X20,	-	1	Enquire
20	57109106B	drive chain	57109106B drive chain	-	1	Enquire
22	N0138498	seal ring	N0138498 seal ring A14X20,	-	1	Enquire
23	N91167901	sealing plug	N91167901 sealing plug M14X1,5,	-	1	Enquire
24	N10413405	Hexagon socket flat head bolt	N10413405 Hexagon socket flat head bolt M6X25,	-	3	Enquire
26	N10451408	Oval hexagon socket head bolt	N10451408 Oval hexagon socket head bolt M6X16,	-	1	Enquire
28	34115427B	O-ring	34115427B O-ring 12X2,	-	1	Enquire
29	57115630AG	tube for oil dipstick	57115630AG tube for oil dipstick	-	1	Enquire
30	N10451408	Oval hexagon socket head bolt	N10451408 Oval hexagon socket head bolt M6X16,	-	1	Enquire
31	57109538C	guide rail	57109538C guide rail	-	1	Enquire
32	N10124306	Hexagon socket flat head bolt	N10124306 Hexagon socket flat head bolt M6X20,	-	2	Enquire
33	59109426S	pivot pin	59109426S pivot pin	-	2	Enquire
34	59115418A	Sealing stud D >> - 07.11.2023	59115418A Sealing stud D >> - 07.11.2023	-	1	Enquire
35	N90813802	O-ring	N90813802 O-ring 5X1,9,	-	2	Enquire
36	D176501A1	Silicon sealant	D176501A1 Silicon sealant 50ml,	-	-	Enquire
37	57131057G	vacuum pipe, see illustration, item:	57131057G vacuum pipe, see illustration, item: 131-010,1,	-	1	Enquire
39	N10405604	Oval hexagon socket head bolt	N10405604 Oval hexagon socket head bolt M6X14,	-	1	Enquire
