Coolant hoses and pipes, Engine bay of Bentley Bentley Bentayga (2015-2020)

View All

Bentley Bentayga (2015-2020) - Coolant hoses and pipes, Engine bay

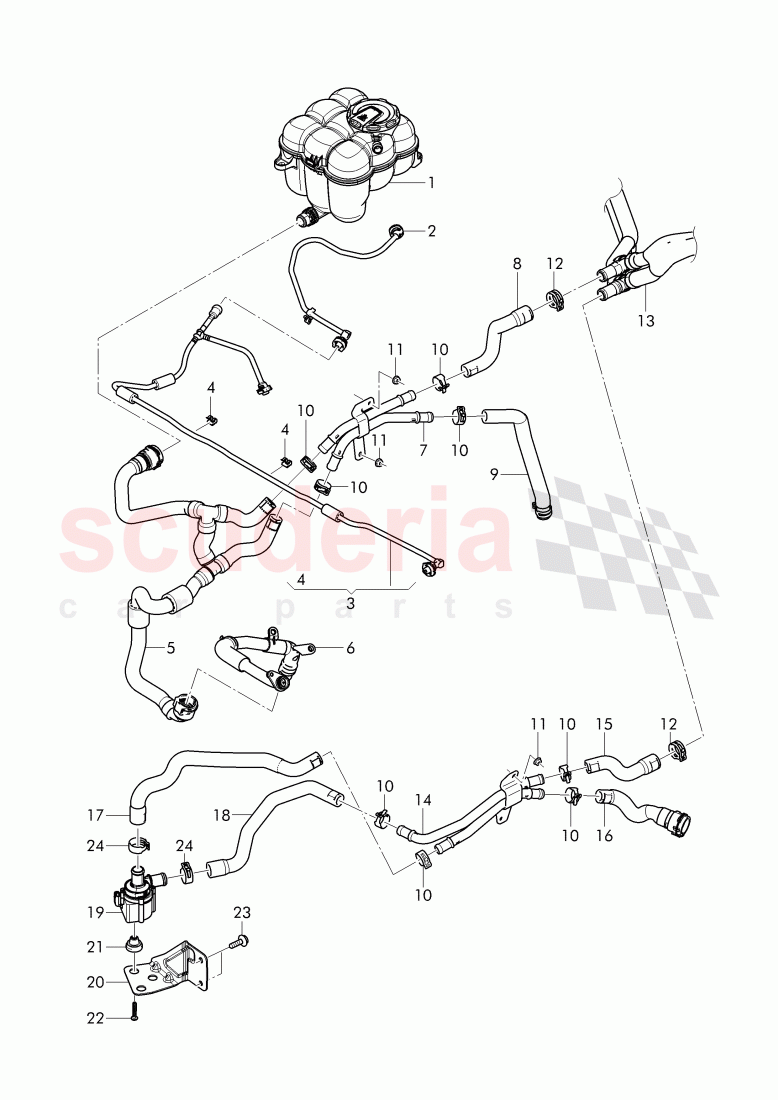

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	36A121081A	Breather line	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0121081CG	vent tube	Enquire

Photo	Part No	Description	Price (each)	Stock
	8E0131545	Clip	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0819350AC	water hose with quick-, coupling piece	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0819377N	water tube	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0265374R	water hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90686901	Spring band clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90215805	shouldered hex. nut, Discont./New add.+FULU calc.	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT007714	Spring band clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0819857A	tube	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0265372C	water hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0819337BE	water hose with quick-, coupling piece	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0819372CP	water hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0819372CN	water hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	6H121601M	Coolant pump	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0121233DA	bracket, D - 19.06.2017>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	4G0129234	rubber isolator	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002306	self-tapping screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90994403	bolt, hex. hd. (combi.)	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT007714	Spring band clamp	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
2	36A121081A	Breather line	36A121081A Breather line rear, upper,	-	1	Enquire
3	4M0121081CG	vent tube	4M0121081CG vent tube front, upper,	-	1	Enquire
4	8E0131545	Clip	8E0131545 Clip D=8.00,	-	2	Enquire
5	4M0819350AC	water hose with quick-, coupling piece	4M0819350AC water hose with quick-, coupling piece	-	1	Enquire
7	4M0819377N	water tube	4M0819377N water tube lower,	-	1	Enquire
8	4M0265374R	water hose	4M0265374R water hose	-	1	Enquire
10	N90686901	Spring band clamp	N90686901 Spring band clamp 23X12,	-	8	Enquire
11	N90215805	shouldered hex. nut, Discont./New add.+FULU calc.	N90215805 shouldered hex. nut, Discont./New add.+FULU calc. M6,	-	3	Enquire
12	WHT007714	Spring band clamp	WHT007714 Spring band clamp 27X12,	-	2	Enquire
14	4M0819857A	tube	4M0819857A tube upper,	-	1	Enquire
15	4M0265372C	water hose	4M0265372C water hose upper,	-	1	Enquire
16	4M0819337BE	water hose with quick-, coupling piece	4M0819337BE water hose with quick-, coupling piece	-	1	Enquire
17	4M0819372CP	water hose	4M0819372CP water hose	-	1	Enquire
18	4M0819372CN	water hose	4M0819372CN water hose	-	1	Enquire
19	6H121601M	Coolant pump	6H121601M Coolant pump	-	1	Enquire
20	4M0121233DA	bracket, D - 19.06.2017>>	4M0121233DA bracket, D - 19.06.2017>>	-	1	Enquire
21	4G0129234	rubber isolator	4G0129234 rubber isolator	-	3	Enquire
22	WHT002306	self-tapping screw	WHT002306 self-tapping screw 3,5X12,	-	3	Enquire
23	N90994403	bolt, hex. hd. (combi.)	N90994403 bolt, hex. hd. (combi.) M8X30,	-	2	Enquire
24	WHT007714	Spring band clamp	WHT007714 Spring band clamp 27X12,	-	2	Enquire
