water pump, coolant thermostat housing, with thermostat, valve of Bentley Bentley Bentayga (2015-2020)

View All

Bentley Bentayga (2015-2020) - water pump, coolant thermostat housing, with thermostat, valve

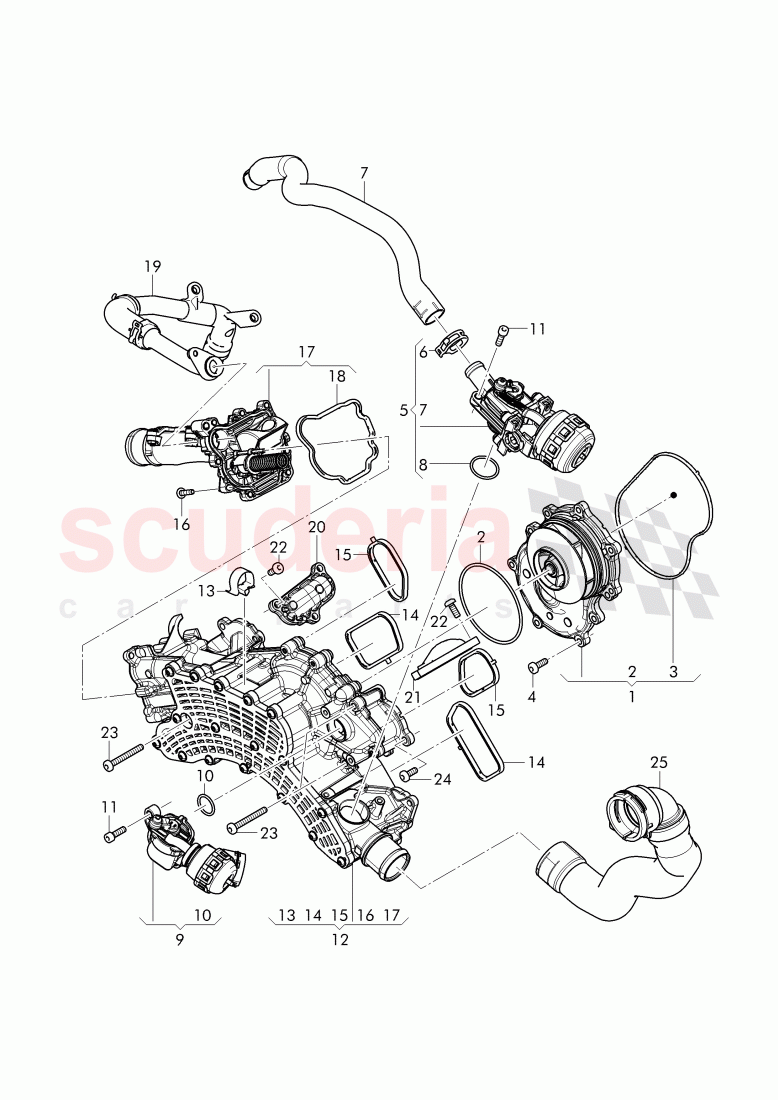

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	57121008M	COOLANT PUMP WITH SEALING	Enquire

Photo	Part No	Description	Price (each)	Stock
	57121119D	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	57121228A	gasket	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10196103	Oval socket head bolt with hex drive	Enquire

Photo	Part No	Description	Price (each)	Stock
	57121737P	valve, D >> - 05.06.2017	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT007714	Spring band clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	57121091	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	57121689G	valve, D - 09.10.2017>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	57121669	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT003121	bolt, with hex. socket, hd.	Enquire

Photo	Part No	Description	Price (each)	Stock
	57121111AA	coolant thermostat housing	Enquire

Photo	Part No	Description	Price (each)	Stock
	57121488A	gasket	Enquire

Photo	Part No	Description	Price (each)	Stock
	57121327A	gasket	Enquire

Photo	Part No	Description	Price (each)	Stock
	57121113D	thermostat	Enquire

Photo	Part No	Description	Price (each)	Stock
	57121687	gasket	Enquire

Photo	Part No	Description	Price (each)	Stock
	57121484C	End cap with seal	Enquire

Photo	Part No	Description	Price (each)	Stock
	57121483C	End cap with seal	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10451405	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10470703	round hd. screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10451405	Oval hexagon socket head bolt	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	57121008M	COOLANT PUMP WITH SEALING	57121008M COOLANT PUMP WITH SEALING	-	1	Enquire
2	57121119D	seal ring	57121119D seal ring 90X3,	-	1	Enquire
3	57121228A	gasket	57121228A gasket	-	1	Enquire
4	N10196103	Oval socket head bolt with hex drive	N10196103 Oval socket head bolt with hex drive M6X18,	-	9	Enquire
5	57121737P	valve, D >> - 05.06.2017	57121737P valve, D >> - 05.06.2017 lower,	-	1	Enquire
6	WHT007714	Spring band clamp	WHT007714 Spring band clamp 27X12,	-	1	Enquire
8	57121091	seal ring	57121091 seal ring 27X2,5,	-	1	Enquire
9	57121689G	valve, D - 09.10.2017>>	57121689G valve, D - 09.10.2017>> upper,	-	1	Enquire
10	57121669	seal ring	57121669 seal ring 20X2,5,	-	1	Enquire
11	WHT003121	bolt, with hex. socket, hd.	WHT003121 bolt, with hex. socket, hd. M6X20,	-	4	Enquire
12	57121111AA	coolant thermostat housing	57121111AA coolant thermostat housing	-	1	Enquire
14	57121488A	gasket	57121488A gasket lower,	-	2	Enquire
15	57121327A	gasket	57121327A gasket upper,	-	2	Enquire
17	57121113D	thermostat	57121113D thermostat	-	1	Enquire
18	57121687	gasket	57121687 gasket	-	1	Enquire
20	57121484C	End cap with seal	57121484C End cap with seal side right,	-	1	Enquire
21	57121483C	End cap with seal	57121483C End cap with seal side left,	-	1	Enquire
22	N10451405	Oval hexagon socket head bolt	N10451405 Oval hexagon socket head bolt M6X16,	-	6	Enquire
23	N10470703	round hd. screw	N10470703 round hd. screw M6X50,	-	3	Enquire
24	N10451405	Oval hexagon socket head bolt	N10451405 Oval hexagon socket head bolt M6X16,	-	10	Enquire
