cylinder block, sealing flange, oil pan of Bentley Bentley Bentayga (2015-2020)

View All

Bentley Bentayga (2015-2020) - cylinder block, sealing flange, oil pan

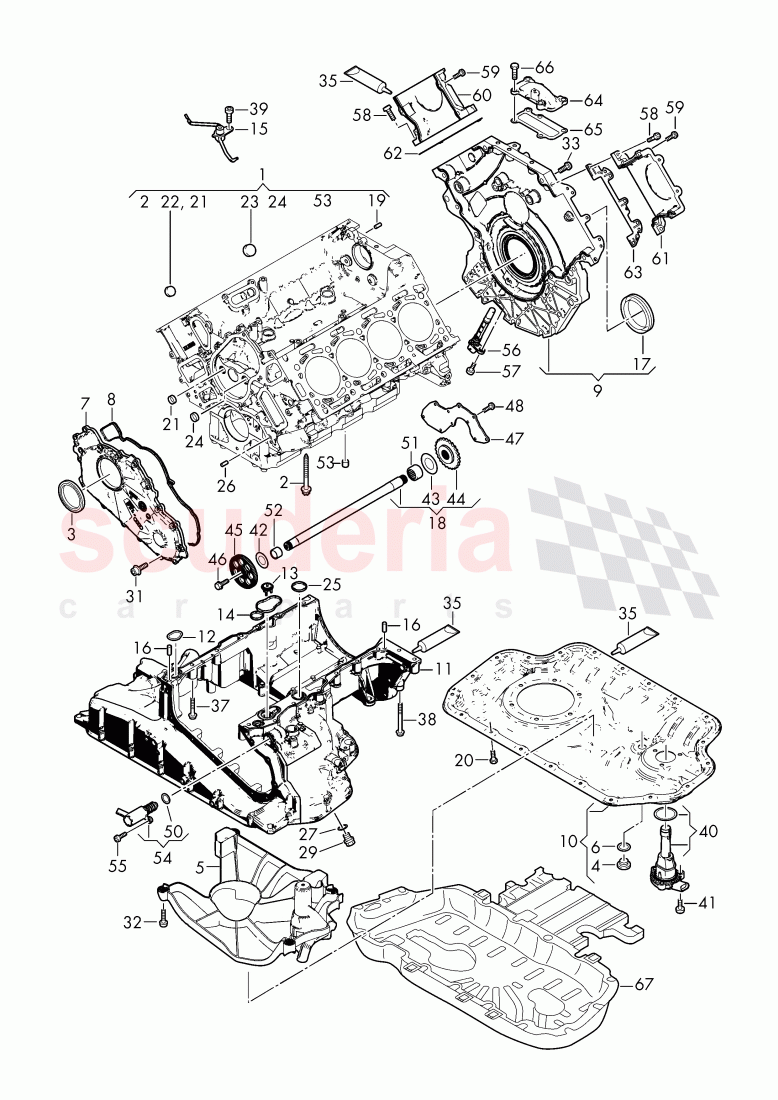

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	WHT003959	Hexagon head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	79103051D	seal	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91167901	sealing plug	Enquire

Photo	Part No	Description	Price (each)	Stock
	57103138F	insert	Enquire

Photo	Part No	Description	Price (each)	Stock
	N0138157	seal ring use only in conjunction with: D - 07.12.2018>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	57103153AE	sealing flange	Enquire

Photo	Part No	Description	Price (each)	Stock
	57103161G	gasket	Enquire

Photo	Part No	Description	Price (each)	Stock
	57103171AQ	sealing flange	Enquire

Photo	Part No	Description	Price (each)	Stock
	57103602AM	oil sump-lower part	Enquire

Photo	Part No	Description	Price (each)	Stock
	57103601AQ	Engine oil sump upper part	Enquire

Photo	Part No	Description	Price (each)	Stock
	57103611B	packing	Enquire

Photo	Part No	Description	Price (each)	Stock
	57103609D	gasket	Enquire

Photo	Part No	Description	Price (each)	Stock
	59103158R	jet	Enquire

Photo	Part No	Description	Price (each)	Stock
	55105277	spring pin	Enquire

Photo	Part No	Description	Price (each)	Stock
	59103051K	seal	Enquire

Photo	Part No	Description	Price (each)	Stock
	57105225G	shaft	Enquire

Photo	Part No	Description	Price (each)	Stock
	22103139B	dowel sleeve	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10745101	Hexagon socket flat, head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N0119034	sealing cap	Enquire

Photo	Part No	Description	Price (each)	Stock
	N0119047	sealing cap	Enquire

Photo	Part No	Description	Price (each)	Stock
	N0119149	End cap	Enquire

Photo	Part No	Description	Price (each)	Stock
	N0119047	sealing cap	Enquire

Photo	Part No	Description	Price (each)	Stock
	57103610C	gasket	Enquire

Photo	Part No	Description	Price (each)	Stock
	55105277	spring pin	Enquire

Photo	Part No	Description	Price (each)	Stock
	N0138326	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91196501	sealing plug	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10196103	Oval socket head bolt with hex drive	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10745101	Hexagon socket flat, head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10745301	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	D176501A1	Silicon sealant	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT004873	fillister hd. screw with, MULTI-POINT SOCKET HEAD	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT004874	fillister hd. screw with, MULTI-POINT SOCKET HEAD	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91054701	Hex socket head locating bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	79907660A	oil level sensor D >> - 25.01.2024	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10413405	Hexagon socket flat head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	59103323D	thrust washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	57105223A	sprocket	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90893202	fitted bolt, hex. head	Enquire

Photo	Part No	Description	Price (each)	Stock
	57103627D	sealing cap	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10739301	fillister hd. screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	59103869D	needle bearing -	Enquire

Photo	Part No	Description	Price (each)	Stock
	59103869A	needle bearing -	Enquire

Photo	Part No	Description	Price (each)	Stock
	57103139	sleeve	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10196103	Oval socket head bolt with hex drive	Enquire

Photo	Part No	Description	Price (each)	Stock
	57906433B	impulse sender D >> - 26.07.2022	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10405604	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10156206	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10124306	Hexagon socket flat head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	57109130K	cover, also use:	Enquire

Photo	Part No	Description	Price (each)	Stock
	57109129AK	cover, also use:	Enquire

Photo	Part No	Description	Price (each)	Stock
	57109092E	gasket, also use:	Enquire

Photo	Part No	Description	Price (each)	Stock
	57109091E	gasket, also use:	Enquire

Photo	Part No	Description	Price (each)	Stock
	57103708C	cover	Enquire

Photo	Part No	Description	Price (each)	Stock
	57103147L	gasket	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91021502	round hd. screw	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
2	WHT003959	Hexagon head bolt	WHT003959 Hexagon head bolt M11X1,5X107,	-	20	Enquire
3	79103051D	seal	79103051D seal	-	1	Enquire
4	N91167901	sealing plug	N91167901 sealing plug M14X1,5,	-	1	Enquire
5	57103138F	insert	57103138F insert	-	1	Enquire
6	N0138157	seal ring use only in conjunction with: D - 07.12.2018>>	N0138157 seal ring use only in conjunction with: D - 07.12.2018>> 14X20,	-	4	Enquire
7	57103153AE	sealing flange	57103153AE sealing flange front,	-	1	Enquire
8	57103161G	gasket	57103161G gasket front,	-	1	Enquire
9	57103171AQ	sealing flange	57103171AQ sealing flange rear,	-	1	Enquire
10	57103602AM	oil sump-lower part	57103602AM oil sump-lower part	-	1	Enquire
11	57103601AQ	Engine oil sump upper part	57103601AQ Engine oil sump upper part	-	1	Enquire
12	57103611B	packing	57103611B packing	-	1	Enquire
14	57103609D	gasket	57103609D gasket	-	1	Enquire
15	59103158R	jet	59103158R jet	-	4	Enquire
16	55105277	spring pin	55105277 spring pin 6,2X22,	-	2	Enquire
17	59103051K	seal	59103051K seal 85X105X8,	-	1	Enquire
18	57105225G	shaft	57105225G shaft	-	1	Enquire
19	22103139B	dowel sleeve	22103139B dowel sleeve 16X13,5,	-	2	Enquire
20	N10745101	Hexagon socket flat, head bolt	N10745101 Hexagon socket flat, head bolt M6X20,	-	20	Enquire
21	N0119034	sealing cap	N0119034 sealing cap 16,	-	1	Enquire
22	N0119047	sealing cap	N0119047 sealing cap 18,	-	1	Enquire
23	N0119149	End cap	N0119149 End cap 24,	-	1	Enquire
24	N0119047	sealing cap	N0119047 sealing cap 18,	-	3	Enquire
25	57103610C	gasket	57103610C gasket	-	2	Enquire
26	55105277	spring pin	55105277 spring pin 6,2X22,	-	2	Enquire
27	N0138326	seal ring	N0138326 seal ring 18X22,	-	1	Enquire
29	N91196501	sealing plug	N91196501 sealing plug M18X1,50,	-	1	Enquire
31	N10196103	Oval socket head bolt with hex drive	N10196103 Oval socket head bolt with hex drive M6X18, 057 103 153 AE,	-	14	Enquire
32	N10745101	Hexagon socket flat, head bolt	N10745101 Hexagon socket flat, head bolt M6X20,	-	4	Enquire
33	N10745301	Oval hexagon socket head bolt	N10745301 Oval hexagon socket head bolt M8X30,	-	18	Enquire
35	D176501A1	Silicon sealant	D176501A1 Silicon sealant 50ml, black,	-	-	Enquire
37	WHT004873	fillister hd. screw with, MULTI-POINT SOCKET HEAD	WHT004873 fillister hd. screw with, MULTI-POINT SOCKET HEAD M7X40,	-	12	Enquire
38	WHT004874	fillister hd. screw with, MULTI-POINT SOCKET HEAD	WHT004874 fillister hd. screw with, MULTI-POINT SOCKET HEAD M7X105X39,	-	4	Enquire
39	N91054701	Hex socket head locating bolt	N91054701 Hex socket head locating bolt M6X6X12,	-	4	Enquire
40	79907660A	oil level sensor D >> - 25.01.2024	79907660A oil level sensor D >> - 25.01.2024	-	1	Enquire
41	N10413405	Hexagon socket flat head bolt	N10413405 Hexagon socket flat head bolt M6X25,	-	3	Enquire
42	59103323D	thrust washer	59103323D thrust washer 22X36X1,5,	-	3	Enquire
45	57105223A	sprocket	57105223A sprocket	-	1	Enquire
46	N90893202	fitted bolt, hex. head	N90893202 fitted bolt, hex. head M10X20,	-	1	Enquire
47	57103627D	sealing cap	57103627D sealing cap	-	1	Enquire
48	N10739301	fillister hd. screw	N10739301 fillister hd. screw M6X10,	-	10	Enquire
51	59103869D	needle bearing -	59103869D needle bearing - 25X33X20,	-	1	Enquire
52	59103869A	needle bearing -	59103869A needle bearing - D=22 MM,	-	1	Enquire
53	57103139	sleeve	57103139 sleeve	-	4	Enquire
55	N10196103	Oval socket head bolt with hex drive	N10196103 Oval socket head bolt with hex drive M6X18,	-	1	Enquire
56	57906433B	impulse sender D >> - 26.07.2022	57906433B impulse sender D >> - 26.07.2022	-	1	Enquire
57	N10405604	Oval hexagon socket head bolt	N10405604 Oval hexagon socket head bolt M6X14,	-	1	Enquire
58	N10156206	Oval hexagon socket head bolt	N10156206 Oval hexagon socket head bolt M6X30,	-	10	Enquire
59	N10124306	Hexagon socket flat head bolt	N10124306 Hexagon socket flat head bolt M6X20,	-	8	Enquire
60	57109130K	cover, also use:	57109130K cover, also use: cylinders 1-4, D 176 501 A1,	-	1	Enquire
61	57109129AK	cover, also use:	57109129AK cover, also use: cylinders 5-8, D 176 501 A1,	-	1	Enquire
62	57109092E	gasket, also use:	57109092E gasket, also use: cylinders 1-4, D 176 501 A1,	-	1	Enquire
63	57109091E	gasket, also use:	57109091E gasket, also use: cylinders 5-8, D 176 501 A1,	-	1	Enquire
64	57103708C	cover	57103708C cover	-	1	Enquire
65	57103147L	gasket	57103147L gasket	-	1	Enquire
66	N91021502	round hd. screw	N91021502 round hd. screw M8X25,	-	4	Enquire
