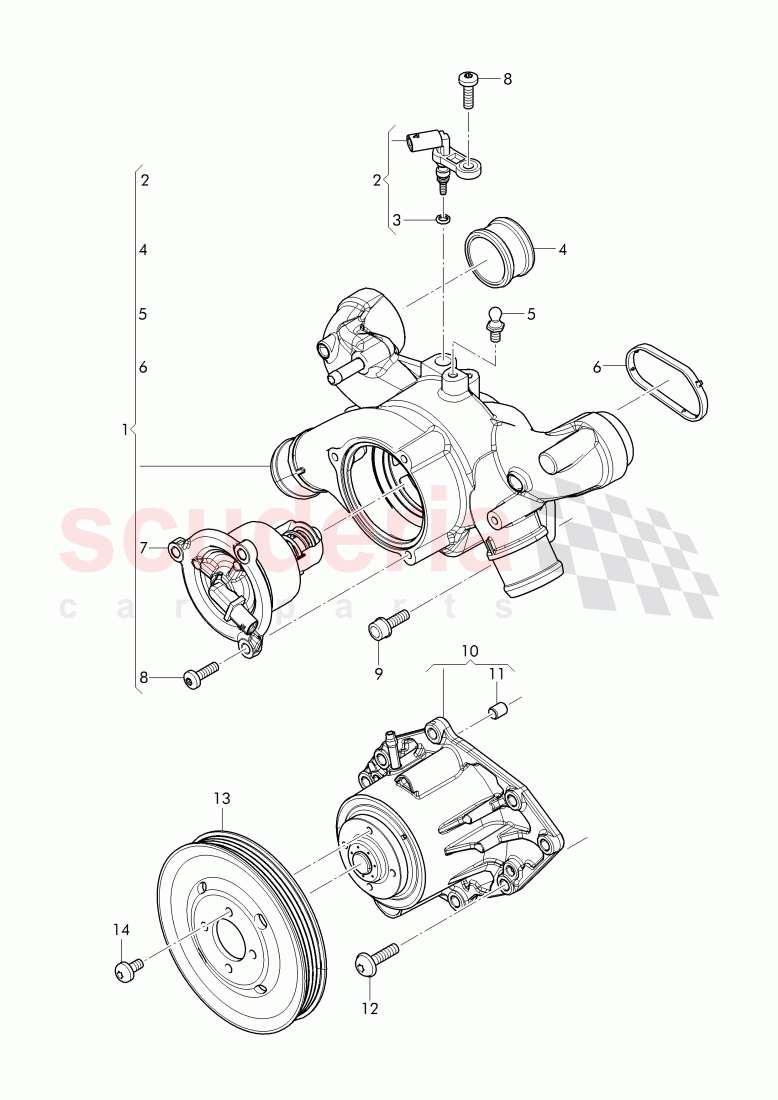

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	WHT000355	Ball screw	Enquire
	7P121115J	Coolant regulator housing with thermostat D - 21.02.2020>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	5E919501	Temperature sensor D - 18.10.2021>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT005521	O-ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	7P121237	Connecting pipe	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT000355	Ball screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	7P121139	Seal	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10124309	Oval hexagon socket head bolt only for position:	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10697901	Double hexagon bunch screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	7P121008C	Coolant pump with vacuum connection See TPI D - 31.01.2020>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91020801	dowel sleeve	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10632102	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	7P145256C	Poly V-belt pulley	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10170303	round hd. screw	Enquire

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	WHT000355	Ball screw	WHT000355 Ball screw	-	1	Enquire
1	7P121115J	Coolant regulator housing with thermostat D - 21.02.2020>>	7P121115J Coolant regulator housing with thermostat D - 21.02.2020>> WHT 000 355, WHT 000 355,	-	1	Enquire
2	5E919501	Temperature sensor D - 18.10.2021>>	5E919501 Temperature sensor D - 18.10.2021>>	-	1	Enquire
3	WHT005521	O-ring	WHT005521 O-ring 5,1X2,15,	-	1	Enquire
4	7P121237	Connecting pipe	7P121237 Connecting pipe	-	2	Enquire
5	WHT000355	Ball screw	WHT000355 Ball screw D=8,	-	1	Enquire
6	7P121139	Seal	7P121139 Seal	-	1	Enquire
8	N10124309	Oval hexagon socket head bolt only for position:	N10124309 Oval hexagon socket head bolt only for position: M6X20,	-	4	Enquire
9	N10697901	Double hexagon bunch screw	N10697901 Double hexagon bunch screw M8X25,	-	3	Enquire
10	7P121008C	Coolant pump with vacuum connection See TPI D - 31.01.2020>>	7P121008C Coolant pump with vacuum connection See TPI D - 31.01.2020>>	-	1	Enquire
11	N91020801	dowel sleeve	N91020801 dowel sleeve 8X10,	-	2	Enquire
12	N10632102	Oval hexagon socket head bolt	N10632102 Oval hexagon socket head bolt M6X25,	-	8	Enquire
13	7P145256C	Poly V-belt pulley	7P145256C Poly V-belt pulley	-	1	Enquire
14	N10170303	round hd. screw	N10170303 round hd. screw M6X10,	-	4	Enquire
