Find Your Part

crankcase, sealing flange, Engine oil sump upper part, Engine oil sump lower part, with oil level sensor of Bentley Bentley Bentayga (2015-2020)

View All

Bentley Bentayga (2015-2020) - crankcase, sealing flange, Engine oil sump upper part, Engine oil sump lower part, with oil level...

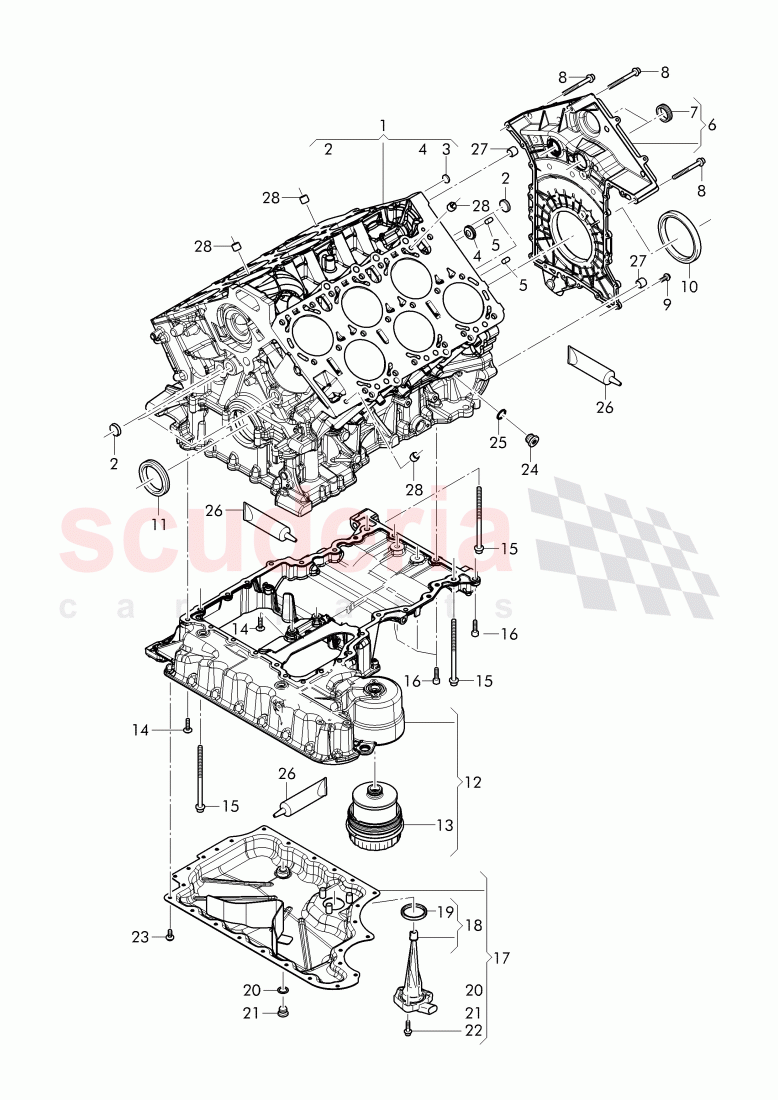

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	N0119149	End cap	Enquire

Photo	Part No	Description	Price (each)	Stock
	N01190311	sealing cap, D - 29.05.2006>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	7C103381D	sealing plug	Enquire

Photo	Part No	Description	Price (each)	Stock
	N0131911	Cylinder pin	Enquire

Photo	Part No	Description	Price (each)	Stock
	7P109091C	Seal	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91165101	Hexagon socket flat head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91168701	Hexalobular flange screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	21103051C	shaft oil seal	Enquire

Photo	Part No	Description	Price (each)	Stock
	7P103085A	Shaft oil seal	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10644404	Hexagon socket flat head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10627901	Socket head bolt with inner multipoint head (Kombi)	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91021502	round hd. screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	7P103800E	Engine oil sump lower part, with oil level sensor, also use:	Enquire

Photo	Part No	Description	Price (each)	Stock
	7P907660	oil level sensor	Enquire

Photo	Part No	Description	Price (each)	Stock
	38103196B	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	N0138157	seal ring use only in conjunction with: D - 07.12.2018>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91167901	sealing plug	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91180401	Hexalobular flange screw to be used for item:	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91126102	Hexagon socket flat head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91196501	sealing plug	Enquire

Photo	Part No	Description	Price (each)	Stock
	N0138321	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	D176501A1	Silicon sealant	Enquire

Photo	Part No	Description	Price (each)	Stock
	22103139B	dowel sleeve	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90502601	dowel sleeve	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
2	N0119149	End cap	N0119149 End cap D=24MM,	-	5	Enquire
3	N01190311	sealing cap, D - 29.05.2006>>	N01190311 sealing cap, D - 29.05.2006>> D=16MM,	-	1	Enquire
4	7C103381D	sealing plug	7C103381D sealing plug	-	1	Enquire
5	N0131911	Cylinder pin	N0131911 Cylinder pin 8X14,5,	-	2	Enquire
7	7P109091C	Seal	7P109091C Seal	-	2	Enquire
8	N91165101	Hexagon socket flat head bolt	N91165101 Hexagon socket flat head bolt M6X70,	-	3	Enquire
9	N91168701	Hexalobular flange screw	N91168701 Hexalobular flange screw M6X18,	-	19	Enquire
10	21103051C	shaft oil seal	21103051C shaft oil seal rear,	-	1	Enquire
11	7P103085A	Shaft oil seal	7P103085A Shaft oil seal 58X70X7,	-	1	Enquire
14	N10644404	Hexagon socket flat head bolt	N10644404 Hexagon socket flat head bolt M6X22,	-	23	Enquire
15	N10627901	Socket head bolt with inner multipoint head (Kombi)	N10627901 Socket head bolt with inner multipoint head (Kombi) M8X138,4,	-	3	Enquire
16	N91021502	round hd. screw	N91021502 round hd. screw M8X25,	-	5	Enquire
17	7P103800E	Engine oil sump lower part, with oil level sensor, also use:	7P103800E Engine oil sump lower part, with oil level sensor, also use: D 176 501 A1,	-	1	Enquire
18	7P907660	oil level sensor	7P907660 oil level sensor	-	1	Enquire
19	38103196B	seal ring	38103196B seal ring	-	1	Enquire
20	N0138157	seal ring use only in conjunction with: D - 07.12.2018>>	N0138157 seal ring use only in conjunction with: D - 07.12.2018>> 14X20X2,	-	1	Enquire
21	N91167901	sealing plug	N91167901 sealing plug M14X1,5,	-	1	Enquire
22	N91180401	Hexalobular flange screw to be used for item:	N91180401 Hexalobular flange screw to be used for item: M6X22,	-	3	Enquire
23	N91126102	Hexagon socket flat head bolt	N91126102 Hexagon socket flat head bolt M6X14,	-	26	Enquire
24	N91196501	sealing plug	N91196501 sealing plug M18X1,5,	-	1	Enquire
25	N0138321	seal ring	N0138321 seal ring 18X22 ALU,	-	1	Enquire
26	D176501A1	Silicon sealant	D176501A1 Silicon sealant 50ml,	-	-	Enquire
27	22103139B	dowel sleeve	22103139B dowel sleeve 16X13,5,	-	2	Enquire
28	N90502601	dowel sleeve	N90502601 dowel sleeve 14X12,	-	4	Enquire
