Find Your Part

Coolant hoses and pipes, engine of Bentley Bentley Bentayga (2015-2020)

View All

Bentley Bentayga (2015-2020) - Coolant hoses and pipes, engine

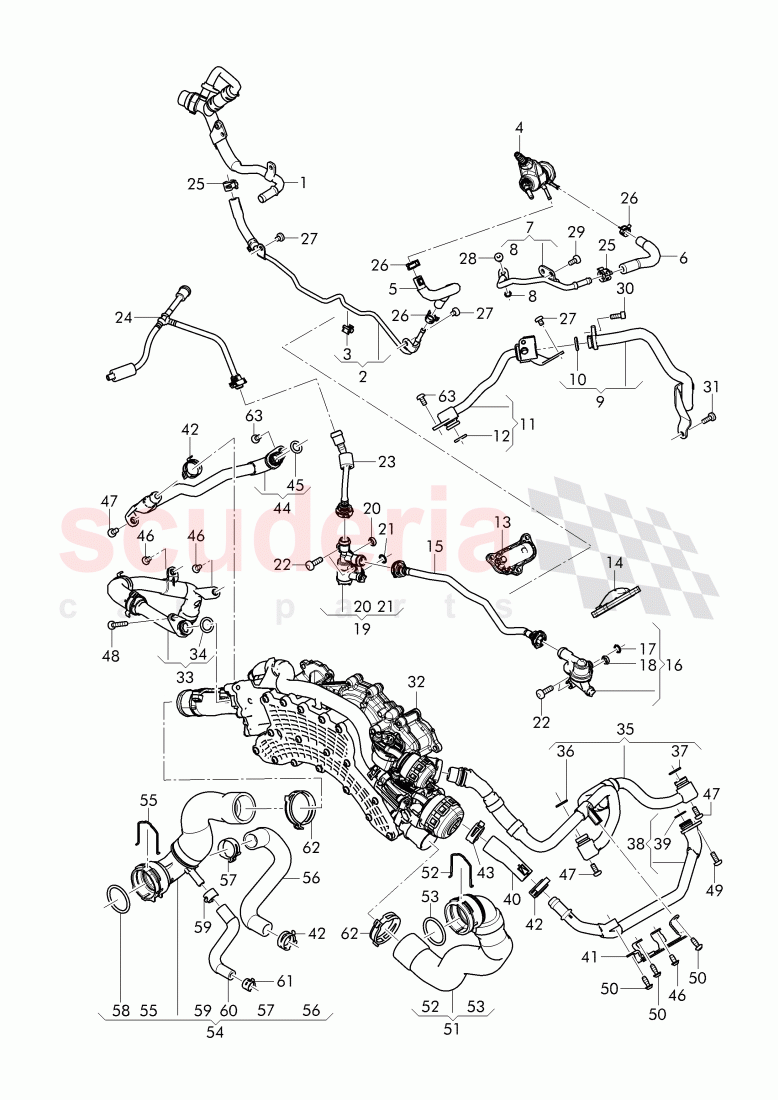

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	57121491AA	water tube	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10582301	clip	Enquire

Photo	Part No	Description	Price (each)	Stock
	57121061K	water hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	57121059F	water hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	57121662E	water tube	Enquire

Photo	Part No	Description	Price (each)	Stock
	59121437E	O-Ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	57121512E	water tube	Enquire

Photo	Part No	Description	Price (each)	Stock
	57121437F	O-Ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	57121597AB	water tube	Enquire

Photo	Part No	Description	Price (each)	Stock
	57121437B	O-Ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	57121081H	vent tube	Enquire

Photo	Part No	Description	Price (each)	Stock
	57121671F	valve	Enquire

Photo	Part No	Description	Price (each)	Stock
	59121437F	O-Ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	59121043F	gasket	Enquire

Photo	Part No	Description	Price (each)	Stock
	57121670E	valve	Enquire

Photo	Part No	Description	Price (each)	Stock
	59121043F	gasket	Enquire

Photo	Part No	Description	Price (each)	Stock
	59121437F	O-Ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10124306	Hexagon socket flat head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	57121439K	vent tube	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90986501	Spring band clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10716001	spring clip, D >> - 04.03.2013	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10680302	Hexagon socket flat, head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10170303	round hd. screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10405604	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10546403	Hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10196103	Oval socket head bolt with hex drive	Enquire

Photo	Part No	Description	Price (each)	Stock
	57121064J	water tube	Enquire

Photo	Part No	Description	Price (each)	Stock
	57121437G	O-Ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	57121444J	water tube	Enquire

Photo	Part No	Description	Price (each)	Stock
	59121437F	O-Ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	59121437F	O-Ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	57121609K	water tube	Enquire

Photo	Part No	Description	Price (each)	Stock
	57121437	O-Ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	57121637A	water hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	57121241C	bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90686901	Spring band clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT007714	Spring band clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	57121610F	water tube	Enquire

Photo	Part No	Description	Price (each)	Stock
	57121437	O-Ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10683901	Oval socket head bolt with hex drive	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10405604	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10554005	round hd. screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10451405	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10721401	oval hd. self-tapp fitt. screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0122101CC	water hose with quick-, coupling piece	Enquire

Photo	Part No	Description	Price (each)	Stock
	4E0121142	retaining spring	Enquire

Photo	Part No	Description	Price (each)	Stock
	4E0121666	O-Ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0122055CL	water hose with quick-, coupling piece	Enquire

Photo	Part No	Description	Price (each)	Stock
	4E0121142	retaining spring	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0145566B	water hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT007714	Spring band clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	4E0121666	O-Ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90770201	Spring band clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0145924E	water hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90686701	Spring band clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90926501	spring band clamp D - >> 26.03.2007	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10335206	Hexagon socket flat head bolt	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
2	57121491AA	water tube	57121491AA water tube rear,	-	1	Enquire
3	N10582301	clip	N10582301 clip 15X16,	-	1	Enquire
5	57121061K	water hose	57121061K water hose	-	1	Enquire
6	57121059F	water hose	57121059F water hose	-	1	Enquire
7	57121662E	water tube	57121662E water tube	-	1	Enquire
8	59121437E	O-Ring	59121437E O-Ring 6,75X1,78,	-	1	Enquire
9	57121512E	water tube	57121512E water tube	-	1	Enquire
10	57121437F	O-Ring	57121437F O-Ring 16X2,	-	1	Enquire
11	57121597AB	water tube	57121597AB water tube	-	1	Enquire
12	57121437B	O-Ring	57121437B O-Ring 17X3,	-	1	Enquire
15	57121081H	vent tube	57121081H vent tube center,	-	1	Enquire
16	57121671F	valve	57121671F valve left,	-	1	Enquire
17	59121437F	O-Ring	59121437F O-Ring 10X1,8,	-	1	Enquire
18	59121043F	gasket	59121043F gasket	-	1	Enquire
19	57121670E	valve	57121670E valve right,	-	1	Enquire
20	59121043F	gasket	59121043F gasket	-	1	Enquire
21	59121437F	O-Ring	59121437F O-Ring 10X1,8,	-	1	Enquire
22	N10124306	Hexagon socket flat head bolt	N10124306 Hexagon socket flat head bolt M6X20,	-	4	Enquire
23	57121439K	vent tube	57121439K vent tube right,	-	1	Enquire
25	N90986501	Spring band clamp	N90986501 Spring band clamp 14,5X12,	-	2	Enquire
26	N10716001	spring clip, D >> - 04.03.2013	N10716001 spring clip, D >> - 04.03.2013 12,5X8,4,	-	3	Enquire
27	N10680302	Hexagon socket flat, head bolt	N10680302 Hexagon socket flat, head bolt M6X8,	-	3	Enquire
28	N10170303	round hd. screw	N10170303 round hd. screw M6X10,	-	1	Enquire
29	N10405604	Oval hexagon socket head bolt	N10405604 Oval hexagon socket head bolt M6X14,	-	1	Enquire
30	N10546403	Hexagon socket head bolt	N10546403 Hexagon socket head bolt M6X16,	-	1	Enquire
31	N10196103	Oval socket head bolt with hex drive	N10196103 Oval socket head bolt with hex drive M6X18,	-	1	Enquire
33	57121064J	water tube	57121064J water tube right front,	-	1	Enquire
34	57121437G	O-Ring	57121437G O-Ring 18X2,	-	1	Enquire
35	57121444J	water tube	57121444J water tube left front,	-	1	Enquire
36	59121437F	O-Ring	59121437F O-Ring 10X1,8,	-	1	Enquire
37	59121437F	O-Ring	59121437F O-Ring 10X1,8,	-	1	Enquire
38	57121609K	water tube	57121609K water tube left rear,	-	1	Enquire
39	57121437	O-Ring	57121437 O-Ring 16X1,5,	-	1	Enquire
40	57121637A	water hose	57121637A water hose	-	1	Enquire
41	57121241C	bracket	57121241C bracket	-	1	Enquire
42	N90686901	Spring band clamp	N90686901 Spring band clamp 23X12,	-	3	Enquire
43	WHT007714	Spring band clamp	WHT007714 Spring band clamp 27X12,	-	1	Enquire
44	57121610F	water tube	57121610F water tube right rear,	-	1	Enquire
45	57121437	O-Ring	57121437 O-Ring 16X1,5,	-	1	Enquire
46	N10683901	Oval socket head bolt with hex drive	N10683901 Oval socket head bolt with hex drive M6X12,	-	3	Enquire
47	N10405604	Oval hexagon socket head bolt	N10405604 Oval hexagon socket head bolt M6X14,	-	3	Enquire
48	N10554005	round hd. screw	N10554005 round hd. screw M6X35,	-	1	Enquire
49	N10451405	Oval hexagon socket head bolt	N10451405 Oval hexagon socket head bolt M6X16,	-	1	Enquire
50	N10721401	oval hd. self-tapp fitt. screw	N10721401 oval hd. self-tapp fitt. screw 6X16,	-	3	Enquire
51	4M0122101CC	water hose with quick-, coupling piece	4M0122101CC water hose with quick-, coupling piece left,	-	1	Enquire
52	4E0121142	retaining spring	4E0121142 retaining spring 38MM,	-	1	Enquire
53	4E0121666	O-Ring	4E0121666 O-Ring 38X4,	-	1	Enquire
54	4M0122055CL	water hose with quick-, coupling piece	4M0122055CL water hose with quick-, coupling piece	-	1	Enquire
55	4E0121142	retaining spring	4E0121142 retaining spring 38MM,	-	1	Enquire
56	4M0145566B	water hose	4M0145566B water hose	-	1	Enquire
57	WHT007714	Spring band clamp	WHT007714 Spring band clamp 27X12,	-	1	Enquire
58	4E0121666	O-Ring	4E0121666 O-Ring 38X4,	-	1	Enquire
59	N90770201	Spring band clamp	N90770201 Spring band clamp 17X12,	-	1	Enquire
60	4M0145924E	water hose	4M0145924E water hose	-	1	Enquire
61	N90686701	Spring band clamp	N90686701 Spring band clamp 14X12,	-	1	Enquire
62	N90926501	spring band clamp D - >> 26.03.2007	N90926501 spring band clamp D - >> 26.03.2007 47X12,	-	2	Enquire
63	N10335206	Hexagon socket flat head bolt	N10335206 Hexagon socket flat head bolt M6X12,	-	2	Enquire
