Front Suspension Mounting of Aston Martin Aston Martin One-77

View All

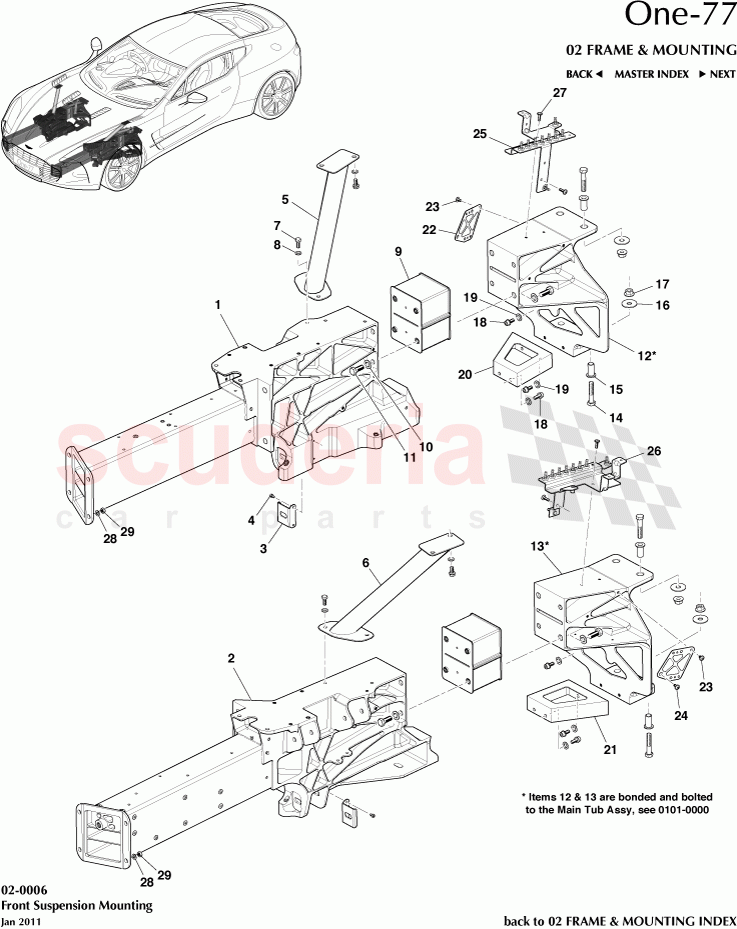

Aston Martin One-77 - Front Suspension Mounting

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AY932110090	Structure, Front Suspension Mounting RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY932110089	Structure, Front Suspension Mounting LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023041044AC	Bracket, J- Cam Bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023096060AA	Screw, M5-0.8x8 SHCS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023041059AC	Support, Engine Bay Brace RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023041058AC	Support, Engine Bay Brace LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023096006	Screw, M8-1.25x20, Hex hd	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023096144	Washer, ID8.4x OD16x1.6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023041042AH	Structure, Secondary Crash	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023096116	Washer, Flat ID10.5xOD20x2.0	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023096018	Screw, M12-1.75x30, Hex Hd	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023041039AJ	Structure, Front Tub Connection RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023041039AJ	Structure, Front Tub Connection RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023096022	Screw, M12-1.75x60, Hex Hd	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023041066AB	Sleeve, Top Hat	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023096110AA	Washer, Flat ID13xOD40x2.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023096088AA	Nut, M12x1.75 Hex Flg	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023096062AA	Screw, M8-1.25x20 SHCS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023096112AA	Washer, M8 Flat, ID 8.4 OD 16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023041041AC	Structure, Under Exhaust RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023041040AC	Structure, Under Exhaust LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023041170AC	Plate, Mounting for Wiring Harness	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703278	Screw, M6 x 10, Flange Hex Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703265	Screw, M6 x 16, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023038594AD	Bracket, Engine Bay RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023038596AD	Bracket, Engine Bay LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703278	Screw, M6 x 10, Flange Hex Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023096112AA	Washer, M8 Flat, ID 8.4 OD 16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023096034	Nut, M8-1.25, Hex, Class 8	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	AY932110090	Structure, Front Suspension Mounting RH	AY932110090 Structure, Front Suspension Mounting RH	-	1	Enquire
2	AY932110089	Structure, Front Suspension Mounting LH	AY932110089 Structure, Front Suspension Mounting LH	-	1	Enquire
3	12023041044AC	Bracket, J- Cam Bolt	12023041044AC Bracket, J- Cam Bolt	-	2	Enquire
4	12023096060AA	Screw, M5-0.8x8 SHCS	12023096060AA Screw, M5-0.8x8 SHCS 2 per J-Bracket	-	4	Enquire
5	12023041059AC	Support, Engine Bay Brace RH	12023041059AC Support, Engine Bay Brace RH	-	1	Enquire
6	12023041058AC	Support, Engine Bay Brace LH	12023041058AC Support, Engine Bay Brace LH	-	1	Enquire
7	12023096006	Screw, M8-1.25x20, Hex hd	12023096006 Screw, M8-1.25x20, Hex hd 4 per support	-	8	Enquire
8	12023096144	Washer, ID8.4x OD16x1.6	12023096144 Washer, ID8.4x OD16x1.6 4 per support	-	8	Enquire
9	12023041042AH	Structure, Secondary Crash	12023041042AH Structure, Secondary Crash	-	2	Enquire
10	12023096116	Washer, Flat ID10.5xOD20x2.0	12023096116 Washer, Flat ID10.5xOD20x2.0 8 per side	-	16	Enquire
11	12023096018	Screw, M12-1.75x30, Hex Hd	12023096018 Screw, M12-1.75x30, Hex Hd 8 per side	-	16	Enquire
12	12023041039AJ	Structure, Front Tub Connection RH	12023041039AJ Structure, Front Tub Connection RH Bonded to Main Tub assy	-	1	Enquire
13	12023041039AJ	Structure, Front Tub Connection RH	12023041039AJ Structure, Front Tub Connection RH Bonded to Main Tub assy	-	1	Enquire
14	12023096022	Screw, M12-1.75x60, Hex Hd	12023096022 Screw, M12-1.75x60, Hex Hd 4 per side	-	8	Enquire
15	12023041066AB	Sleeve, Top Hat	12023041066AB Sleeve, Top Hat 4 per side	-	8	Enquire
16	12023096110AA	Washer, Flat ID13xOD40x2.5	12023096110AA Washer, Flat ID13xOD40x2.5 4 per side	-	8	Enquire
17	12023096088AA	Nut, M12x1.75 Hex Flg	12023096088AA Nut, M12x1.75 Hex Flg 4 per side	-	8	Enquire
18	12023096062AA	Screw, M8-1.25x20 SHCS	12023096062AA Screw, M8-1.25x20 SHCS 6 per side	-	12	Enquire
19	12023096112AA	Washer, M8 Flat, ID 8.4 OD 16	12023096112AA Washer, M8 Flat, ID 8.4 OD 16 6 per side	-	12	Enquire
20	12023041041AC	Structure, Under Exhaust RH	12023041041AC Structure, Under Exhaust RH	-	1	Enquire
21	12023041040AC	Structure, Under Exhaust LH	12023041040AC Structure, Under Exhaust LH	-	1	Enquire
22	12023041170AC	Plate, Mounting for Wiring Harness	12023041170AC Plate, Mounting for Wiring Harness 1 per side	-	2	Enquire
23	703278	Screw, M6 x 10, Flange Hex Head	703278 Screw, M6 x 10, Flange Hex Head 2 per side	-	4	Enquire
24	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head LH bracket only	-	1	Enquire
25	12023038594AD	Bracket, Engine Bay RH	12023038594AD Bracket, Engine Bay RH	-	1	Enquire
26	12023038596AD	Bracket, Engine Bay LH	12023038596AD Bracket, Engine Bay LH	-	1	Enquire
27	703278	Screw, M6 x 10, Flange Hex Head	703278 Screw, M6 x 10, Flange Hex Head 3 per Bracket	-	6	Enquire
28	12023096112AA	Washer, M8 Flat, ID 8.4 OD 16	12023096112AA Washer, M8 Flat, ID 8.4 OD 16	-	8	Enquire
29	12023096034	Nut, M8-1.25, Hex, Class 8	12023096034 Nut, M8-1.25, Hex, Class 8	-	8	Enquire
