Grill Opening Panel- Front Bumper Assembly of Aston Martin Aston Martin One-77

View All

Aston Martin One-77 - Grill Opening Panel- Front Bumper Assembly

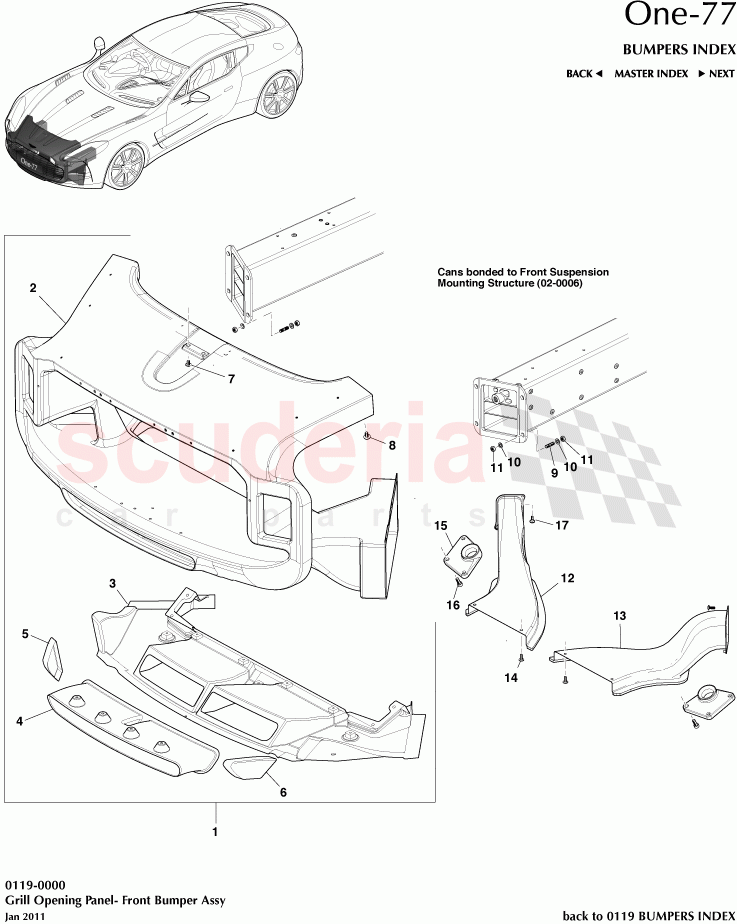

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	12023041102AS	Panel, Grill Opening	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023041010AT	Armature, Front Bumper	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023041104AD	Armature, Front Bumper Lower	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023041106AB	Duct Opening, front Brake	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023041147AA	Closeout, front Lower Side, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023041146AA	Closeout, front Lower Side, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1023096048	Screw, M8-1.25x16, Hex Sockt Button Hd	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1023096046	Screw, M8-1.25x12, Hex Sockt Button Hd	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023096092	Stud M8-1.25x20-OL30, Grade 8.8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023096112AA	Washer, M8 Flat, ID 8.4 OD 16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023096034	Nut, M8-1.25, Hex, Class 8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023041111AD	Duct, Front Brake Exit RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023041110AD	Duct, Front Brake Exit LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703149	SCREW M6x16 PAN FLG TORX CHROME FRE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023041090AC	Mount, Lower- Centre Radiator	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	120230960620AA	Screw, M8-1.25x20, SHCS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703175	SCREW M4 x 10 PAN TORX CHROME FREE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	12023041102AS	Panel, Grill Opening	12023041102AS Panel, Grill Opening	-	1	Enquire
2	12023041010AT	Armature, Front Bumper	12023041010AT Armature, Front Bumper	-	1	Enquire
3	12023041104AD	Armature, Front Bumper Lower	12023041104AD Armature, Front Bumper Lower	-	1	Enquire
4	12023041106AB	Duct Opening, front Brake	12023041106AB Duct Opening, front Brake	-	1	Enquire
5	12023041147AA	Closeout, front Lower Side, RH	12023041147AA Closeout, front Lower Side, RH	-	1	Enquire
6	12023041146AA	Closeout, front Lower Side, LH	12023041146AA Closeout, front Lower Side, LH	-	1	Enquire
7	1023096048	Screw, M8-1.25x16, Hex Sockt Button Hd	1023096048 Screw, M8-1.25x16, Hex Sockt Button Hd Grill Opening Panel	-	2	Enquire
8	1023096046	Screw, M8-1.25x12, Hex Sockt Button Hd	1023096046 Screw, M8-1.25x12, Hex Sockt Button Hd Grill Opening Panel	-	4	Enquire
9	12023096092	Stud M8-1.25x20-OL30, Grade 8.8	12023096092 Stud M8-1.25x20-OL30, Grade 8.8	-	8	Enquire
10	12023096112AA	Washer, M8 Flat, ID 8.4 OD 16	12023096112AA Washer, M8 Flat, ID 8.4 OD 16	-	8	Enquire
11	12023096034	Nut, M8-1.25, Hex, Class 8	12023096034 Nut, M8-1.25, Hex, Class 8	-	8	Enquire
12	12023041111AD	Duct, Front Brake Exit RH	12023041111AD Duct, Front Brake Exit RH	-	1	Enquire
13	12023041110AD	Duct, Front Brake Exit LH	12023041110AD Duct, Front Brake Exit LH	-	1	Enquire
14	703149	SCREW M6x16 PAN FLG TORX CHROME FRE	703149 SCREW M6x16 PAN FLG TORX CHROME FRE 2 per Brake Duct	-	4	Enquire
15	12023041090AC	Mount, Lower- Centre Radiator	12023041090AC Mount, Lower- Centre Radiator	-	2	Enquire
16	120230960620AA	Screw, M8-1.25x20, SHCS	120230960620AA Screw, M8-1.25x20, SHCS 3 per Rad. Mount	-	6	Enquire
17	703175	SCREW M4 x 10 PAN TORX CHROME FREE	703175 SCREW M4 x 10 PAN TORX CHROME FREE 2 per Brake Duct	-	4	Enquire
