Front Cross Plate Assembly

Aston Martin One-77

Find Your Part

Aston Martin One-77 - Front Cross Plate Assembly

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
12023040008AT Bracket Assy, Cross Plate Damper, front Enquire To Order
Photo Part No Description Price (each) Stock
12023096074 Screw, M10 x 65 Enquire To Order
Photo Part No Description Price (each) Stock
12023041116AA Sleeve,Top Hat, ID 10 x 47 Enquire To Order
Photo Part No Description Price (each) Stock
12023096114AA Washer M10, Flat ID10.5xOD20x2.0 Enquire To Order
Photo Part No Description Price (each) Stock
12023096036AA Nut, M10 x 1.5 Enquire To Order
Photo Part No Description Price (each) Stock
12023041048AA Washer, upper damper mount Enquire To Order
Photo Part No Description Price (each) Stock
12023037542AA Retainer Enquire To Order
Photo Part No Description Price (each) Stock
12023037598AA Fastener, cable Enquire To Order
View All

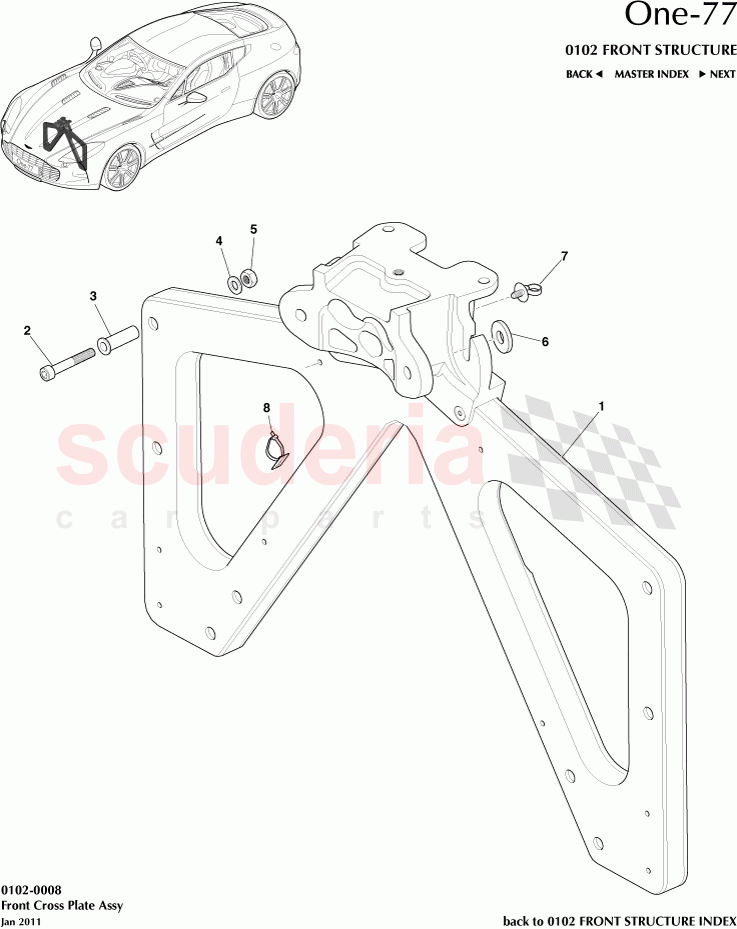

Front Cross Plate Assembly of Aston Martin Aston Martin One-77 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 12023040008AT
Bracket Assy, Cross Plate Damper, front 		- 1 Enquire
2 12023096074
Screw, M10 x 65 		- 8 Enquire
3 12023041116AA
Sleeve,Top Hat, ID 10 x 47 		- 8 Enquire
4 12023096114AA
Washer M10, Flat ID10.5xOD20x2.0 		- 4 Enquire
5 12023096036AA
Nut, M10 x 1.5 		- 4 Enquire
6 12023041048AA
Washer, upper damper mount 		- 2 Enquire
7 12023037542AA
Retainer 		- 1 Enquire
8 12023037598AA
Fastener, cable 		- 1 Enquire
