Side Door Panel Assembly of Aston Martin Aston Martin One-77

View All

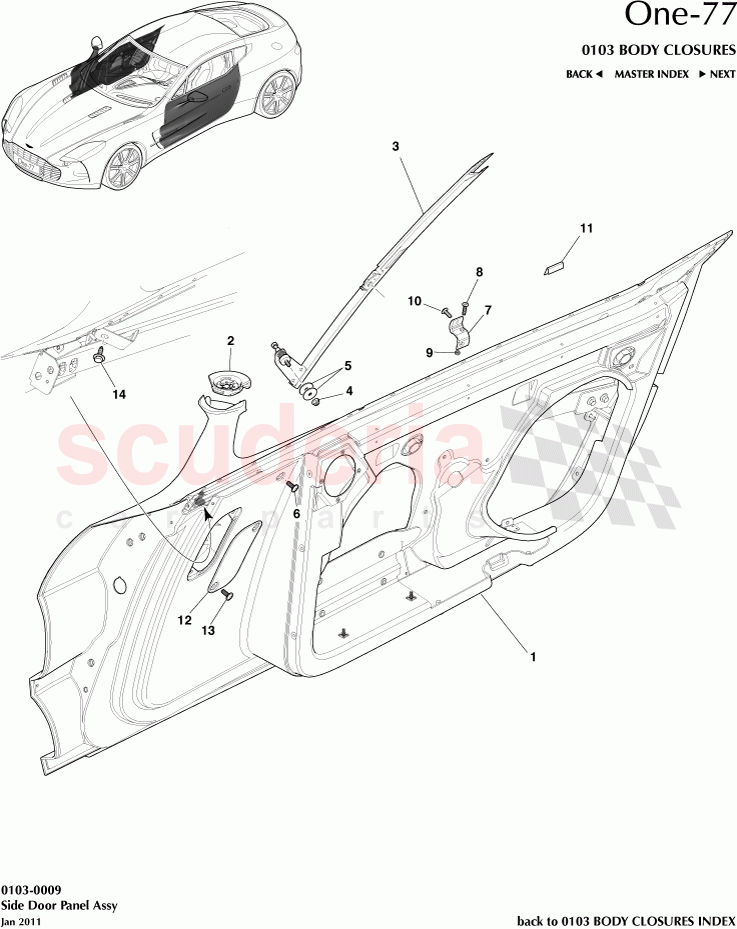

Aston Martin One-77 - Side Door Panel Assembly

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	DBYA02052F	Door Bonded Assy, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DBY00394A	Mirror Insert, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DBYA02062A	Division Bar Assy, Front, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703612	Nut & Washer, M6, HVAC to XCB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023091210AA	Shim, ID6.5 x OD28 x 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51028060016	Screw, M6 x 16, Flange Hd	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023091244AA	Retainer, Inner Beltline	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43103081BA	Screw, M4 x 16, Countersunk, Stainless Black	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023096080AA	Nut, M4	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51028060016	Screw, M6 x 16, Flange Hd	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023091226AA	Foam Tape	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023081049AC	Panel, Side Door Access, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51028060016	Screw, M6 x 16, Flange Hd	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703268	Screw and Washer, M8 x 21	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	DBYA02051F	Door Bonded Assy, LH	DBYA02051F Door Bonded Assy, LH	-	1	Enquire
-	DBY00393AV	Mirror Insert, LH	DBY00393AV Mirror Insert, LH	-	1	Enquire
-	DBYA02061A	Division Bar Assy, Front, LH	DBYA02061A Division Bar Assy, Front, LH	-	1	Enquire
-	12023081048AC	Panel, Side Door Access, LH	12023081048AC Panel, Side Door Access, LH	-	1	Enquire
1	DBYA02052F	Door Bonded Assy, RH	DBYA02052F Door Bonded Assy, RH	-	1	Enquire
2	DBY00394A	Mirror Insert, RH	DBY00394A Mirror Insert, RH	-	1	Enquire
3	DBYA02062A	Division Bar Assy, Front, RH	DBYA02062A Division Bar Assy, Front, RH	-	1	Enquire
4	703612	Nut & Washer, M6, HVAC to XCB	703612 Nut & Washer, M6, HVAC to XCB 1 per Bar Assy	-	2	Enquire
5	12023091210AA	Shim, ID6.5 x OD28 x 1.5	12023091210AA Shim, ID6.5 x OD28 x 1.5 2 per Bar Assy	-	4	Enquire
6	51028060016	Screw, M6 x 16, Flange Hd	51028060016 Screw, M6 x 16, Flange Hd	-	1	Enquire
7	12023091244AA	Retainer, Inner Beltline	12023091244AA Retainer, Inner Beltline 4 per Door	-	8	Enquire
8	4G43103081BA	Screw, M4 x 16, Countersunk, Stainless Black	4G43103081BA Screw, M4 x 16, Countersunk, Stainless Black 8 per Door	-	16	Enquire
9	12023096080AA	Nut, M4	12023096080AA Nut, M4 8 per Door	-	16	Enquire
10	51028060016	Screw, M6 x 16, Flange Hd	51028060016 Screw, M6 x 16, Flange Hd 2 per Door	-	4	Enquire
11	12023091226AA	Foam Tape	12023091226AA Foam Tape 2 per Door	-	4	Enquire
12	12023081049AC	Panel, Side Door Access, RH	12023081049AC Panel, Side Door Access, RH	-	1	Enquire
13	51028060016	Screw, M6 x 16, Flange Hd	51028060016 Screw, M6 x 16, Flange Hd 2 per Door	-	4	Enquire
14	703268	Screw and Washer, M8 x 21	703268 Screw and Washer, M8 x 21 1 per Door	-	2	Enquire
