Aston Martin One-77 - Engine Bay Brace

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
12023041188AE Brace Centre Node Assy, Engine Bay Enquire To Order
Photo Part No Description Price (each) Stock
12023096068AA Screw, M10 x 30 Enquire To Order
Photo Part No Description Price (each) Stock
12023096036AA Nut, M10 x 1.5 Enquire To Order
Photo Part No Description Price (each) Stock
12023096114AA Washer M10, Flat ID10.5xOD20x2.0 Enquire To Order
Photo Part No Description Price (each) Stock
12023096112AA Washer, M8 Flat, ID 8.4 OD 16 Enquire To Order
Photo Part No Description Price (each) Stock
12023096034AA Nut, M8 Hex Head Enquire To Order
Photo Part No Description Price (each) Stock
12023037062AC Label, Engine Brace Plaque Enquire To Order
Photo Part No Description Price (each) Stock
12023037242AA M4 x 10 Button Hd Enquire To Order
Photo Part No Description Price (each) Stock
12023041167AH Brace Bonded Assy RH, Engine Bay Enquire To Order
Photo Part No Description Price (each) Stock
12023041166AH Brace Bonded Assy LH, Engine Bay Enquire To Order
Photo Part No Description Price (each) Stock
12023096048AA Screw, M8 x 16, Flange BHCS Enquire To Order
Photo Part No Description Price (each) Stock
12023096140AA Screw, M10 x 30, Flange Hd Enquire To Order
Photo Part No Description Price (each) Stock
12023096104AA Washer, Flat Enquire To Order
Photo Part No Description Price (each) Stock
12023041194AA Shim, Brace to Dash Enquire To Order
Photo Part No Description Price (each) Stock
12023037000AA Bracket, Top Hat, Single Enquire To Order
Photo Part No Description Price (each) Stock
12023041021AE Cover, Hood Latch, RH Enquire To Order
Photo Part No Description Price (each) Stock
12023041020AE Cover, Hood Latch, LH Enquire To Order
Photo Part No Description Price (each) Stock
703149 SCREW M6x16 PAN FLG TORX CHROME FRE Enquire To Order
Photo Part No Description Price (each) Stock
12023041014 Stud, M6-1.0 x 20, Big Head Bonding Enquire To Order
View All

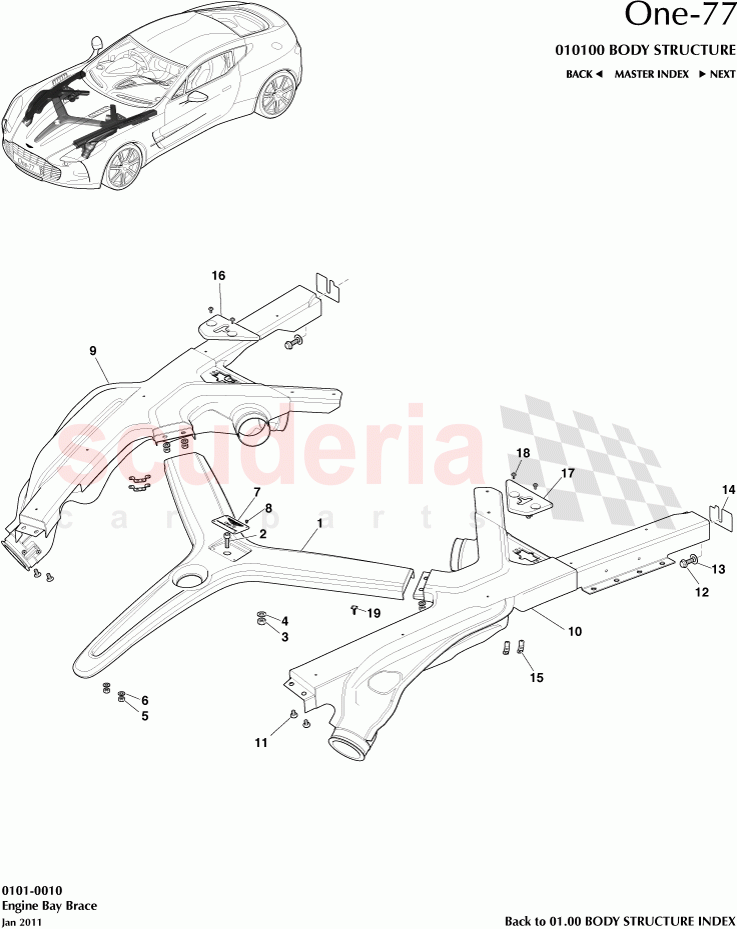

Engine Bay Brace of Aston Martin Aston Martin One-77 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 12023041188AE
Brace Centre Node Assy, Engine Bay 		- 1 Enquire
2 12023096068AA
Screw, M10 x 30 		- 1 Enquire
3 12023096036AA
Nut, M10 x 1.5 		- 2 Enquire
4 12023096114AA
Washer M10, Flat ID10.5xOD20x2.0 		- 2 Enquire
5 12023096112AA
Washer, M8 Flat, ID 8.4 OD 16 		- 6 Enquire
6 12023096034AA
Nut, M8 Hex Head 		- 6 Enquire
7 12023037062AC
Label, Engine Brace Plaque 		- 1 Enquire
8 12023037242AA
M4 x 10 Button Hd 		- 4 Enquire
9 12023041167AH
Brace Bonded Assy RH, Engine Bay 		- 1 Enquire
10 12023041166AH
Brace Bonded Assy LH, Engine Bay 		- 1 Enquire
11 12023096048AA
Screw, M8 x 16, Flange BHCS
2 per Brace 		- 4 Enquire
12 12023096140AA
Screw, M10 x 30, Flange Hd
1 per Brace 		- 2 Enquire
13 12023096104AA
Washer, Flat
1 per Brace 		- 2 Enquire
14 12023041194AA
Shim, Brace to Dash 		- A/R Enquire
15 12023037000AA
Bracket, Top Hat, Single
2 per Brace 		- 4 Enquire
16 12023041021AE
Cover, Hood Latch, RH 		- 1 Enquire
17 12023041020AE
Cover, Hood Latch, LH 		- 1 Enquire
18 703149
SCREW M6x16 PAN FLG TORX CHROME FRE
2 per Cover 		- 4 Enquire
19 12023041014
Stud, M6-1.0 x 20, Big Head Bonding 		- 4 Enquire
