Aston Martin One-77 - Rear Trunk

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
12023061360AC Rear Trunk Bonded Assy Enquire To Order
Photo Part No Description Price (each) Stock
12023061022AF Trough, Rear Lift Glass Enquire To Order
Photo Part No Description Price (each) Stock
12023061378AD Bracket A, Fuel Filler Protection Enquire To Order
Photo Part No Description Price (each) Stock
12023061376AG Bracket B, Fuel Filler Protection Enquire To Order
Photo Part No Description Price (each) Stock
12023096024AA Screw, M6 x 1.0 x 16 Hex Head Flange Enquire To Order
Photo Part No Description Price (each) Stock
12023061278AC Shim, Side, Rear Trunk Tub to Damper Tray Enquire To Order
Photo Part No Description Price (each) Stock
12023061280AC Shim, Centre, Rear Trunk Tub to Damper Tray Enquire To Order
Photo Part No Description Price (each) Stock
12023061384AE Trunk Tub Assy, Front RH Enquire To Order
Photo Part No Description Price (each) Stock
12023061330AK Trunk Tub Assy, Front LH Enquire To Order
Photo Part No Description Price (each) Stock
12023061233AJ Panel. Rear Speaker, RH Enquire To Order
Photo Part No Description Price (each) Stock
12023061232AJ Panel. Rear Speaker, LH Enquire To Order
Photo Part No Description Price (each) Stock
12023061340AA Cover Assy, Fuel Tank Access RH Enquire To Order
Photo Part No Description Price (each) Stock
12023061316AA Seal Pad, Fuel Tank Access RH Enquire To Order
Photo Part No Description Price (each) Stock
12023096042AA Screw, M6-1.00 x 16 Flange BHCS Enquire To Order
Photo Part No Description Price (each) Stock
12023061276AB Cover, Fuel Tank Access LH Enquire To Order
Photo Part No Description Price (each) Stock
12023061314AB Seal Pad, Fuel Tank Access LH Enquire To Order
Photo Part No Description Price (each) Stock
12023061290AA Bracket, Upper, Trunk Tub Anchor Enquire To Order
Photo Part No Description Price (each) Stock
4113100035 Screw, M10 x 1.5 x 35, Hex Head Enquire To Order
Photo Part No Description Price (each) Stock
12023096104AA Washer, Flat Enquire To Order
Photo Part No Description Price (each) Stock
12023096012AA Screw, M8 x 1.25 x 35 Hex Head Enquire To Order
Photo Part No Description Price (each) Stock
12023096104AA Washer, Flat Enquire To Order
Photo Part No Description Price (each) Stock
12023096086AA Nut, M8 Hex Flanged Enquire To Order
Photo Part No Description Price (each) Stock
12023061294AA Shim, Trunk Tub Front to Main Tub B-Node Enquire To Order
Photo Part No Description Price (each) Stock
12023096016AA Screw, M10 x 1.5 x 75 Hex head Enquire To Order
Photo Part No Description Price (each) Stock
12023096104AA Washer, Flat Enquire To Order
Photo Part No Description Price (each) Stock
12023096052AA Screw, M8-1.25 x 25 Flange BHCS Enquire To Order
Photo Part No Description Price (each) Stock
120230960026AA Washer, Flat Enquire To Order
Photo Part No Description Price (each) Stock
12023096086AA Nut, M8 Hex Flanged Enquire To Order
Photo Part No Description Price (each) Stock
12023037004AB Bracket, Ride Height RH Enquire To Order
Photo Part No Description Price (each) Stock
M1B23M5X12 Stud, Big Head Bonding, M5-1.0 x 12 Enquire To Order
Photo Part No Description Price (each) Stock
12023061240AD Cleat, Rear Trunk Tub, front to rear Enquire To Order
Photo Part No Description Price (each) Stock
12023096024AA Screw, M6 x 1.0 x 16 Hex Head Flange Enquire To Order
Photo Part No Description Price (each) Stock
12023096084AA Nut, M6 Enquire To Order
View All

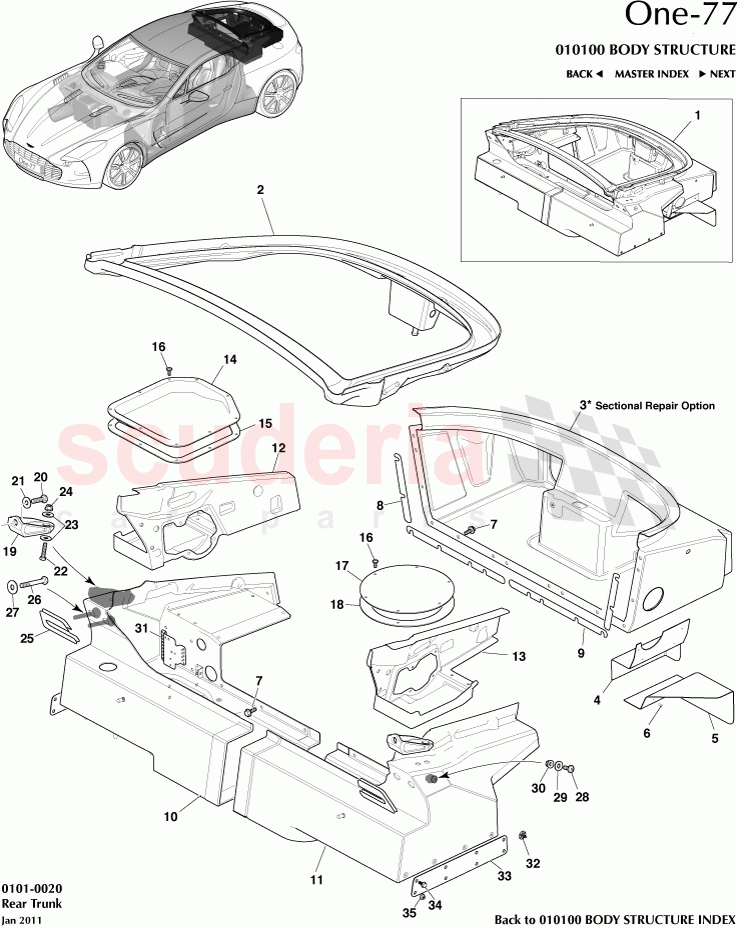

Rear Trunk of Aston Martin Aston Martin One-77 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 12023061360AC
Rear Trunk Bonded Assy
NSS 		- 1 Enquire
2 12023061022AF
Trough, Rear Lift Glass 		- 1 Enquire
3 12023061364AB
Trunk Tub Rear Assy
NSS 		- 1 Enquire
4 12023061378AD
Bracket A, Fuel Filler Protection 		- 1 Enquire
5 12023061376AG
Bracket B, Fuel Filler Protection 		- 1 Enquire
7 12023096024AA
Screw, M6 x 1.0 x 16 Hex Head Flange 		- 42 Enquire
8 12023061278AC
Shim, Side, Rear Trunk Tub to Damper Tray 		- 2 Enquire
9 12023061280AC
Shim, Centre, Rear Trunk Tub to Damper Tray 		- 2 Enquire
10 12023061384AE
Trunk Tub Assy, Front RH 		- 1 Enquire
11 12023061330AK
Trunk Tub Assy, Front LH 		- 1 Enquire
12 12023061233AJ
Panel. Rear Speaker, RH 		- 1 Enquire
13 12023061232AJ
Panel. Rear Speaker, LH 		- 1 Enquire
14 12023061340AA
Cover Assy, Fuel Tank Access RH 		- 1 Enquire
15 12023061316AA
Seal Pad, Fuel Tank Access RH 		- 1 Enquire
16 12023096042AA
Screw, M6-1.00 x 16 Flange BHCS 		- 15 Enquire
17 12023061276AB
Cover, Fuel Tank Access LH 		- 1 Enquire
18 12023061314AB
Seal Pad, Fuel Tank Access LH 		- 1 Enquire
19 12023061290AA
Bracket, Upper, Trunk Tub Anchor 		- 2 Enquire
20 4113100035
Screw, M10 x 1.5 x 35, Hex Head 		- 2 Enquire
21 12023096104AA
Washer, Flat 		- 2 Enquire
22 12023096012AA
Screw, M8 x 1.25 x 35 Hex Head 		- 4 Enquire
23 12023096104AA
Washer, Flat 		- 8 Enquire
24 12023096086AA
Nut, M8 Hex Flanged 		- 4 Enquire
25 12023061294AA
Shim, Trunk Tub Front to Main Tub B-Node 		- A/R Enquire
26 12023096016AA
Screw, M10 x 1.5 x 75 Hex head 		- 4 Enquire
27 12023096104AA
Washer, Flat 		- 4 Enquire
28 12023096052AA
Screw, M8-1.25 x 25 Flange BHCS 		- 2 Enquire
29 120230960026AA
Washer, Flat 		- 2 Enquire
30 12023096086AA
Nut, M8 Hex Flanged 		- 2 Enquire
31 12023037004AB
Bracket, Ride Height RH 		- 1 Enquire
32 M1B23M5X12
Stud, Big Head Bonding, M5-1.0 x 12 		- 39 Enquire
33 12023061240AD
Cleat, Rear Trunk Tub, front to rear 		- 2 Enquire
34 12023096024AA
Screw, M6 x 1.0 x 16 Hex Head Flange 		- 8 Enquire
35 12023096084AA
Nut, M6 		- 8 Enquire
