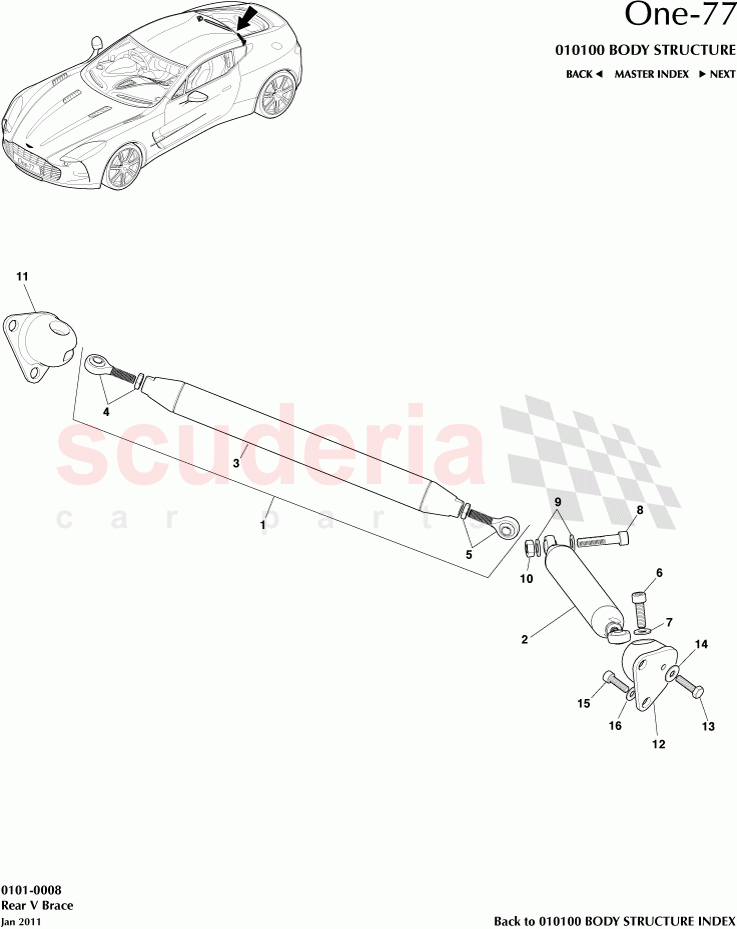

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	12023061126AF	Inner Arm, RH, Rear V Brace	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023061124AF	Inner Arm, LH, Rear V Brace	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023061154AF	Strut Assy	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023061246AB	Rod End, LH Thread	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023061157AB	Rod End, RH Thread	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023096070AA	Screw, M10 x 1.5 x 35	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023096114AA	Washer M10, Flat ID10.5xOD20x2.0	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023096072AA	Screw, M10 x 50	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023096114AA	Washer M10, Flat ID10.5xOD20x2.0	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023096036AA	Nut, M10 x 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023061357AA	Clevis, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023061356AA	Clevis, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023096120AA	Screw, M8 x 30	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023096102AA	Washer, Flat	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023096064AA	Screw, M8 x25	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023096098AA	Washer	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	12023061126AF	Inner Arm, RH, Rear V Brace	12023061126AF Inner Arm, RH, Rear V Brace	-	1	Enquire
2	12023061124AF	Inner Arm, LH, Rear V Brace	12023061124AF Inner Arm, LH, Rear V Brace	-	1	Enquire
3	12023061154AF	Strut Assy	12023061154AF Strut Assy	-	2	Enquire
4	12023061246AB	Rod End, LH Thread	12023061246AB Rod End, LH Thread Includes Nut	-	2	Enquire
5	12023061157AB	Rod End, RH Thread	12023061157AB Rod End, RH Thread Includes Nut	-	2	Enquire
6	12023096070AA	Screw, M10 x 1.5 x 35	12023096070AA Screw, M10 x 1.5 x 35	-	2	Enquire
7	12023096114AA	Washer M10, Flat ID10.5xOD20x2.0	12023096114AA Washer M10, Flat ID10.5xOD20x2.0	-	2	Enquire
8	12023096072AA	Screw, M10 x 50	12023096072AA Screw, M10 x 50	-	2	Enquire
9	12023096114AA	Washer M10, Flat ID10.5xOD20x2.0	12023096114AA Washer M10, Flat ID10.5xOD20x2.0	-	4	Enquire
10	12023096036AA	Nut, M10 x 1.5	12023096036AA Nut, M10 x 1.5	-	2	Enquire
11	12023061357AA	Clevis, RH	12023061357AA Clevis, RH	-	1	Enquire
12	12023061356AA	Clevis, LH	12023061356AA Clevis, LH	-	1	Enquire
13	12023096120AA	Screw, M8 x 30	12023096120AA Screw, M8 x 30	-	2	Enquire
14	12023096102AA	Washer, Flat	12023096102AA Washer, Flat	-	2	Enquire
15	12023096064AA	Screw, M8 x25	12023096064AA Screw, M8 x25	-	4	Enquire
16	12023096098AA	Washer	12023096098AA Washer	-	4	Enquire
