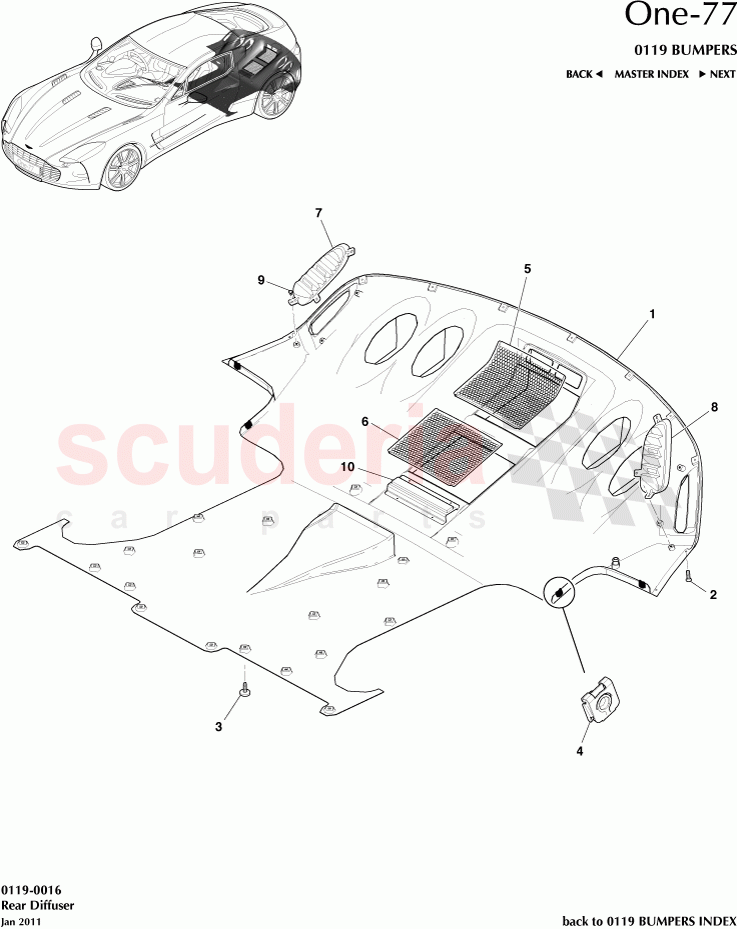

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AY930310005	Diffuser Assembly	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33503967AA	Screw, M5 x 16, Csk Hd	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023038614AA	Clip M6, Fastener	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023038446AB	Mesh, Diffuser Rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023038444AB	Mesh, Diffuser Forward	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY9313A565AA	Reflex Assy, Rear RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY9313A566AA	Reflex Assy, Rear LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4380899AA	SCREW 4 x 8 PAN CLR 6 LOB T/H PLAS (HAND SCREWED)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023037394AA	Foam, Support, Transaxle Plinth	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	AY930310005	Diffuser Assembly	AY930310005 Diffuser Assembly	-	1	Enquire
2	6G33503967AA	Screw, M5 x 16, Csk Hd	6G33503967AA Screw, M5 x 16, Csk Hd	-	11	Enquire
3	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20)	-	12	Enquire
4	12023038614AA	Clip M6, Fastener	12023038614AA Clip M6, Fastener	-	4	Enquire
5	12023038446AB	Mesh, Diffuser Rear	12023038446AB Mesh, Diffuser Rear	-	1	Enquire
6	12023038444AB	Mesh, Diffuser Forward	12023038444AB Mesh, Diffuser Forward	-	1	Enquire
7	AY9313A565AA	Reflex Assy, Rear RH	AY9313A565AA Reflex Assy, Rear RH	-	1	Enquire
8	AY9313A566AA	Reflex Assy, Rear LH	AY9313A566AA Reflex Assy, Rear LH	-	1	Enquire
9	4G4380899AA	SCREW 4 x 8 PAN CLR 6 LOB T/H PLAS (HAND SCREWED)	4G4380899AA SCREW 4 x 8 PAN CLR 6 LOB T/H PLAS (HAND SCREWED) 3 per Reflex Assy	-	6	Enquire
10	12023037394AA	Foam, Support, Transaxle Plinth	12023037394AA Foam, Support, Transaxle Plinth	-	1	Enquire
