Aston Martin One-77 - Rear Tub Assembly

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
12023061116AG Front Plate, Rear Damper Tray Enquire To Order
Photo Part No Description Price (each) Stock
553270596 Screw, M10 x 1.5 x 25 Enquire To Order
Photo Part No Description Price (each) Stock
12023096114 Washer, M10 Flat ID10.5xOD20x2.0 Enquire To Order
Photo Part No Description Price (each) Stock
12023061118AF Rear Plate, Rear Damper Tray Enquire To Order
Photo Part No Description Price (each) Stock
12023061174AA Shear Sleeve Enquire To Order
Photo Part No Description Price (each) Stock
12023061130AE Centre Mount, Rear Damper Enquire To Order
Photo Part No Description Price (each) Stock
12023096070AA Screw, M10 x 1.5 x 35 Enquire To Order
Photo Part No Description Price (each) Stock
12023061140AC Cover Plate, Rear Damper Centre Mount Enquire To Order
Photo Part No Description Price (each) Stock
12023061144AE Bracket, Rear Centre V Brace Enquire To Order
Photo Part No Description Price (each) Stock
12023061320AA Trim Panel, V brace Centre Node Enquire To Order
Photo Part No Description Price (each) Stock
12023061366AA Spacer, Centre Damper Mount Enquire To Order
Photo Part No Description Price (each) Stock
12023061368AA Sleeve, Centre Damper Mount Enquire To Order
Photo Part No Description Price (each) Stock
12023061265AE End Cover Assy, Rear Damper Tray, RH Enquire To Order
Photo Part No Description Price (each) Stock
12023061264AE End Cover Assy, Rear Damper Tray, LH Enquire To Order
Photo Part No Description Price (each) Stock
553270752 Screw, M5 x 0.8 x 12, CHCS Enquire To Order
Photo Part No Description Price (each) Stock
12023061272AB Window Panel, Rear Damper Tray Enquire To Order
Photo Part No Description Price (each) Stock
553270750 Screw, M5-0.80 x 08, BHSC Enquire To Order
Photo Part No Description Price (each) Stock
12023061318AA Spacer, Window Panel Mount Enquire To Order
Photo Part No Description Price (each) Stock
12023061134AC Rocker Mount Front RH, Rear Damper Tray Enquire To Order
Photo Part No Description Price (each) Stock
12023061132AC Rocker Mount Front LH, Rear Damper Tray Enquire To Order
Photo Part No Description Price (each) Stock
12023061138AC Rocker Mount Rear RH, Rear Damper Tray Enquire To Order
Photo Part No Description Price (each) Stock
12023061136AC Rocker Mount Rear LH, Rear Damper Tray Enquire To Order
Photo Part No Description Price (each) Stock
12023096068 Screw, M10 x 1.5 x 30 Enquire To Order
Photo Part No Description Price (each) Stock
12023061180AA Shear Sleeve, ID 10.2 x 19 Enquire To Order
Photo Part No Description Price (each) Stock
12023061274AA Cover, Rocket Access, Rear Damper Tray Enquire To Order
Photo Part No Description Price (each) Stock
553270748 Screw, M6-1.00 x 12 Flange BHCS Enquire To Order
Photo Part No Description Price (each) Stock
12023037124AC Plate, Rear Earth Enquire To Order
Photo Part No Description Price (each) Stock
702535 Screw M6x12 hex flg hd Enquire To Order
Photo Part No Description Price (each) Stock
12023038504AB Bracket, Rear Brake Line Jumper Hose Enquire To Order
Photo Part No Description Price (each) Stock
M1B23M5X12 Stud, Big Head Bonding, M5-1.0 x 12 Enquire To Order
View All

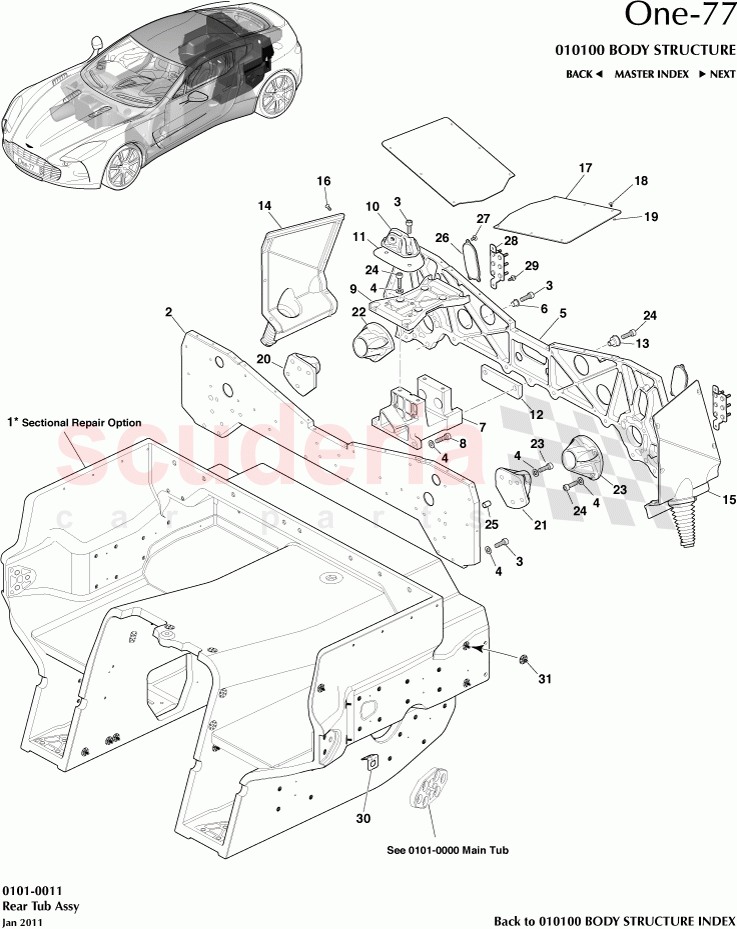

Rear Tub Assembly of Aston Martin Aston Martin One-77 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 12023061358AC
Rear Tub Bonded Assy 		- 1 Enquire
2 12023061116AG
Front Plate, Rear Damper Tray 		- 1 Enquire
3 553270596
Screw, M10 x 1.5 x 25 		- 20 Enquire
4 12023096114
Washer, M10 Flat ID10.5xOD20x2.0 		- 35 Enquire
5 12023061118AF
Rear Plate, Rear Damper Tray 		- 1 Enquire
6 12023061174AA
Shear Sleeve 		- 2 Enquire
7 12023061130AE
Centre Mount, Rear Damper 		- 1 Enquire
8 12023096070AA
Screw, M10 x 1.5 x 35 		- 2 Enquire
9 12023061140AC
Cover Plate, Rear Damper Centre Mount 		- 1 Enquire
10 12023061144AE
Bracket, Rear Centre V Brace 		- 1 Enquire
11 12023061320AA
Trim Panel, V brace Centre Node 		- 1 Enquire
12 12023061366AA
Spacer, Centre Damper Mount 		- 1 Enquire
13 12023061368AA
Sleeve, Centre Damper Mount 		- 2 Enquire
14 12023061265AE
End Cover Assy, Rear Damper Tray, RH 		- 1 Enquire
15 12023061264AE
End Cover Assy, Rear Damper Tray, LH 		- 1 Enquire
16 553270752
Screw, M5 x 0.8 x 12, CHCS 		- 12 Enquire
17 12023061272AB
Window Panel, Rear Damper Tray 		- 2 Enquire
18 553270750
Screw, M5-0.80 x 08, BHSC 		- 12 Enquire
19 12023061318AA
Spacer, Window Panel Mount 		- 12 Enquire
20 12023061134AC
Rocker Mount Front RH, Rear Damper Tray 		- 1 Enquire
21 12023061132AC
Rocker Mount Front LH, Rear Damper Tray 		- 1 Enquire
22 12023061138AC
Rocker Mount Rear RH, Rear Damper Tray 		- 1 Enquire
23 12023061136AC
Rocker Mount Rear LH, Rear Damper Tray 		- 1 Enquire
24 12023096068
Screw, M10 x 1.5 x 30 		- 14 Enquire
25 12023061180AA
Shear Sleeve, ID 10.2 x 19 		- 2 Enquire
26 12023061274AA
Cover, Rocket Access, Rear Damper Tray 		- 2 Enquire
27 553270748
Screw, M6-1.00 x 12 Flange BHCS 		- 6 Enquire
28 12023037124AC
Plate, Rear Earth 		- 2 Enquire
29 702535
Screw M6x12 hex flg hd 		- 4 Enquire
30 12023038504AB
Bracket, Rear Brake Line Jumper Hose 		- 2 Enquire
31 M1B23M5X12
Stud, Big Head Bonding, M5-1.0 x 12 		- 26 Enquire
