Door Aperture of Aston Martin Aston Martin One-77

View All

Aston Martin One-77 - Door Aperture

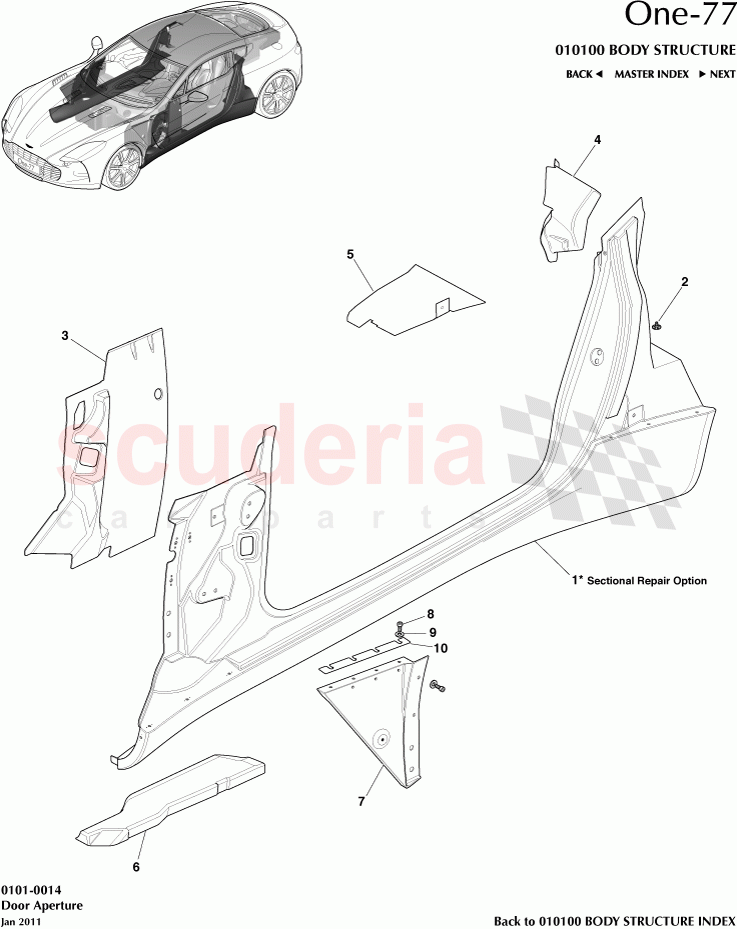

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	M1B23M5X12	Stud, Big Head Bonding, M5-1.0 x 12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023051126AE	Panel, Hinge In-fill, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023051132AC	Seatbelt Pocket, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023051514AA	Exhaust Close-out, B-pillar, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023051128AB	Closeout, Lower Hinge In-fill, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023051068AL	Cowl, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023096062AA	Screw, M8-1.25x20 SHCS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023096102AA	Washer, Flat	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023051460AA	Shim	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023051370AD	Reinforcement, Striker Assy, LH Side Door	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	12023051528AC	Ring Panel Bonded Assy, Door Aperture, RH	12023051528AC Ring Panel Bonded Assy, Door Aperture, RH	-	1	Enquire
-	12023051127AE	Panel, Hinge In-fill, RH	12023051127AE Panel, Hinge In-fill, RH	-	1	Enquire
-	12023051133AC	Seatbelt Pocket, RH	12023051133AC Seatbelt Pocket, RH	-	1	Enquire
-	12023051515AA	Exhaust Close-out, B-pillar, RH	12023051515AA Exhaust Close-out, B-pillar, RH	-	1	Enquire
-	12023051129AB	Closeout, Lower Hinge In-fill, RH	12023051129AB Closeout, Lower Hinge In-fill, RH	-	1	Enquire
-	12023051069AL	Cowl, RH	12023051069AL Cowl, RH	-	1	Enquire
-	12023051371AD	Reinforcement, Striker Assy, RH Side Door	12023051371AD Reinforcement, Striker Assy, RH Side Door	-	1	Enquire
1	12023051526AC	Ring Panel Bonded Assy, Door Aperture, LH	12023051526AC Ring Panel Bonded Assy, Door Aperture, LH	-	1	Enquire
2	M1B23M5X12	Stud, Big Head Bonding, M5-1.0 x 12	M1B23M5X12 Stud, Big Head Bonding, M5-1.0 x 12 1 per Panel	-	2	Enquire
3	12023051126AE	Panel, Hinge In-fill, LH	12023051126AE Panel, Hinge In-fill, LH	-	1	Enquire
4	12023051132AC	Seatbelt Pocket, LH	12023051132AC Seatbelt Pocket, LH	-	1	Enquire
5	12023051514AA	Exhaust Close-out, B-pillar, LH	12023051514AA Exhaust Close-out, B-pillar, LH	-	1	Enquire
6	12023051128AB	Closeout, Lower Hinge In-fill, LH	12023051128AB Closeout, Lower Hinge In-fill, LH	-	1	Enquire
7	12023051068AL	Cowl, LH	12023051068AL Cowl, LH	-	1	Enquire
8	12023096062AA	Screw, M8-1.25x20 SHCS	12023096062AA Screw, M8-1.25x20 SHCS 8 per Cowl	-	16	Enquire
9	12023096102AA	Washer, Flat	12023096102AA Washer, Flat 8 per Cowl	-	16	Enquire
10	12023051460AA	Shim	12023051460AA Shim	-	A/R	Enquire
11	12023051370AD	Reinforcement, Striker Assy, LH Side Door	12023051370AD Reinforcement, Striker Assy, LH Side Door	-	1	Enquire
