Carpets of Aston Martin Aston Martin DB7 (1995)

View All

Aston Martin DB7 (1995) - Carpets

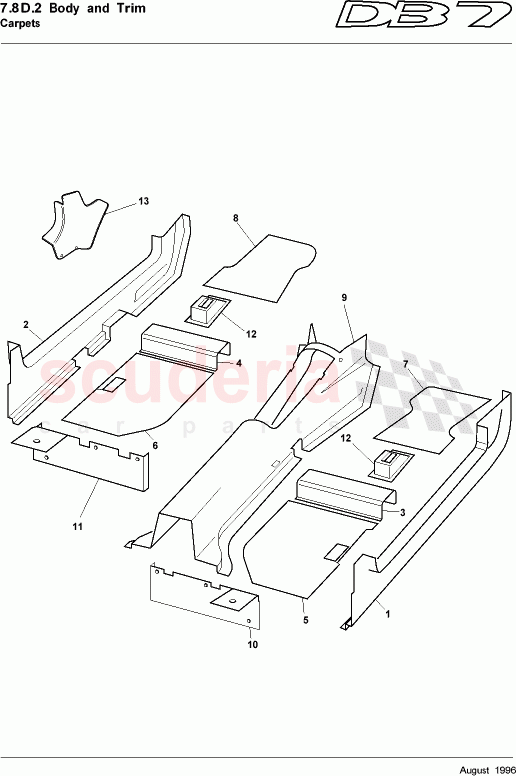

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	8383362	CARPET-SILL RH RHD	Enquire	To Order
	8382763	CARPET MOULDED SILL RH RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8383363	CARPET-SILL LH RHD	Enquire	To Order
	8382765	CARPET MOULDED SILL LH RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8382769	CARPET ASSY RR FLOOR RH RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8382771	CARPET ASSY RR FLOOR LH RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8383963	CARPET-FT FLR RH RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8383963	CARPET-FT FLR RH RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8382409	CARPET MOULDED LH RHD	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	8382410	Carpet moulded, ECU cover - RH	8382410 Carpet moulded, ECU cover - RH LHD (see section 7.5B)	-	1	Enquire
-	8383365	CARPET-SILL LH LHD	8383365 CARPET-SILL LH LHD From to (V) 1000090	-	1	Enquire
-	8382764	Carpet, moulded, sill - RH - LHD	8382764 Carpet, moulded, sill - RH - LHD Up to (V) 1000089	-	1	Enquire
-	8382766	Carpet, moulded, sill - LH - LHD	8382766 Carpet, moulded, sill - LH - LHD Up to (V) 1000089	-	1	Enquire
-	8383364	CARPET-SILL RH LHD	8383364 CARPET-SILL RH LHD Up to (V) 1000090	-	1	Enquire
-	697626	PUSH-ON FIXER	697626 PUSH-ON FIXER Heelboard carpet	-	4	Enquire
-	8383599	TAPE-DOUBLE SIDED (EX SPB11894 )	8383599 TAPE-DOUBLE SIDED (EX SPB11894 ) 1 Metre	-	2	Enquire
-	8383965	CARPET-FT FLR RH LHD	8383965 CARPET-FT FLR RH LHD LHD	-	1	Enquire
-	8382770	CARPET ASSY RR FLOOR RH LHD	8382770 CARPET ASSY RR FLOOR RH LHD LHD	-	1	Enquire
-	8382772	CARPET ASSY RR FLOOR LH LHD	8382772 CARPET ASSY RR FLOOR LH LHD LHD	-	1	Enquire
1	8383362	CARPET-SILL RH RHD	8383362 CARPET-SILL RH RHD From to (V) 1000090	-	1	Enquire
1	8382763	CARPET MOULDED SILL RH RHD	8382763 CARPET MOULDED SILL RH RHD Up to (V) 1000089	-	1	Enquire
2	8383363	CARPET-SILL LH RHD	8383363 CARPET-SILL LH RHD From to (V) 1000090	-	1	Enquire
2	8382765	CARPET MOULDED SILL LH RHD	8382765 CARPET MOULDED SILL LH RHD Up to (V) 1000089	-	1	Enquire
5	8382769	CARPET ASSY RR FLOOR RH RHD	8382769 CARPET ASSY RR FLOOR RH RHD RHD	-	1	Enquire
6	8382771	CARPET ASSY RR FLOOR LH RHD	8382771 CARPET ASSY RR FLOOR LH RHD RHD	-	1	Enquire
7	8383963	CARPET-FT FLR RH RHD	8383963 CARPET-FT FLR RH RHD RHD	-	1	Enquire
8	8383963	CARPET-FT FLR RH RHD	8383963 CARPET-FT FLR RH RHD RHD	-	1	Enquire
13	8382409	CARPET MOULDED LH RHD	8382409 CARPET MOULDED LH RHD RHD (see section 7.5B)	-	1	Enquire
