Find Your Part

View All

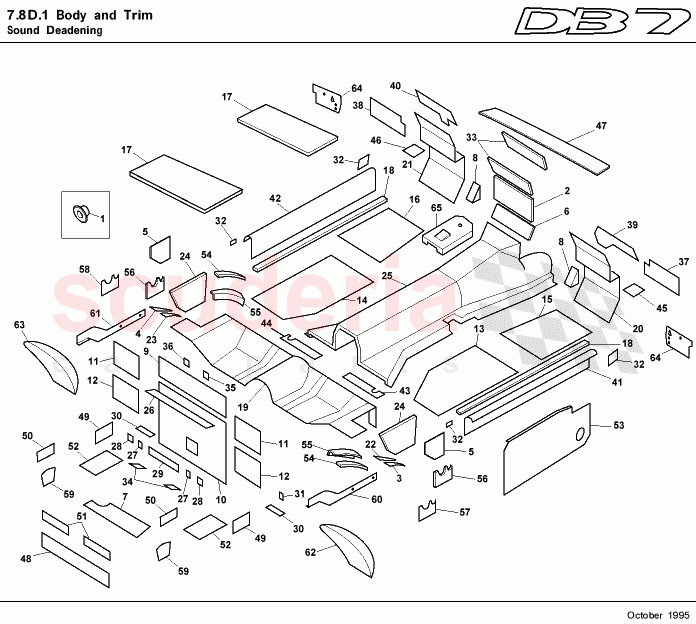

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	8584909	SOUND INSULATION SHT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8584909	SOUND INSULATION SHT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8582715	INSULATION BULKHEAD RH RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8582717	INSULATION BULKHEAD LH RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8582335	INSULATION DOOR INNR RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8583559	Insulation pad, transmission	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	8584909	SOUND INSULATION SHT	8584909 SOUND INSULATION SHT LHD	-	1	Enquire
-	8582716	INSULATION BULKHEAD RH LHD	8582716 INSULATION BULKHEAD RH LHD LHD	-	1	Enquire
-	8582718	INSULATION BULKHEAD LH LHD	8582718 INSULATION BULKHEAD LH LHD LHD	-	1	Enquire
-	8582336	Insulation, door inner - LH	8582336 Insulation, door inner - LH	-	1	Enquire
-	8583189	FOAM PAD	8583189 FOAM PAD	-	1	Enquire
-	8582761	CAVITY FOAM	8582761 CAVITY FOAM	-	-	Enquire
-	2896	ADHESIVE 1358	2896 ADHESIVE 1358	-	-	Enquire
15	8584909	SOUND INSULATION SHT	8584909 SOUND INSULATION SHT RHD	-	1	Enquire
16	8584909	SOUND INSULATION SHT	8584909 SOUND INSULATION SHT RHD	-	1	Enquire
20	8582715	INSULATION BULKHEAD RH RHD	8582715 INSULATION BULKHEAD RH RHD RHD	-	1	Enquire
21	8582717	INSULATION BULKHEAD LH RHD	8582717 INSULATION BULKHEAD LH RHD RHD	-	1	Enquire
53	8582335	INSULATION DOOR INNR RH	8582335 INSULATION DOOR INNR RH	-	1	Enquire
65	8583559	Insulation pad, transmission	8583559 Insulation pad, transmission	-	1	Enquire
