Door Fittings and Seals of Aston Martin Aston Martin DB7 (1995)

View All

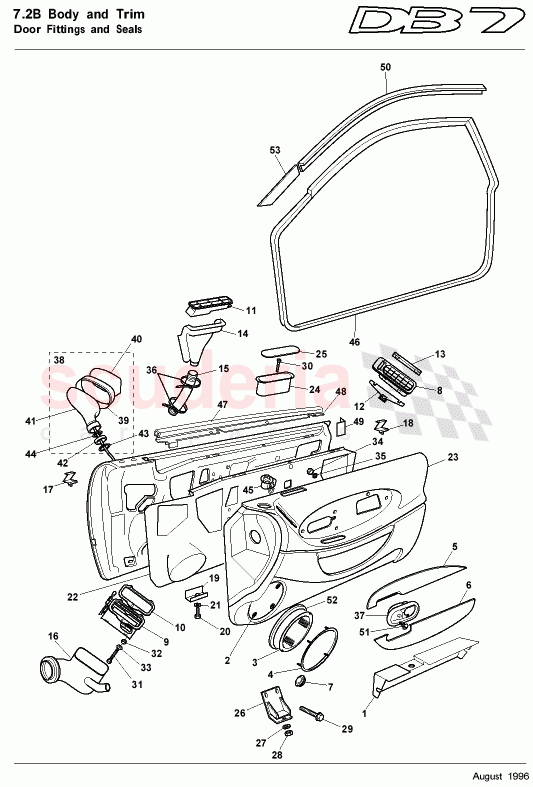

Aston Martin DB7 (1995) - Door Fittings and Seals

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	8384935	DOOR POCKET-RH	Enquire	To Order
	8384936	DOOR POCKET-LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8383130	VENEER UPPR DOOR RH	Enquire	To Order
	8383131	VENEER UPPR DOOR LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8382314	Cover, insert lower door - LH	Enquire	To Order
	8382313	COVER INSERT LOWER DOOR RH	Enquire	To Order
	8382311	INSERT LOWER ASSY DOOR RH	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	8382316	Vent lower, door - RH	Enquire	To Order
	8382317	Vent lower, door - LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8382318	Box, vent lower - door	Enquire	To Order
	8382319	Box, vent lower - door	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8382321	Foam insert, lower - door	Enquire	To Order
	8382320	Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8382322	Vent, upper door casing - RH	Enquire	To Order
	8382323	Vent, upper door casing - LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8382326	Vent upper ducting - RH	Enquire	To Order
	8382327	Vent upper ducting - LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8382329	Vent lower ducting - RH	Enquire	To Order
	8382330	Vent lower ducting - LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	77123532AA	DOOR WATER SHEDDER RH	Enquire	To Order
	77123531AA	DOOR WATER SHEDDER LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8383136	CASING ASSY DOOR RH	Enquire	To Order
	8383137	CASING ASSY DOOR LH	Enquire	To Order
	8382337	CASING ASSY DOOR RH	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	3783382	MIRROR ASSY DOOR RH CONVEX LHD	Enquire	To Order
	3783383	MIRROR ASSY DOOR RH CONVEX USA LHD	Enquire	To Order
	3783384	MIRROR ASSY DOOR LH CONVEX RHD	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	3782354	BEZEL DOOR MIRROR RH	Enquire	To Order
	3782355	BEZEL DOOR MIRROR LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3782159	LENS DOOR MIRROR RH	Enquire	To Order
	3783139	LENS DOOR MIRROR RH LHD CONVEX USA INSCRIBED GLASS	Enquire	To Order
	3782160	LENS DOOR MIRROR LH LHD FLAT	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	3751338	MIRROR MOTOR CASE RH	Enquire	To Order
	3751339	MIRROR MOTOR CASE LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7782361	SEAL ASSY DOOR RH	Enquire	To Order
	7782362	SEAL ASSY DOOR LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7783320	WAIST SEAL INNER DOOR RH/LH	Enquire	To Order
	7783320	WAIST SEAL INNER DOOR RH/LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7782237	SEAL ASSY DOOR WAIST OUTER RH	Enquire	To Order
	7782238	SEAL ASSY DOOR WAIST OUTER LH	Enquire	To Order
	6583141	RETAINER WAIST SEAL ASSY INR DR RH	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	7782365	SEAL DOOR REAR UPR RH	Enquire	To Order
	7782366	SEAL DOOR REAR UPR LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7782367	Retainer assy, weatherstrip - RH	Enquire	To Order
	7782368	Retainer assy, weatherstrip - LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697613	SCREW M4 x 10 REC CSK HEAD-BLACK	Enquire	To Order
	698689	ALPHABOND 1004	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	6583144	Bracket, front vertical door	6583144 Bracket, front vertical door	-	2	Enquire
-	8382331	Seal, door speaker	8382331 Seal, door speaker	-	2	Enquire
-	7783145	SEAL-EDGE CHANNEL 1400mm	7783145 SEAL-EDGE CHANNEL 1400mm	-	2	Enquire
-	697591	SCREW No8 x 9.5 FLANGED AB S.T.	697591 SCREW No8 x 9.5 FLANGED AB S.T.	-	4	Enquire
1	8384935	DOOR POCKET-RH	8384935 DOOR POCKET-RH	-	1	Enquire
1	8384936	DOOR POCKET-LH	8384936 DOOR POCKET-LH	-	1	Enquire
5	8383130	VENEER UPPR DOOR RH	8383130 VENEER UPPR DOOR RH	-	1	Enquire
5	8383131	VENEER UPPR DOOR LH	8383131 VENEER UPPR DOOR LH	-	1	Enquire
6	8382314	Cover, insert lower door - LH	8382314 Cover, insert lower door - LH required	-	1	Enquire
6	8382313	COVER INSERT LOWER DOOR RH	8382313 COVER INSERT LOWER DOOR RH colour	-	1	Enquire
6	8382311	INSERT LOWER ASSY DOOR RH	8382311 INSERT LOWER ASSY DOOR RH Advise	-	1	Enquire
6	8382312	INSERT LOWER ASSY DOOR LH	8382312 INSERT LOWER ASSY DOOR LH trim	-	1	Enquire
8	8382316	Vent lower, door - RH	8382316 Vent lower, door - RH	-	1	Enquire
8	8382317	Vent lower, door - LH	8382317 Vent lower, door - LH	-	1	Enquire
9	8382318	Box, vent lower - door	8382318 Box, vent lower - door	-	1	Enquire
9	8382319	Box, vent lower - door	8382319 Box, vent lower - door	-	1	Enquire
10	8382321	Foam insert, lower - door	8382321 Foam insert, lower - door	-	2	Enquire
10	8382320	Gasket	8382320 Gasket	-	2	Enquire
11	8382322	Vent, upper door casing - RH	8382322 Vent, upper door casing - RH	-	1	Enquire
11	8382323	Vent, upper door casing - LH	8382323 Vent, upper door casing - LH	-	1	Enquire
14	8382326	Vent upper ducting - RH	8382326 Vent upper ducting - RH	-	1	Enquire
14	8382327	Vent upper ducting - LH	8382327 Vent upper ducting - LH	-	1	Enquire
16	8382329	Vent lower ducting - RH	8382329 Vent lower ducting - RH	-	1	Enquire
16	8382330	Vent lower ducting - LH	8382330 Vent lower ducting - LH	-	1	Enquire
22	77123532AA	DOOR WATER SHEDDER RH	77123532AA DOOR WATER SHEDDER RH	-	1	Enquire
22	77123531AA	DOOR WATER SHEDDER LH	77123531AA DOOR WATER SHEDDER LH	-	1	Enquire
23	8383136	CASING ASSY DOOR RH	8383136 CASING ASSY DOOR RH LHD	-	1	Enquire
23	8383137	CASING ASSY DOOR LH	8383137 CASING ASSY DOOR LH LHD	-	1	Enquire
23	8382337	CASING ASSY DOOR RH	8382337 CASING ASSY DOOR RH RHD	-	1	Enquire
23	8382338	CASING ASSY DOOR LH	8382338 CASING ASSY DOOR LH RHD	-	1	Enquire
23	8382341	Cover assy, door - RH	8382341 Cover assy, door - RH	-	1	Enquire
23	8382342	Cover assy, door - LH	8382342 Cover assy, door - LH	-	1	Enquire
38	3783382	MIRROR ASSY DOOR RH CONVEX LHD	3783382 MIRROR ASSY DOOR RH CONVEX LHD LHD not USA	-	1	Enquire
38	3783383	MIRROR ASSY DOOR RH CONVEX USA LHD	3783383 MIRROR ASSY DOOR RH CONVEX USA LHD LHD USA	-	1	Enquire
38	3783384	MIRROR ASSY DOOR LH CONVEX RHD	3783384 MIRROR ASSY DOOR LH CONVEX RHD RHD	-	1	Enquire
38	3783381	MIRROR ASSY DOOR RH FLAT RHD	3783381 MIRROR ASSY DOOR RH FLAT RHD RHD	-	1	Enquire
38	3783385	MIRROR ASSY DOOR LH FLAT LHD	3783385 MIRROR ASSY DOOR LH FLAT LHD LHD	-	1	Enquire
39	3782354	BEZEL DOOR MIRROR RH	3782354 BEZEL DOOR MIRROR RH	-	1	Enquire
39	3782355	BEZEL DOOR MIRROR LH	3782355 BEZEL DOOR MIRROR LH	-	1	Enquire
40	3782159	LENS DOOR MIRROR RH	3782159 LENS DOOR MIRROR RH LHD not USA	-	1	Enquire
40	3783139	LENS DOOR MIRROR RH LHD CONVEX USA INSCRIBED GLASS	3783139 LENS DOOR MIRROR RH LHD CONVEX USA INSCRIBED GLASS LHD USA	-	1	Enquire
40	3782160	LENS DOOR MIRROR LH LHD FLAT	3782160 LENS DOOR MIRROR LH LHD FLAT RHD	-	1	Enquire
40	3782159	LENS DOOR MIRROR RH	3782159 LENS DOOR MIRROR RH RHD	-	1	Enquire
40	3782160	LENS DOOR MIRROR LH LHD FLAT	3782160 LENS DOOR MIRROR LH LHD FLAT LHD	-	1	Enquire
41	3751338	MIRROR MOTOR CASE RH	3751338 MIRROR MOTOR CASE RH	-	1	Enquire
41	3751339	MIRROR MOTOR CASE LH	3751339 MIRROR MOTOR CASE LH	-	1	Enquire
46	7782361	SEAL ASSY DOOR RH	7782361 SEAL ASSY DOOR RH	-	1	Enquire
46	7782362	SEAL ASSY DOOR LH	7782362 SEAL ASSY DOOR LH	-	1	Enquire
47	7783320	WAIST SEAL INNER DOOR RH/LH	7783320 WAIST SEAL INNER DOOR RH/LH From to (V)100182	-	1	Enquire
47	7783320	WAIST SEAL INNER DOOR RH/LH	7783320 WAIST SEAL INNER DOOR RH/LH Up to (V)100181	-	2	Enquire
48	7782237	SEAL ASSY DOOR WAIST OUTER RH	7782237 SEAL ASSY DOOR WAIST OUTER RH See section 7.1	-	1	Enquire
48	7782238	SEAL ASSY DOOR WAIST OUTER LH	7782238 SEAL ASSY DOOR WAIST OUTER LH See section 7.1	-	1	Enquire
48	6583141	RETAINER WAIST SEAL ASSY INR DR RH	6583141 RETAINER WAIST SEAL ASSY INR DR RH	-	1	Enquire
48	6583142	RETAINER WAIST SEAL ASSY INR DR LH	6583142 RETAINER WAIST SEAL ASSY INR DR LH	-	1	Enquire
49	7782365	SEAL DOOR REAR UPR RH	7782365 SEAL DOOR REAR UPR RH	-	1	Enquire
49	7782366	SEAL DOOR REAR UPR LH	7782366 SEAL DOOR REAR UPR LH	-	1	Enquire
50	7782367	Retainer assy, weatherstrip - RH	7782367 Retainer assy, weatherstrip - RH	-	1	Enquire
50	7782368	Retainer assy, weatherstrip - LH	7782368 Retainer assy, weatherstrip - LH	-	1	Enquire
51	697613	SCREW M4 x 10 REC CSK HEAD-BLACK	697613 SCREW M4 x 10 REC CSK HEAD-BLACK	-	2	Enquire
51	698689	ALPHABOND 1004	698689 ALPHABOND 1004	-	-	Enquire
