Find Your Part

Facia and Trim of Aston Martin Aston Martin DB7 (1995)

View All

Aston Martin DB7 (1995) - Facia and Trim

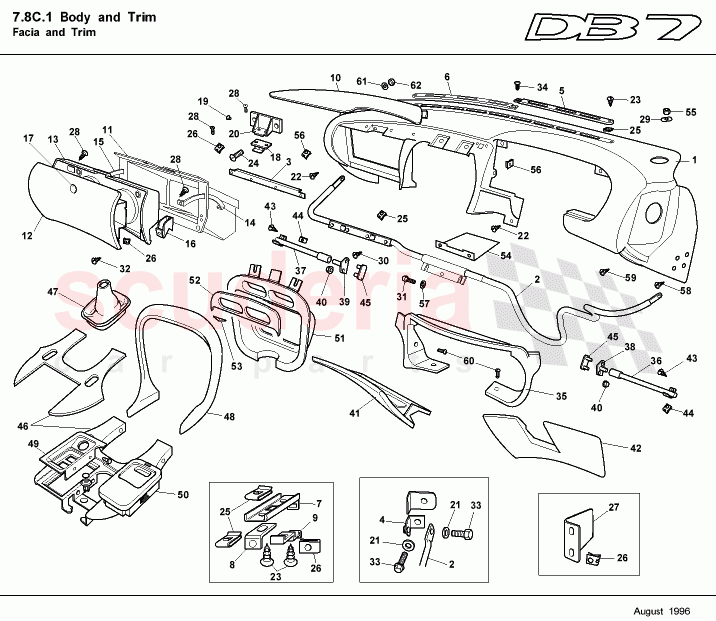

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	8383342	FACIA MLDG TRMD-RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6982872	TUBE COMP ASSY FACIA SUPRT RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6982874	Reinforcement, glovebox aperture	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6982881	FACIA FACING PANEL ASY RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6983179	GLOVEBOX LINER RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8382885	GLOVEBOX LID OUTER COMPLETE RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6983181	Glovebox lid inner	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6983769	CHECKARM INN.G/B RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6983771	CHECKARM OUTR GB RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6982898	BRACKET-FACIA END LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6982900	FINISHER-INSTRUMENT PACK RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8382906	UNDERSCUTTLE PASS. ASSY TRIMMED RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8382910	UNDERSCUTTLE DRV ASY TRIMMED RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8383375	FINISHER TOP PNL ASY -RHD - AUTO	Enquire	To Order
	8383376	FINISHER TOP PNL ASY -LHD-AUTO	Enquire	To Order
	8383374	Console top finisher - manual	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6983367	FOAM STRIP-1445 mm	Enquire	To Order
	6983173	ASHTRAY ASSY COMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6983377	PANEL FRONT CONSOLE SURND ASSY	Enquire	To Order
	8090046	FRONT PANEL- CONSOLE SURROUND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8090018	CONSOLE BADGE- ASTON MARTIN	Enquire	To Order
	697290	PUSH ON FIXER-M3	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	8382907	UNDERSCUTTLE PASS. ASSY TRIMMED LHD	8382907 UNDERSCUTTLE PASS. ASSY TRIMMED LHD LHD. Advise trim colour required	-	1	Enquire
-	8382911	UNDERSCUTTLE DRV ASY TRIMMED LHD	8382911 UNDERSCUTTLE DRV ASY TRIMMED LHD LHD. Advise trim colour required	-	1	Enquire
-	6982873	Facia support tube assembly, complete	6982873 Facia support tube assembly, complete LHD. Advise trim colour required	-	1	Enquire
-	8382886	Glovebox lid outer, complete	8382886 Glovebox lid outer, complete LHD. Advise trim colour required	-	1	Enquire
-	8383344	FACIA MLDG TRMD LHD	8383344 FACIA MLDG TRMD LHD LHD. Advise trim colour required	-	1	Enquire
-	6983770	CHECKARM INN.G/B LHD	6983770 CHECKARM INN.G/B LHD LHD	-	1	Enquire
-	6983772	CHECKARM OUTR GB LHD	6983772 CHECKARM OUTR GB LHD LHD	-	1	Enquire
-	6982882	FACIA FACING PANEL ASY LHD	6982882 FACIA FACING PANEL ASY LHD LHD	-	1	Enquire
-	6982901	FINISHER-INSTRUMENT PACK LHD	6982901 FINISHER-INSTRUMENT PACK LHD LHD	-	1	Enquire
-	6982899	BRACKET-FACIA END RH	6982899 BRACKET-FACIA END RH LHD	-	1	Enquire
-	6983373	Glovebox lid inner	6983373 Glovebox lid inner LHD	-	1	Enquire
-	6983180	Glovebox liner	6983180 Glovebox liner LHD	-	1	Enquire
-	6982875	BRACKET ASSY FACIA SUPPORT RH	6982875 BRACKET ASSY FACIA SUPPORT RH	-	1	Enquire
-	6982894	Mounting plate, glovebox lock	6982894 Mounting plate, glovebox lock	-	1	Enquire
-	8972290	IN CAR SENSOR	8972290 IN CAR SENSOR	-	1	Enquire
1	8383342	FACIA MLDG TRMD-RHD	8383342 FACIA MLDG TRMD-RHD RHD. Advise trim colour required	-	1	Enquire
2	6982872	TUBE COMP ASSY FACIA SUPRT RHD	6982872 TUBE COMP ASSY FACIA SUPRT RHD RHD. Advise trim colour required	-	1	Enquire
3	6982874	Reinforcement, glovebox aperture	6982874 Reinforcement, glovebox aperture	-	1	Enquire
10	6982881	FACIA FACING PANEL ASY RHD	6982881 FACIA FACING PANEL ASY RHD RHD	-	1	Enquire
11	6983179	GLOVEBOX LINER RHD	6983179 GLOVEBOX LINER RHD RHD	-	1	Enquire
12	8382885	GLOVEBOX LID OUTER COMPLETE RHD	8382885 GLOVEBOX LID OUTER COMPLETE RHD RHD. Advise trim colour required	-	1	Enquire
13	6983181	Glovebox lid inner	6983181 Glovebox lid inner RHD	-	1	Enquire
14	6983769	CHECKARM INN.G/B RHD	6983769 CHECKARM INN.G/B RHD RHD	-	1	Enquire
15	6983771	CHECKARM OUTR GB RHD	6983771 CHECKARM OUTR GB RHD RHD	-	1	Enquire
27	6982898	BRACKET-FACIA END LH	6982898 BRACKET-FACIA END LH RHD	-	1	Enquire
35	6982900	FINISHER-INSTRUMENT PACK RHD	6982900 FINISHER-INSTRUMENT PACK RHD RHD	-	1	Enquire
41	8382906	UNDERSCUTTLE PASS. ASSY TRIMMED RHD	8382906 UNDERSCUTTLE PASS. ASSY TRIMMED RHD RHD. Advise trim colour required	-	1	Enquire
42	8382910	UNDERSCUTTLE DRV ASY TRIMMED RHD	8382910 UNDERSCUTTLE DRV ASY TRIMMED RHD RHD. Advise trim colour required	-	1	Enquire
46	8383375	FINISHER TOP PNL ASY -RHD - AUTO	8383375 FINISHER TOP PNL ASY -RHD - AUTO RHD. Veneered	-	1	Enquire
46	8383376	FINISHER TOP PNL ASY -LHD-AUTO	8383376 FINISHER TOP PNL ASY -LHD-AUTO LHD. Veneered	-	1	Enquire
46	8383374	Console top finisher - manual	8383374 Console top finisher - manual Veneered	-	1	Enquire
50	6983367	FOAM STRIP-1445 mm	6983367 FOAM STRIP-1445 mm Cut to length	-	1	Enquire
50	6983173	ASHTRAY ASSY COMP	6983173 ASHTRAY ASSY COMP	-	1	Enquire
51	6983377	PANEL FRONT CONSOLE SURND ASSY	6983377 PANEL FRONT CONSOLE SURND ASSY Up to (V) 100662	-	1	Enquire
51	8090046	FRONT PANEL- CONSOLE SURROUND	8090046 FRONT PANEL- CONSOLE SURROUND From (V) 100663	-	1	Enquire
53	8090018	CONSOLE BADGE- ASTON MARTIN	8090018 CONSOLE BADGE- ASTON MARTIN From (V) 100663	-	1	Enquire
53	697290	PUSH ON FIXER-M3	697290 PUSH ON FIXER-M3 From (V) 100663	-	2	Enquire
