Find Your Part

Bonnet of Aston Martin Aston Martin DB7 (1995)

View All

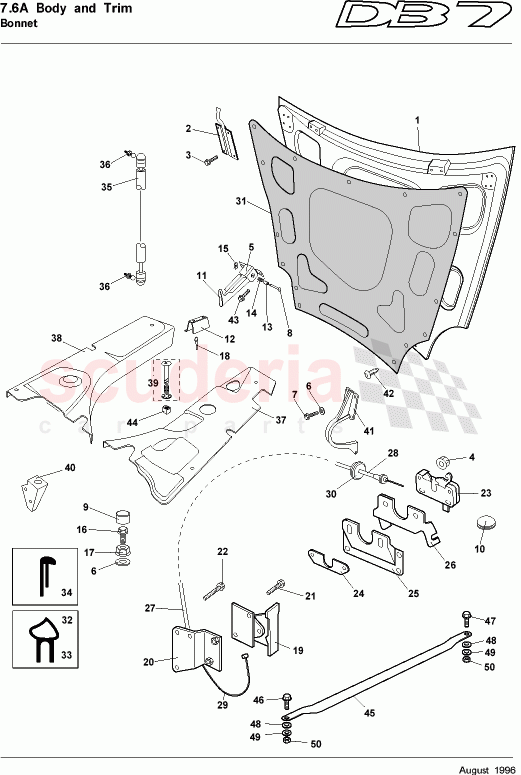

Aston Martin DB7 (1995) - Bonnet

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	64121869AA	BONNET ASSY-6cyl DB7	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6483192	BONNET LATCH MTG BRACKET RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6482501	Grommet	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8583867	BONNET LINER	Enquire	To Order
	8583867	BONNET LINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7790054	SEAL - BONNET REAR	Enquire	To Order
	7790054	SEAL - BONNET REAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7783284	SEAL-SIDE BONNET	Enquire	To Order
	7783284	SEAL-SIDE BONNET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7783392	SEAL-BONNET FRONT	Enquire	To Order
	7783392	SEAL-BONNET FRONT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6183245	PANEL -ENGINE BAY RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6480766	BONNET HINGE ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697669	FASTENER RECEPTACLE DZUS 336 200 190	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8383838	Brace, dash to valance - RH	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	9783792	LABEL- MADE IN BRITAIN (UNION JACK FLAG)	9783792 LABEL- MADE IN BRITAIN (UNION JACK FLAG) Gulf states only	-	1	Enquire
-	9784570	CERTIFICATION LABEL	9784570 CERTIFICATION LABEL Gulf states only	-	1	Enquire
-	64121869AA	BONNET ASSY-6cyl DB7	64121869AA BONNET ASSY-6cyl DB7 From (V)100663	-	1	Enquire
-	6182511	PANEL -ENGINE BAY RH SIDE LH DRIVE	6182511 PANEL -ENGINE BAY RH SIDE LH DRIVE LHD	-	1	Enquire
-	6182512	PANEL -ENGINE BAY LH SIDE LH DRIVE	6182512 PANEL -ENGINE BAY LH SIDE LH DRIVE LHD	-	1	Enquire
-	6483193	BONNET LATCH MTG BRACKET LH	6483193 BONNET LATCH MTG BRACKET LH	-	1	Enquire
-	8383839	Brace, dash to valance - LH	8383839 Brace, dash to valance - LH	-	1	Enquire
-	7783393	SEAL ASSY- BONNET FRONT	7783393 SEAL ASSY- BONNET FRONT	-	1	Enquire
-	9783789	LABEL-VACUUM HOSE ROUTING	9783789 LABEL-VACUUM HOSE ROUTING	-	1	Enquire
-	9783787S	VIN PLATE-STAMPED	9783787S VIN PLATE-STAMPED	-	1	Enquire
-	9783788	`E' LABEL	9783788 `E' LABEL	-	1	Enquire
-	6482515	VELCRO LOOPS	6482515 VELCRO LOOPS	-	2	Enquire
-	6482514	VELCOIN-HOOK & LOOP SET BLACK	6482514 VELCOIN-HOOK & LOOP SET BLACK	-	2	Enquire
-	697274PK	TIE STRAP(PK OF 100)	697274PK TIE STRAP(PK OF 100)	-	6	Enquire
1	64121869AA	BONNET ASSY-6cyl DB7	64121869AA BONNET ASSY-6cyl DB7 Up to (V)100662	-	1	Enquire
25	6483192	BONNET LATCH MTG BRACKET RH	6483192 BONNET LATCH MTG BRACKET RH	-	1	Enquire
30	6482501	Grommet	6482501 Grommet Part of cable sleeve assembly	-	1	Enquire
31	8583867	BONNET LINER	8583867 BONNET LINER Up to (V)100662	-	1	Enquire
31	8583867	BONNET LINER	8583867 BONNET LINER From (V)100663	-	1	Enquire
32	7790054	SEAL - BONNET REAR	7790054 SEAL - BONNET REAR Up to (V)100257	-	1	Enquire
32	7790054	SEAL - BONNET REAR	7790054 SEAL - BONNET REAR From (V)100258	-	1	Enquire
33	7783284	SEAL-SIDE BONNET	7783284 SEAL-SIDE BONNET Up to (V)100218	-	2	Enquire
33	7783284	SEAL-SIDE BONNET	7783284 SEAL-SIDE BONNET From (V)100219	-	2	Enquire
34	7783392	SEAL-BONNET FRONT	7783392 SEAL-BONNET FRONT Up to (V)100264	-	1	Enquire
34	7783392	SEAL-BONNET FRONT	7783392 SEAL-BONNET FRONT From (V)100265	-	1	Enquire
38	6183245	PANEL -ENGINE BAY RH	6183245 PANEL -ENGINE BAY RH RHD	-	1	Enquire
41	6480766	BONNET HINGE ASSY	6480766 BONNET HINGE ASSY	-	2	Enquire
44	697669	FASTENER RECEPTACLE DZUS 336 200 190	697669 FASTENER RECEPTACLE DZUS 336 200 190	-	4	Enquire
45	8383838	Brace, dash to valance - RH	8383838 Brace, dash to valance - RH	-	1	Enquire
